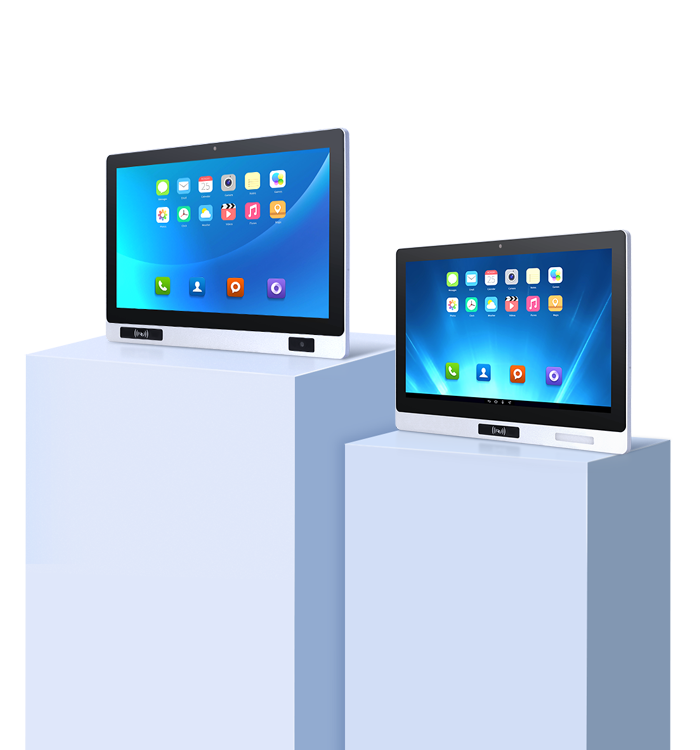

Industiral Panel Mount android Tablet
TouchThink Industiral Panel Mount android Tablet is designed with an ultra-thin front panel, and robust housing design, engineered to endure extreme temperatures, wilgoć, dust, i wibracje, offers a combination of robustness, performance, and versatility, enabling efficient and reliable operation in industrial settings while supporting the integration of modern computing technologies into industrial workflows.
- Super Thin Front Bezel, Best for Industrial Embedded Cabinet.
- High precision aluminum alloy material,efficient heat dissipation performance.
- Pure flat panel IP65, anti-vibration, dust-proof, waterproof.
- Opracowana samodzielnie przemysłowa płyta główna oparta na architekturze ARM,Built-in independent NPU with 6TOPS AI computing power.
- Adapt to dust oil pollution, water mist, strong electromagnetic and high frequency vibration and other complex heavy industry environment.
- Dostarcz pakiet SDK, Wspieraj rozwój wtórny i dostosowywanie aktualizacji
Get Best Quote
TouchThink Industiral Panel Mount android Tablet:
( Factory Price: $150~$360 )
( Factory Price: $150~$360 )
Wymagane pola są zaznaczone *, Odpowiemy w środku 12 godziny.
Industiral Panel Mount android Tablet Sizes and User Cases
TouchThink Industiral Panel Mount android Tablet sizes range from 7 inches to 24 inches, and are available in various Industrial applications.
7.0 calIndustiral Panel Mount android TabletUsed in Power Cabinet
8.0 calIndustiral Panel Mount android TabletUsed in Industrial Package
10.1 calIndustiral Panel Mount android TabletEmbedded in CNC Machine
10.4 calIndustiral Panel Mount android TabletUsed in Industrial Robot
11.6 calIndustiral Panel Mount android TabletUsed in Open Frame Machine
12.0 calIndustiral Panel Mount android TabletUsed in Manufacturing Floor
12.1 calIndustiral Panel Mount android Tabletfor Industrial Automation
13.3 calIndustiral Panel Mount android Tabletfor Machine Testing
15.0 calIndustiral Panel Mount android Tabletfor Industrial Control
15.6 calIndustiral Panel Mount android TabletUsed In Production Floor
17.0 calIndustiral Panel Mount android TabletUsed In Laser Cutting
17.3 calIndustiral Panel Mount android TabletEmbedded In Telecom Cabinet
18.5 calIndustiral Panel Mount android Tabletfor Aviation Testing
19.0 calIndustiral Panel Mount android TabletUsed In heavy Machine
19.1 calIndustiral Panel Mount android TabletEmbedded In 3D printer
21.5 calIndustiral Panel Mount android TabletFor Industrial Vision
23.8 calIndustiral Panel Mount android TabletFor Industrial Automation
Industiral Panel Mount android Tablet Parameters
The following product parameters are for reference only, please refer to the actual products.
| Rozmiar produktu | Rezolucja | Współczynnik proporcji | Jasność | Overall size | Cabinet Hole Size |
|---|---|---|---|---|---|
| 7.0″ | 1024*600 | 16:9 | 330cd/㎡ | 225.1*160.7*59mm | 213.9*149.5mm |
| 8.0″ | 1024*768 | 4:3 | 250-300cd/㎡ | 225.5*185*64.5mm | 214.3*173.8mm |
| 10.1″ | 800*1280/1280*800 | 16:10 | 300cd/㎡ | 293.6*193.6*48.5mm | 277.5*177.5mm |
| 10.4″ | 1024*768 | 4:3 | 400cd/㎡ | 288*231*50.5mm | 274*217mm |
| 11.6″ | 1920*1080 | 16:9 | 220-300cd/㎡ | 323.7*218.5*50.5mm | 312.7*207.5mm |
| 12.0″ | 1024*768 | 4:3 | 500cd/㎡ | 319*257*56.5mm | 306.1*244.6mm |
| 12.1″ | 1280*800 | 16:10 | 350cd/㎡ | 330*227.3*53.5mm | 317*214.8mm |
| 13.3″ | 1920*1080 | 16:9 | 220-300cd/㎡ | 373.6*245.2*57mm | 358.4*230mm |
| 15.0″ | 1024*768 | 4:3 | 350cd/㎡ | 378*300*63.6mm | 365*285mm |
| 15.6″ | 1920*1080 | 16:9 | 300cd/㎡ | 420*269*70mm | 405*254mm |
| 17.0″ | 1280*1024 | 5:4 | 250-300cd/㎡ | 414*345*63mm | 399.5*330.5mm |
| 17.3″ | 1920*1080 | 16:9 | 400cd/㎡ | 458*291*62mm | 442*275mm |
| 18.5″ | 1920*1080 | 16:9 | 300cd/㎡ | 486.5*307.4*67mm | 471*292mm |
| 19.0″ | 1280*1024 | 5:4 | 250-300cd/㎡ | 451*380*63mm | 436.7*365.7mm |
| 19.1″ | 1440*900 | 16:10 | 250-300cd/㎡ | 486*332*63mm | 471.5*317.5mm |
| 21.5″ | 1920*1080 | 16:9 | 250-300cd/㎡ | 558*345*63mm | 542.5*330.5mm |
| 23.8″ | 1920*1080 | 16:9 | 250-300cd/㎡ | 606*376*67mm | 590.8*360.8mm |
| Industiral Panel Mount android Tablet CPU Optional | |
|---|---|
| CX3588-A | RK3588 2.1 GHz, Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | CX3399-A | RK3399 2.0 GHz, Dual-Core Cortex-A72 + Quad-Core Cortex-A53 |
| CX3568-A | RK3568, Czterordzeniowa 64-bitowa architektura rdzenia Cortex-A55, Do 2,0 GHz |
| CX3588-G | RK3588, Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55) at 2.4GHz |
| CX3288-I | RK3288, Cortex-A17 quad-core, 1.8GHz |
| A64 | Quanzhi A64 Cortex-A53 quad-core 64-bit CPU, Main frequency 1.5GHz |
| Industiral Panel Mount android Tablet Hardware Configuration | |
|---|---|
| Pamięć | 4GB LPDDR4 (Optional 8GB/16GB/32GB, Supports up to 32GB) | Składowanie | 64GB eMMC (Optional 128GB/256GB/512GB/1TB Supports up to 1TB) |
| GPU | ARM Mali G610 MP4 |
| NPU | Built-in NPU with 6TOPS AI computing power |
| WiFi | Support WIFI6, Dual-band 2.4G/5G |
| Bluetooth | Support Bluetooth 5.0 |
| System operacyjny | Android 13.0, Ubuntu/Debian/Linux |
| Industiral Panel Mount android Tablet Reliability Parameters | |
|---|---|
| Temperatura pracy | -10°C~60°C |
| Temperatura przechowywania | -20°C~70°C |
| Wilgotność względna | Wilgotność: 95% Bez kondensacji |
| Ochrona przed wibracjami | IEC 60068-2-64, losowy, 5 ~ 500 Hz, 1 godz./oś |
| Ochrona przed uderzeniami | IEC 60068-2-27, Połowa fali sinusoidalnej, Trwałość przez 11 ms |
| Certyfikacja produktu | CCC/CE/FCC/EMC/CB/ROHS |
| Stopień wodoodporności | Panel przedni osiąga stopień ochrony IP65 |
| Industiral Panel Mount android Tablet Power Parameters | |
|---|---|
| Power Input | Napięcie stałe 12 V ~ 36 V |
| Static Power | 18W |
| Industiral Panel Mount android Tablet Touch Parameters | |||
|---|---|---|---|
| Typ dotykowy | Pojemnościowy ekran dotykowy | Ekran dotykowy oporowy | Bezdotykowy |
| Punkt dotykowy | 10-punktowa projekcja dotykowa | Pojedynczy punkt | / |
| Przepuszczalność | ≥88% | ≥78% | ≥92% |
| Tryb wprowadzania | Pismo ręczne lub Pióro pojemnościowe | Opuszek palca lub rysik | / |
| Komunikacja kontrolera | USB | USB | / |
Touchscreen Technology
Capacitive,resistive touchscreen, or mouse control potions for user-friendly interfaces, Multi-touch funcitonality for intuitive control and operation.
Industiral Panel Mount android Tablet Interface Parameters
The images below show the detailed interface locations and interface parameters about TouchThink Industiral Panel Mount android Tablet.
| Industiral Panel Mount android Tablet Interface Parameters | |
|---|---|
| Grounding column | Wsparcie (1*GND) |
| Interfejs zasilania | 1*DC2.1, Obsługa szerokiego napięcia zasilania 12 V-36 V |
| Terminale przemysłowe | 1*12Terminal P Phoenix (Zasilanie/RS232*1/RS485*1/CAN*1/GPIO*3) |
| HDMI | 1*HDMI, Support HDMI data input, With a maximum of 1080P |
| USB | 2*USB (1*USB2.0,1*OTG) |
| SIM | 1*SIM, Obsługa różnych formatów (W zależności od modułu 3G/4G) |
| Interfejs sieciowy | 2*LAN (1*100M, 1*1000M) |
| Interfejs audio | 1*We/wy audio, Obsługa wejścia i wyjścia audio |
| KOM | Wsparcie (1*UBOOT) |
| Zresetuj klucz | 2*LAN (1*100M, 1*1000M) |
Industiral Panel Mount android Tablet Installation Methods
TouchThink Industiral Panel Mount android Tablets support a variety of installation methods, including desktop installation, wall-mounted installation, rack-mounted installation, embedded installation, itp.
Panel MountUsed in embedded industrial cabinets
Embedded InstallationUsed in Industrial automation control
Rack MountingUsed in Power cabinet
Wall-MountedUsed in Heavy Industrial Workshop
VESA MountUsed in Manufacturing Production Line
Open Frame MountingUsed in open frame Machine
Desktop MountUsed in Production Workshop
Suspended Mountingfor Large Machinery
Industiral Panel Mount android Tablet Installation Accessories
TouchThink provides a variety of installation accessories for the installation of Industiral Panel Mount android Tablets, Some are provided with the machine, and some need to be purchased separately, as detailed below.
Desktop Mount
Desktop Mount
Embedded Buckles
Embedded iron sheets
Wall Mount Brackets
Wall Mount Brackets
Wall Mount Brackets
Cantilever bracket
Boom Bracket
Wall Recessed Bracket
Open Frame Bracket
Industiral Panel Mount android Tablet Deep Customizations
In order to adapt to various harsh and complex industrial environments, we provide Industiral Panel Mount android Tablets that can be deeply customized according to actual needs.
| Deep Customization | |
|---|---|
| Monitor’s Wide Temperature | The wide temperature range can be upgraded to: -30°C~80°C |
| Monitor’s High Brightness | Can be upgraded to: 1500 nits |
| Full Vision | Can be upgraded to full vision LCD screen |
| Anti-glare AG Monitor | Upgraded with anti-glare AG touch screen |
| Anti-UV Monitor | Upgraded with anti-UV touch screen |
| Full Fit Monitor | Industiral Panel Mount android Tablet can be upgraded with frame stickers and full fit |
| LOGO | Customizable machine LOGO and startup LOGO |
| Phoenix Terminal | Upgradeable power supply Phoenix terminal |
| USB/232 Interface | USB or 232 Ports can be added |
| Aviation interface | Upgradeable interface to aviation interface |
| Motherboard configuration | DDR/EMMC/WIFI chip can be upgraded/removed interface type, itp. |
| Upgradeable wide-voltage input | 3568-A/3399-L/3588-G are all wide-voltage 12~36V inputs |
| 4G Module and GPS | 4G module and GPS can be upgraded; |
| CAN Interface | The CAN interface can be upgraded. |
| Camera | Add 100W or 500W camera to the machine |
| Built-in power supply | Upgradeable built-in power supply |
| POE power supply | Can be Upgradeable |
