32 Inches VESA/Wall-mounted Industrial Monitor 100-240V Input & 1200CD / m2 with On-Screen Display Button
- 2.5mm Ultra-Slim Narrow Bezel Panel, Designed for Cabinet Equipment. VESA and wall mouting is alternative.
- IP65 protection rating, supports wide-temperature & wide-voltage.
- Self-developed display driver board with multiple touch method options.
- Schutz in Industriequalität, suitable for various harsh environments.
- Supports VGA/HDMI/DP inputs with automatic signal channel identification.
TPC320-M3000-1

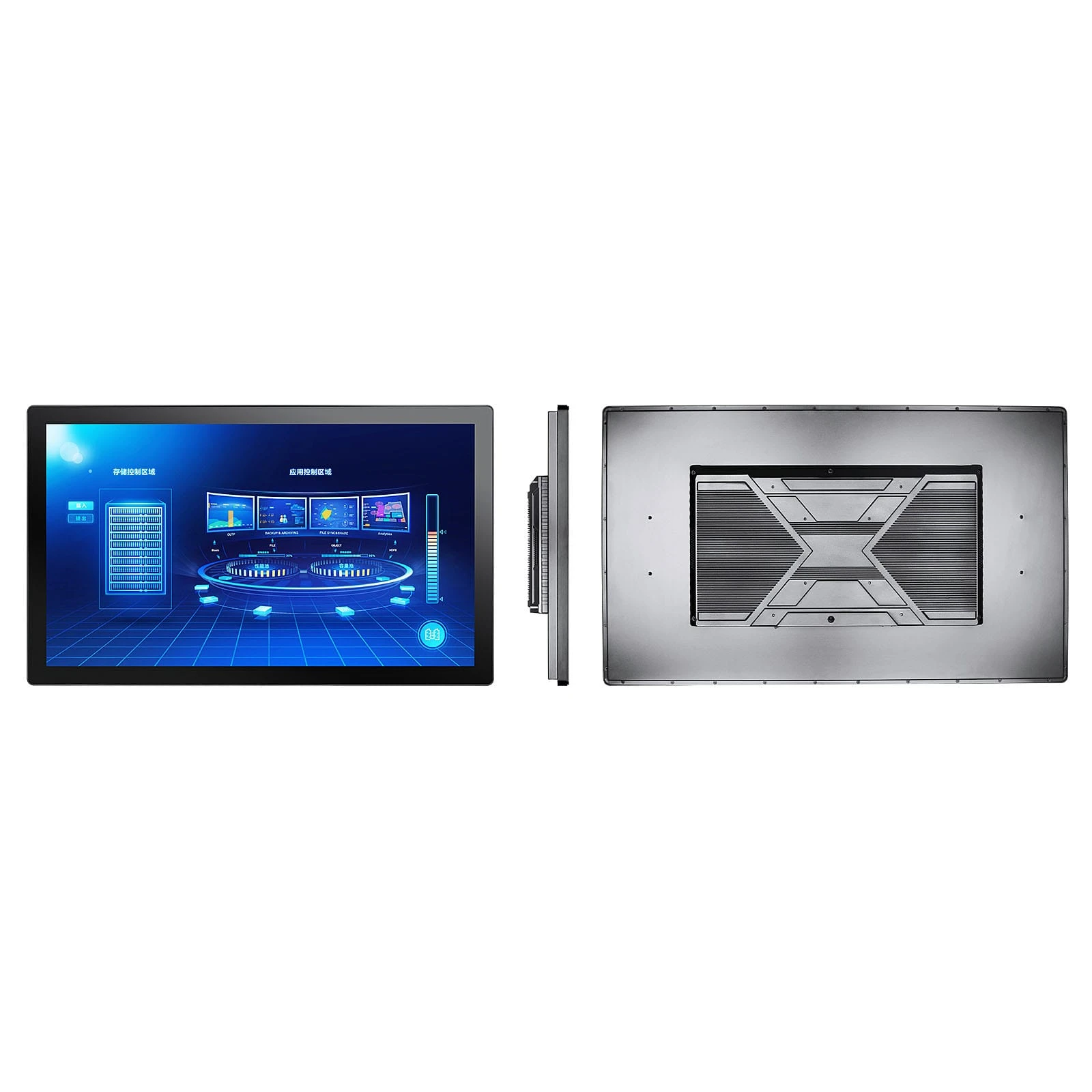

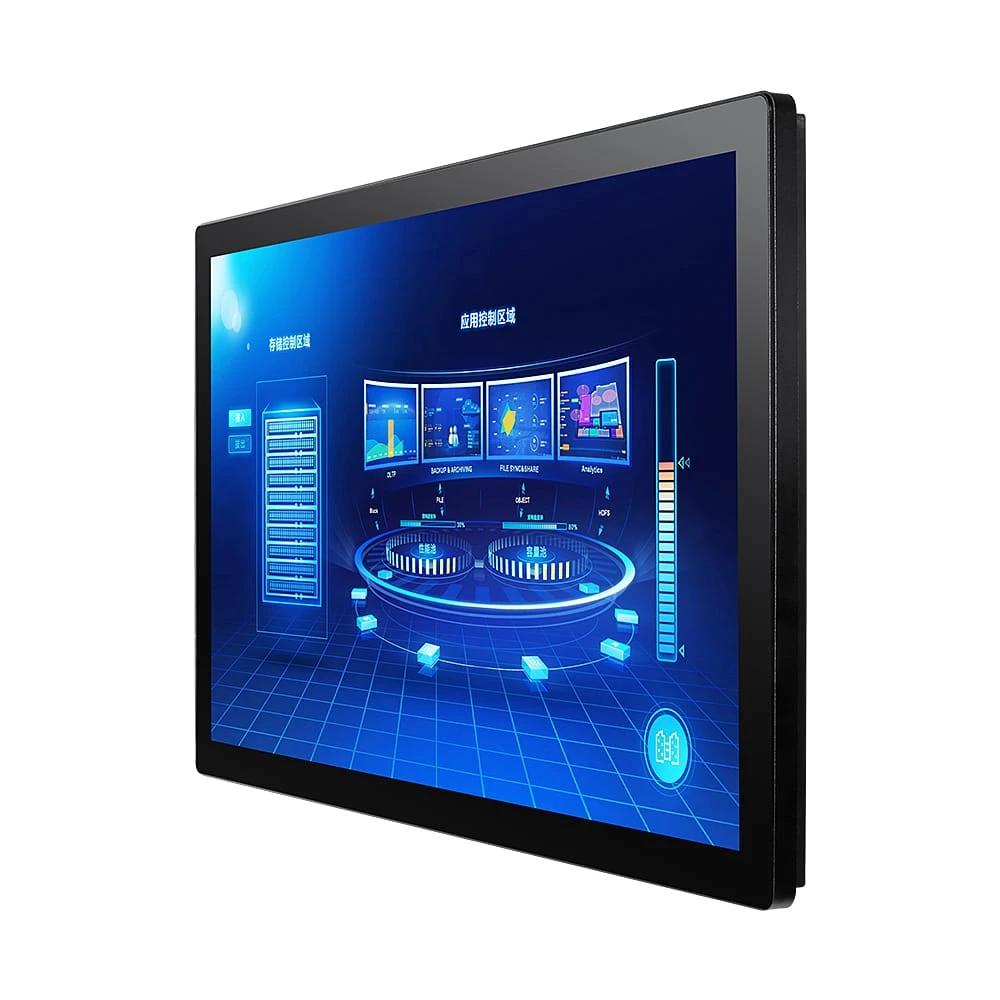

The unit features a 2.5mm low-profile narrow-bezel panel design, specifically engineered for embeddedVESA/wall-mounting application. It supports VGA, HDMI, and DP display input interfaces.With an IP65-rated flush front panel and aluminum alloy die-cast housing, it delivers comprehensive isolation, heat dissipation, and robust protection, ensuring reliable support for industrial production.
Gemeinsame Konfiguration | |

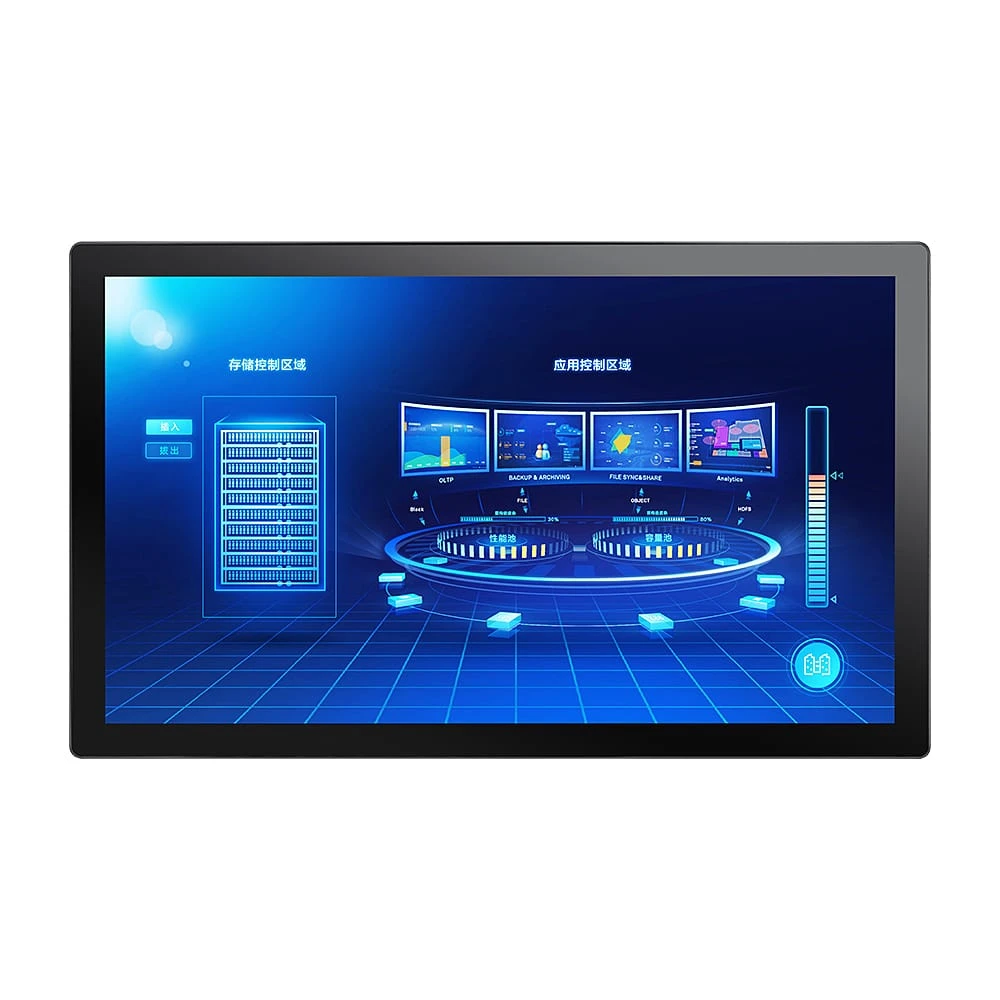

Display Type | 32″ TFT LCD Screen |
Max resolution | 1920×1080 (16:9) |
Betrachtungswinkel | 89/89/89/89(L/R/U/D) |
Leuchtdichte | 1200CD / m2 |
Kontrastverhältnis | 1200:1 |
Colors | Display 16.7M colors |
CPU | RTD2513BR |

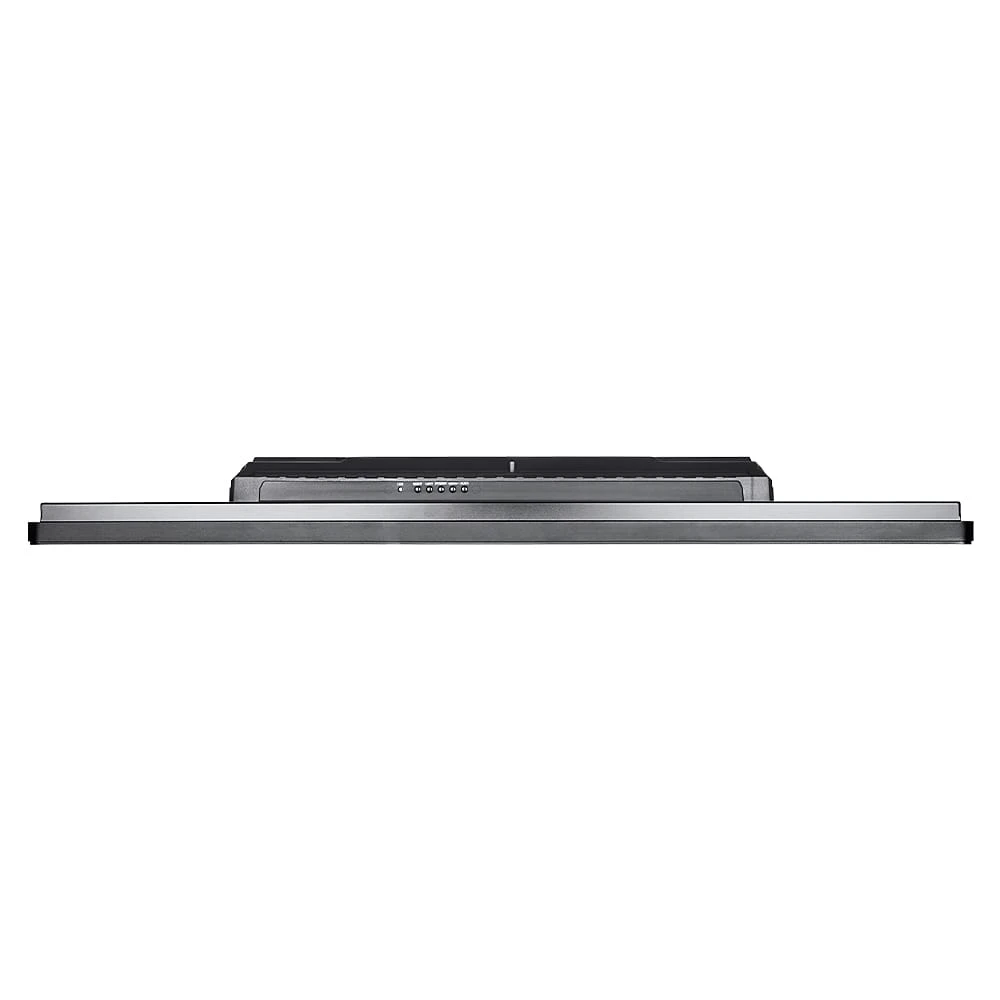

OSD Buttons | AUTO, SPEISEKARTE, LEISTUNG, LINKS, RECHTS |
Menüsprachen | Mehrsprache (Standard Englisch) |
Videoeingang | PC-RGB:Format,Bis 1920*1080@60Hz |
PC-RGB:Farbe, 16bisschen,24bisschen,32bisschen | |

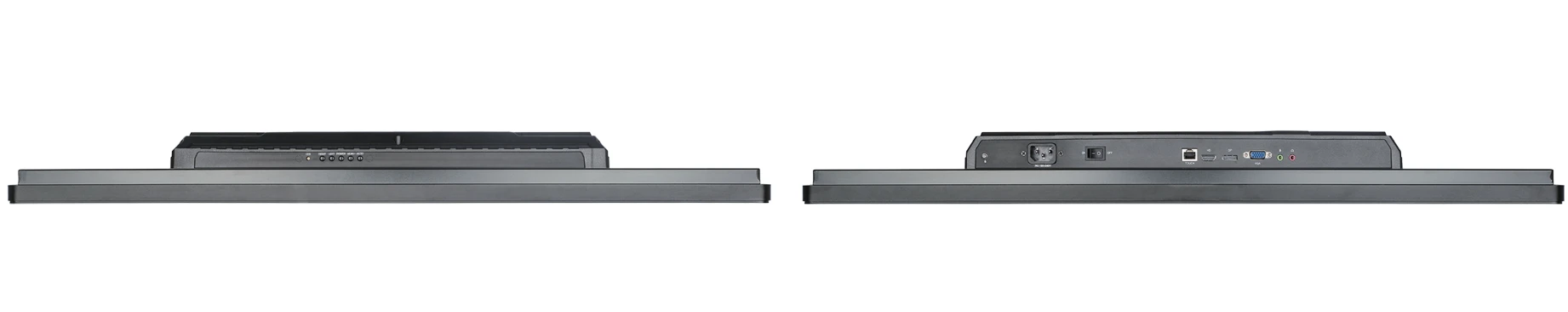

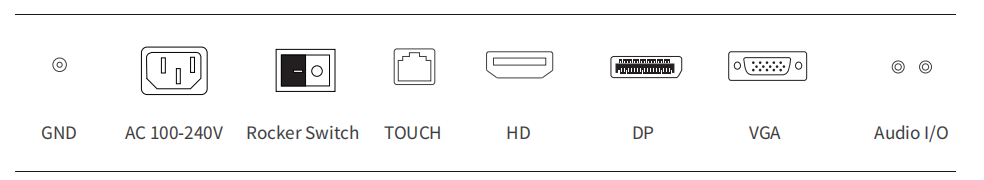

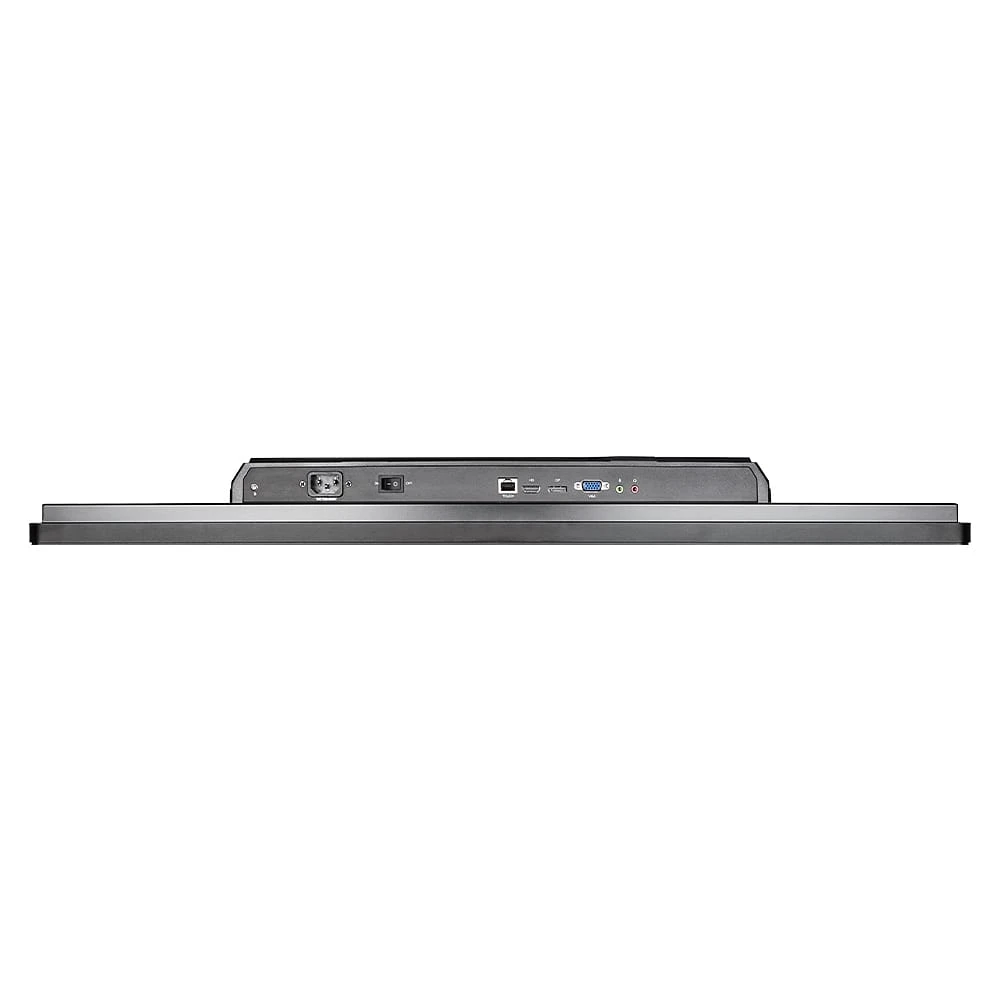

Schnittstellen | |
PowerSW | AC Power Socket, AC 100~240V, with Rocker Switch |
Stromschnittstelle | 1*12P Phoenix-Terminal (optional threaded DC 5.52.1mm connector) |
HDMI | 1*HDMI, Unterstützt HDMI-Dateneingang, Mit maximal 1080P |
VGA | 1*VGA |
Dp | 1*Dp |
BERÜHREN | 1*BERÜHREN (USB protocol) with RJ45-to-USB touch cable (std.) |
Audio I/0 | 1*AUDL0 1/0, Unterstützung von Audioeingang und Ausgabe; |
Erdung | 1*GND |
Tippen Sie auf Parameter | |
Touchscreen | Non-touch screen |
Zuverlässigkeitsparameter | |
Betriebstemperatur | -10°C~60°C(-20° C ~ 70 ° C kann angepasst werden) |
Lagertemperatur | -20°C~70°C |
Relative Luftfeuchtigkeit | 95% nicht kondensierend |
Andere Parameter | |
Leistungsaufnahme | AC100~240V |
Netzteil | 24V/1,5a |
Gesamtgröße | W763.6x H453.1x D74.5mm |
Installationsgröße | W759.6 x H453.1mm |

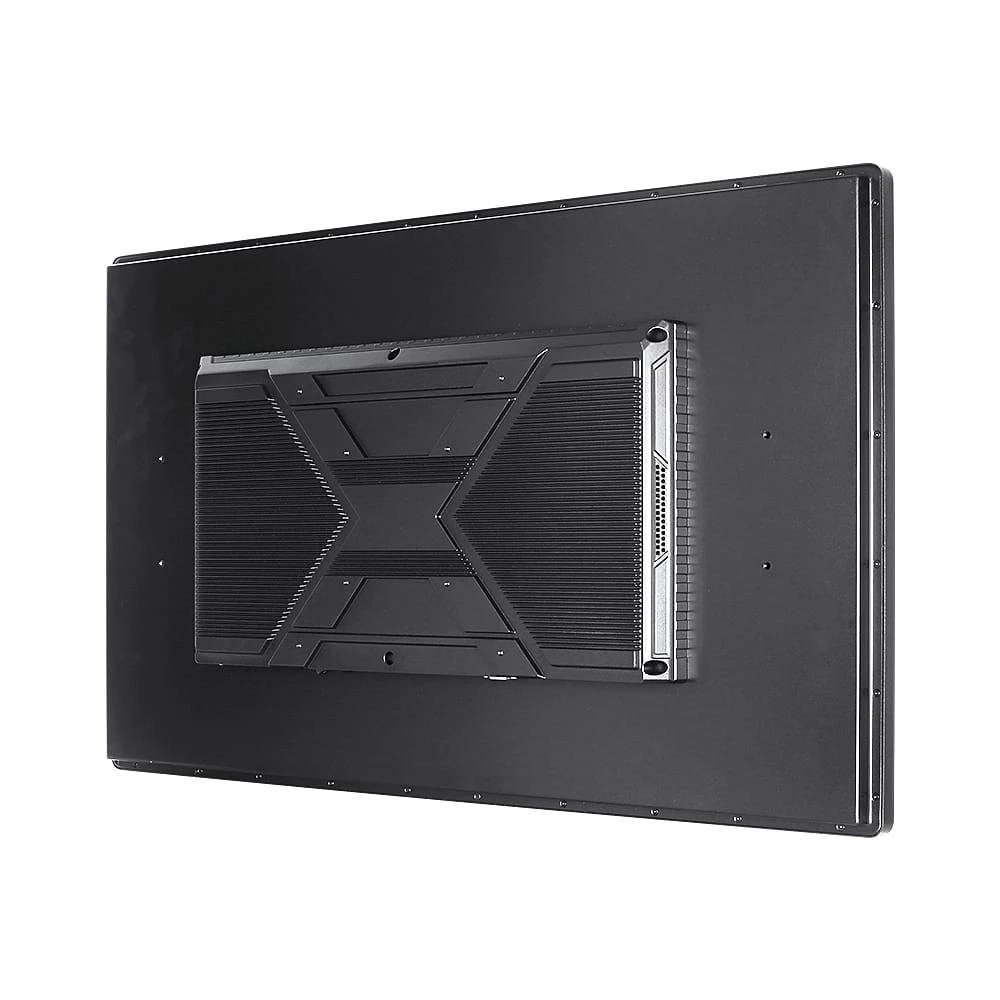

Body Properties | Körpermaterial: Aluminiumlegierung, Körperfarbe: Klassisches Schwarz, Technisches Silber |
Garantierichtlinie | Drei Jahre (ein Jahr kostenlose Garantie) |
Installationsmethode | Support Embedded, VESA or Wall Mounting(100×100) |
