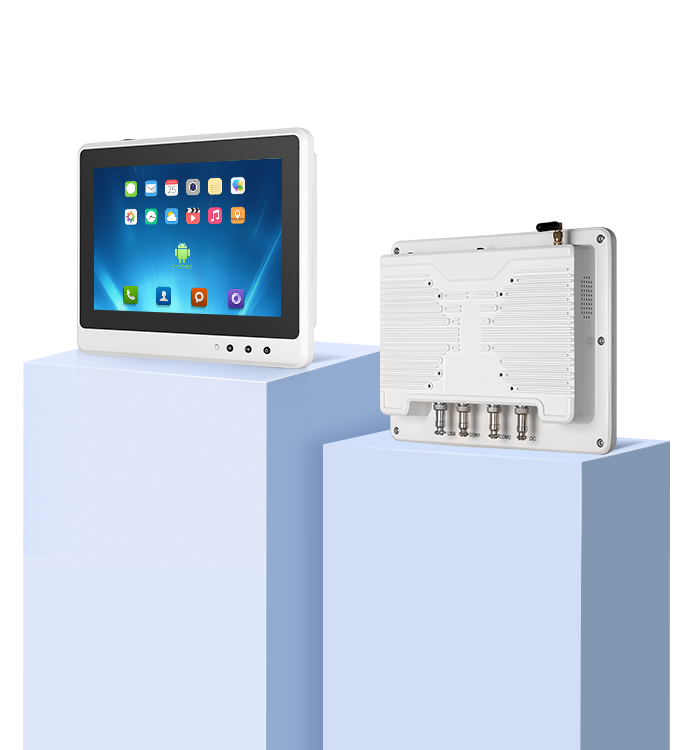

Medical S Series Android Panel PC
Medical S Series Android panel PC is a 10.1-inch compact and specialized medical cart panel PC with ARM architecture, designed for use in healthcare environments, particularly on medical carts. These panel PCs integrate a 10.1-inch touchscreen display with an ARM-based processor, offering a combination of performance, mobility, and functionality tailored for clinical workflows.
TouchThink S Series Medical Grade Android All-In-One Panel PC
| Product Size | Auflösung | Aspect Ratio | Contrast Ratio | Brightness | Schnelle Anfrage |
|---|---|---|---|---|---|
| 10.1″ | 1280*800 | 16:10 | 1000:1 | 300 cd/m2 | Inquiry Now |
| Product Features |
|---|
Technological Aesthetics Design
Upgraded Body Design
| Product Parameters | ||
|---|---|---|
| Hardware Parameters | CPU | RK3288 Cortex-A17 Quad-Core 1.8GHz/RK3399/RK3588 |
| Memory | 2G/4G/8G DDR4 Optional | |
| Lagerung | 32G/64G/128G/256G eMMC Optional | |
| OS | Android 7.1/10.0/12.0, Ubuntu18.04, Debian10.0, Linux4.4 | |
| GPU | ARM Mali-G52 MP2 | |
| Network Support | 4G, Ethernet, WiFi/Bluetooth support, wireless peripheral expansion | |
| Bildschirmparameter | Panel Type | Industrial control screen |
| Viewing Angle | Wide view / full view | |
| Backlight Type | LED, use time >=50000H | |
| Brightness | Brightness: 300cd/m2(can be customized =< 1500cd/m2) | |
| Display Color | 16.7M | |
| Contrast Ratio | 1000:1 |
| Tippen Sie auf Parameter | Projection capactivite touch Berührungspunkt: 10-point Light Transmittance: >=88% Eingabemodus: handwriting or capactivite pen Standard Protocol:USB | Resistive touch 4-5wire/5 Wire Berührungspunkt: single point Light Transmittance: >=78% Eingabemodus: Fingerspitze oder Stift Standard Protocol:USB | Nicht berührungslos Light Transmittance: >=92% | ||
| Schnittstellenparameter | DC Port | 1*DC2.1, Support 12V-36V wide voltage power supply |
| HDMI | High-definition audio digital signal transmission, support HDMI data input. | |
| SIM | 1*SIM, Supporting various formats (Depending on 3G/4G module) | |
| Network interface | 1*LAN, 10M/100M/1000M adaptives Ethernet | |
| VGA | 1*VGA | |
| Audio interface | 1*Audio-E/A, Unterstützt Audio-Eingabe und -Ausgabe |
| Environment Parameters | Arbeitstemperatur | -20°C~70°C |
| Lagertemperatur | -30°C~80°C | |
| ESD | Contact ±8KV, air ±15KV | |
| Shock Protection | IEC 60068-2-27, half sine wave, 11ms duration | |
| Relative Luftfeuchtigkeit | Luftfeuchtigkeit: 95% Nicht kondensierend | |
| Vibrationsschutz | IEC 60068-2-64, zufällig, 5 ~ 500 Hz, 1 Std./Achse | |
| Aufprallschutz | IEC 60068-2-27, Halbe Sinuswelle, Dauert 11 ms |
| Other Parameters | Leistungsaufnahme | DC 12V~36V |
| Static power | 18W | |
| Body Color | White, Black Optional | |
| Installationsmethode | Supports snap-embedded,wall edbedded,wall mounted,desktop,louvered,cantilever-mounted,boom-mounted,usw. | |
| Warranty Policy | Three years ( one year free warranty ) |
