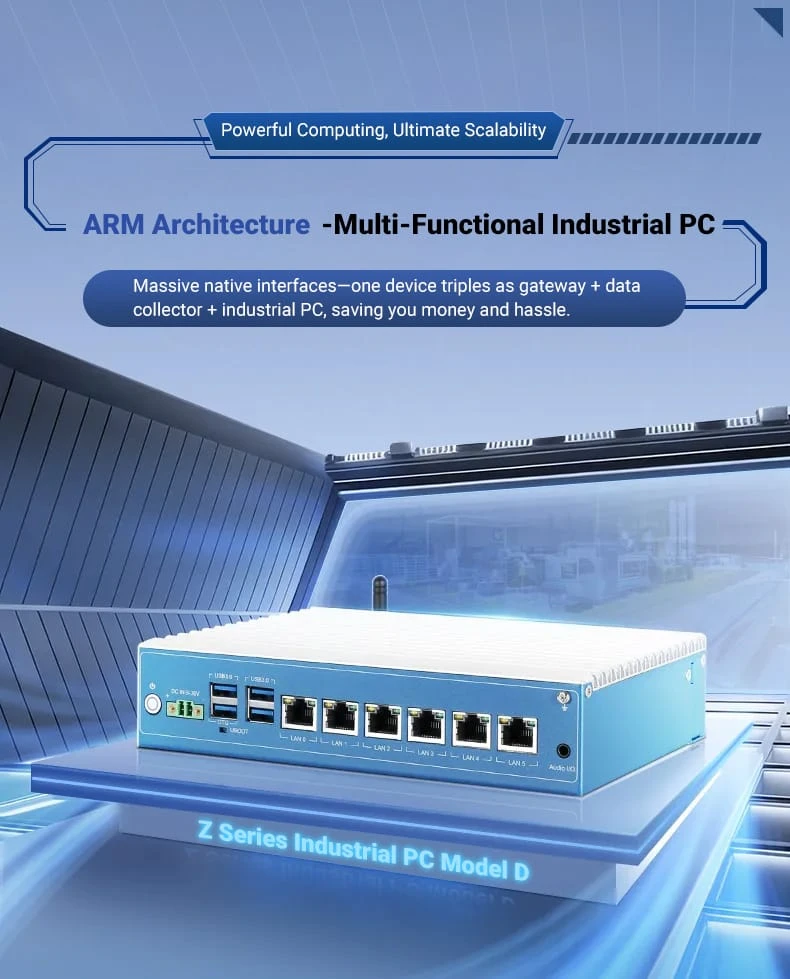

All'inizio di 2026, TouchThink Intelligent proudly launches its brand-new Z-Series Multi-Functional Industrial PC Model D — the TPC14-AIOT. Costruito per scenari applicativi complessi, questo PC industriale vanta una densità di interfaccia rivoluzionaria (dotato di più porte Ethernet, porte seriali e interfacce di visualizzazione), potente elaborazione intelligente (alimentato dalla CPU di punta octa-core RK3588 con 6 Tops Ai Computing Power), and industrial-grade reliability (featuring wide temperature range, wide voltage input and digital isolation). A single unit can replace the functions of multiple devices including gateways, router, interruttori e raccoglitori di dati, significantly simplifying system integration complexity. It delivers exceptional application flexibility and cost-effectiveness for scenarios such as industrial automation, energia & energia, Visione artificiale, security surveillance, and stage audio-visual systems.
Uninterrupted Powerful Intelligent Computing Performance
Equipped with the Rockchip® RK3588 octa-core flagship CPU boasting a clock speed of up to 2.4 GHz, plus a 6 Tops NPU, the TPC14-AIOT delivers robust integrated computing power and AI capabilities, providing ample computing support for edge computing and complex AI tasks. Preinstallato con Android 12 as the standard operating system, it also supports custom installations of Linux, Debian, Ubuntu and the domestically developed HarmonyOS. It offers API interfaces for secondary development, enabling more flexible system applications.
Ultra-Dense Digitally Isolated I/O
The TPC14-AIOT natively integrates a rich array of I/O interfaces including 8×USB, 6×HDMI and 6×LAN ports. Inoltre, three sets of industrial terminals on the side can be expanded to support up to 10 Con porte, 2 CAN ports and 8 GPIO channels. It enables simultaneous data acquisition and device control for PLCs, sensori, instruments and other equipment, making it particularly suitable for scenarios such as power monitoring and AI vision inspection production lines. It easily achieves efficient and synchronous acquisition and processing of multi-meter data and multi-industrial camera feeds.
All interfaces of the TPC14-AIOT are integrated with digital isolation technology, which resists on-site interference and greatly enhances system stability and device safety in harsh electrical environments.
Integrated Visual Processing Hub

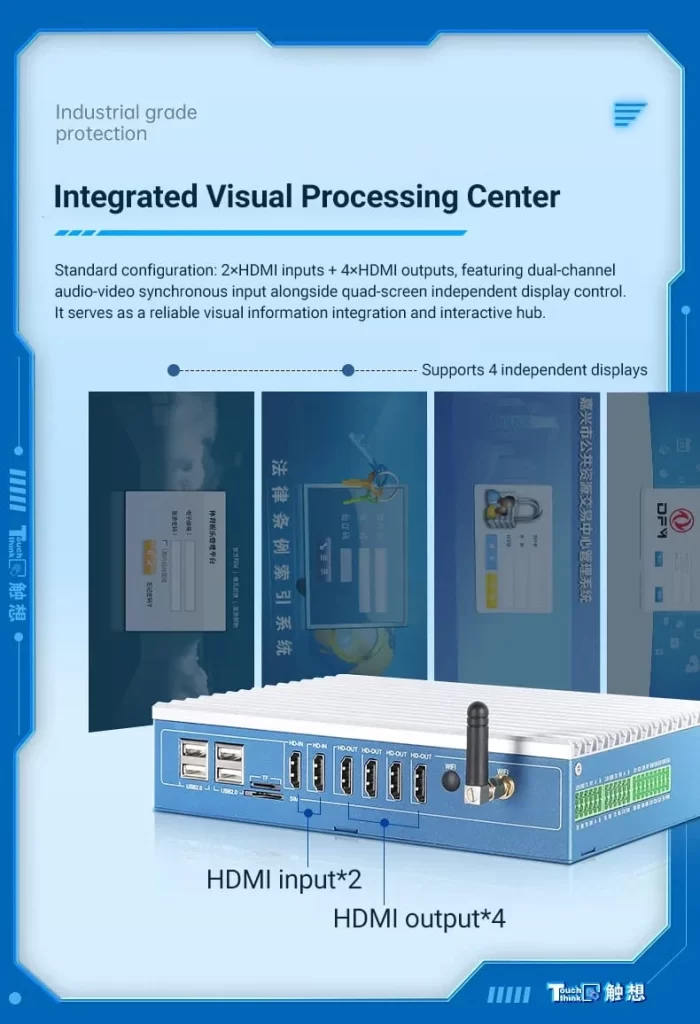

The TPC14-AIOT comes standard with 2×HDMI inputs and 4×HDMI outputs, boasting dual-channel high-definition video synchronous input and four-screen independent display control capabilities. It serves as a reliable hub for visual information integration and interaction.
Nel frattempo, leveraging the high-performance ARM Mali-G610 MC4 integrated GPU, the TPC14-AIOT supports 8K video encoding/decoding and 8K output, making it ideal for command centers, video conferences, audio-visual entertainment and other scenarios.
Six-Port High-Speed Network Connectivity

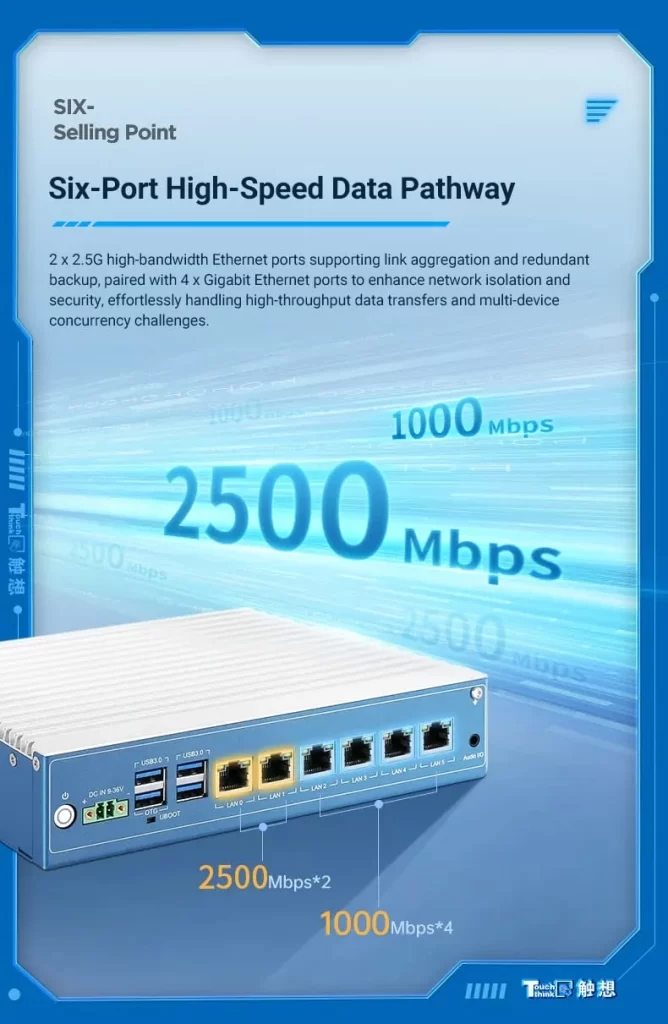

Equipped with 2×2.5G high-bandwidth Ethernet ports supporting link aggregation and redundant backup, the TPC14-AIOT is complemented by 4×Gigabit Ethernet ports that enhance network isolation and security. It easily handles the challenges of large-throughput data transmission and multi-device concurrency.
Rigorous Industrial-Grade Design
The TPC14-AIOT complies with stringent industrial-grade design standards, featuring a robust, compatto, fanless structure that ensures dust resistance and silent operation. Its passive cooling system, built with a dual copper tube and aluminum fin heat dissipation structure, supports an extended operating temperature range of -20℃ to 70℃, guaranteeing long-lasting, prestazione stabile e affidabile.
The TPC14-AIOT also incorporates multiple reliability protection features, including wide voltage input (DC 9–36V), anti-interference capability, ESD Level 4 electrostatic protection, vibration resistance and impact resistance, making it ideal for harsh industrial environments.
