Outdoor Smart Fitness Equipment | TouchThink High-brightness Touchscreen PC Brings “Intelligentization and digitalization” to National Fitness

Industry Application Overview

The issue of national health and fitness has become a hot topic in society. “Intelligentization and digitalization” are inevitable trends in the development of a public fitness service system.

Against the backdrop of the in-depth integration of national fitness and smart sports, high-brightness displays and touchscreen all-in-one PC, with their strong environmental adaptability and interactive expansibility, have become the core carriers to solve problems such as the single function and boring experience of traditional outdoor fitness equipment. Based on the characteristics of outdoor scenarios and fitness needs, this solution builds an integrated application scheme featuring “reliable hardware, diversified experience and intelligent management” from three core dimensions: core technology selection, scenario-based application design and system support system.

Fitness Equipment Display&Control PC Requirements

The displays or touchscreen PCs of Outdoor fitness equipment face multiple challenges such as direct exposure to strong sunlight, drastic changes in temperature and humidity, and erosion by wind, rain and sand. Equipment needs to achieve dual breakthroughs in display performance and environmental resistance.

Core Parameters of High Brightness Display

Brightness and Optical Optimization: High-brightness display with a peak brightness of 1000-2000 nits are adopted. Tra loro, equipment installed in areas with direct sunlight must have a brightness of over 1500 NITS, while equipment for cloudy days or shaded areas can use display with 800-1200 NITS. Three optical enhancement technologies are integrated:

• AR (Anti-Reflection) coating reduces the surface reflectivity to below 0.3%;
• AG (Anti-Glare) surface treatment achieves light diffusion;
• OCA (Optically Clear Adhesive) full lamination technology eliminates inter-layer air reflection, avoiding the “blinding white” visual interference.

Display Technology Adaptation: For equipment requiring dynamic interaction, high-refresh-rate TFT LCD screens are preferred, which support a refresh rate of over 60Hz to ensure no motion blur in sports-related visuals. For devices focused on static data display, transflective LCD screens can be used. These screens rely on backlighting in low-light conditions and utilize ambient light reflection for display in strong light, reducing power consumption by more than 30%.

Touch and Interaction Adaptation: IP65-rated waterproof and dustproof touch screens are used, supporting glove touch and wet-hand operation. Backup solutions of voice interaction and gesture control are also integrated to address scenarios where touch operation is inconvenient during exercise.

Enhanced Environmental Protection: The entire device meets the IP65 protection rating. The screen is equipped with a tempered glass cover (with a Mohs hardness of Grade 7 or higher), and the body features an aluminum alloy heat dissipation shell and a graphite heat dissipation film. It operates stably within a temperature range of -20℃ to 60℃ and adapts to a humidity range of 30%-95% (without condensation).

Power Optimization Configuration: IL “solar power supply + lithium battery energy storage” mode is prioritized, combined with a light-sensing function for automatic brightness adjustment, and the device automatically switches to low-power mode at night. For equipment connected to the municipal power grid, it must be equipped with overload protection and lightning protection designs.

Core Parameters of All-in-one PC Integrated OS

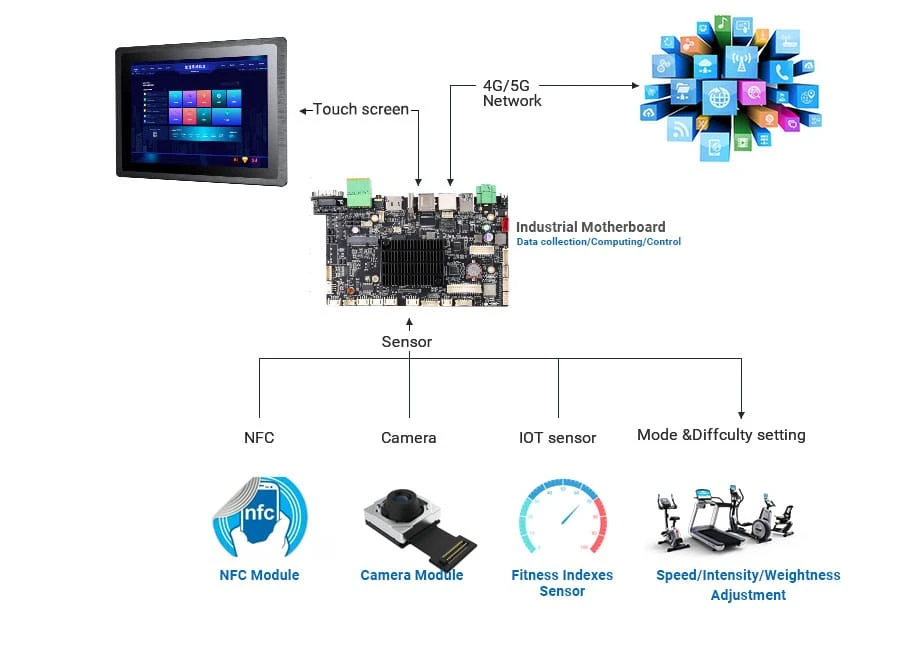

All-in-one PC need to achieve in-depth integration of “display – computing – sensing – networking” to meet intelligent requirements: Industrial-grade motherboards and low-power processors are adopted, integrating IoT sensor interfaces (supporting data collection such as heart rate and movement trajectory), NFC induction modules (for contactless login), and 4G/5G wireless communication modules to ensure real-time data transmission.

TouchThink Display&Control Products for Fitness Equipment

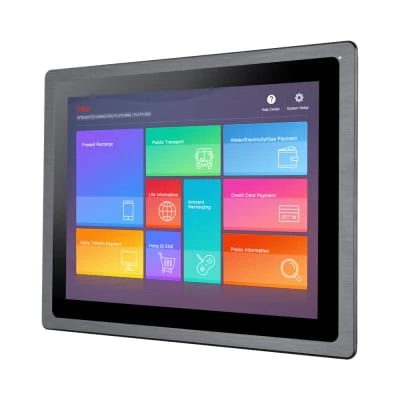

• 1000 nits anti-UV touch screen, brightness can be customized.
• Mohs H7 screen Integrated with AR/AG/OCR technology.
• La luminosità dello schermo può essere regolata, supporta la regolazione automatica della sensibilità e la regolazione manuale dei tasti.
• Rispettare lo standard EMC anti-interferenza elettromagnetica
• Protezione industriale, e adattarsi a vari ambienti difficili

More Details >>

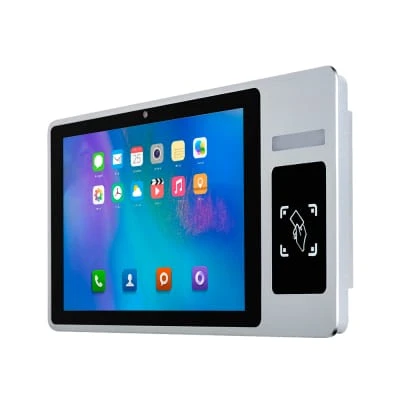

• 10.1″/11.6″ screen size optional, 16.7M color.
• RK3288(Quad-core Cortex-A17, 1.8GHz), Mali-T764 GPU
• 13.56MHz NFC, 100W HD camera
• 2GB/4GB/8GB DDR3, 16GB/32GB/64GB eMMC
• 2.4G/5G dual band WiFi, 3G/4G module, BT5.0
• Protezione industriale, e adattarsi a vari ambienti difficili
