TouchThink MES Terminal E Series

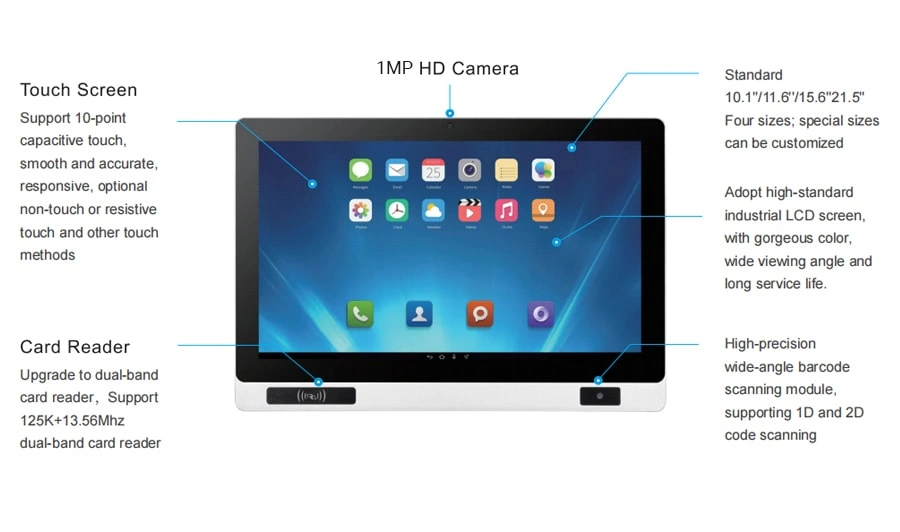

MES Terminal E Series is available with 10.1″, 11.6″, 15.6″ and 21.5″. Developed from ARM architecture, supports multiple processors including Rockchip® RK3399, RK3568, RK3588, usw. Features 100W camera, NFC dual-band card reader (125K+ 13.56Mhz), and barcode scanning module. Ideal for smart manufacturing fields.
TouchThink Code Scan MES Terminal E Series
| Product Size | Auflösung | Aspect Ratio | Contrast Ratio | Brightness | Schnelle Anfrage |
|---|---|---|---|---|---|
| 10.1″ | 1280*800 | 16:10 | 1000:1 | 300 cd/m2 | Inquiry Now |
| 11.6″ | 1920*1080 | 16:9 | 1000:1 | 300 cd/m2 | Inquiry Now |
| 15.6″ | 1920*1080 | 16:9 | 800:1 | 300 cd/m2 | Inquiry Now |
| 21.5″ | 1920*1080 | 16:9 | 1000:1 | 300 cd/m2 | Inquiry Now |
TouchThink Card Reader MES Terminal E Series
| Product Size | Auflösung | Aspect Ratio | Contrast Ratio | Brightness | Schnelle Anfrage |
|---|---|---|---|---|---|
| 10.1″ | 1280*800 | 16:10 | 1000:1 | 300 cd/m2 | Inquiry Now |
| 15.6″ | 1920*1080 | 16:9 | 800:1 | 300 cd/m2 | Inquiry Now |
| Product Features |
|---|
Ultra-thin Frame Design
Industrial Technology Design
| Product Parameters | ||
|---|---|---|
| Hardware Parameters | CPU: RK3568, Quad-core 64-bit Cortex-A55 | Android 12.0, Linux5.10, Ubuntu/Debian |
| Memory | 2GB LPDDR4 (Optional 4 GB/8 GB) | |
| Lagerung | 32GB eMMC (64GB/128GB Optional) | |
| Card reader | 125K+13.56Mhz dual-band card reader | |
| GPU | ARM Mali-G52 2EE | |
| Camera | 100W pixels | |
| Barcode scanning module | Wide view barcode scanning module | |
| LED indicator | Red/green/blue (combination) | |
| Bildschirmparameter | Panel Type | Industrial control screen |
| Viewing Angle | 85/85/85/85 (L/R/U/D) Full View | |
| Backlight Type | LED, use time >=50000H | |
| Response Time | 6.5ms | |
| Brightness | 300cd/m2 (can be customized =< 1500cd/m2) | |
| Display Color | 16.7M | |
| Contrast Ratio | 1000:1 |
| Tippen Sie auf Parameter | Projection capactivite touch Berührungspunkt: 10-point Light Transmittance: >=88% Eingabemodus: handwriting or capactivite pen Standard Protocol:USB | Resistive touch 4-5wire/5 Wire Berührungspunkt: single point Light Transmittance: >=78% Eingabemodus: Fingerspitze oder Stift Standard Protocol:USB | Nicht berührungslos Light Transmittance: >=92% | ||
| Schnittstellenparameter | DC Port | 1*Gleichstrom 2.1, Support 12V-36V wide voltage power supply |
| HDMI | 1*HDMI, Supporting HDMI data output, bis zu 4K | |
| SIM | 1*SIM, Supporting various formats (Depending on 3G/4G module) | |
| Network interface | 1*LAN, 10M/100M/1000M adaptives Ethernet | |
| USB | 2*USB 3.0 | |
| Audio interface | 1*Audio-E/A, Unterstützt Audio-Eingabe und -Ausgabe |
| Environment Parameters | Arbeitstemperatur | -10°C~60°C |
| Lagertemperatur | -20°C~70°C | |
| Relative Luftfeuchtigkeit | Luftfeuchtigkeit: 95% Nicht kondensierend | |
| Vibrationsschutz | IEC 60068-2-64, zufällig, 5 ~ 500 Hz, 1 Std./Achse | |
| Aufprallschutz | IEC 60068-2-27, Halbe Sinuswelle, Dauert 11 ms |
| Other Parameters | Leistungsaufnahme | DC 12V |
| Static power | 18W | |
| Body Color | Silver, Black Optional | |
| Installationsmethode | Supports snap-embedded,wall edbedded,wall mounted,desktop,louvered,cantilever-mounted,boom-mounted,usw. | |
| Warranty Policy | Three years ( one year free warranty ) |
