TouchThink Android All-In-One PC For Workstation E Series
TPC156-A24
- Fashionable and simple appearance, independent open mold
- High precision die-cast aluminum molding, efficient heat dissipation
- Self-developed ARM architecture industrial motherboard, RK3568 quad-core 64-bit 2.0GHz CPU
- Built-in 1MP HD camera, 125K+13.56Mhz dual-band card reader, RGB tri-color indicator light
- Provide API reference code and support SDK secondary development
Quick Inquiry
TouchThink Android All-In-One PC For Workstation E Series:
TPC156-A24
TPC156-A24
Required fields are marked *, We’ll respond within 12 hours.
Product View

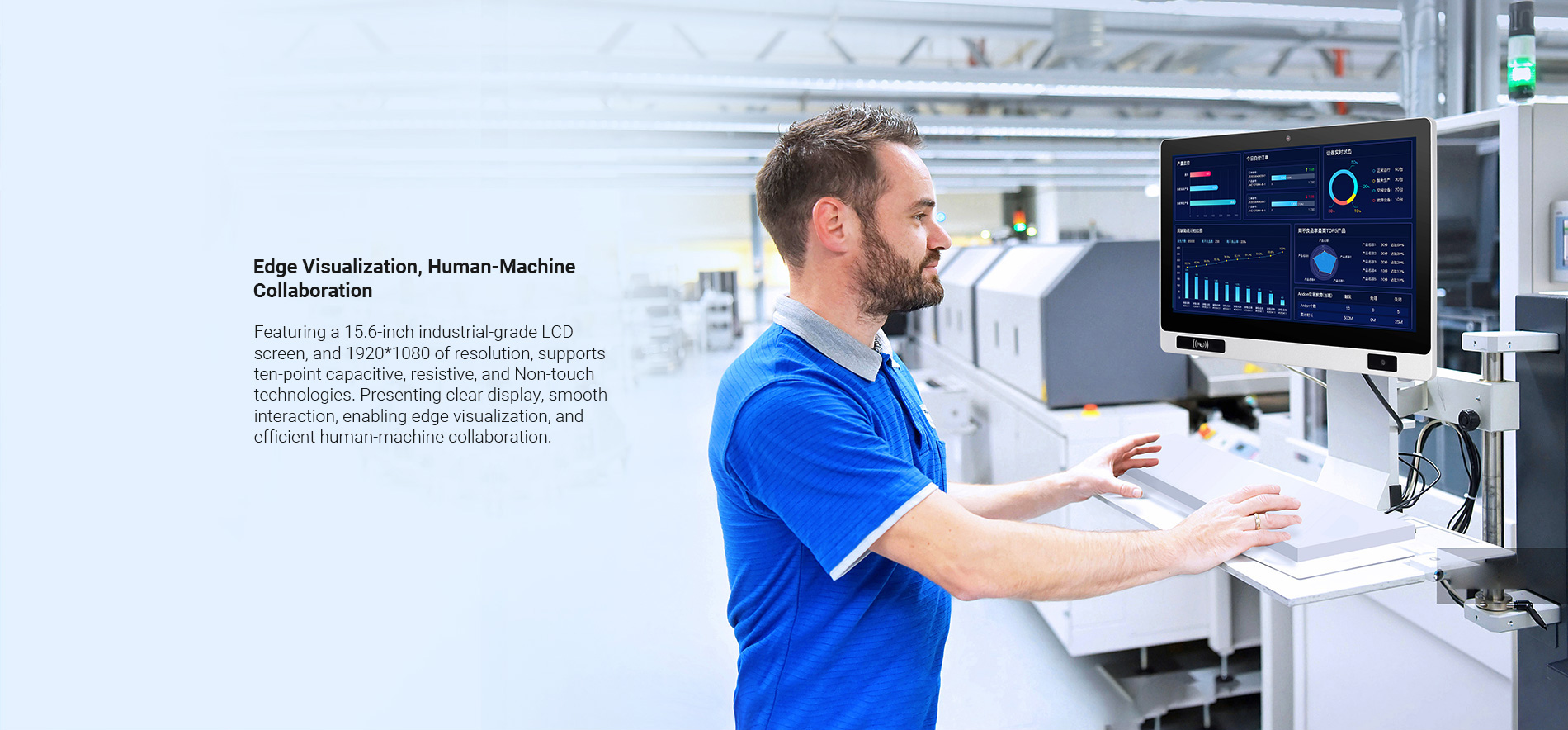

Adopting aluminium alloy flat plate, fanless fully enclosed integrated design, fashionable appearance, simple craftsmanship, self-developed ARM industrial motherboard, cost-effective, optional, built-in 1MP HD camera, a 125K+13.56Mhz dual-band card reader, and an RGB tri-color indicator light. Its applications span across various environments, including smart factories, canteens, campuses, conference rooms, and more.
| General Info | |
|---|---|
| Manufacturer | Touch Think |
| Product Manual |  TPC156-A24.pdf |
| Screen Size | 15.6 inch |
| Hardware Configuration | |
|---|---|
| CPU | RK3568, Quad-core 64-bit Cortex-A55 core architecture, Up to 2.0GHz |
| Memory | 2GB LPDDR4 (Optional 4GB/8GB) |
| Storage | 32GB eMMC (64GB/128GB Optional) |
| GPU | ARM Mali-G52 2EE |
| Camera | 1MP pixels |
| WiFi | Wifi6 Single Band, 2.4GHz |
| Bluetooth | Bluetooth 5.2 |
| Operating System | Android 12.0, Linux5.10, Ubuntu/Debian |
| Barcode scanning module | Wide view barcode scanning module |
| Product Model | |
|---|---|
| Non-Touch | TPC156-A2401 |
| Capacitive Touch | TPC156-A2411 |
| Resistive Touch | TPC156-A2421 |
| Physical Characteristics | |
|---|---|
| Overall Dimensions | W389.6x H264x D52mm |
| Interface Parameters | |
|---|---|
| Power interface1 | 1*12P Phoenix terminal(Power supply/RS232*1/RS485*1/CAN*1/GPIO*3) |
| Power interface2 | 1*DC2.1, Supporting 12V-36V power input |
| USB | 2*USB3.0 |
| TF | 1*TF card standard interface |
| SIM | 1*SIM, Supporting various formats (Depending on 3G/4G module) |
| HDMI | 1*HDMI, Supporting HDMI data output, Up to 4K |
| Network Interface | 1*LAN, 10M/100M/1000M adaptive Ethernet |
| Audio Interface | 1*Audio I/O, Support audio input and output |
| Reset key | Support (1*UBOOT) |
| COM | 2*RS232 |
| WiFi Antenna | 1*WiFi antenna |
| Power | 1*POWER |
| Grounding Post | 1*Grounding post (GND) |
| Screen Parameters | |
|---|---|
| LCD Size | 15.6″ TFT LCD |
| Resolution | 1920*1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Colour | 16.7M |
| Brightness | 300 cd/㎡ |
| Contrast Ratio | 1000:1 |
| Touch Parameters | |||
|---|---|---|---|
| Touch Type | Capacitive touch screen | Resistance touch screen | Non-touch |
| Touch Point | 10-point Touch Projection | Single Point | / |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input Mode | Handwriting or Capacitance pen | Fingertip or stylus | / |
| Controller communication | USB | USB | / |
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V~36V |
| Static power | 18W |
| Installation Method |
|---|
| Packing List |
|---|
| Other Items | |
|---|---|
| Warranty | 3-Year(1yr free, 2-3yr paid) |
| Color | Silver |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-7 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Appearance,Screen,Interfaces,Environmental |
