TouchThink Ultra Thin Android Panel PC

Touch Think ultra-thin Android panel PCs available with 10.1″ to 27″. They are designed with ultra-thin panels, light in weight, while powerful performance. Ideal for various harsh environments, including industrial automation, production line management, smart city, security, logistics, and more.

Explore More ↓

TouchThink Ultra Thin Android Panel PC

RK3568
RK3399
RK3588

RK3568 Size	Resolution	Aspect Ratio	Contrast Ratio	Brightness	Send RFQ
10.1″	800*1280	10:16	1000:1	300 cd/m2	Inquiry Now
10.4″	1024*768	4:3	1000:1	400 cd/m2	Inquiry Now
11.6″	1920*1080	16:9	1000:1	300 cd/m2	Inquiry Now
12.0″	1024*768	4:3	1000:1	500 cd/m2	Inquiry Now
15.0″	1024*768	4:3	1000:1	300 cd/m2	Inquiry Now
15.6″	1920*1080	16:9	800:1	300 cd/m2	Inquiry Now
17.0″	1280*1024	5:4	1000:1	300 cd/m2	Inquiry Now
17.3″	1920*1080	16:9	600:1	300 cd/m2	Inquiry Now
19.0″	1280*1024	5:4	1000:1	300 cd/m2	Inquiry Now
19.1″	1440*900	16:10	1000:1	300 cd/m2	Inquiry Now
21.5″	1920*1080	16:9	1000:1	300 cd/m2	Inquiry Now

RK3399 Size	Resolution	Aspect Ratio	Contrast Ratio	Brightness	Send RFQ
10.1″	800*1280	10:16	1000:1	300 cd/m2	Inquiry Now
10.4″	1024*768	4:3	1000:1	400 cd/m2	Inquiry Now
11.6″	1920*1080	16:9	1000:1	300 cd/m2	Inquiry Now
12.0″	1024*768	4:3	1000:1	500 cd/m2	Inquiry Now
15.0″	1024*768	4:3	1000:1	300 cd/m2	Inquiry Now
15.6″	1920*1080	16:9	800:1	300 cd/m2	Inquiry Now
17.0″	1280*1024	5:4	1000:1	300 cd/m2	Inquiry Now
17.3″	1920*1080	16:9	600:1	300 cd/m2	Inquiry Now
19.0″	1280*1024	5:4	1000:1	300 cd/m2	Inquiry Now
19.1″	1440*900	16:10	1000:1	300 cd/m2	Inquiry Now
21.5″	1920*1080	16:9	1000:1	300 cd/m2	Inquiry Now

RK3588 Size	Resolution	Aspect Ratio	Contrast Ratio	Brightness	Send RFQ
10.1″	800*1280	10:16	1000:1	300 cd/m2	Inquiry Now
10.4″	1024*768	4:3	1000:1	400 cd/m2	Inquiry Now
11.6″	1920*1080	16:9	1000:1	300 cd/m2	Inquiry Now
12.0″	1024*768	4:3	1000:1	500 cd/m2	Inquiry Now
15.0″	1024*768	4:3	1000:1	300 cd/m2	Inquiry Now
15.6″	1920*1080	16:9	800:1	300 cd/m2	Inquiry Now
17.0″	1280*1024	5:4	1000:1	300 cd/m2	Inquiry Now
17.3″	1920*1080	16:9	600:1	300 cd/m2	Inquiry Now
19.0″	1280*1024	5:4	1000:1	300 cd/m2	Inquiry Now
19.1″	1440*900	16:10	1000:1	300 cd/m2	Inquiry Now
21.5″	1920*1080	16:9	1000:1	300 cd/m2	Inquiry Now

Product Features

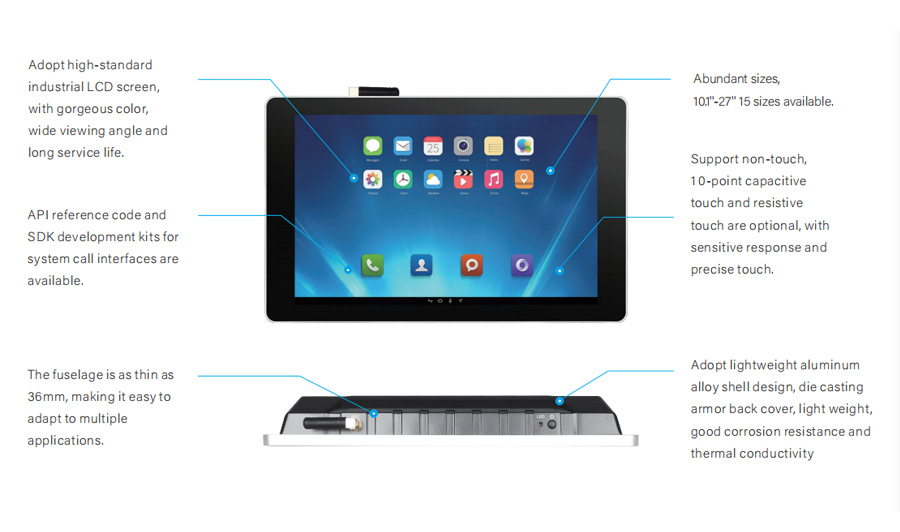

Ultra-thin Frame Design

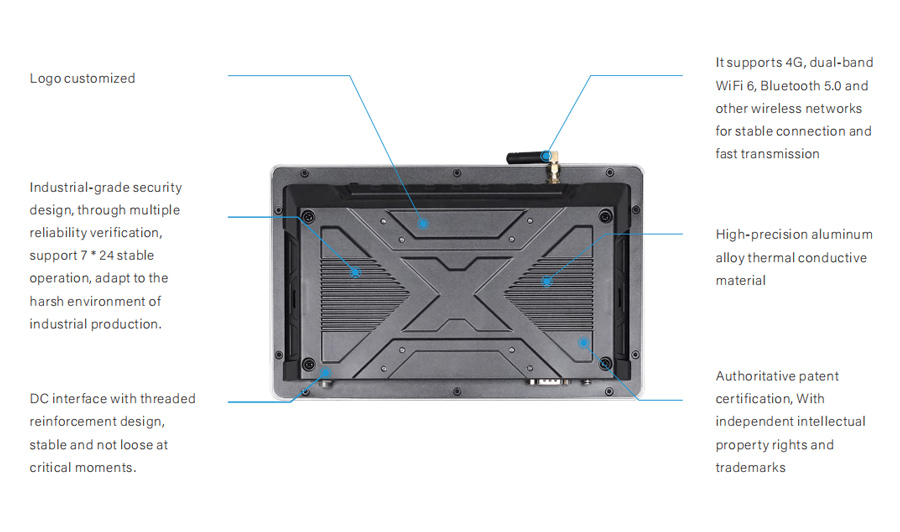

Industrial Technology Design

Product Parameters
Hardware Parameters	CPU: RK3588 Octa-Core 64bit 2.4GHz	Android 12.0, Ubuntu, Debian, Linux
	CPU: RK3568 Quad-Core 64bit 2.0GHz	Android 12.0,Linux 5.10, Ubuntu, Debian
	CPU: RK3399 Six-Core 64bit 1.8GHz	Android 7.1/9.0/11, Ubuntu18.04, Debian10.0, Linux4.4+QT
	CPU: RK3288 Cortex-A17 Quad-Core 1.8GHz	Android 7.1/10.0/12.0, Ubuntu18.04, Debian10.0, Linux4.4
	CPU: A64 Cortex-A53 Quad-Core 1.5GHz	Android 6.0
	Memory	2G/4G/8G/16G/32G Optional
	Storage	8G/16G/32G/64G/128G/256G eMMC Optional
	Decoding Resolution	Support up to 4K/60HZ
	Network Support	4G, Ethernet, WiFi/Bluetooth support, wireless peripheral expansion

Screen Parameters	Panel Type	Industrial control screen
	Viewing Angle	Wide view / full view
	Backlight Type	LED, use time >=50000H
	Brightness	300cd/m2 (can be customized =< 1500cd/m2)
	Display Color	16.7M
	Contrast Ratio	1000:1

Touch Parameters

Projection capactivite touch
Touch Point: 10-point
Light Transmittance: >=88%
Input Mode: handwriting or capactivite pen
Standard Protocol:USB

Resistive touch
4-5wire/5 Wire
Touch Point: single point
Light Transmittance: >=78%
Input Mode: Fingertip or stylus
Standard Protocol:USB

Non-touch
Light Transmittance: >=92%

Interface Parameters	DC Port	1*DC2.1(DC 12-36V)
	HDMI	High-definition audio digital signal transmission, support HDMI data input.
	USB	1USB HOST，1USB OTG
	SIM	1*SIM, Supporting various formats (Depending on 3G/4G module)
	COM	2*RS232
	Audio interface	1*Audio I/O, Support audio input and output

Environment Parameters	Working Temperature	-10°C~60°C
	Storage Temperature	-20°C~70°C
	Relative Humidity	Humidity: 95% Non-Condensing
	Vibration Protection	IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
	Impact Protection	IEC 60068-2-27, Half sine wave, Lasting for 11ms

Other Parameters	Power input	DC 12V~36V
	Static power	18W
	Installation Method	Supports snap-embedded,wall edbedded,wall mounted,desktop,louvered,cantilever-mounted,boom-mounted,etc.
	Warranty Policy	Three years ( one year free warranty )
