17.3 Inches Ultra-thin ARM Panel PC Industrial Control Touch PC Terminals 3 Years Warranty

Model No. TPC173-A26

Technical Specifications

❮

❯

Aluminum alloy frame, VESA mount
Fanless, excellent heat dissipation design
Capacitive multi touch
RK3568 Quad-core high-performance CPU clocked at 2.0GHz
Built-in independent NPU with 1TOPS AI
Provide SDK package, Support secondary development and upgrade customization

RK3568 Quad Core
DC 12-36V
IP65
SDK Develpment
Android12/14
24/7 Non-stop

Quick Inquiry

If your requirements differ from our regular products, customization can be acceptable. Please let us know your needs.

Required fields are marked *, We’ll respond within 12 hours.

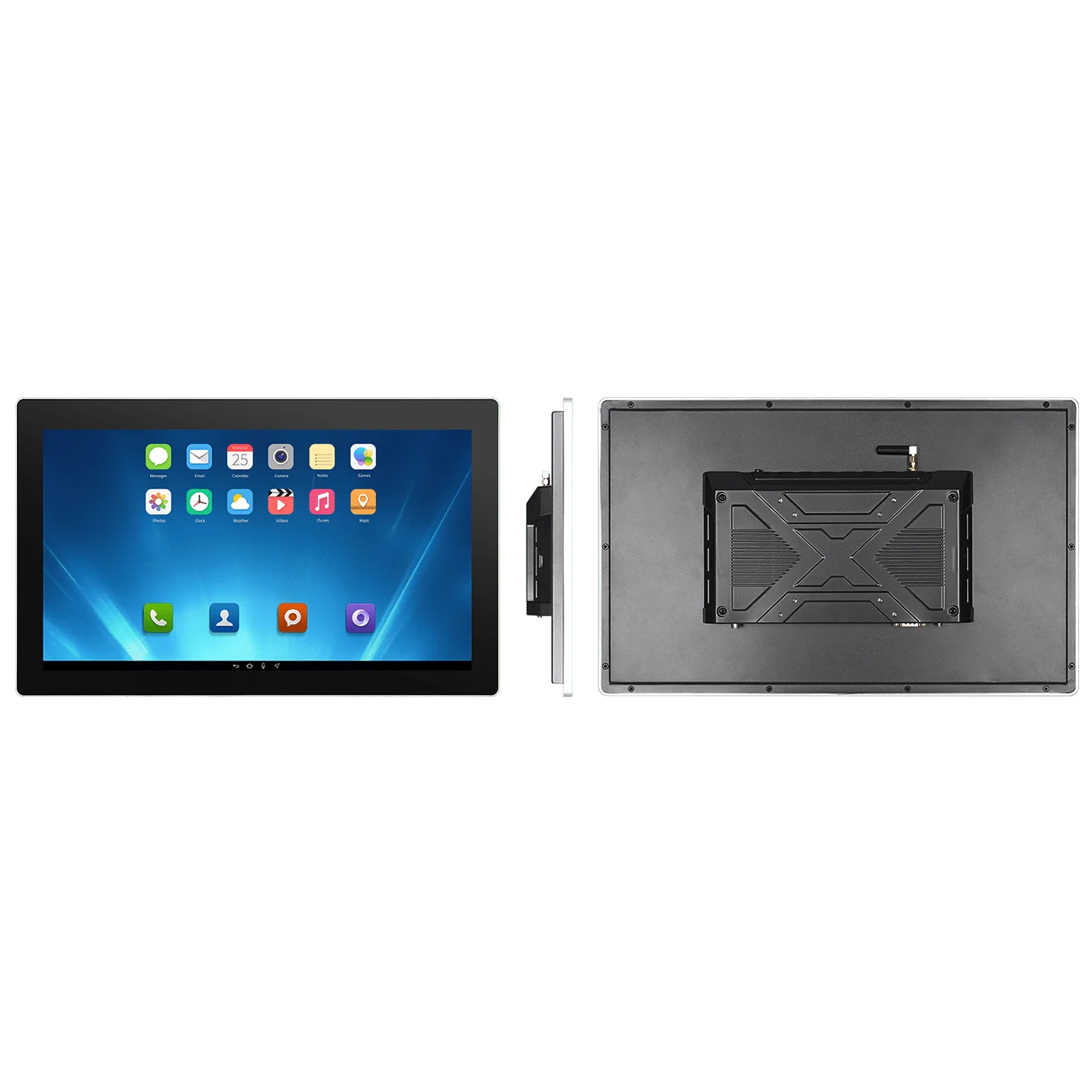

Product View

The ultra-thin series Android Panel PC with slim frame and VESA holes design enables wall mounted, desktop, cantilever mounted installation. It is made of self-developed industrial ARM board with RK3568 processor and supports 24h stable operation in different environments. The slim design and IP65 front to satisfy commercial and industrial applications such as Self-service terminals,Smart city, Automation, Machinery, Transportation, IoT, Energy management,etc.

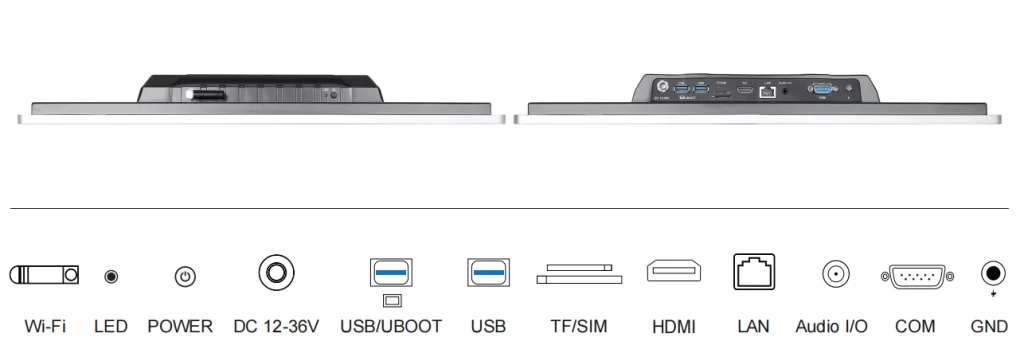

17.3-inch ultra thin industrial panel pc with USB HDMI TF SIM

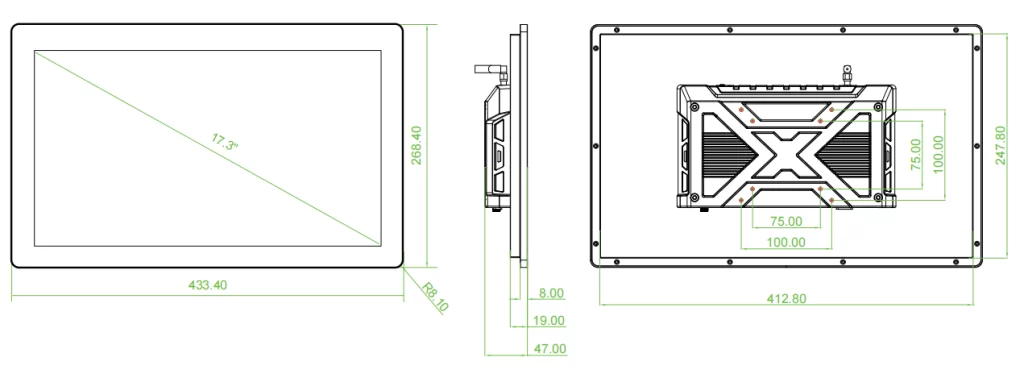

17.3 inches slim industrial grade panel pc size

General Info
Manufacturer	TouchThink
Product Manual	TPC173-A26.pdf
Screen Size	17.3″ TFT LCD screen
Overall dimensions	W433.4x H268.4x D47mm
Installation size	W414.8x H249.8mm
Material	Aluminumalloy
Color	Front panel is silver color,center panel and back cover are black color
Installation	Support Back hanging/Wall-mounted/Desktop/Embedded/VESA mount/Suspended mounting, etc.
Power Input	DC 12V-36V
Static Power	24V/2.5A

Screen Parameters
Display type	17.3″ TFT LCD screen
MAX.resolution	1920*1080(16:9)
Viewing angle(H/V)	80/80/60/80 (L/R/U/D)
Luminance (cd/m²)	300 cd/m²
Contrast ratio	600:1

Product Model
Non-Touch	TPC173-A2600
Capacitive Touch	TPC173-A2610
Resistive Touch	TPC173-A2620

Hardware Configuration
CPU	RK3568, Quad-core 64-bit Cortex-A55 , Up to 2.0GHz
Memory/RAM	2GB DDR4 (Supports up to 4GB)
Storage	32GB EMMC (Supports up to 256GB)
NPU	Built-in NPU with 1TOPS AI
Operating system	Android12/14, Linux5.10/Ubuntu20.04/Ubuntu22.04/Debian11
GPU	ARM Mali G610
Wi-Fi	Wi-Fi 6, Single Band 2.4GHz
Bluetooth	BT5.2
Watchdog Timer	Support
RTC real time clock	Support
Timer switch	Support

Interface Parameters
PowerSW	1*PowerSW
Power input U	1Threaded DC connector (Diameter 5.52.1mm)
USB	2*USB3.0
TF	1*TF card
HDMI	1*HDMI output, up to 4K
SIM	1*SIM (must be work with 3G/4G/5G module)
Ethernet	1*LAN, 10M/100M/1000M adaptive ethernet
Audio	1*Audio I/O
Serial port	1*COM (The default is RS232, optional RS485/RS422)
Reset key	1*UBOOT
Wi-Fi antenna	1*Wi-Fi antenna
Speaker	2*(8Ω2W)
Grounding	1*GND

Touch Parameters
Touch Type	Capacitive touch screen	Resistance touch screen	Non-touch
Touch Point	10-point Touch Projection	Single Point	/
Transmittance	≥88%	≥78%	≥92%
Input Mode	Handwriting or Capacitance pen	Fingertip or stylus	/
Controller communication	USB	USB	/

Reliability Parameters
Working Temperature	-10°C~60°C
Storage Temperature	-20°C~70°C
Relative Humidity	Humidity: 95% Non-Condensing
Vibration Protection	IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
Impact Protection	IEC 60068-2-27, Half sine wave, Lasting for 11ms
Product Certification	CCC/CE/FCC/EMC/CB/ROHS
Waterproof Grade	The front panel reaches IP65 protection level

Other Items
Warranty	3-Year(1yr free, 2-3yr paid)
Color	Black
After-sales Service	Call Center and on-line Technical Support
Place of Origin	Guangdong, China
Express	UPS/DHL/Fedex/EMS,etc
Delivery Time	1-7 Working Days
Packaging Details	Packed in Standard EXPORT Cartons
Delivery Port	Shenzhen/Hongkong
Customization	Appearance,Screen,Interfaces,Environmental
