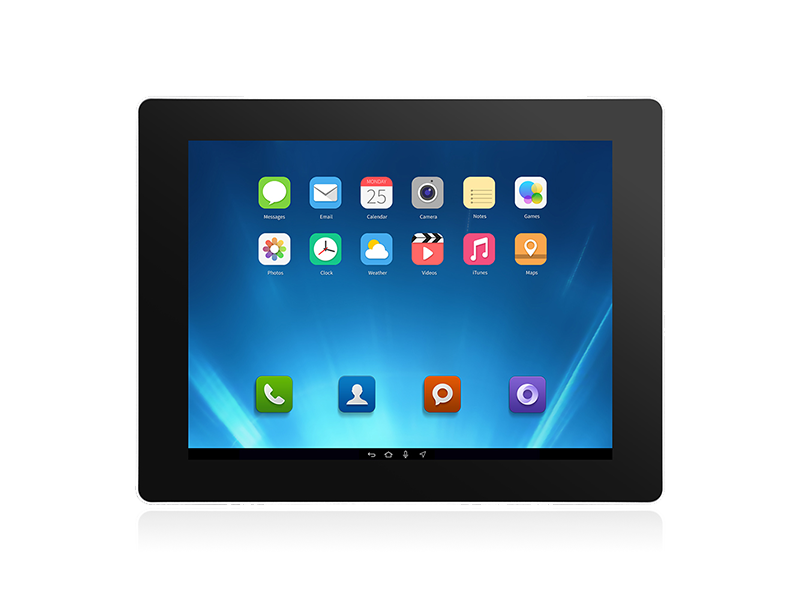

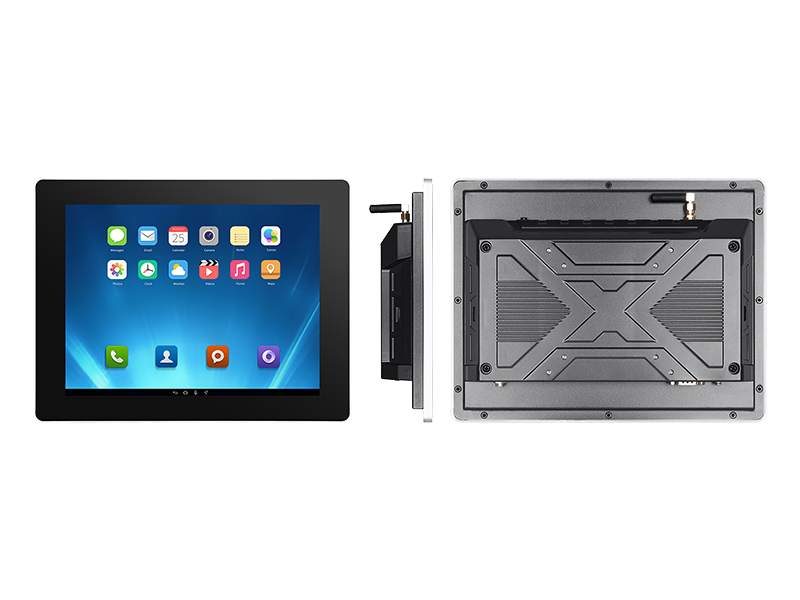

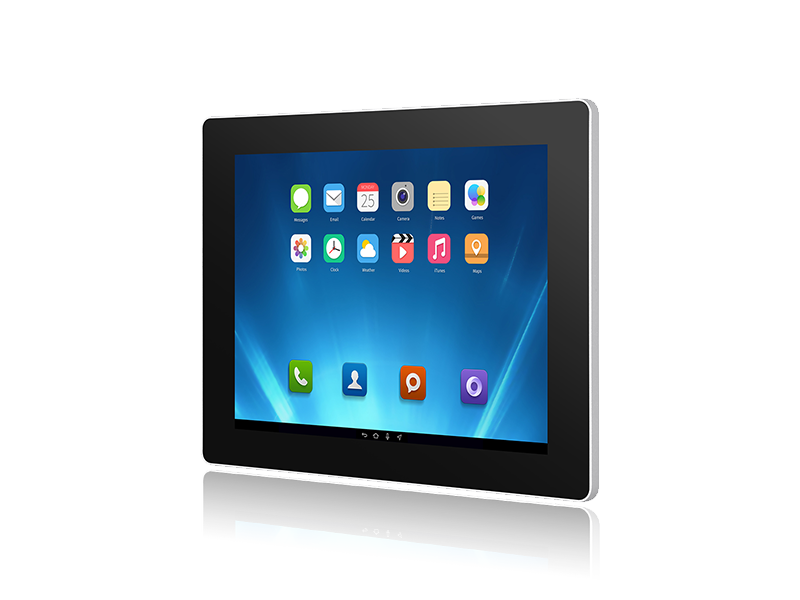

Compact and Rugged 10.4 Inches Ultra Slim Industrial All-in-One PC Android RK3568 Embedded Panel PC
Model No. TPC104-A26
Technical Specifications
- Compact and rugged aluminum alloy frame, VESA mount.
- Fanless, excellent heat dissipation design.
- Capacitive multi touch.
- RK3568 Quad-core high-performance CPU clocked at 2.0GHz.
- Built-in independent NPU with 1TOPS AI.
- Provide SDK package, Support secondary development and upgrade customization.
RK3568 Quad Core- DC 12-36V
- IP65
- SDK Develpment
- Android12/14
Quick Inquiry
If your requirements differ from our regular products, customization can be acceptable. Please let us know your needs.
Required fields are marked *, We’ll respond within 12 hours.
Product View

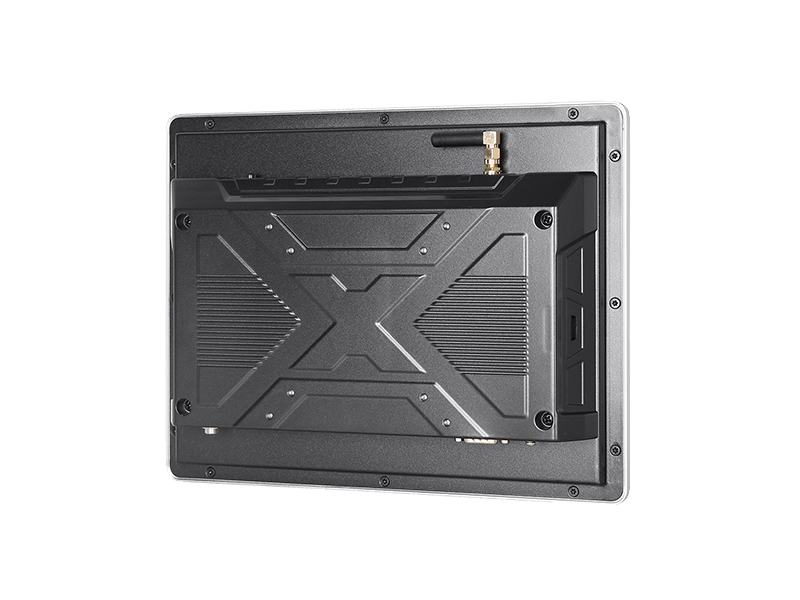

The ultra-thin series Android Panel PC with slim frame and VESA holes design enables wall mounted, desktop, cantilever mounted installation. It is made of self-developed industrial ARM board with RK3568 processor and supports 24h stable operation in different environments. The slim design and IP65 front to satisfy commercial and industrial applications such as Self-service terminals,Smart city, Automation, Machinery, Transportation, IoT, Energy management,etc.
| General Info | |
|---|---|
| Manufacturer | TouchThink |
| Product Manual |  TPC104-A26.pdf |
| Screen Size | 10.4″ TFT LCD screen |

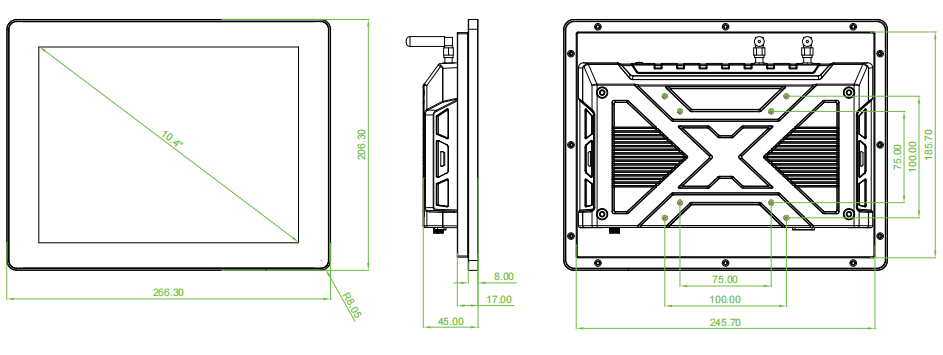

| Overall dimensions | W266.3x H206.3x D45mm |
| Installation size | W247.7 x H187.7mm |
| Material | Aluminumalloy |
| Color | Front panel is silver color,center panel and back cover are black color. |
| Installation | Support Back hanging/Wall-mounted/Desktop/Embedded/VESA mount/ Suspended mounting, etc. |
| Power Input | DC 12V-36V |
| Static Power | 24V/2.5A |
| Applications | Production Line Control Terminal, Human-Machine Interface (HMI), Intelligent Warehousing Terminal, Logistics Sorting Console, Medical Monitoring Terminal, Laboratory Automation, Rail Transit Control, Intelligent Traffic Management, Power Equipment Monitoring, Oil and Gas Field Automation, Self-service Settlement Terminal, Smart Kitchen Management, Underground Mine Monitoring, Cold Chain Logistics Monitoring |
| Screen Parameters | |
|---|---|
| Display type | 10.4″ TFT LCD screen |
| MAX.resolution | 1024*768(4:3) |
| Viewing angle(H/V) | 80/80/80/80 (L/R/U/D) |
| Luminance (cd/m²) | 400 cd/m² |
| Contrast ratio | 1000:1 |
| Product Model | |
|---|---|
| Non-Touch | TPC104-A2600 |
| Capacitive Touch | TPC104-A2610 |
| Resistive Touch | TPC104-A2620 |
| Hardware Configuration | |
|---|---|
| CPU | RK3568, Quad-core 64-bit Cortex-A55 , Up to 2.0GHz |
| Memory/RAM | 2GB DDR4 (Supports up to 4GB) |
| Storage | 32GB EMMC (Supports up to 256GB) |
| NPU | Built-in NPU with 1TOPS AI |
| Operating system | Android12/14, Linux5.10/Ubuntu20.04/Ubuntu22.04/Debian11 |
| GPU | ARM Mali G610 |
| Wi-Fi | Wi-Fi 6, Single Band 2.4GHz |
| Bluetooth | BT5.2 |
| Watchdog Timer | Support |
| RTC real time clock | Support |
| Timer switch | Support |

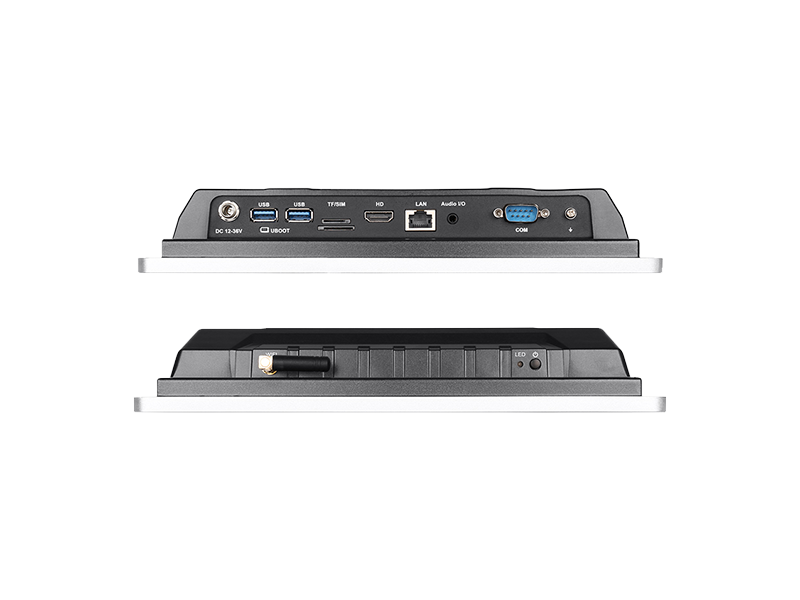

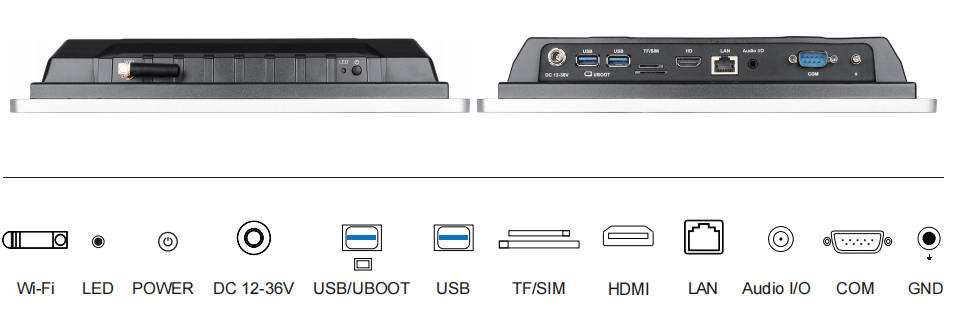

| Interface Parameters | |
|---|---|
| PowerSW | 1*PowerSW |
| Power input U | 1*Threaded DC connector (Diameter 5.5*2.1mm) |
| USB | 2*USB3.0 |
| TF | 1*TF card |
| HDMI | 1*HDMI output, up to 4K |
| SIM | 1*SIM (must be work with 3G/4G/5G module) |
| Ethernet | 1*LAN, 10M/100M/1000M adaptive ethernet |
| Audio | 1*Audio I/O |
| Serial port | 1*COM (The default is RS232, optional RS485/RS422) |
| Reset key | 1*UBOOT |
| Wi-Fi antenna | 1*Wi-Fi antenna |
| Speaker | 2*(8Ω2W) |
| Grounding | 1*GND |
| Touch Parameters | |||
|---|---|---|---|
| Touch Type | Capacitive touch screen | Resistance touch screen | Non-touch |
| Touch Point | 10-point Touch Projection | Single Point | / |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input Mode | Handwriting or Capacitance pen | Fingertip or stylus | / |
| Controller communication | USB | USB | / |
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Other Items | |
|---|---|
| Warranty | 3-Year(1yr free, 2-3yr paid) |
| Color | Black |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-7 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Appearance,Screen,Interfaces,Environmental |
