Intel Celeron J1900/J6412 Mini Box PC Fanless X86 Windows Industrial Computer

Modellnummer: TPC09-WIPC | Größe: 224.8×138.5x41mm

  • Fanlos + low power consumption design
  • Intel Celeron J1900/J6412 Optional

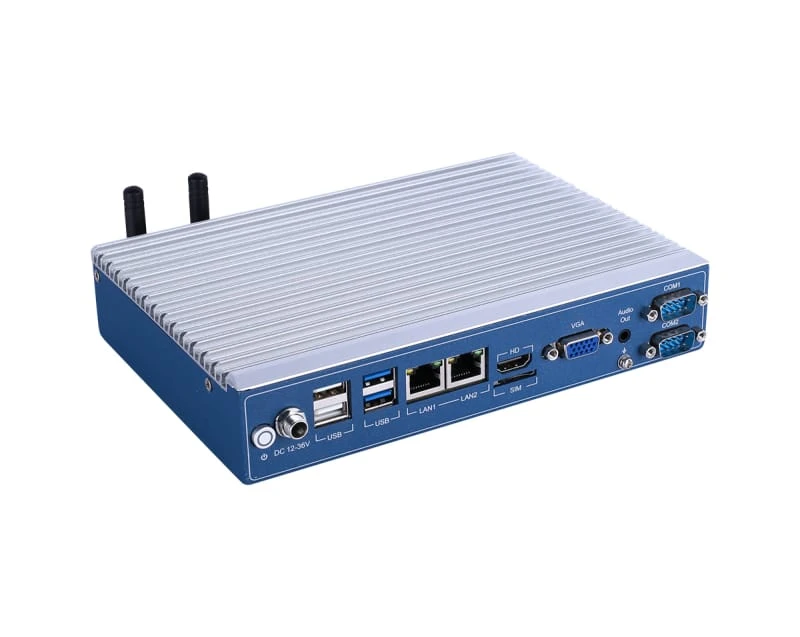

  • Rich I/O -Schnittstellen, 4*USB+2*LAN+2*RS232

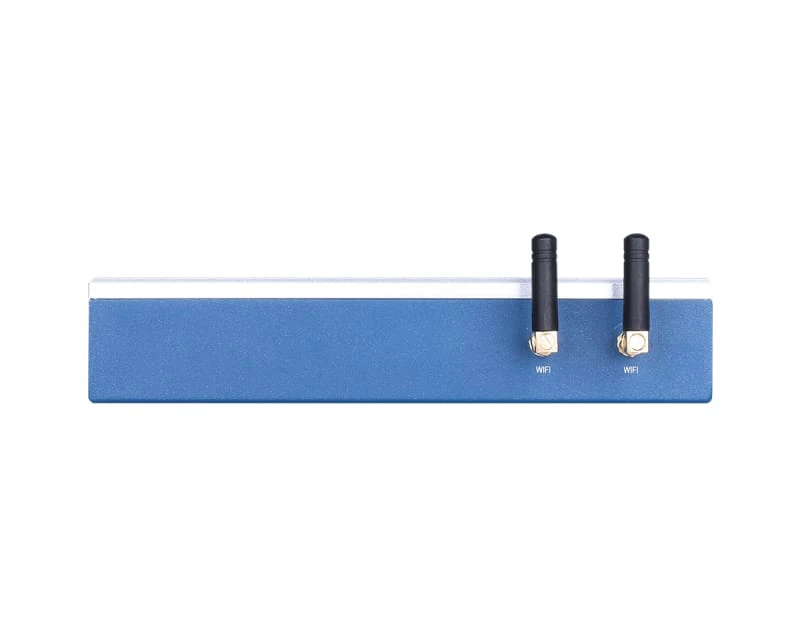

  • miniPCle expansion, optional 3G/4G or WiFi+Bluetooth
  • High-definition dual-screen collaboration, VGA+HDMI display output
  • -20°C~70°C wide temperature range, adaptable to high and low temperature environments
  • 12V-36V wide voltage, no fear of voltage fluctuations
  • Qualitätsqualität, EMI/ESD/Anti-Vibrationsschutz

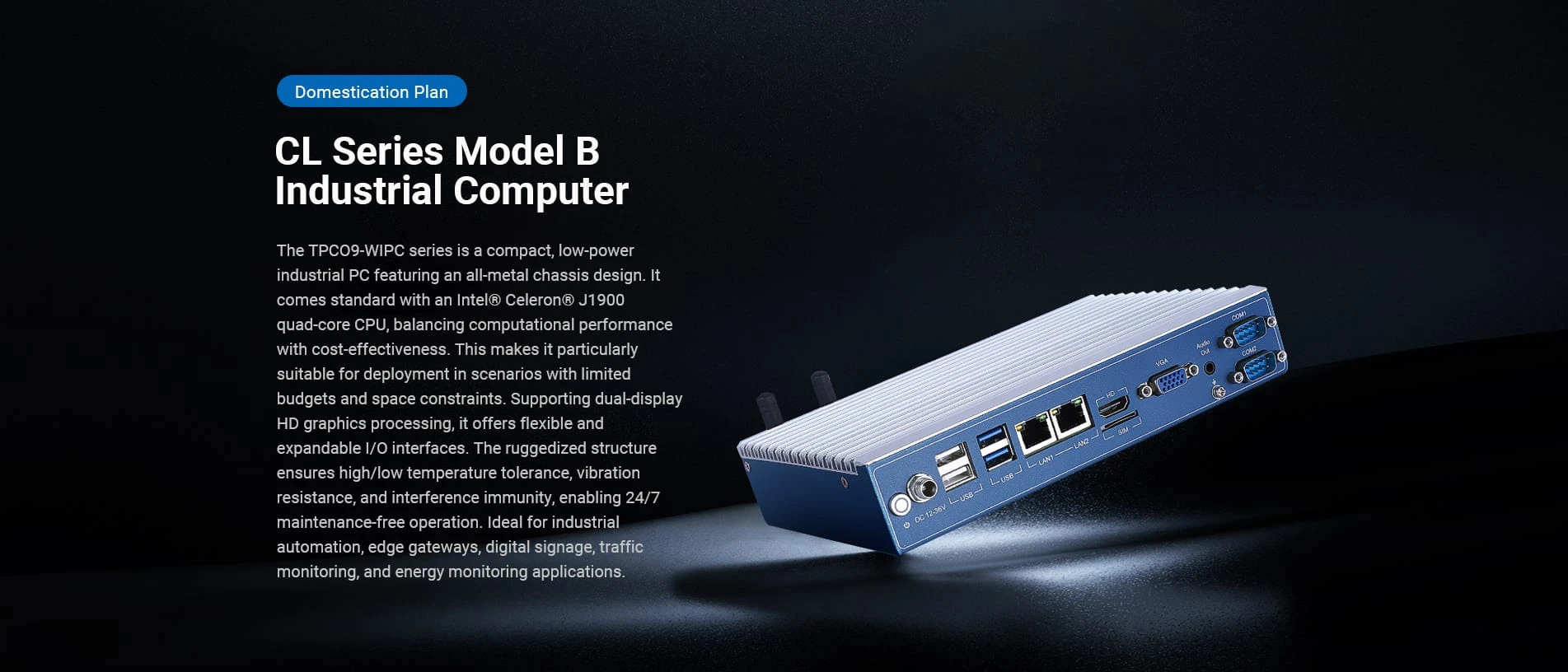

The TPCO9-WIPC series is a compact, low-power industrial PC featuring an all-metal chassis design. It comes standard with an Intel® Celeron® J1900 or J6412, balancing computational performance with cost-effectiveness. This makes it particularly suitable for deployment in scenarios with limited budgets and space constraints. Supporting dual-display HD graphics processing, it offers flexible and expandable I/O interfaces. The ruggedized structure ensures high/low temperature tolerance, Vibrationsfestigkeit, and interference immunity, enabling 24/7 maintenance-free operation. Ideal for industrial automation, edge gateways, Digitale Beschilderung, Verkehrsüberwachung, and energy monitoring applications.

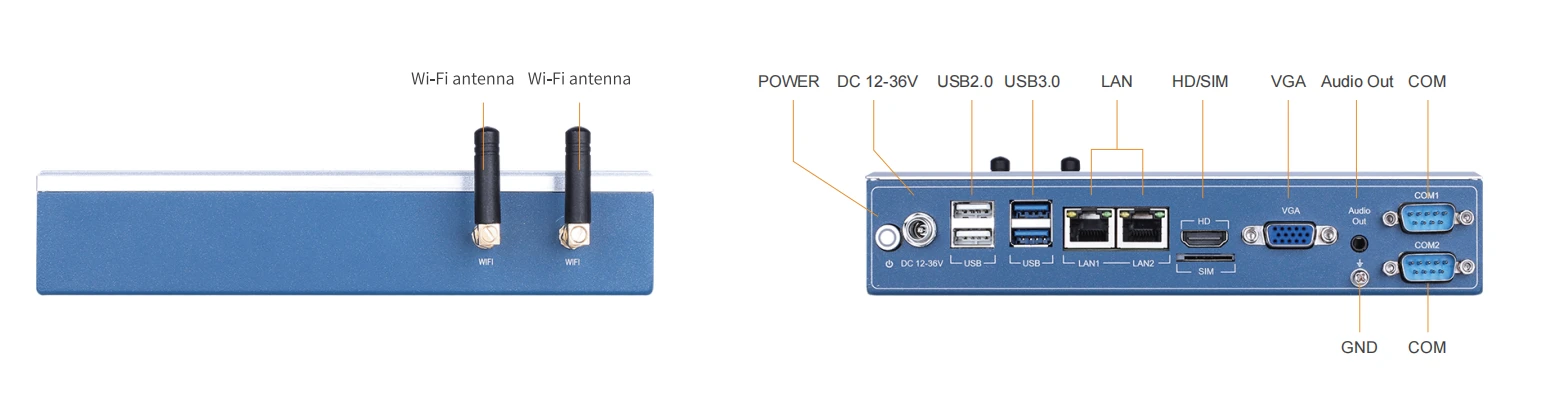

CL Series Model B IPC Ports-TouchThink IPC Manufacturing
Hardwarekonfiguration
CPUIntel Celeron J1900 4 cores/4 threads, base frequency 2.00 GHz, maximum turbo frequency 2.4 GHz
ErinnerungDDR3-1333/1600MHz, maximum support 8GB
Lagerung1*Sata3.0 + 1*Msata + 1*M.2
BetriebssystemWin7, Unterstützen Sie Kylin/Tongxin und andere Haushaltssysteme
4G/5G -ModuleUnterstützung China Mobile, China Unicom, China Telecom (wählen)
W-lan2.4GHz / 5GHz Dual-Band-Wi-Fi
BluetoothBT4.0
GPSOptional
MikrofonOptional
RTC-EchtzeituhrUnterstützung
Timer -Strom ein-/ausUnterstützung
System-UpgradeUnterstützen Sie das lokale SD- und USB -Upgrade
Schnittstellenparameter
USB2*USB 2.0, 2*USB 3.0
Netzwerkanschluss2*RJ45 Gigabit -Ethernet -Ports
Schnittstelle anzeigen1*VGA, 1*HDMI, Unterstützen Sie die HDMI -Datenausgabe, Maximale Unterstützung 4K
Serieller Port2*COM (default RS232, optional RS485/RS422
Audio-Interface1*Audio aus, supports audio output, Kopfhöreranschluss: 3.5mm-Standardschnittstelle
Produktzuverlässigkeit
Betriebstemperatur-20°C ~ 70 °C
Lagertemperatur-30°C ~80°C
relative Luftfeuchtigkeit20%-95% (nicht kondensierend)
Zwischenzeit zwischen den Fehlern (MTBF)7*24H
Stromversorgungsparameter
Stromverbrauch≤5W
angetrieben von12-36In DC
Netzteil24V/2,5A
Verpackungsspezifikationen
GarantiebestimmungenDrei Jahre (ein Jahr kostenlose Garantie)
FarbstandardsSilbergrau + dunkelblaue Farbe
ZubehörNetzkabel x 1, Bedienungsanleitung x 1, Garantiekarte x 1

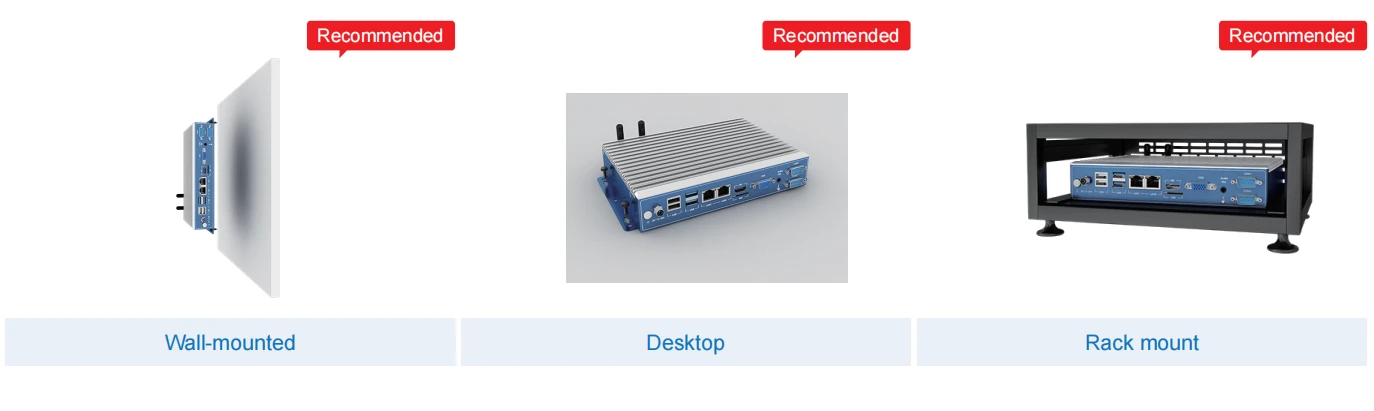

InstallationRack Mount, Desktop, Wandhalterung
Installation Methods of J1900 J6412 Industrial Computers-TouchThink IPC Manufacturing
The TPCO9-WIPC series is a compact, low-power industrial PC
Features &Pros of CL Series Model B Industrial Computer

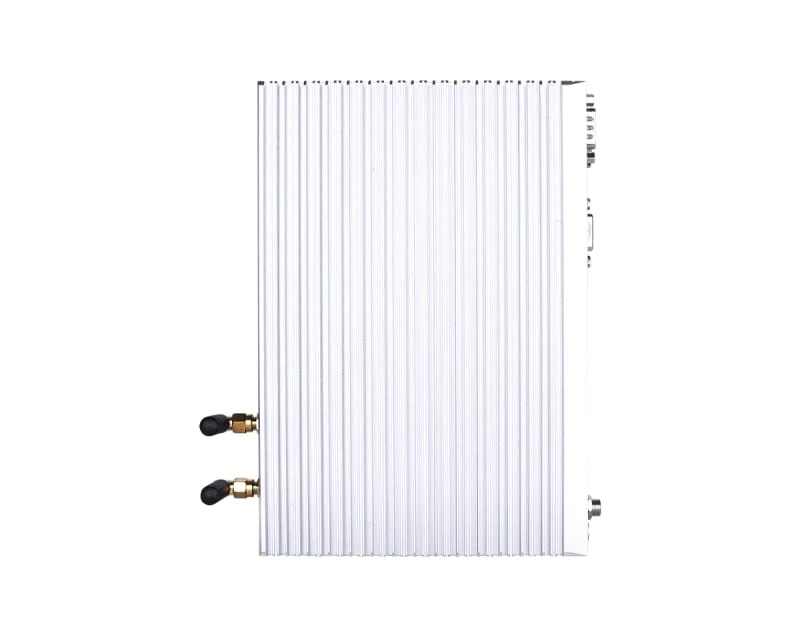

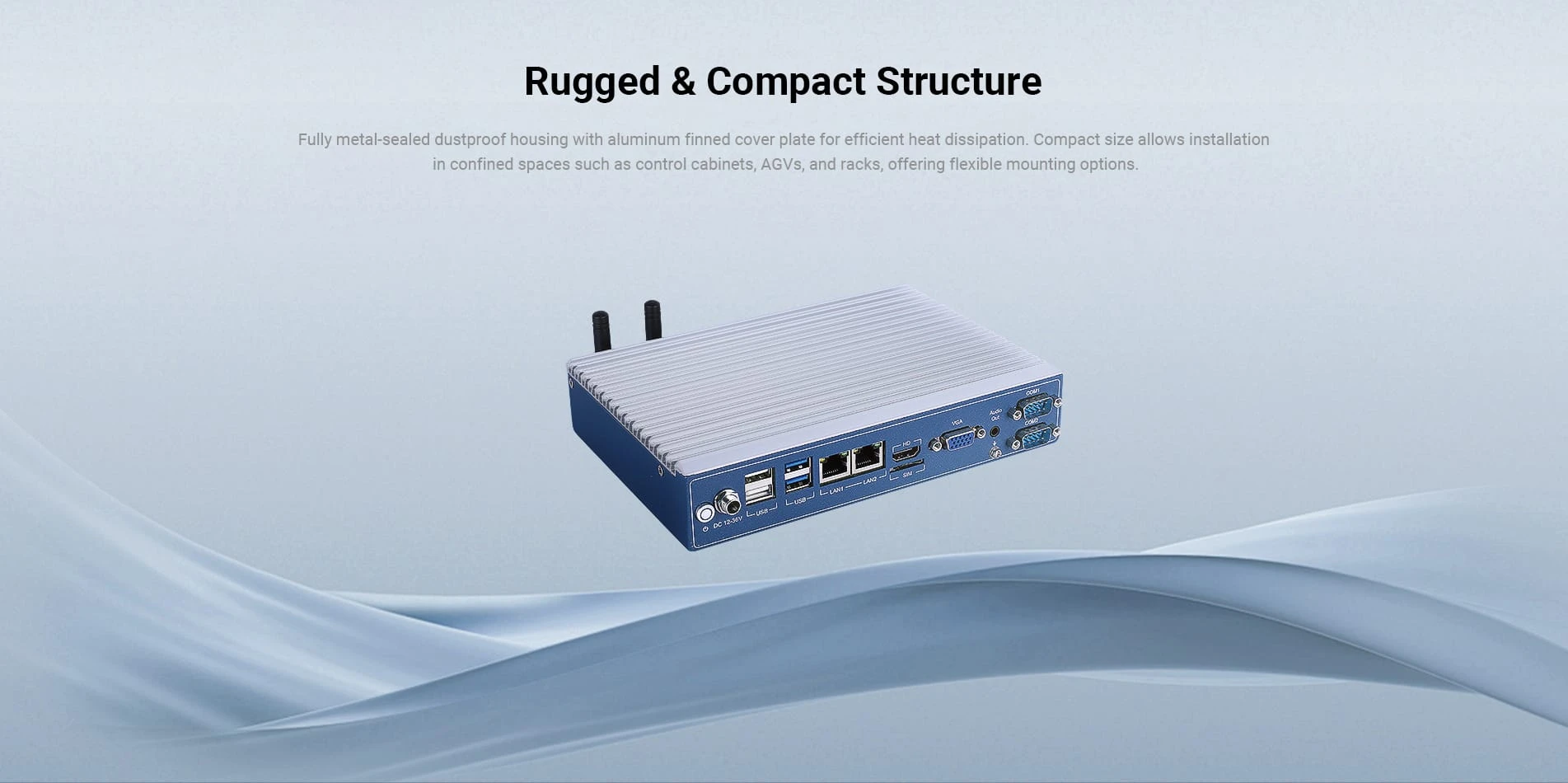

Fully metal-sealed dustproof housing with aluminum finned cover plate for efficient heat dissipation
Equipped with an Intel® Celeron® quad-core J1900 processor running at 2.0GHz, supporting up to 8GB of DDR3 memory,
Features a fanless + low-power (TDP 10W) design, Unterstützung 24/7 continuous maintenance-free operation, ideal for long-term stable deployment configurations.
X86 architecture, it is compatible with operating systems such as Windows, Ubuntu, und Centos,

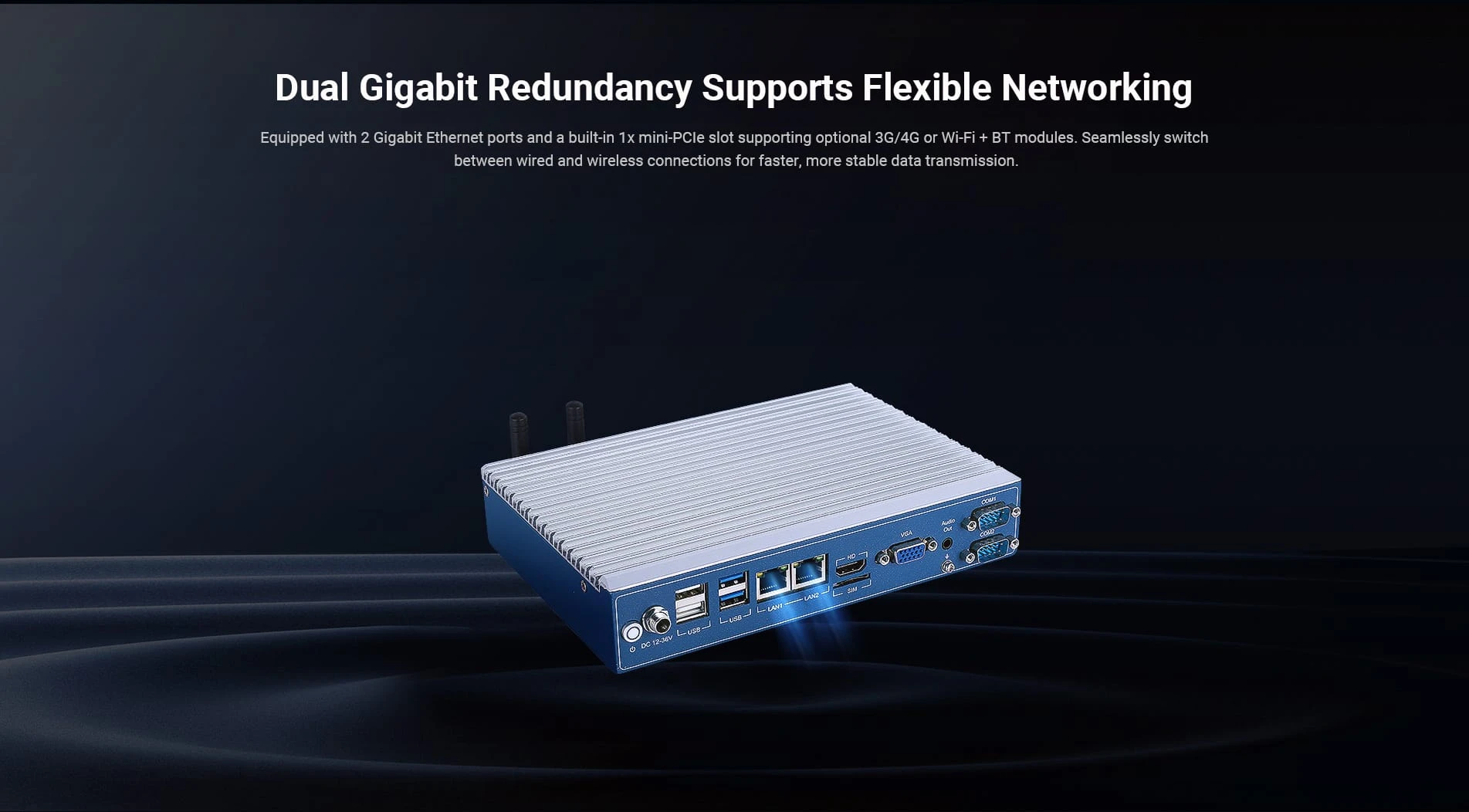

Equipped with 2 Gigabit Ethernet ports and a built-in 1x mini-PCIe slot supporting optional 3G/4G or Wi-Fi + BT modules.
Equipped with an Intel dual-display HD graphics processor, it supports dual-screen output via VGA and HDMI

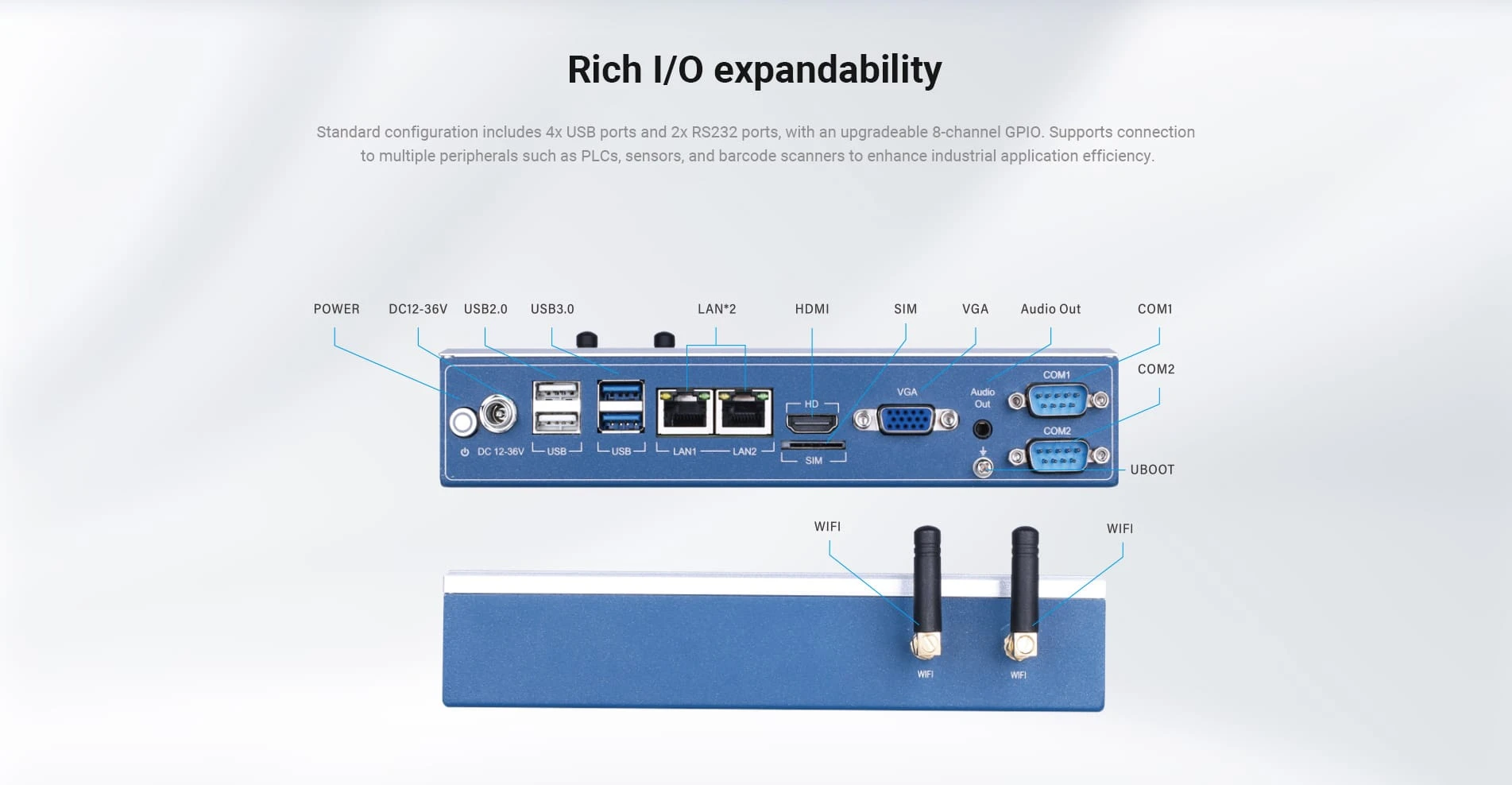

Standard configuration includes 4x USB ports and 2x RS232 ports, with an upgradeable 8-channel GPIO.

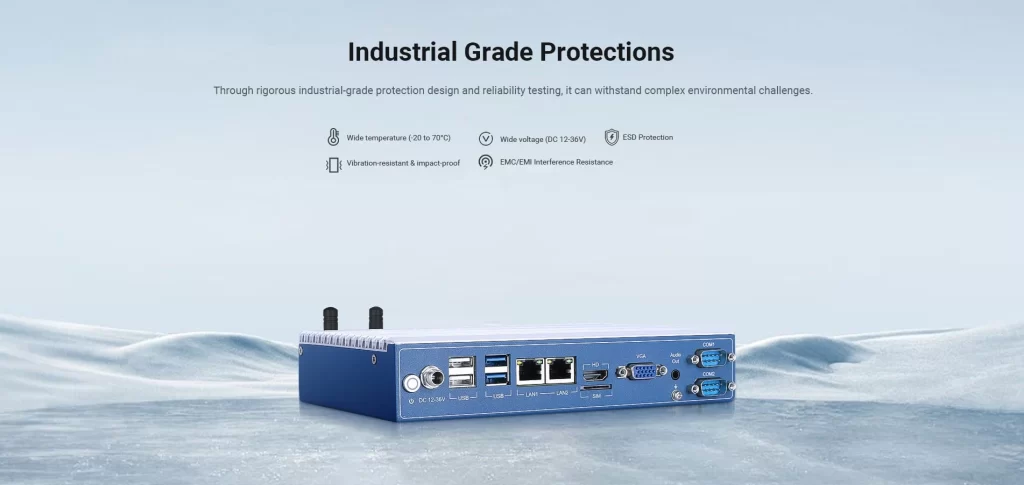

Vibration-resistant & impact-proof, Breite Temperatur (-20 to 70°C), Vibration-resistant & impact-proof
