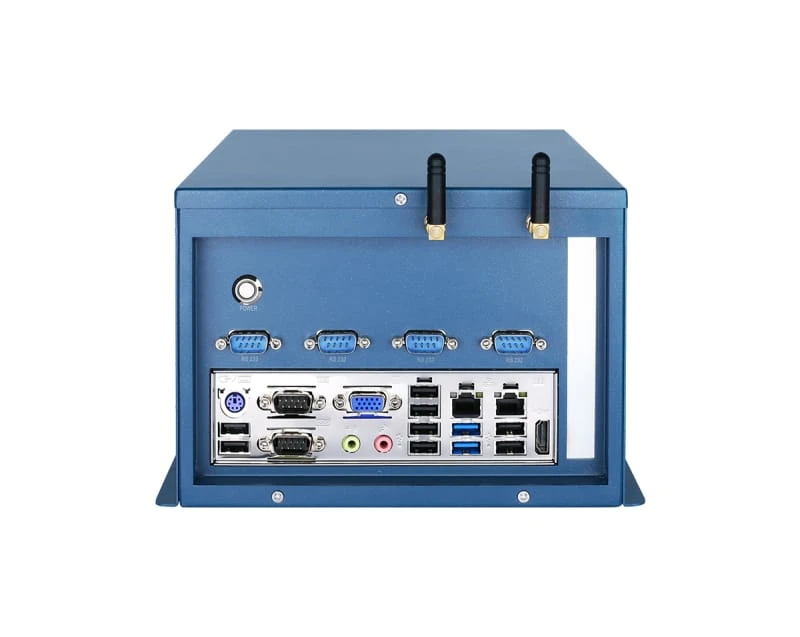

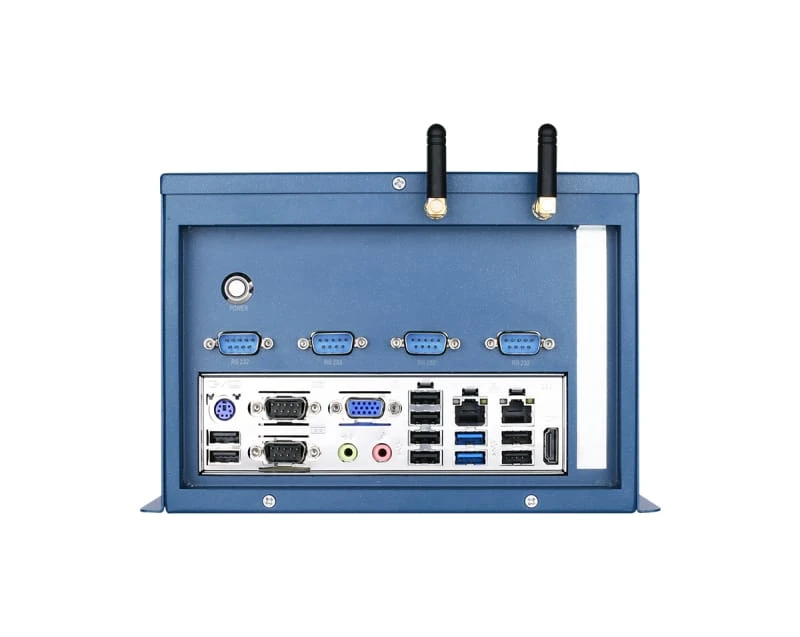

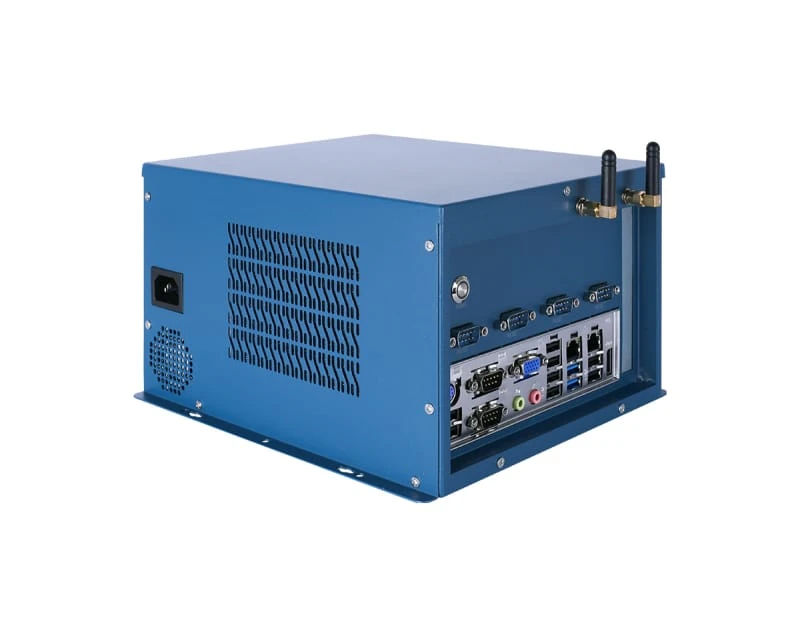

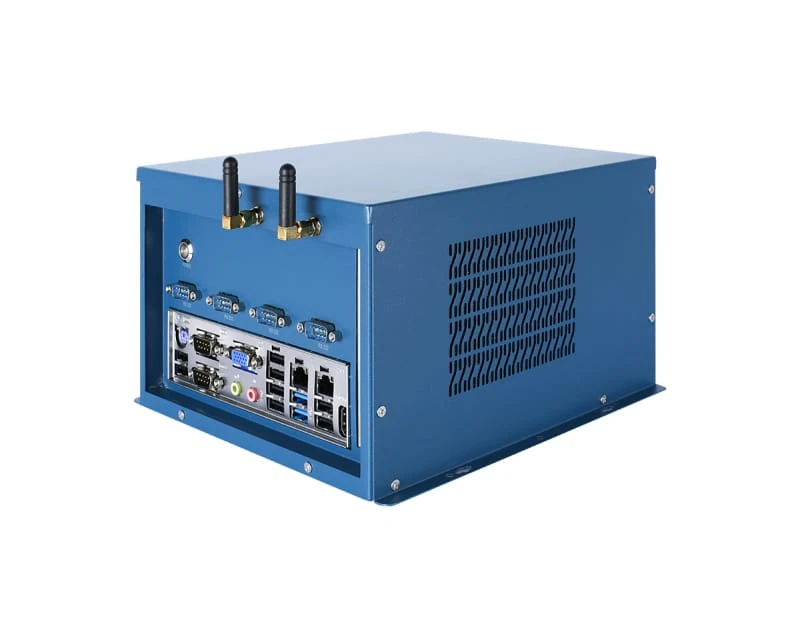

Rack-mounted Industrial PC i3/i5/i7 Built-in 300W ATX Power Supply

Modellnummer: TPC11-WIPC | Größe: 244.6×222.6x144mm

  • Powerful heat dissipation, built-in fan active cooling.
  • Diskrete CPU, Intel Core i3/i5/i7.

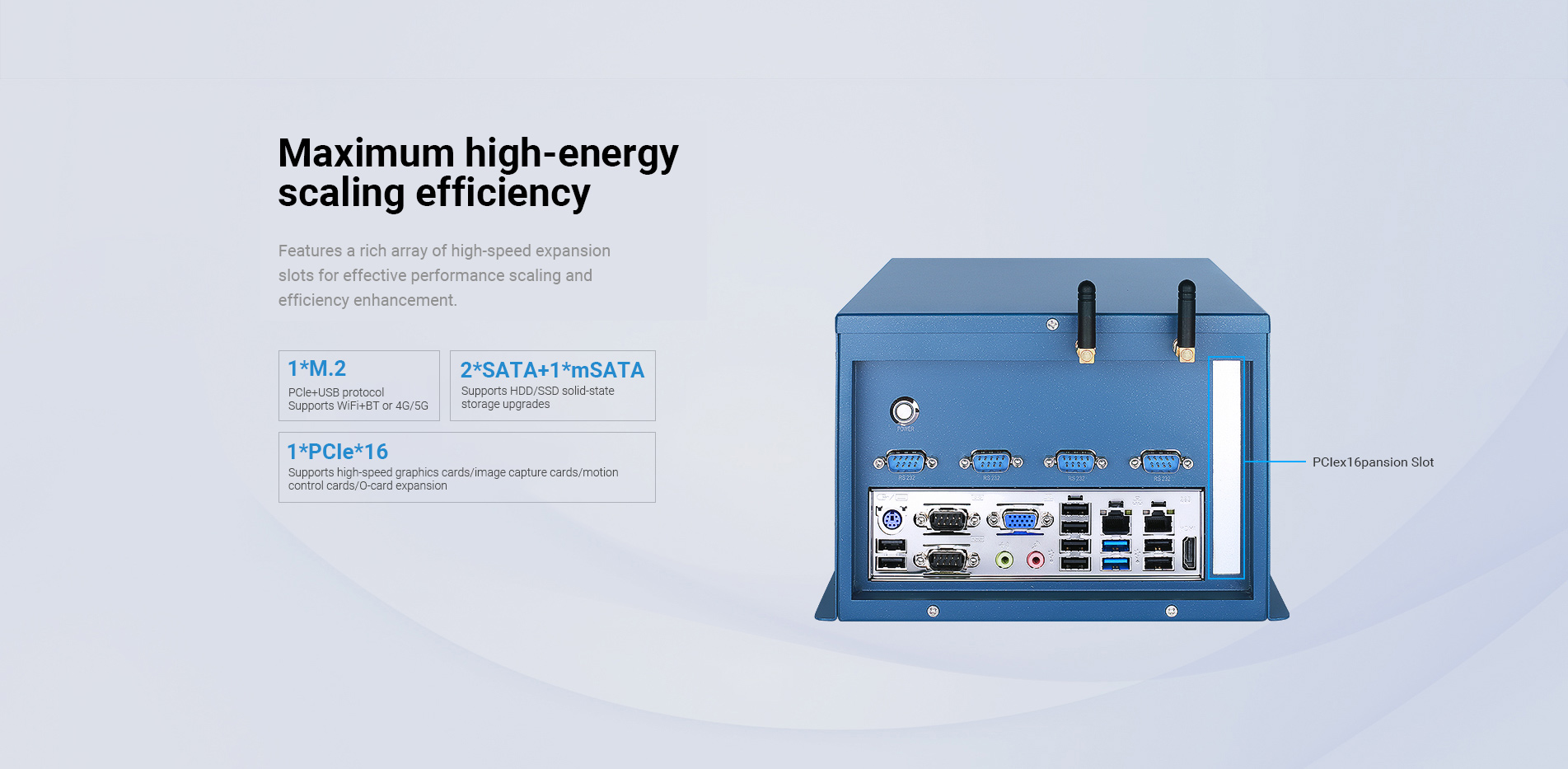

  • PCLEX16 -Expansion, supports multiple expansion card applications.
  • Eingebaute 300W ATX-Netzteil, vereinfachte Verkabelung.
  • Grand Slam -Schnittstelle, 10*USB+6*, usw.
  • Dual-screen display, 1*VGA+1*HDMI (4K/60Hz)
  • Wide temperature adaptability, operating temperature: -10℃~60°C.

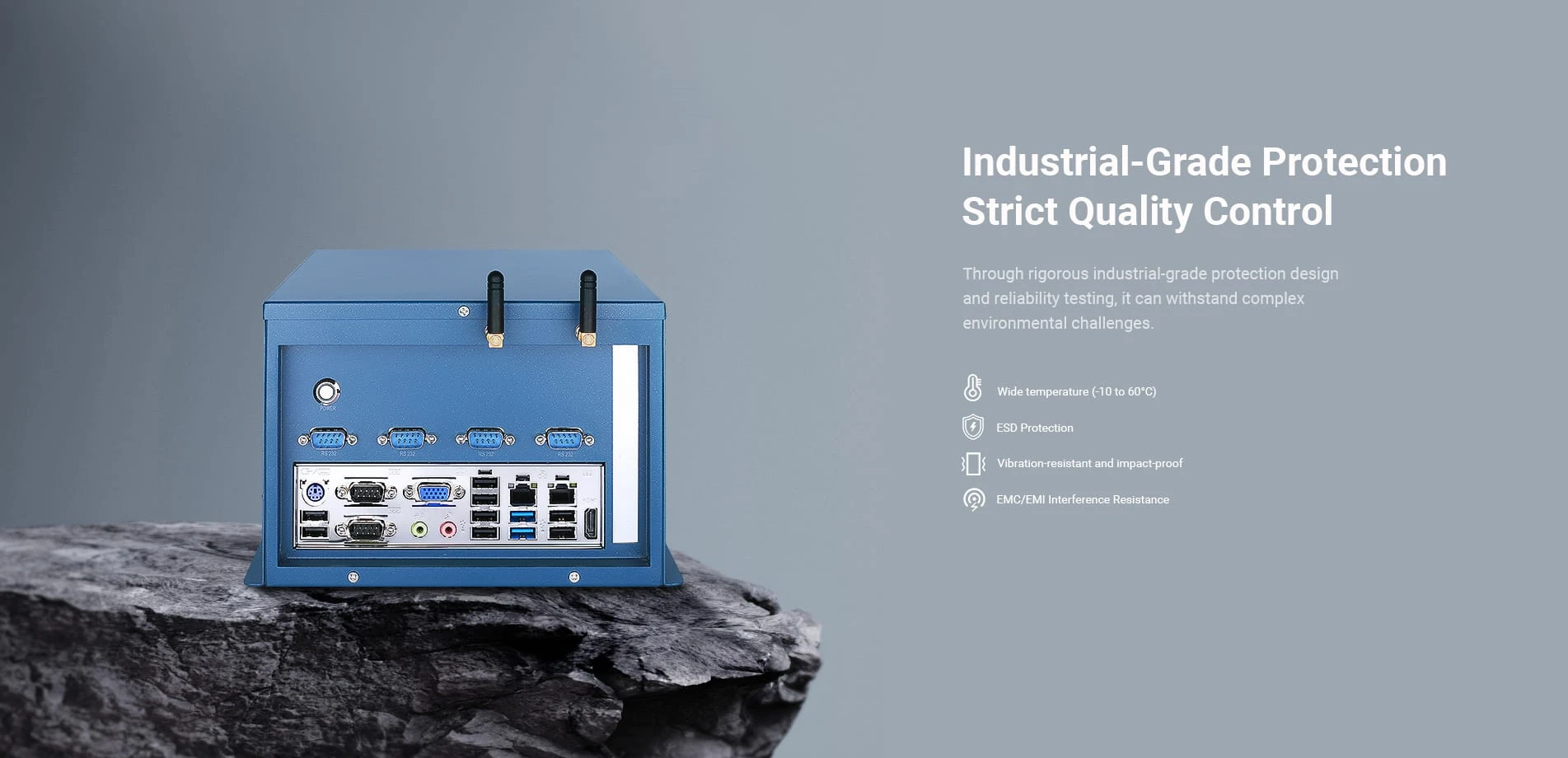

  • Industrial selection, EMI/ESD/Anti-Vibrationsschutz.
  • Ideal for industrial automation, Ausrüstungskontrolle, Maschinenaufwand, MES production lines, and smart transportation applications.

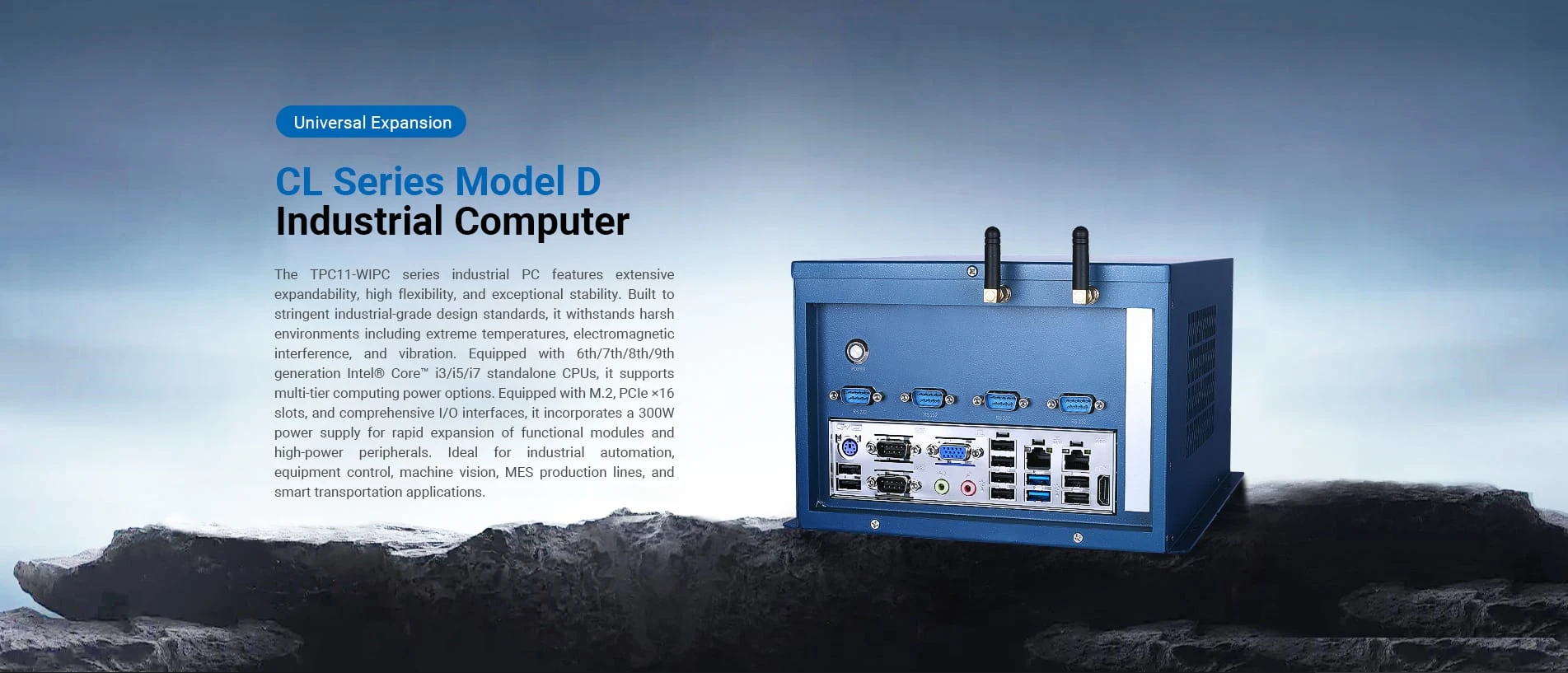

The TPC11-WIPC series industrial computer features multi-expansion capability, high flexibility, and robust stability, designed to industrial-grade standards for reliable operation in harsh environments (extreme Temperaturen, EMI, und Vibration). It supports 6th/7th/8th/9th Gen Intel® Core™ i3/i5/i7 processors (discrete CPUs) for scalable computing performance, and offers M.2 slots, PCIe×16 expansion, and comprehensive I/O interfaces. With a built-in 300W high-power PSU, it enables rapid expansion of functional modules and high-power peripherals, Damit ist es ideal für die industrielle Automatisierung, Ausrüstungskontrolle, Maschinenaufwand, MES production lines, and smart transportation systems.

CL Series Model C Industrial PC Ports-TouchThink IPC Manufacturing
Hardwarekonfiguration
CPUIntel Pentium/Celeron/6th to 9th generation Core i3/i5/i7 processor (LGA1151 socket, maximum TDP support: 65W)
ErinnerungStandard DDR4 8GB memory | Supports DDR4 2133MHz frequency | Provides two UDIMM slots | Expandable up to 32GB
LagerungStandard MSATA 512GB SSD, 2 * Serial SATA 3.0 Ports + 1 * Msata
BetriebssystemWindows 7/8/10, Server 2008/2012, Linux
4G/5G -ModuleUnterstützung China Mobile, China Unicom, China Telecom (wählen)
W-lanDual-Band 2,4/5g
BluetoothBT4.0
GPSOptional
MikrofonOptional
RTC-EchtzeituhrUnterstützung
Timer -Strom ein-/ausUnterstützung
System-UpgradeUnterstützen Sie das lokale SD- und USB -Upgrade

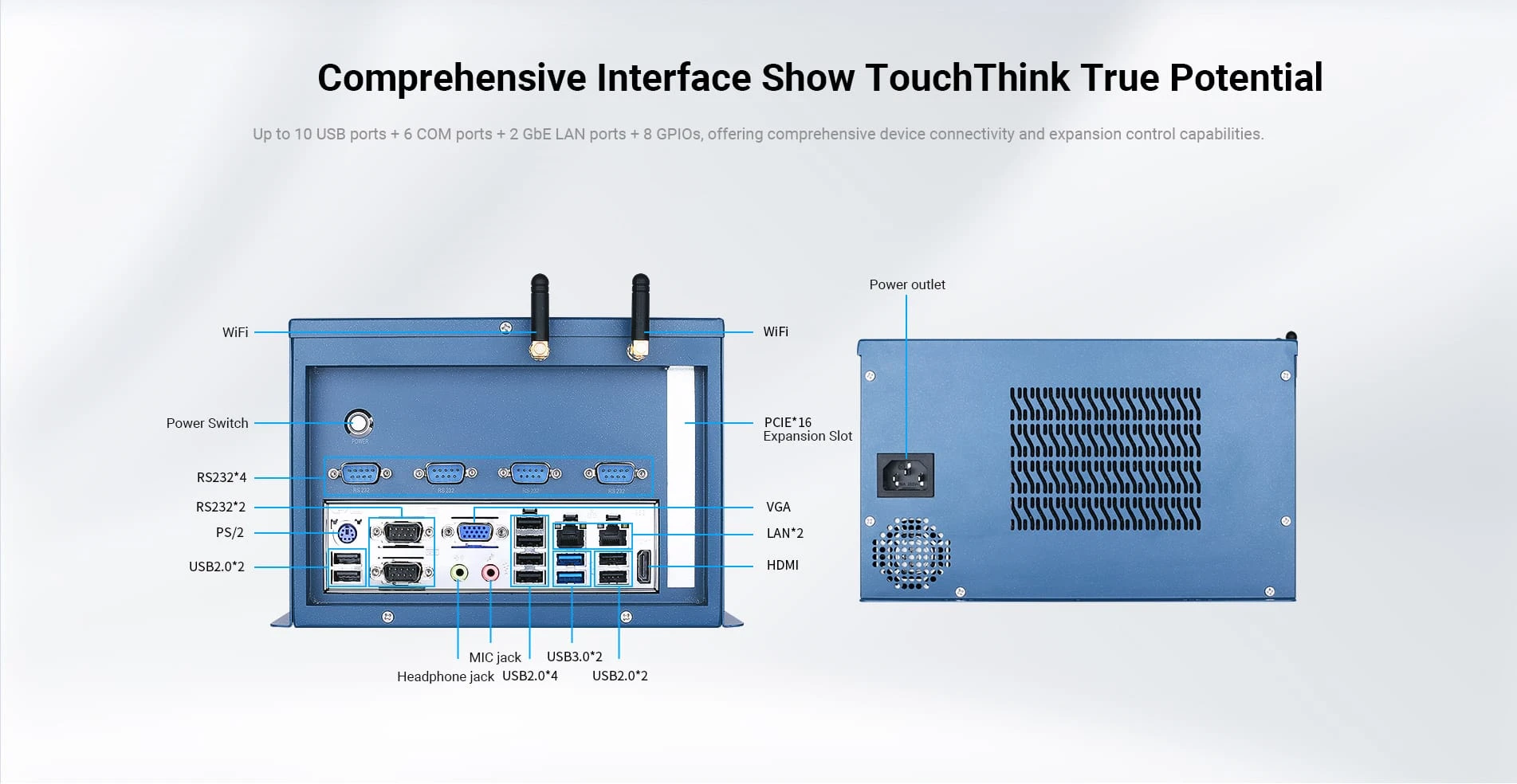

Schnittstellenparameter
USB2*USB3.0, 8*USB2.0
Netzwerkanschluss1 *Inter 10M-1000M adaptive RJ45 network port, 1 *Realtek 10M-1000M adaptive RJ45 network port
GPIO8*GPIO (aktualisierbar)
Serieller Port4*RS232(DB9)
Schnittstelle anzeigenUnterstützen Sie die HDMI -Datenausgabe, maximum resolution 4096*2302/60Hz
Produktzuverlässigkeit
Betriebstemperatur-10 °C ~ 60 °C
Lagertemperatur-20 °C ~70 °C
relative Luftfeuchtigkeit20%-95% (nicht kondensierend)
Zwischenzeit zwischen den Fehlern (MTBF)7*24H
Stromversorgungsparameter
Stromverbrauch≤300W

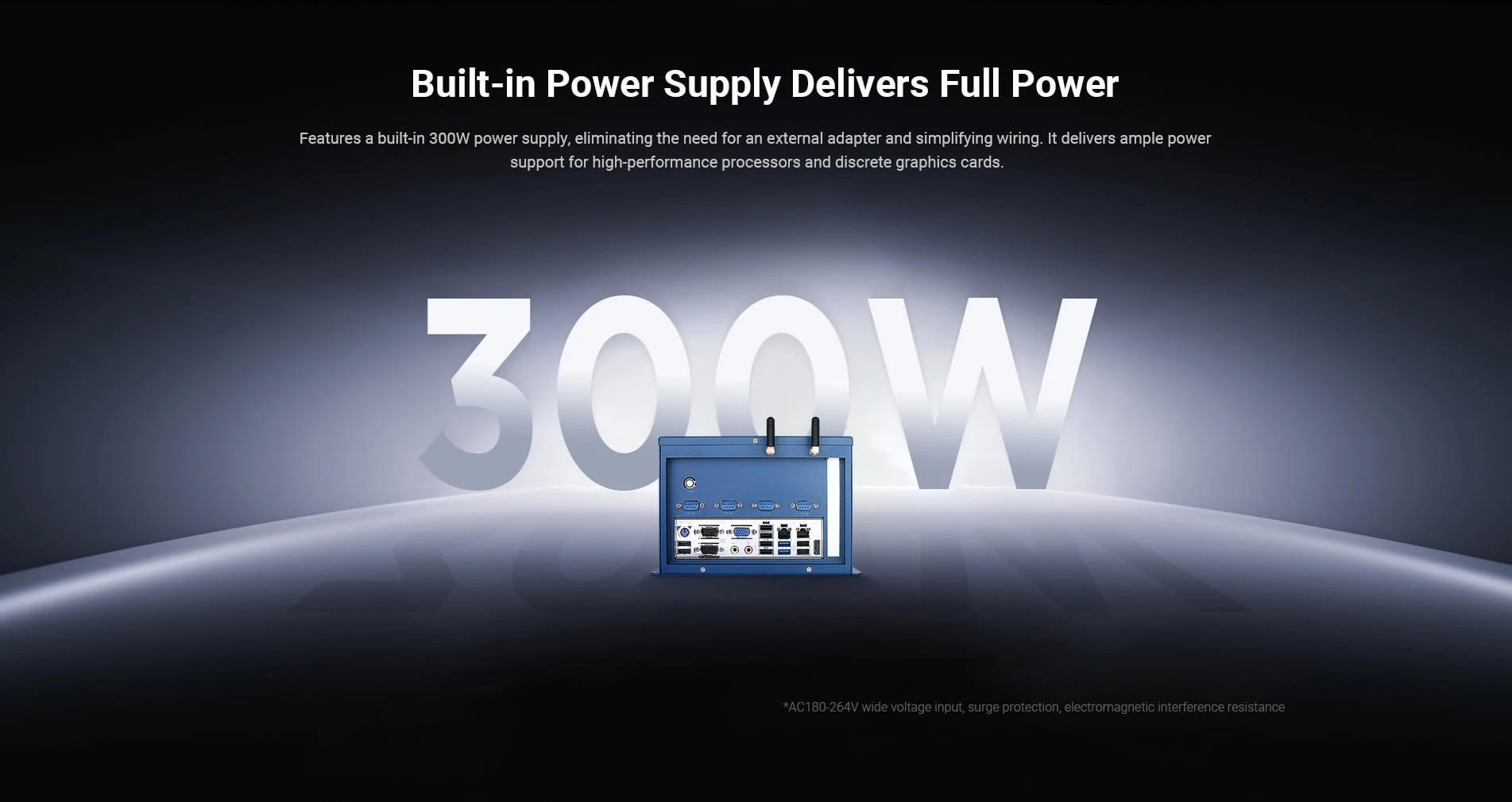

angetrieben von300W industrial-grade power supply, 180-264V AC input. Power supply upgrades are required for countries with voltages below 180V (e.g. Japan, South Korea, die Vereinigten Staaten, usw.)
Netzteil/
Verpackungsspezifikationen
GarantiebestimmungenDrei Jahre (ein Jahr kostenlose Garantie)
FarbstandardsDark blue sheet metal housing
ZubehörNetzkabel x 1, adapter x 1, Bedienungsanleitung x 1, Garantiekarte x 1

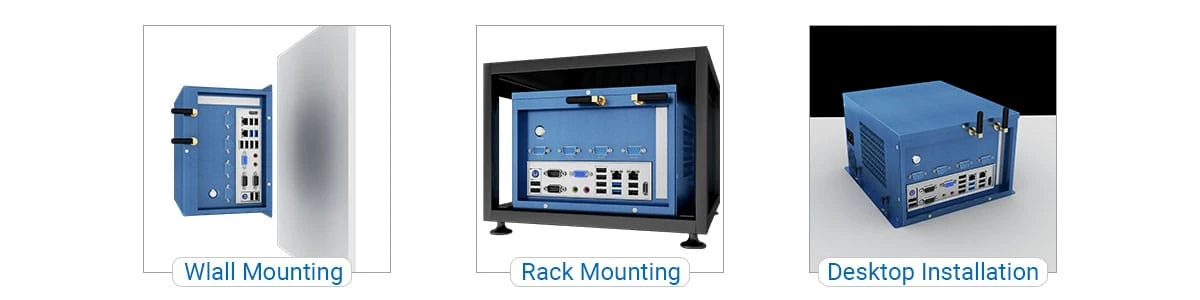

InstallationRack Mount, Desktop, Wandhalterung
