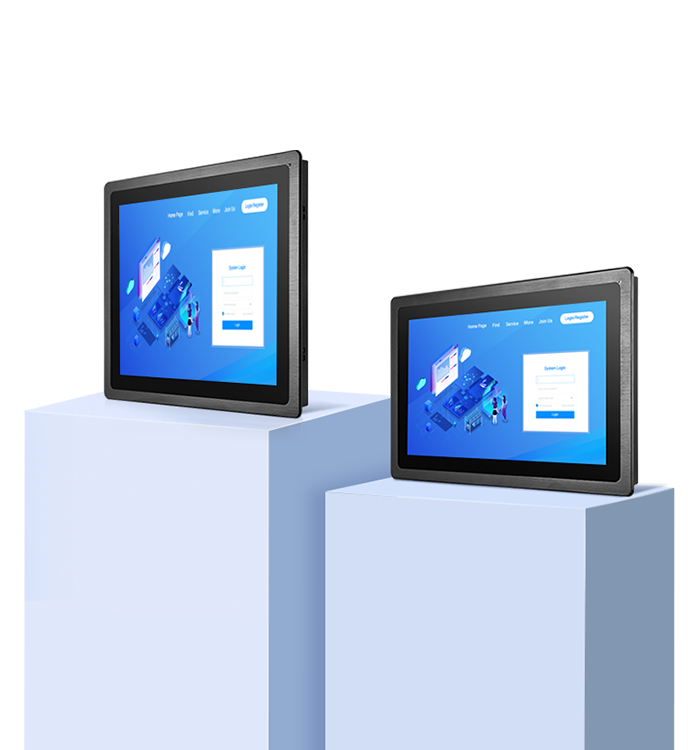

Indoor High-Brightness B Series Monitor
These high-brightness displays ensure excellent visibility and readability in brightly lit indoor environments, making them ideal for applications such as indoor kiosks, transportation display systems, industrial control rooms, and marine navigation.
Monitor de alto brillo para interiores TouchThink serie B
| Product Size | Resolución | Relación de aspecto | Relación de contraste | Brillo | Consulta rápida |
|---|---|---|---|---|---|
| 10.1″ | 1280*800 | 16:10 | 1000:1 | 700cd/㎡~1000cd/㎡ | Inquiry Now |
| 15.6″ | 1920*1080 | 16:9 | 800:1 | 700cd/㎡~1000cd/㎡ | Inquiry Now |
| 17.0″ | 1280*1024 | 5:4 | 1000:1 | 700cd/㎡~1000cd/㎡ | Inquiry Now |
| Product Features |
|---|
Ultra-thin Frame Design
Industrial Technology Design
| Product Parameters | ||
|---|---|---|
| Hardware Parameters | UPC | RTD2513/RTD2556 |
| Material | Aluminum alloy | |
| Menu Language | Plurilingüe (por defecto: Inglés) | |
| Función clave | AUTO/MENÚ/ENCENDIDO/IZQUIERDA/DERECHA | |
| Color | Negro,Sliver Optional | |
| Entrada de vídeo | PC-RGB:Format Up to 1920*1080@60HZ; PC-RGB:Color 16bit,24bit,32bit | |
| Parámetros de pantalla | Panel Type | Industrial control screen |
| Ángulo de visión | Wide view / full view | |
| Backlight Type | LED, use time >=50000H | |
| Brillo | 700cd/㎡~1000cd/㎡ | |
| Display Color | 16.7METRO | |
| Relación de contraste | 1000:1 |
| Parámetros táctiles | Projection capactivite touch Punto de contacto: 10-point Light Transmittance: >=88% Modo de entrada: handwriting or capactivite pen Standard Protocol:USB | Resistive touch 4-5wire/5 Wire Punto de contacto: single point Light Transmittance: >=78% Modo de entrada: Yema del dedo o lápiz Standard Protocol:USB | Sin contacto Light Transmittance: >=92% | ||
| Environment Parameters | Temperatura de trabajo | -20°C~70°C |
| Temperatura de almacenamiento | -30°C~80°C | |
| Humedad relativa | Humedad: 95% Sin condensación | |
| Protección contra vibraciones | CEI 60068-2-64, aleatorio, 5 ~ 500 Hz, 1 h/eje | |
| Protección contra impactos | CEI 60068-2-27, Media onda sinusoidal, Dura 11 ms |
| Other Parameters | Entrada de energía | CC 12 V ~ 36 V. |
| poder estático | 18W. | |
| Método de instalación | Supports snap-embedded,wall edbedded,wall mounted,desktop,louvered,cantilever-mounted,boom-mounted,etc.. | |
| Warranty Policy | Three years ( one year free warranty ) |
