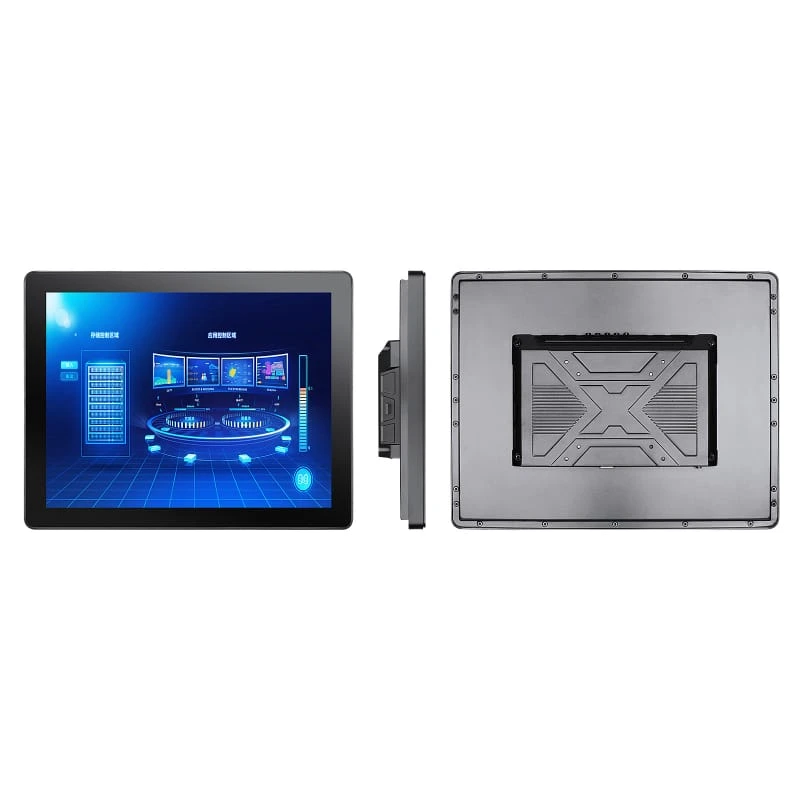

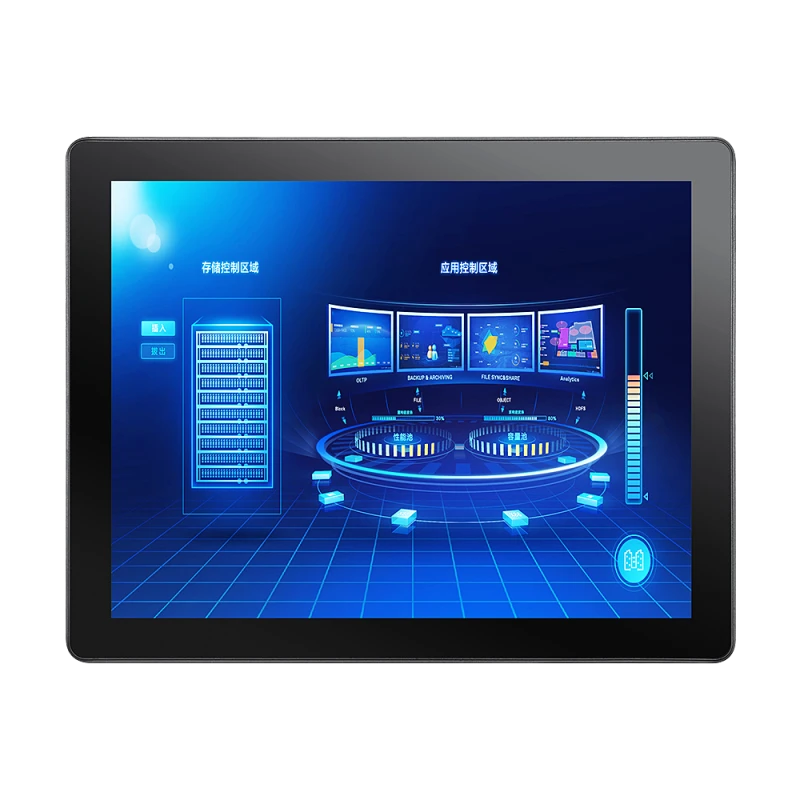

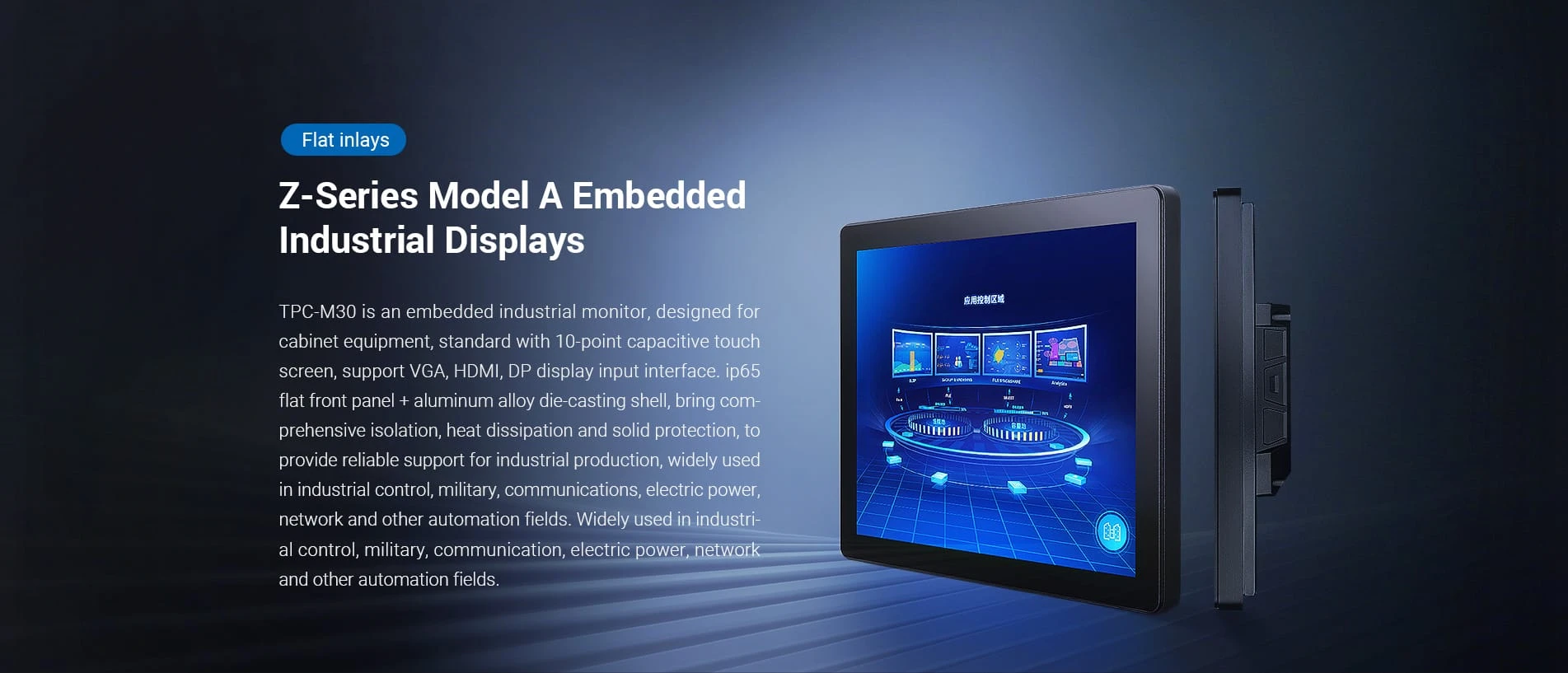

Z Series Model A Embedded Industrial Display Screen
- 7 ″~27 ″ MuIti-sizes avaiIabIe

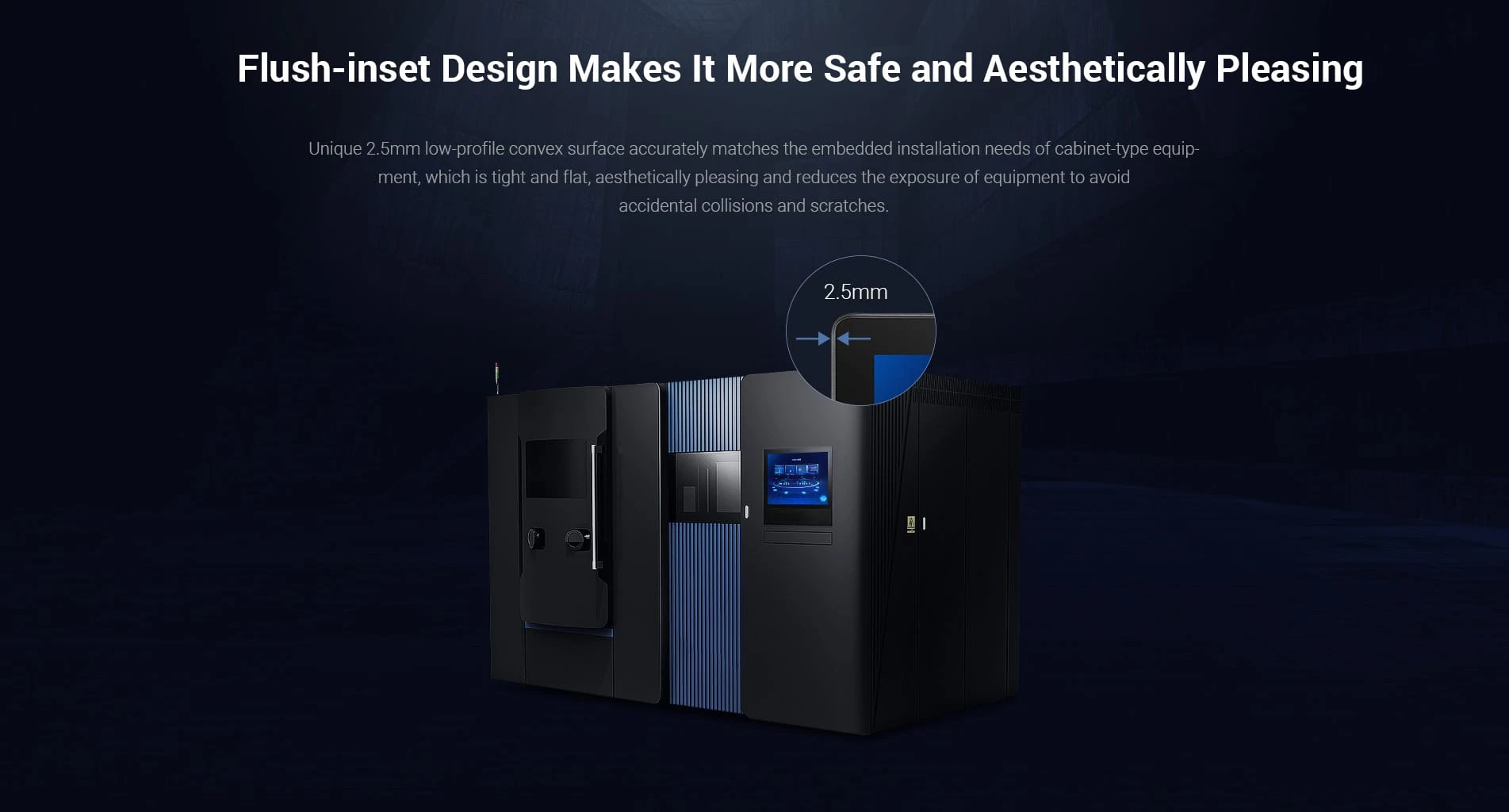

- 2.5mm Iow profiIe narrow edge paneI design, speciaIIY designed for cabinet equipment.
- SeIf-deveIoped industriaI-grade driver board
- High-definition industriaI controI LCD screen, a variety of touch options, 10-point capacitive/resistive accurate touch controI.

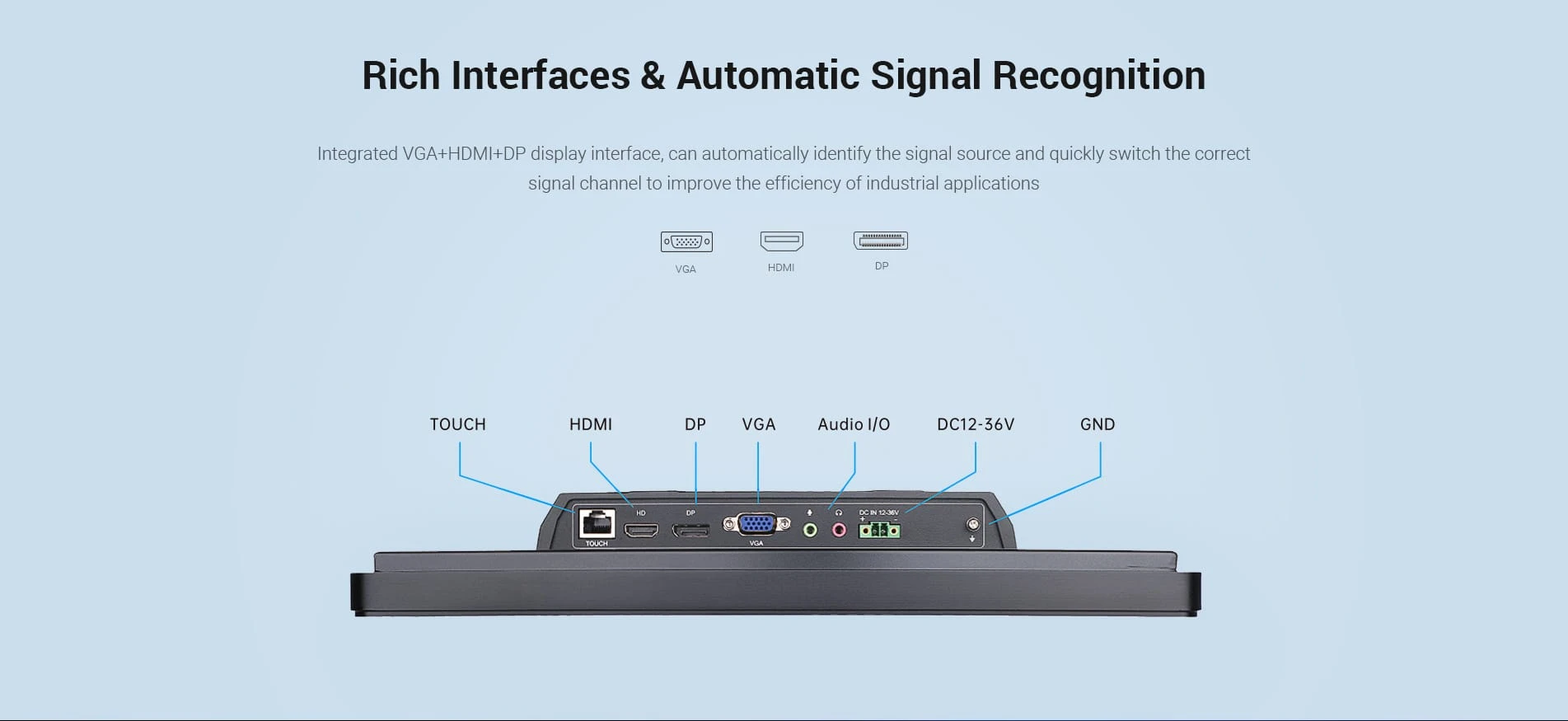

- Interfaz de expansión rica: DP/HD/VGA output.
Embedded

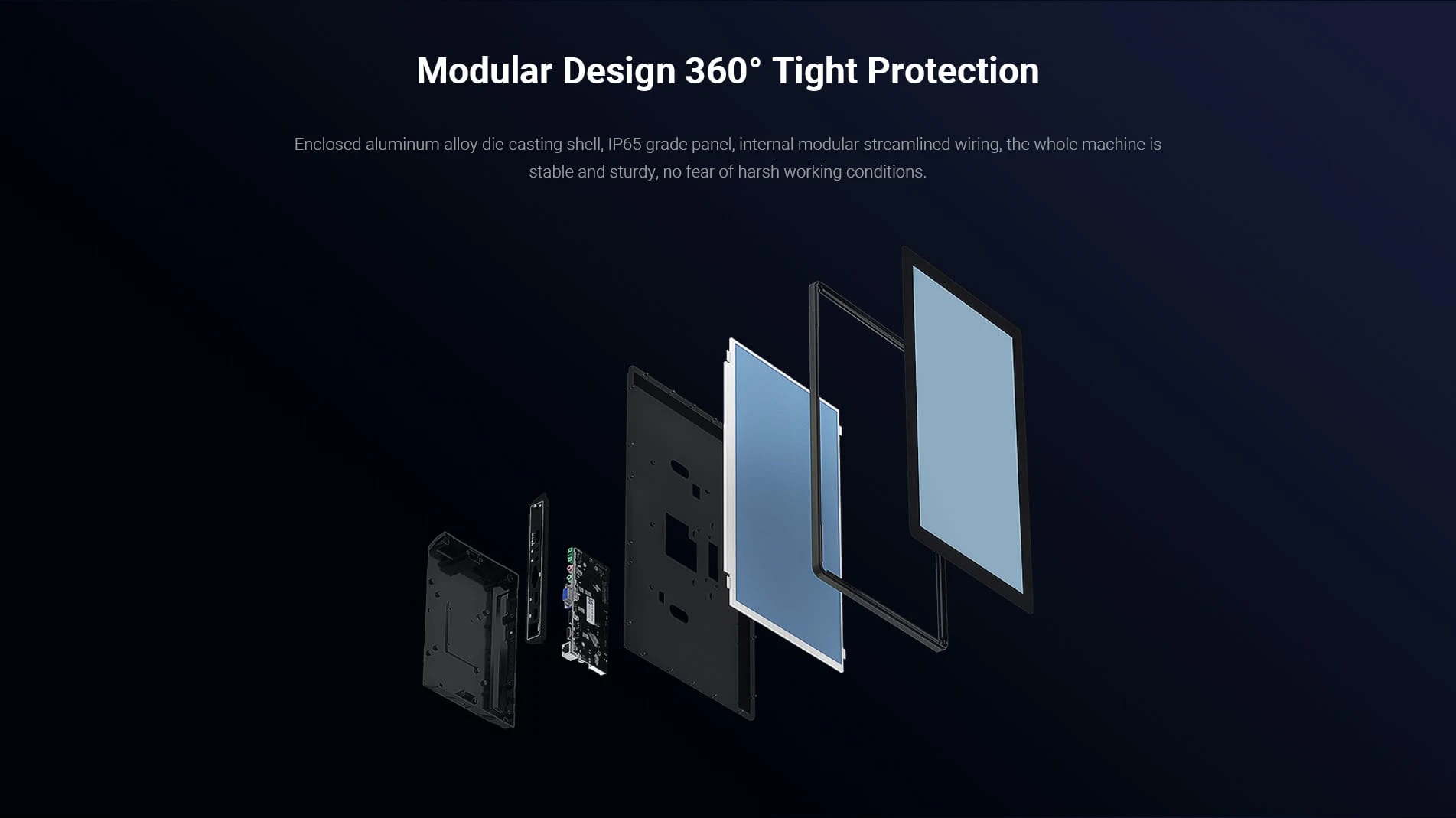

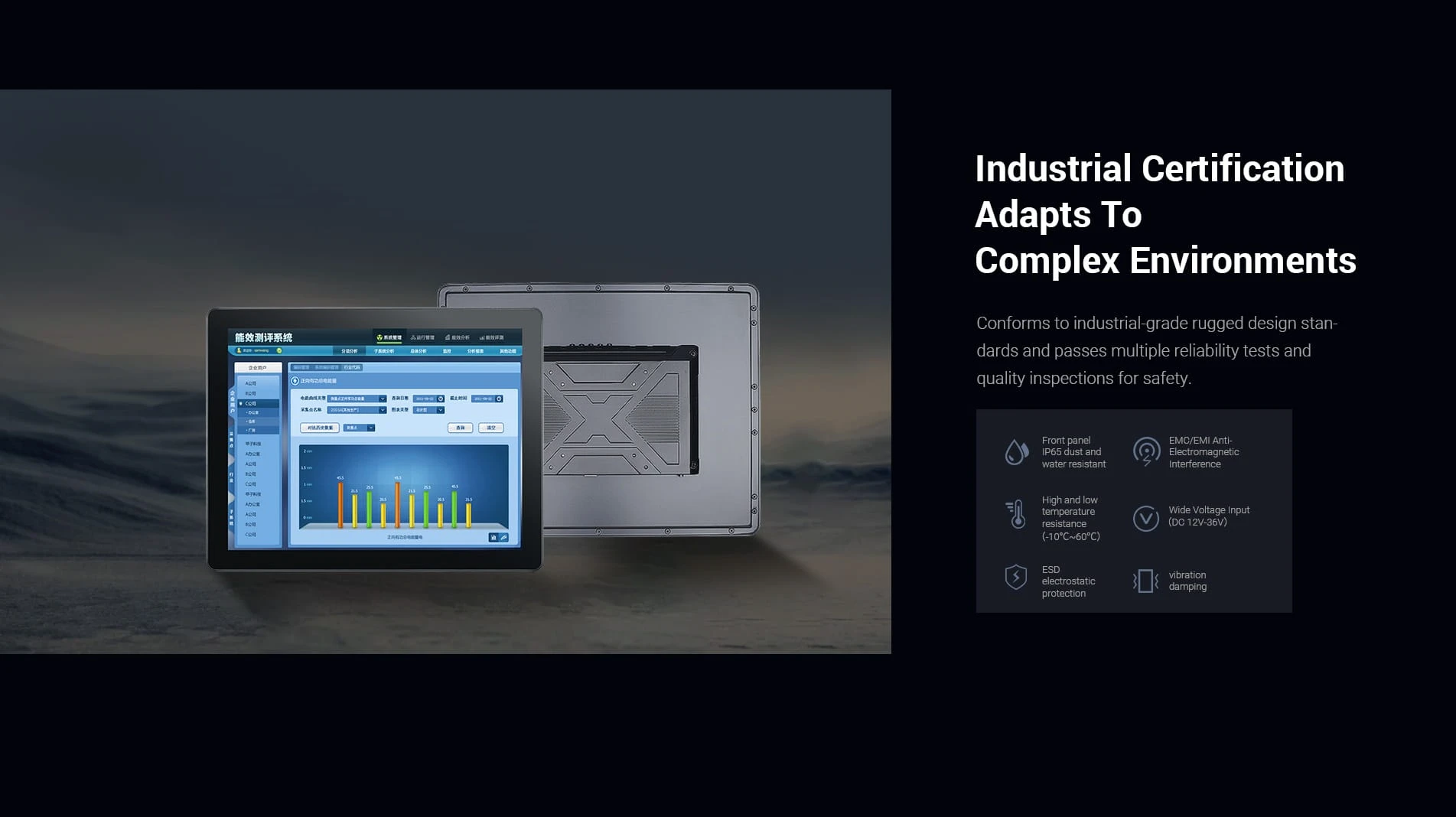

Estructura del panel de aleación de aluminio, Panel frontal impermeable IP65, Toda la máquina tiene un bajo consumo de energía, 2.5Diseño de panel de borde estrecho de paso corto mm, designed for cabinet equipment supporting the creation of seamless embedded installation, El panel está al ras en el gabinete, armonioso y ordenado, destacando la belleza de la ciencia y la tecnología. Through multiple industrial-grade reliability testing, it provides 24H lasting stability and can comfortably cope with harsh industrial environments.
| Common Configuration | |
| UPC | RTD2513BR |

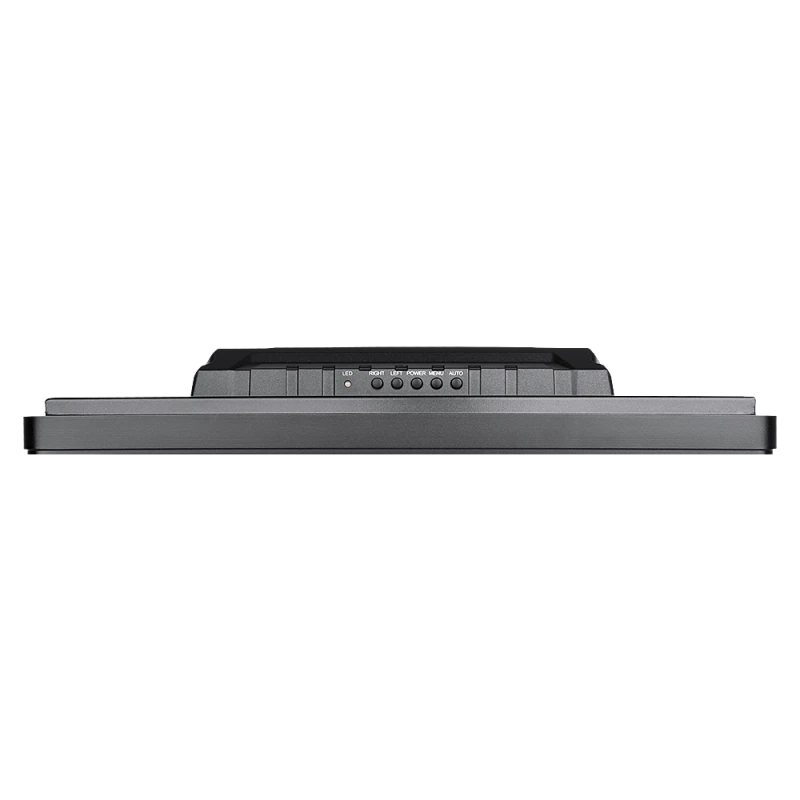

| Key Functions | AUTO, MENU, FUERZA, LEFT, RIGHT |
| Menu Languages | Lenguaje múltiple (default English) |
| Entrada de vídeo | PC-RGB:Formato,Up to 1920*1080@60Hz |
| PC-RGB:Color, 16poco,24poco,32poco | |

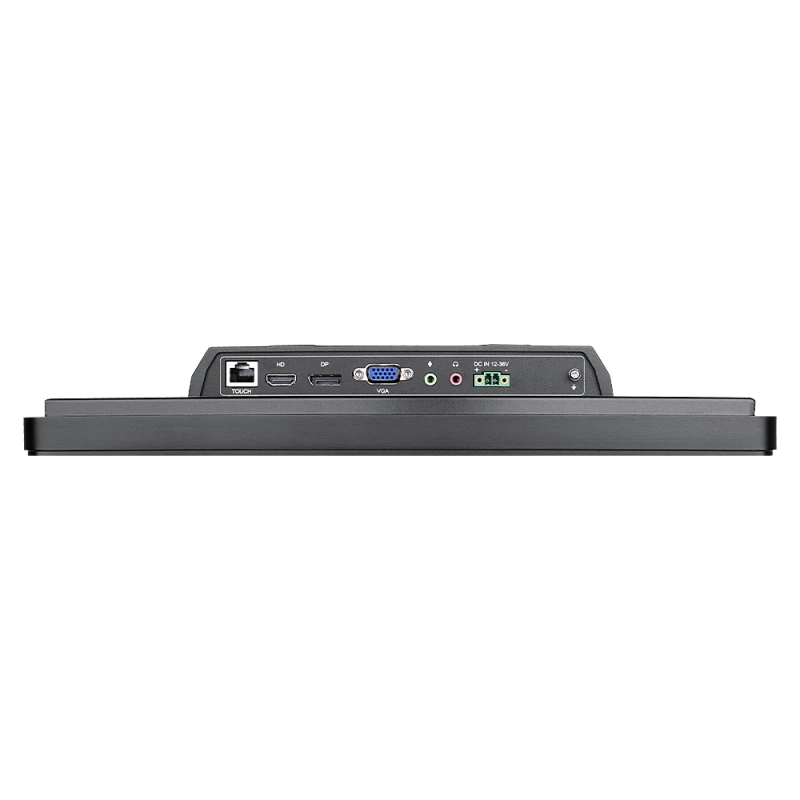

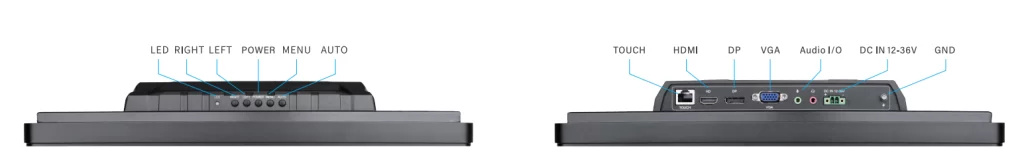

| Interfaces | |
| Interfaz de energía | 1*2Pin Phoenix terminal (Optional with thread DC 5.5*2.1) |
| hdmi | 1*HDMl, high-definition audio digital signal transmission, support HDMl data input, soporte máximo 1080P |
| VGA | 1*VGA, Transmisión de señal analógica, supporting the best resolution of VGA |
| DP | 1*DP |
| TOCAR | 1*RJ45 port (USB definition) comes standard with Rj45 to USB touch cable |
| AUDIO I/0 | 1*AUDl0 1/0, compatible con entrada y salida de audio; Headphone stand: 3.5interfaz estándar mm |
| Toma de tierra | 1*Tierra |
| Parámetros táctiles | |
| Toque capacitivo | Projection capacitive touch,10-point multi touchTouch object: hand or capacitive touch penLight transmission:>88%Controller: USB( COM customized) |
| Toque resistivo | Toque resistivo, Single pointTouch object: finger or stylusLight transmission:>78%Controller: USB( COM customized) |
| Non touch | Transmitancia:>92% |
| Parámetros de confiabilidad | |
| Operating temperature | -10°C~60°C(-20°C~70°C can be customized) |
| Storage temperature | -20°C~70°C |
| Relative humidity | 95% non-Condensing |
| Otros parámetros | |
| Entrada de energía | 12V-36V power input |
| Adaptador de corriente | 24V/1.5A |

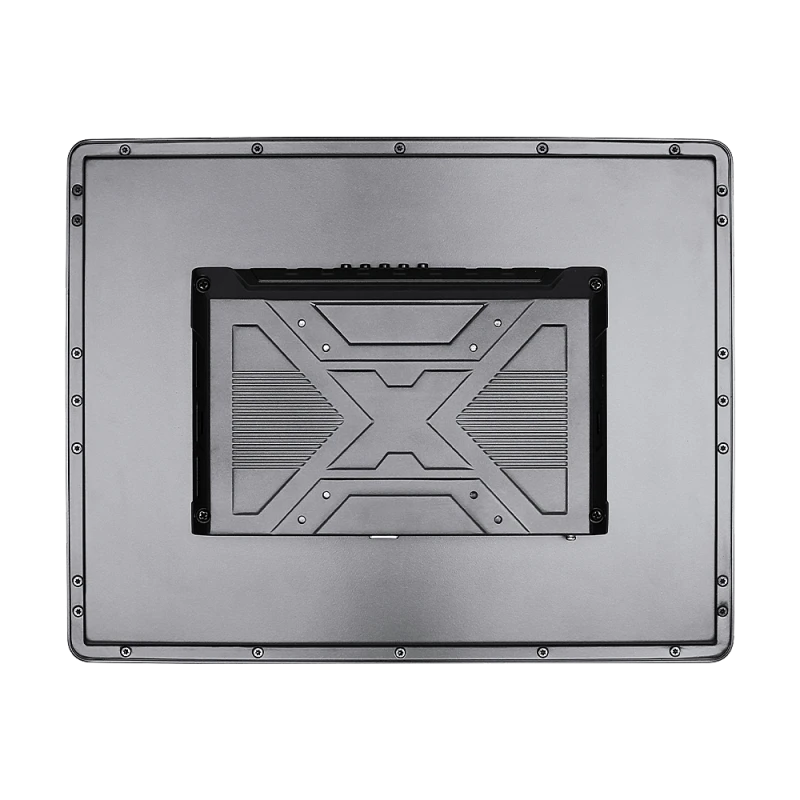

| Propiedades del fuselaje | Material del cuerpo: aleación de aluminio, color del cuerpo: negro clasico, plata técnica |
| Warranty policy | tres años (un año de garantía gratuita) |

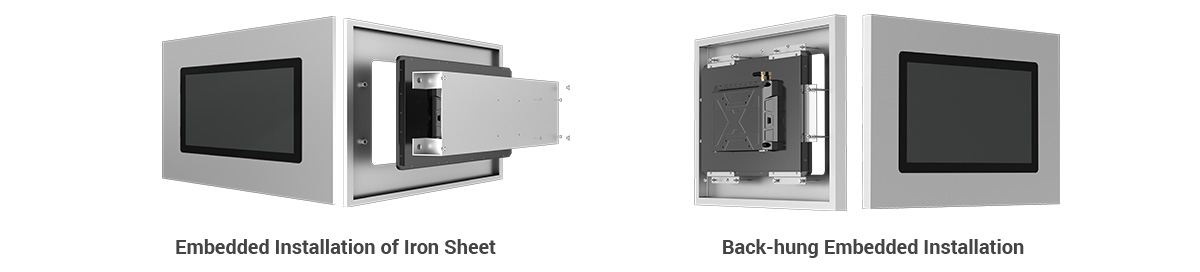

| Installation method | Embedded installation of iron sheet, Back-hung embedded installation, etc. |
| Product size | ResoIution | Screen Ratio | Brillo | Relación de contraste | Viewing angIe | Manual |
|---|---|---|---|---|---|---|
| 7″ | 1024*600 | 16:9 | 500cd/m² | 500:1 | 75/75/70/75 (L/R/U/D) | view |
| 8″ | 1024*768 | 4:3 | 250~300cd/m² | 800:1 | 85/85/85/85 (L/R/U/D) | view |
| 10.1″ | 1280*800 | 16:10 | 400cd/m² | 1000:1 | 85/85/85/85 (L/R/U/D) | view |
| 10.4″ | 1024*768 | 4:3 | 400cd/m² | 1000:1 | 80/80/80/80 (L/R/U/D) | view |
| 11.6″ | 1920*1080 | 16:9 | 250~300cd/m² | 1000:1 | 85/85/85/85 (L/R/U/D) | view |
| 12″ | 1024*768 | 4:3 | 500cd/m² | 1000:1 | 85/85/85/85 (L/R/U/D) | view |
| 13.3″ | 1920*1080 | 16:9 | 400cd/m² | 1000:1 | 85/85/85/85 (L/R/U/D) | view |
| 15″ | 1024*768 | 4:3 | 350cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
| 15.6″ | 1920*1080 | 16:9 | 300cd/m² | 800:1 | 85/85/85/85 (L/R/U/D) | view |
| 17″ | 1280*1024 | 5:4 | 250~300cd/m² | 1000:1 | 85/85/80/80 (L/R/U/D) | view |
| 17.3″ | 1920*1080 | 16:9 | 400cd/m² | 600:1 | 80/80/60/80 (L/R/U/D) | view |
| 18.5″ | 1920*1080 | 16:9 | 270cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
| 19″ | 1280*1024 | 5:4 | 250~300cd/m² | 1000:1 | 85/85/80/80 (L/R/U/D) | view |
| 21.5″ | 1920*1080 | 16:9 | 250~300cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
| 23.8″ | 1920*1080 | 16:9 | 250~300cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
| 27″ | 1920*1080 | 16:9 | 250~300cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
