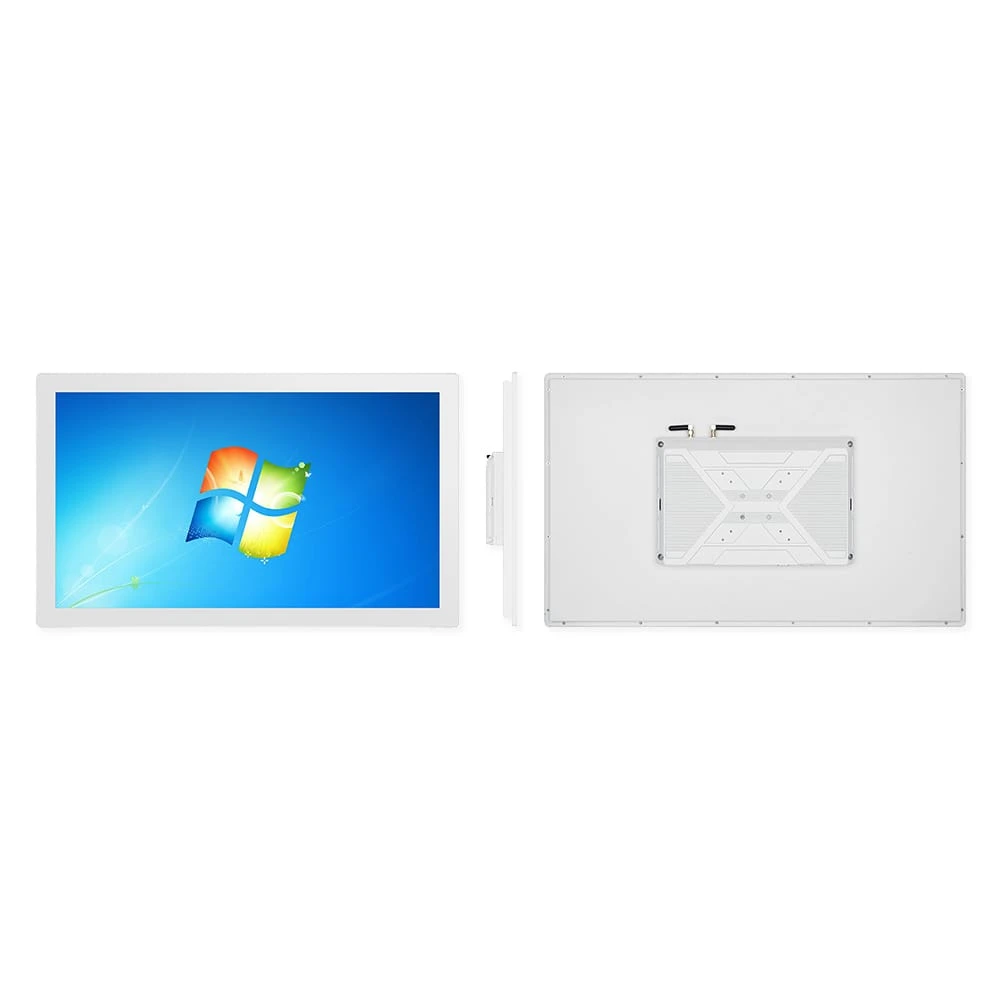

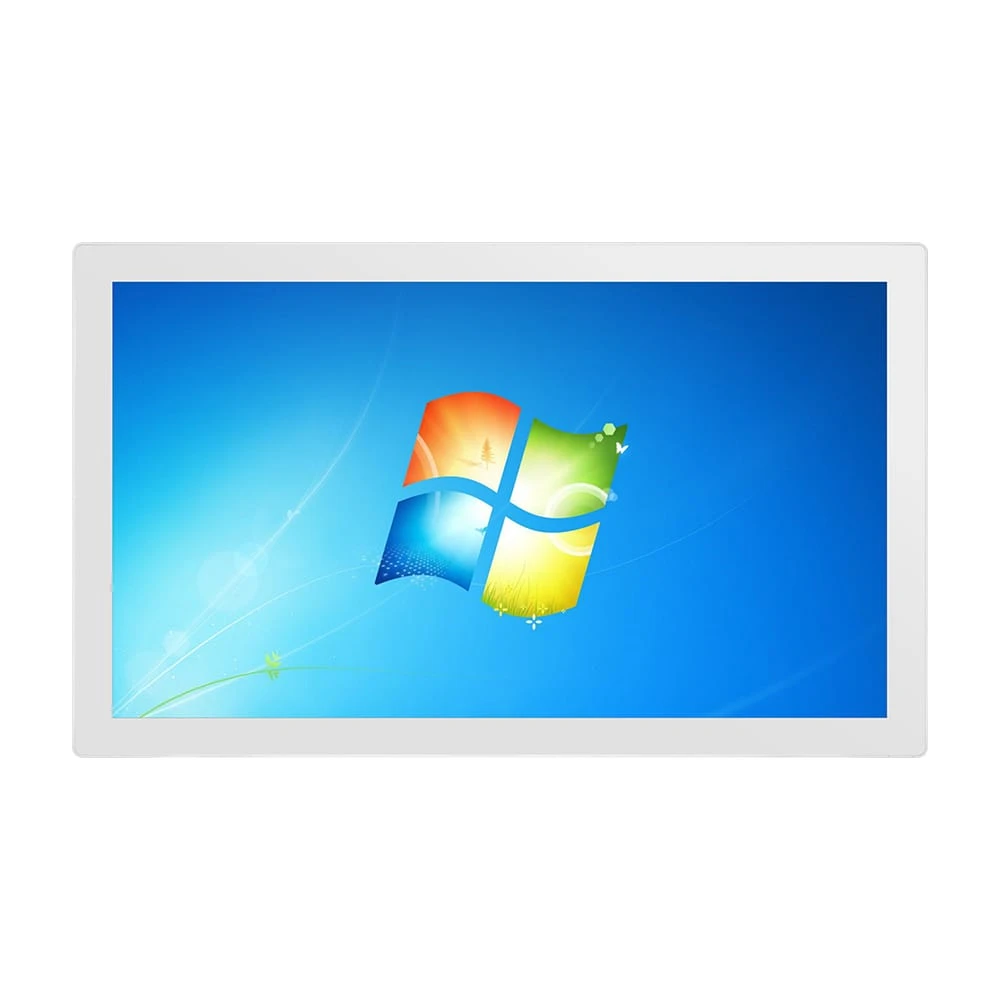

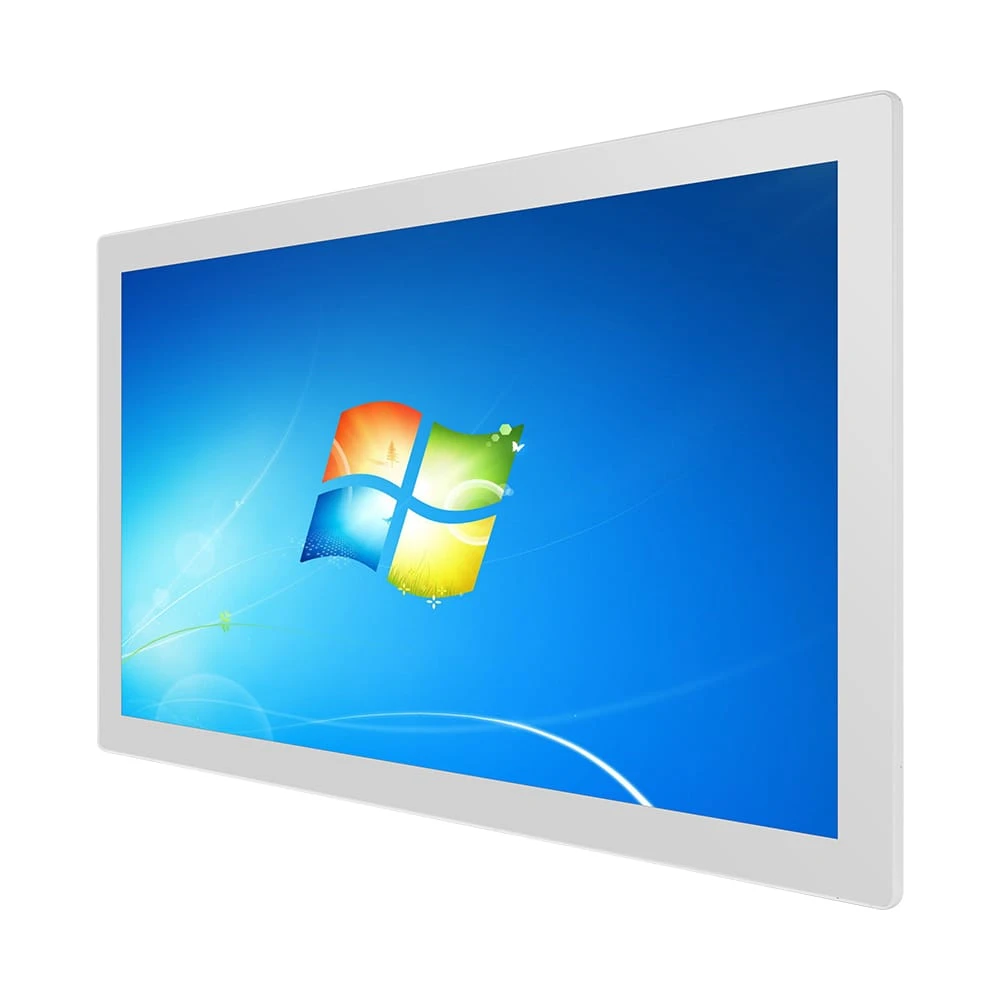

Monitor táctil Fanless de la atención sanitaria de la exhibición del LCD del grado médico IP65
- 10.1~27 inches screen size available, glove-touch & anti-glare screen.
- High-precision die-cast aluminum construction with excellent heat dissipation.
- Shielding-grade panels ensure the PCB’s electromagnetic compatibility and resistance to oxidation.
- The configuration uses the RTD2513BR-VS-C chip.
- The unit features an internal design that resists vibration and interference, and its EMI/EMC performance complies with industry standards.
- Admite VGA, hdmi, and DP. It detects automatically the signal source.
- Obtain a test report for the healthcare industry.

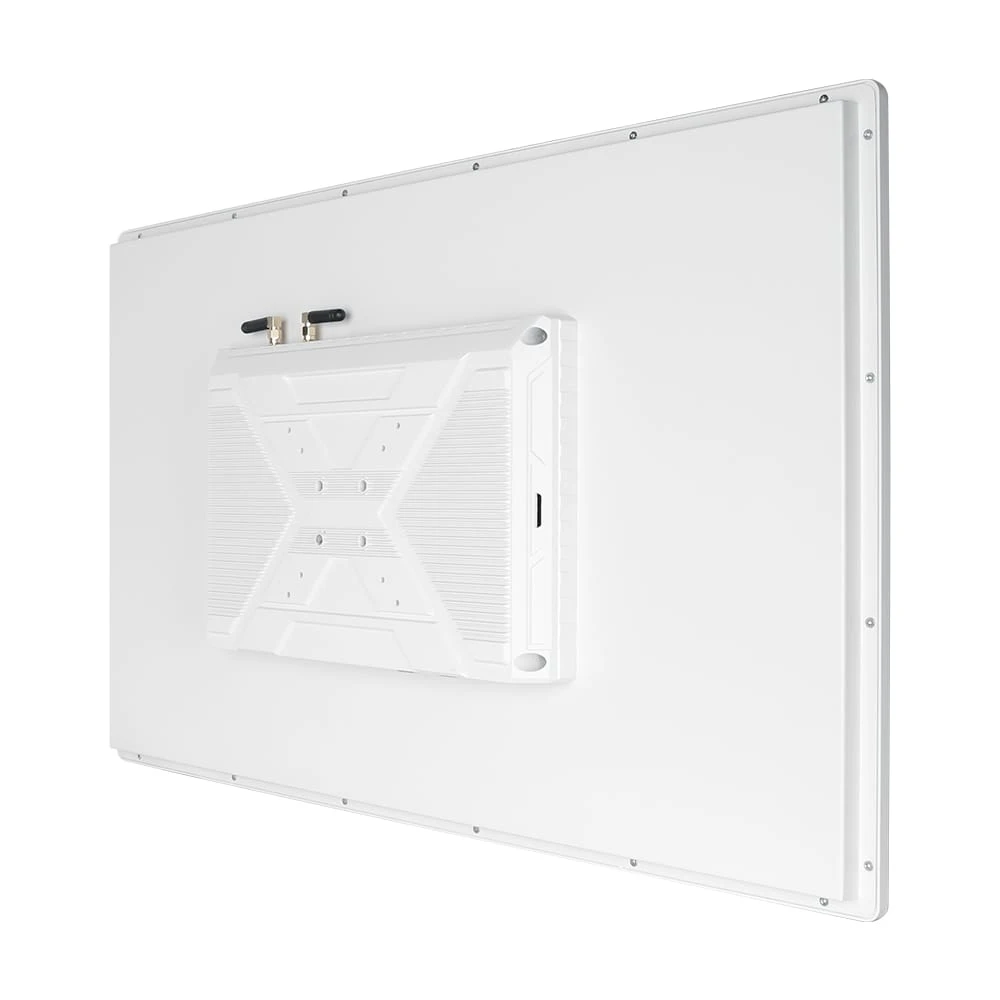

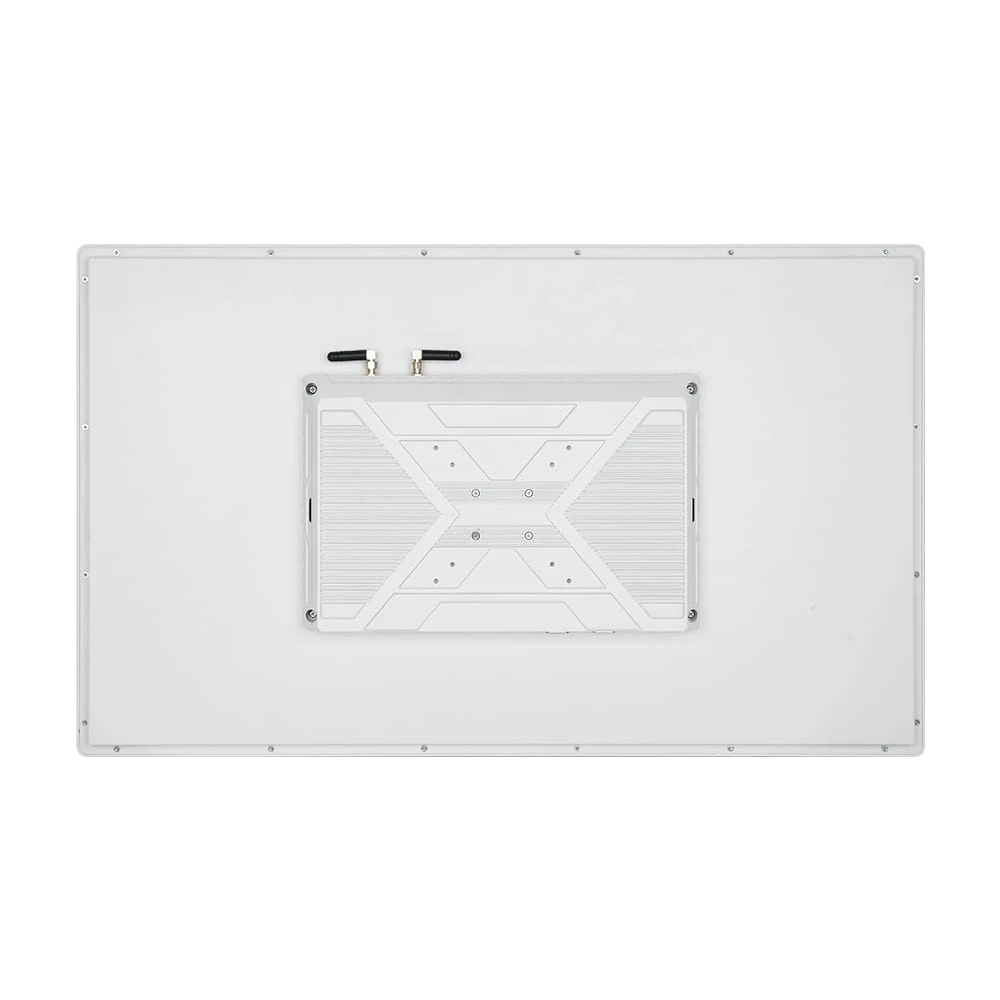

Featuring an aluminum alloy structure and a fanless, diseño completamente cerrado, this device offers low power consumption and a compact form factor. Designed specifically for complex medical environments, it ensures long -term, stable operation under demanding medical conditions. Equipped with the Realtek RTD2513BR-VS-C monitoring controller and featuring a variety of high-definition display interfaces, it meets the diverse application interface requirements of on-site operations and offers a wide range of operational capabilities. It is widely used in smart terminal devices for medical treatment and diagnosis, as well as in self-service terminal devices for medical assistance.
| Configuración común | |
| UPC | RTD2513BR-VS-C |
| Funciones clave | AUTO, MENÚ, FUERZA, IZQUIERDA, BIEN |
| Lenguaje de menú | Plurilingüe (Inglés predeterminado) |
| Entrada de video | PC-RGB: Formato, Hasta 1920*1080@60Hz PC-RGB: Color, 16poco, 24poco, 32poco |

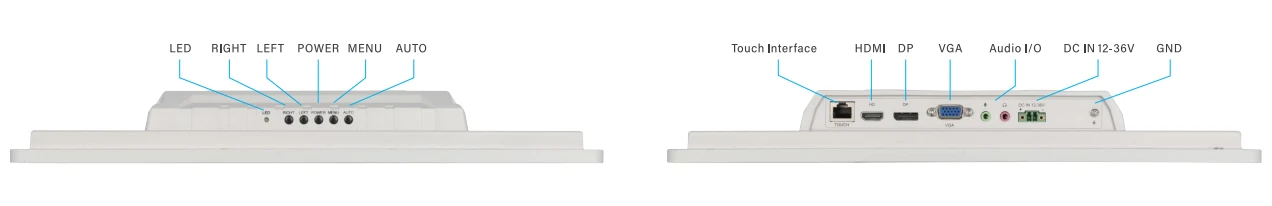

| Interfaces | |
| Interfaz de energía | 1*2-pin Phoenix terminal (3.81 spacing) |
| hdmi | 1*hdmi, transmisión de señal digital de audio de alta definición, supports HDMI data input, soporte máximo 1080P |
| VGA | 1*VGA |
| DP | 1*DP |
| TOCAR | 1*Puerto RJ45 (Definición USB) comes standard with RJ45 to USB touch cable |
| AUDIO 1/O | 1*E/S DE AUDIO, compatible con entrada y salida de audio; Soporte de auriculares: 3.5interfaz estándar mm |
| Toma de tierra | 1*Tierra |
| Parámetros de confiabilidad | |
| Temperatura de funcionamiento | -10°C~60°C(-20° C ~ 70 ° C se puede personalizar) |
| Temperatura de almacenamiento | -20°C~70°C |
| Humedad relativa | 95% no condensación |
| Otros parámetros | |
| Entrada de energía | 12Entrada de potencia V-36V |
| Adaptador de corriente | 24V/1.5A |
| Propiedades del fuselaje | Material del cuerpo: aleación de aluminio, color del cuerpo: negro clasico, plata técnica |
| Póliza de garantía | tres años (1-año de garantía gratis) |
| Método de instalación | Supports back hanging, montado en la pared, de oficina, louver installation, cantilever installation, boom-type installation, etc.. |
| Modo táctil | Número de modelo. | Parámetros táctiles |
| No tacto | TPC-M4002 | Transmitancia:>92% |
| Toque capacitivo | TPC-M4012 | Toque capacitivo de proyección,10-punto multitáctil Touch Object: Mano o pluma táctil capacitiva Transmisión de luz:>88% Controlador: USB( Com personalizado) |
| Toque resistivo | TPC-M4022 | Toque resistivo: punto único Touch Object: dedo o lápiz Transmisión de luz:>78% Controlador: USB COM customized) |
| Modelo | Tamaño del producto | Resoiución | Relación de pantalla | Brillo | Relación de contraste | Viendo a Angie | Manual |
|---|---|---|---|---|---|---|---|
| TPC101-M40 | 10.1″ | 1280*800 | 16:10 | 300cd/m² | 600:1 | 80/80/80/80 (L/R/U/D) | vista |
| TPC104-M40 | 10.4″ | 1024*768 | 4:3 | 300cd/m² | 800:1 | 75/75/70/75 (L/R/U/D) | vista |
| TPC116-M40 | 11.6″ | 1920*1080 | 16:9 | 220cd/m² | 800:1 | 85/85/85/85 (L/R/U/D) | vista |
| TPC120-M40 | 12″ | 1024*768 | 4:3 | 300cd/m² | 800:1 | 85/85/85/85 (L/R/U/D) | vista |
| TPC133-M40 | 13.3″ | 1920*1080 | 16:9 | 220cd/m² | 1000:1 | 85/85/85/85 (L/R/U/D) | vista |
| TPC150-M40 | 15″ | 1024*768 | 4:3 | 300cd/m² | 700:1 | 80/80/80/80 (L/R/U/D) | vista |
| TPC156-M40 | 15.6″ | 1920*1080 | 16:9 | 300cd/m² | 800:1 | 85/85/85/85 (L/R/U/D) | vista |
| TPC170-M40 | 17″ | 1280*1024 | 5:4 | 300cd/m² | 1000:1 | 80/80/80/70 (L/R/U/D) | vista |
| TPC173-M40 | 17.3″ | 1920*1080 | 16:9 | 300cd/m² | 600:1 | 80/80/60/80 (L/R/U/D) | vista |
| TPC185-M40 | 18.5″ | 1920*1080 | 16:9 | 270cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | vista |
| TPC190-M40 | 19″ | 1280*1024 | 5:4 | 300cd/m² | 1000:1 | 75/75/70/75 (L/R/U/D) | vista |
| TPC215-M40 | 21.5″ | 1920*1080 | 16:9 | 300cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | vista |
| TPC238-M40 | 23.8″ | 1920*1080 | 16:9 | 250cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | vista |
| TPC270-M40 | 27.0″ | 1920*1080 | 16:9 | 250cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | vista |
