IP65 Flush Mounting 7-32Embedded Panel PC DDR4 M.2/SATA3.0/mSATA Intel 2-way 2.5Gbps LAN 2.4G WiFi BT5.0

  • Preferred for embedded installation, 2.5mm low profile protruding design
  • IP65 protective panel, capacitive/resistive/non-touch options available
  • Intel®N97 as standard, Celeron J1900/J6412, Core i3/i5/i7
  • Integrated dedicated board, neat and reliable wiring
  • High-speed communication network, 2×2.5GbE+Wi-Fi/Bluetooth
  • Rich I/0, supports multiple external peripherals
  • Temperatura amplia y rango de voltaje, -10~60°C, 12-36V

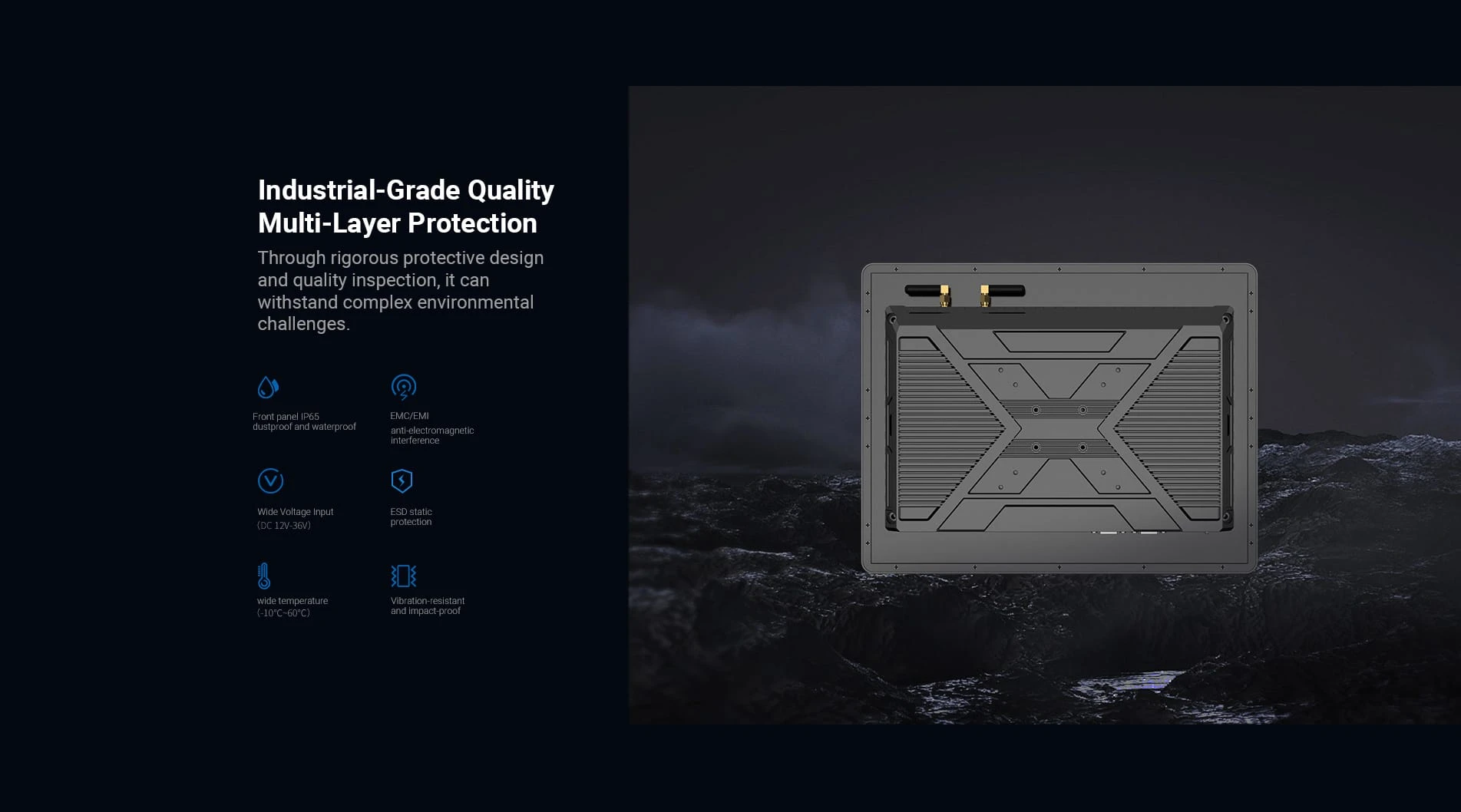

  • Calidad de grado industrial, EMI/ESD/Protección contra la vibración
Incorporado

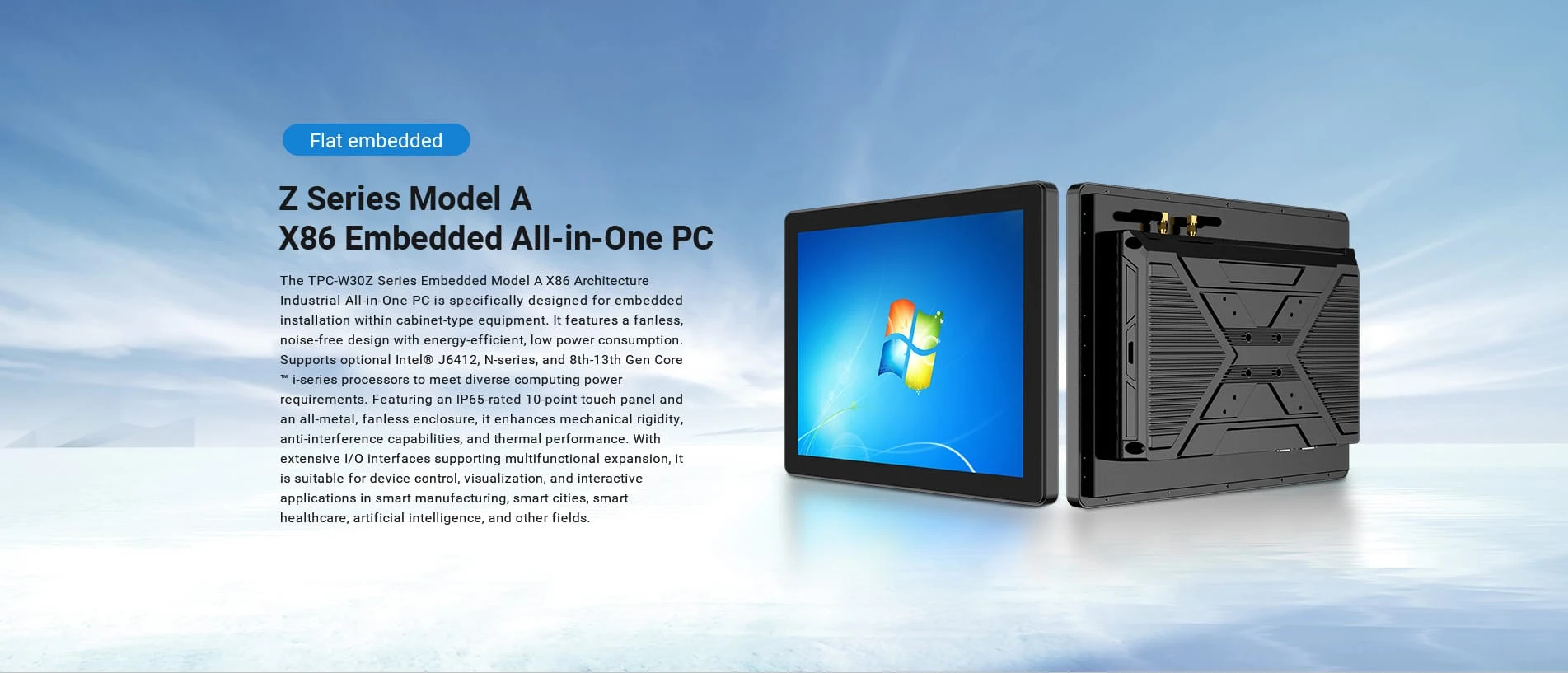

The TPC-W30Z Series Embedded Model A X86 Architecture Industrial All-in-One PC is specifically designed for embedded installation within cabinet-type equipment. It features a fanless, noise-free design with energy-efficient, bajo consumo de energía. Supports optional Intel® J6412, N-series, and 8th-13th Gen Core™ i-series processors to meet diverse computing power requirements. Featuring an IP65-rated 10-point touch panel and an all-metal, fanless enclosure, it enhances mechanical rigidity, anti-interference capabilities, and thermal performance. With extensive I/O interfaces supporting multifunctional expansion, it is suitable for device control, visualización, and interactive applications in smart manufacturing, ciudades inteligentes, atención médica inteligente, inteligencia artificial, and other fields.

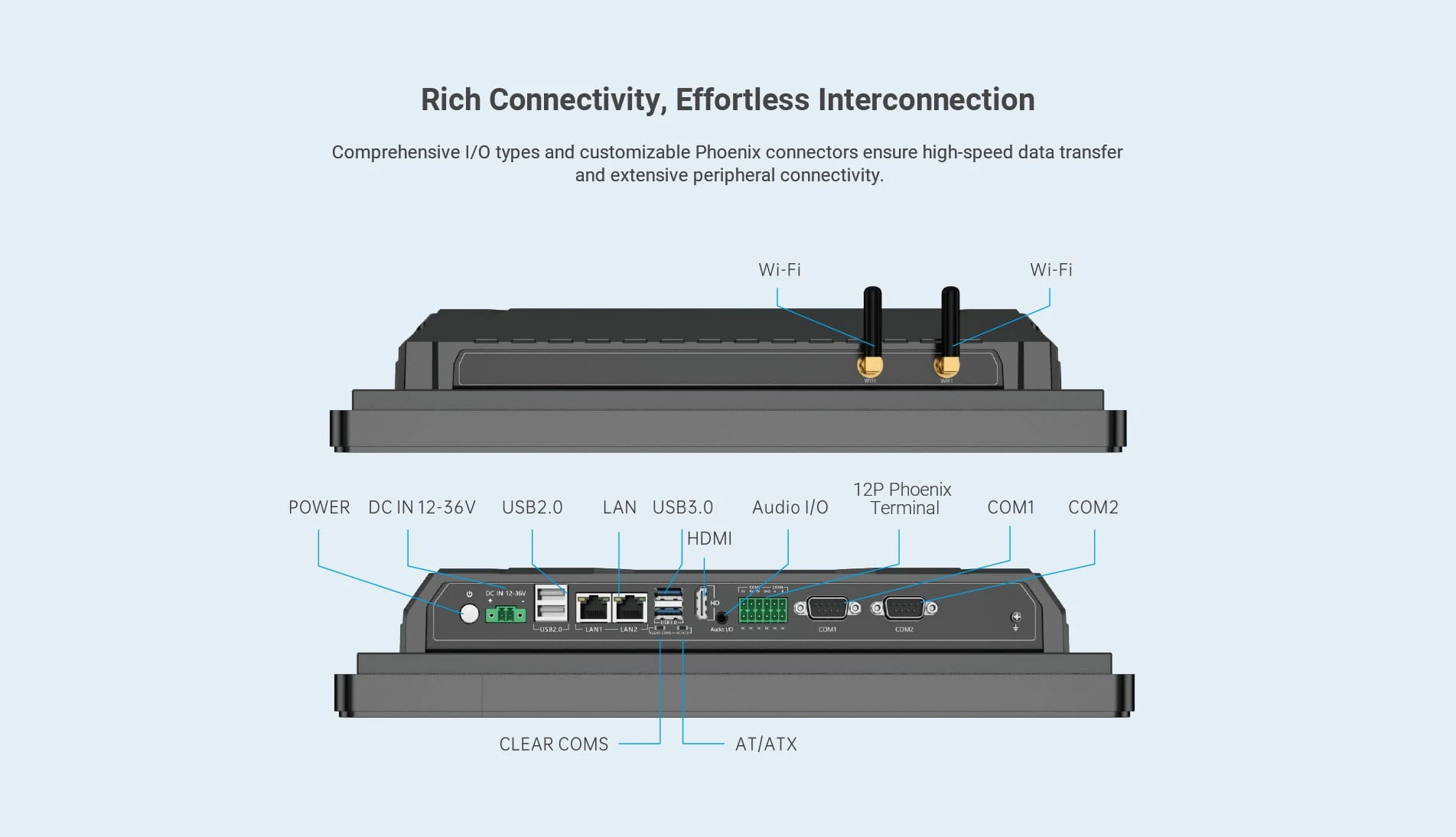

X86 Embedded Panel PCPort Details-GAVO
Solo 15″ N97 Flush Mount Panel PC interface is shown
UPCIntel Celeron J1900 quad-coreIntel Celeron J4125 quad-coreJ6412 quad-core 64-bit, 2.0GHzN97 quad core,2.0GHz
hard disk64G/128/256/512G SSD, 1T/2t HDD opcional64G/128/256/512G SSD, 1T/2t HDD opcional64G/128/256/512G SSD, 1T/2t HDD opcional64G/128/256/512G SSD, 1T/2t HDD opcional
memoria4G/8G/16G/32G optional4G/8G/16G/32G optional4G/8G/16G/32G optional4G/8G/16G/32G optional
Sistema operativoventanas 7 (Pro/Ultimate) / ventanas 10 (Pro/Enterprise/Home) / ubuntu (16.04.7/18.04.5/18.04.6/20.04.1) / Centos (7.4/7.8) / sombrero rojo 7.4 / Debian 7.0ventanas 10 (Pro/Enterprise/Home) / Win11 Pro / ubuntu (16.04.7/18.04.6) / Centos (7.8/8.4)Win10/11,Ubuntu/Centos/LinuxWin10/ Win11
3M móduloSupport Mobile, China Unicom, and Telecom (opcional)Support Mobile, China Unicom, and Telecom (opcional)Support Mobile, China Unicom, and Telecom (opcional)Support Mobile, China Unicom, and Telecom (opcional)
4M móduloSupport Mobile, China Unicom, and Telecom (opcional)Support Mobile, China Unicom, and Telecom (opcional)Support Mobile, China Unicom, and Telecom (opcional)Support Mobile, China Unicom, and Telecom (opcional)
wifiDual-band 2.4/5GDual-band 2.4/5GDual-band 2.4/5GDual-band 2.4/5G
bluetoothBT4.0BT4.0BT5.2BT5.0
GPSOpcionalOpcionalOpcionalOpcional
micrófonoOpcionalOpcionalOpcionalOpcional
RTC real-time clockApoyoApoyoApoyoApoyo
Regularly turn the power on and offOpcionalApoyoApoyoApoyo
Wake up to the webApoyoApoyoOpcionalApoyo
EncendidoApoyoApoyoApoyoApoyo
Parámetros de interfaz
interfaz USB8 Puertos USB (Shoreline 2 USB3.0 TYPEA standard sockets, 2 USB3.0 onboard header interfaces Shoreline 2 USB 2.0 TYPEA standard sockets, incorporado 1 reserved USB2.0 touch connector, 1 USB 2.0 pin socket
DC port1*corriente continua 2.5, support wide voltage 12V-36V power supply
Video interfaceSoporte HDMI, DP data output
LVDS1 interfaz Dual LVDS
Ethernet RJ45It supports 2 RJ45 intel 2.5G network card chips and KTI226V Ethernet interface
Soporte para auricularesOutput 3.5mm standard interface
SIM cardSIM card interface Standard interface supports various standards
Serial interfaceCOM*6, the default RS232 protocol, can be changed to 422/485 protocolo
Screen parameters
color16.7METRO
Click on it0.264milímetros
Screen panelPantalla de control industrial
contrast1000:1
Mostrar brillo350cd/m2
Ángulo de visión89/89/89/89 (L/R/U/D) Full viewing angle
Tipo de luz de fondoLED backlight screen lifespan ≥ 50000h
Grayscale response time5EM
Touch modeThere are three options: no tacto, capacitive touch, and resistive touch
Método de instalación:Inset, montado en la pared, de oficina, etc.
Confiabilidad del producto
Temperatura de funcionamiento-10 ° C ~ 60 ° C
Temperatura de almacenamiento-20 ° C ~ 70 ° C
humedad relativa95% no condensación
Tiempo medio entre fallas (MTBF)7*24h
Power parameters
power consumption≤18W
Entrada de energíaDC12V-36V
Packing specifications
GarantíaOne year warranty for the whole machine
Body colornegro
Lista de embalajeIndustrial all-in-one machine, power cord, adaptador, accesorios de instalación, manual, tarjeta de garantía
ModeloTamaño de pantallaResoluciónScreen ratio
TPC070-W307 pulgadas1024*60016:9 widescreen
TPC080-W308 pulgadas1024*7684:3 main screen
TPC101-W3010.1 pulgadas1280*80016:10 widescreen
TPC104-W3010.4 pulgadas1024*7684:3 main screen
TPC116-W3011.6 pulgadas1920*108016:9 widescreen
TPC120-W3012 pulgadas1024*7684:3 main screen
TPC133-W3013.3 pulgadas1920*108016:9 widescreen
TPC150-W3015 pulgadas1024*7684:3 main screen
TPC156-W3015.6 pulgadas1920*108016:9 widescreen
TPC170-W3017 pulgadas1280*10245:4 main screen
TPC173-W3017.3 pulgadas1920*108016:9 widescreen
TPC185-W3018.5 pulgadas1920*108016:9 widescreen
TPC190-W3019 pulgadas1280*10245:4 main screen
TPC215-W3021.5 pulgadas1920*108016:9 widescreen
TPC238-W3023.8 pulgadas1920*108016:9 widescreen
TPC270-W3027 pulgadas1920*108016:9 widescreen
TPC320-W3032 pulgadas1920*108016:9 widescreen
Z Series Model A X86 All-in-one PC embedded J6412 fanless panel PC
Z series Model A X86 All-in-one PC

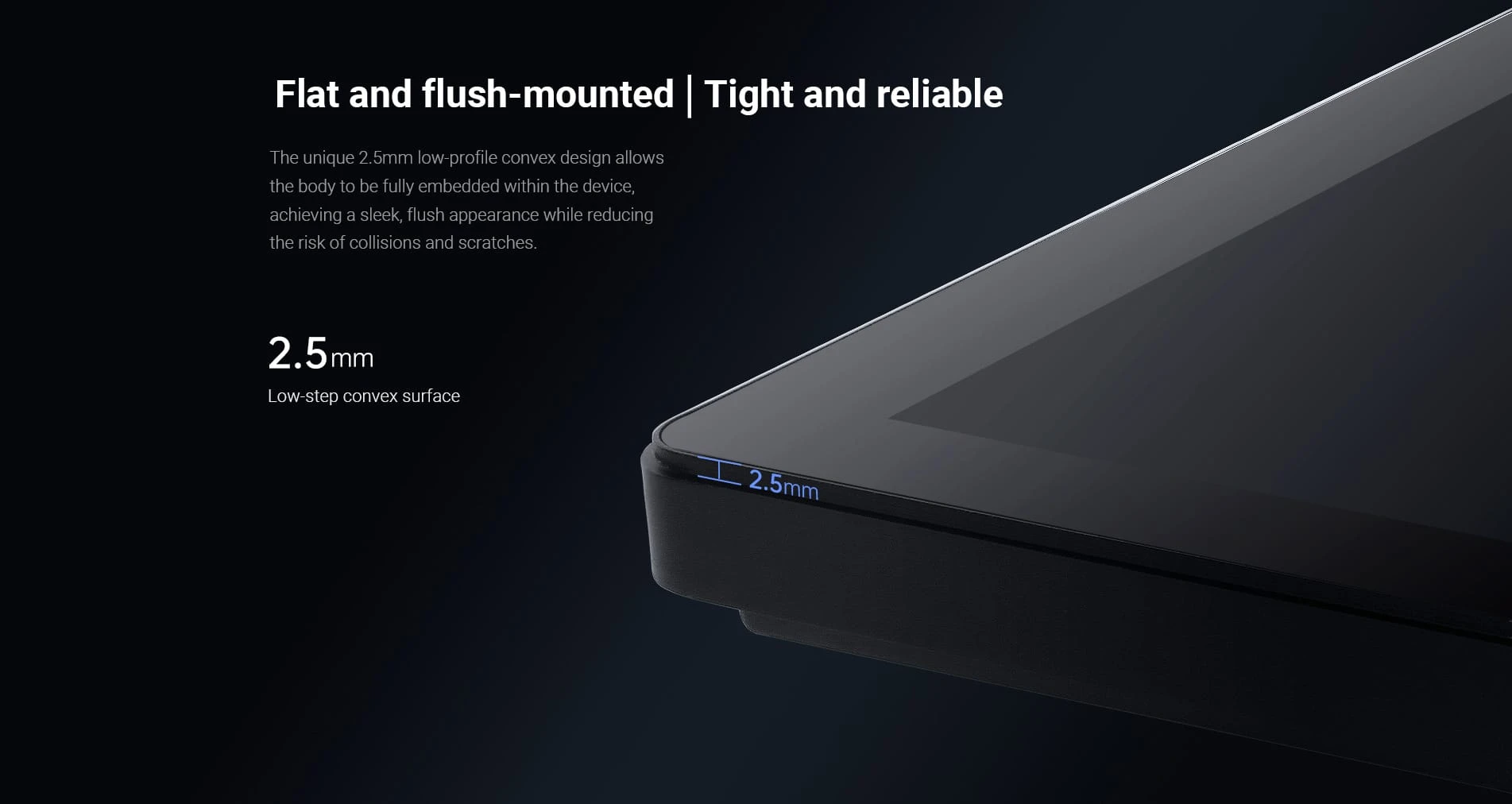

Flat and flush mounting 2.5mm low-profile convex panel design.
Dedicated board specialized, streamlined and reliable
7-32" IP65 10-point FHD touchscreen all-in-one PC
Intel Alder Lake N97 processor Windows 10/11, 16GBDDR4
Intel dual-port 2.5Gbps LAN and 2.4G WiFi BT5.0 wireless
12P phenix terminal embedded panel pc COM1 COM2 HDMI
IP65 EMC/EMI DC12-36V
