Ultra-thin X86 Desktop All-in-one Computer Intel Celeron/N/Core CPU Windows11 Panel PC WiFi RS232 6xCOM 10.1~ 27″ Tamaño de pantalla disponible, screen ratio covers 16:10/16:9/5:4/4:3 Built-in Intel N97 processor , Intel Celeron/N/Core Series selectable .Dedicated board design and ultra-thin device structure IP65 touch panel , capacitance/resistance/non-touch optional High-speed communication network , 2×2.5GbE+Wi-Fi/Bluetooth Wall-mounted/Desktop/VESA universal installation Intel dual-band 2.5Gbps , 2.4G/5G WiFi , BT5.0RS232 as default , RS422/RS485 Calidad de grado industrial, EMI/ESD/Protección contra la vibración Incorporado

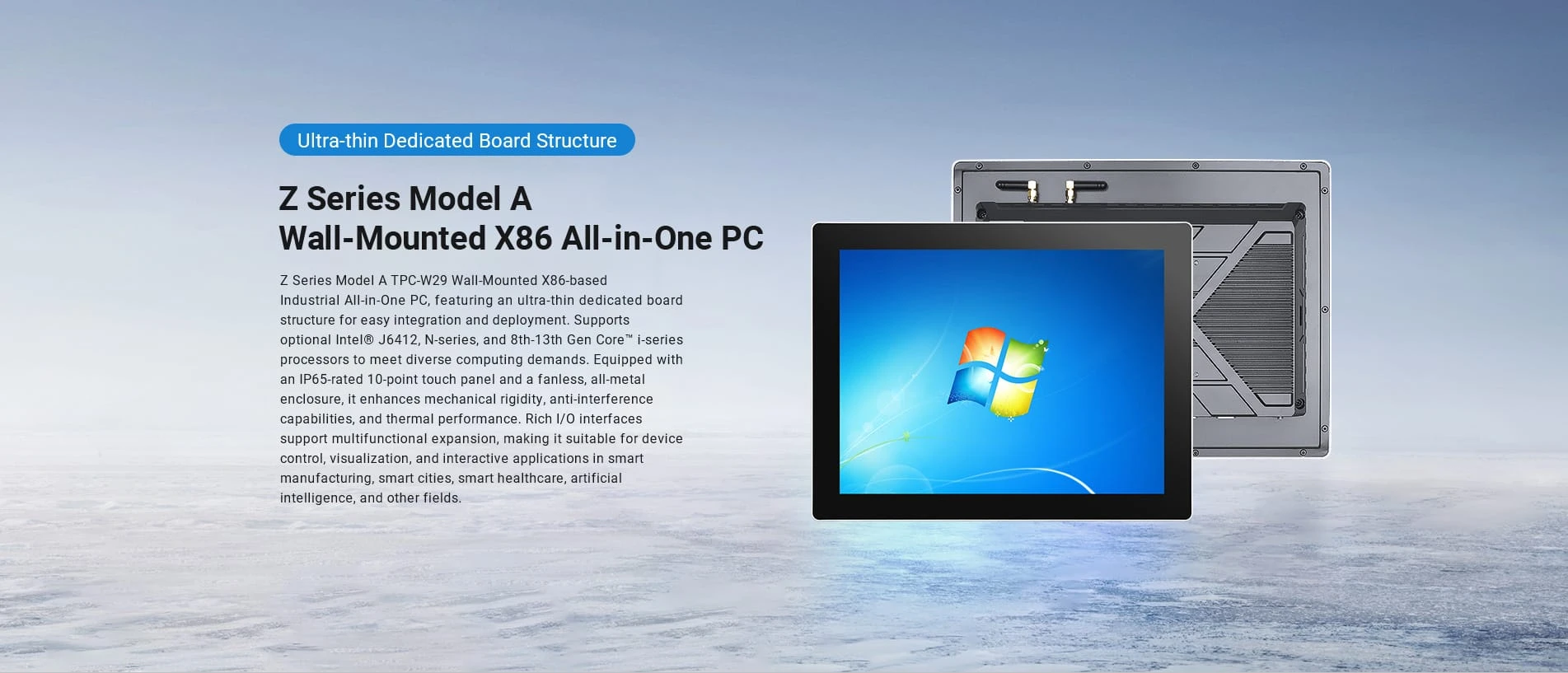

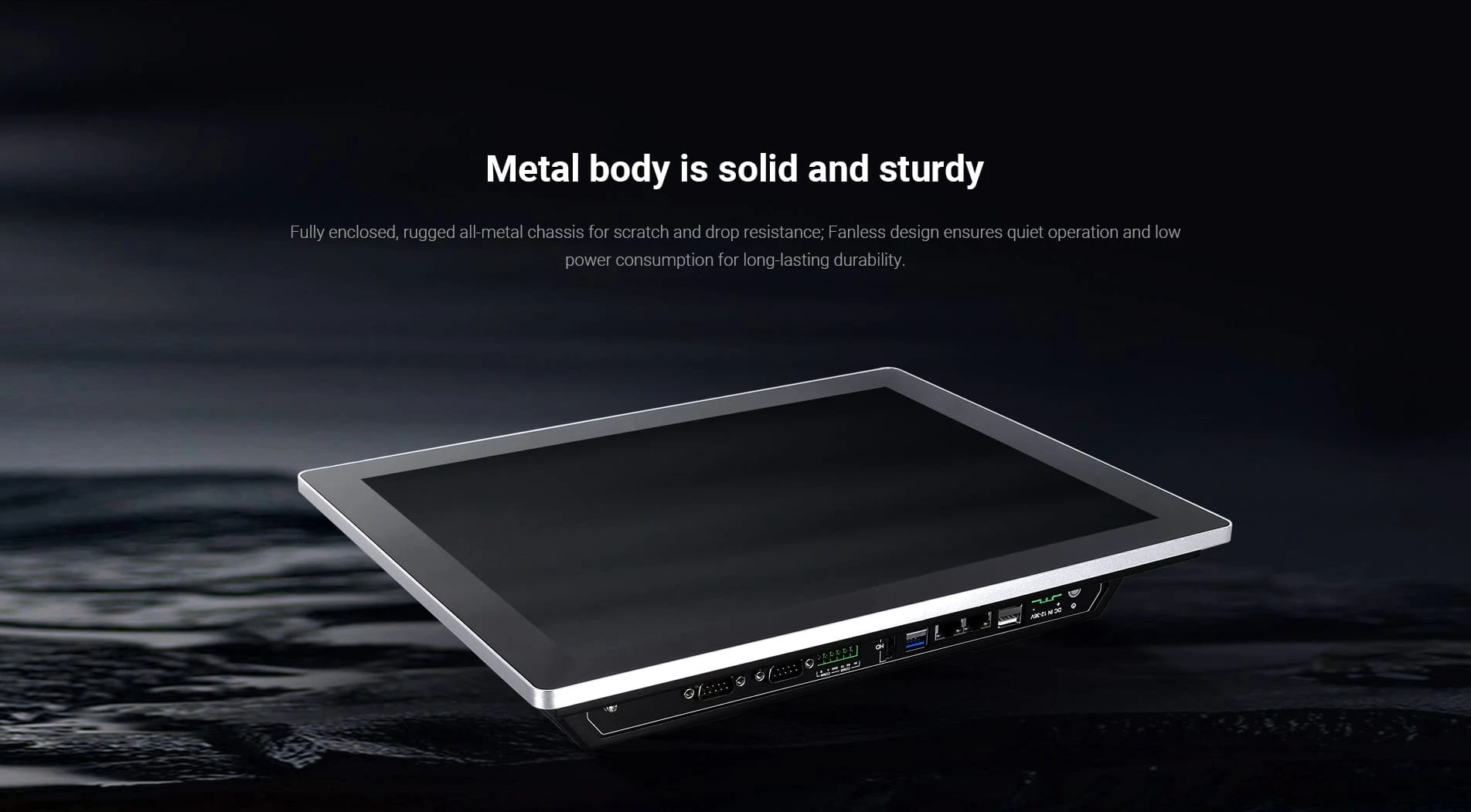

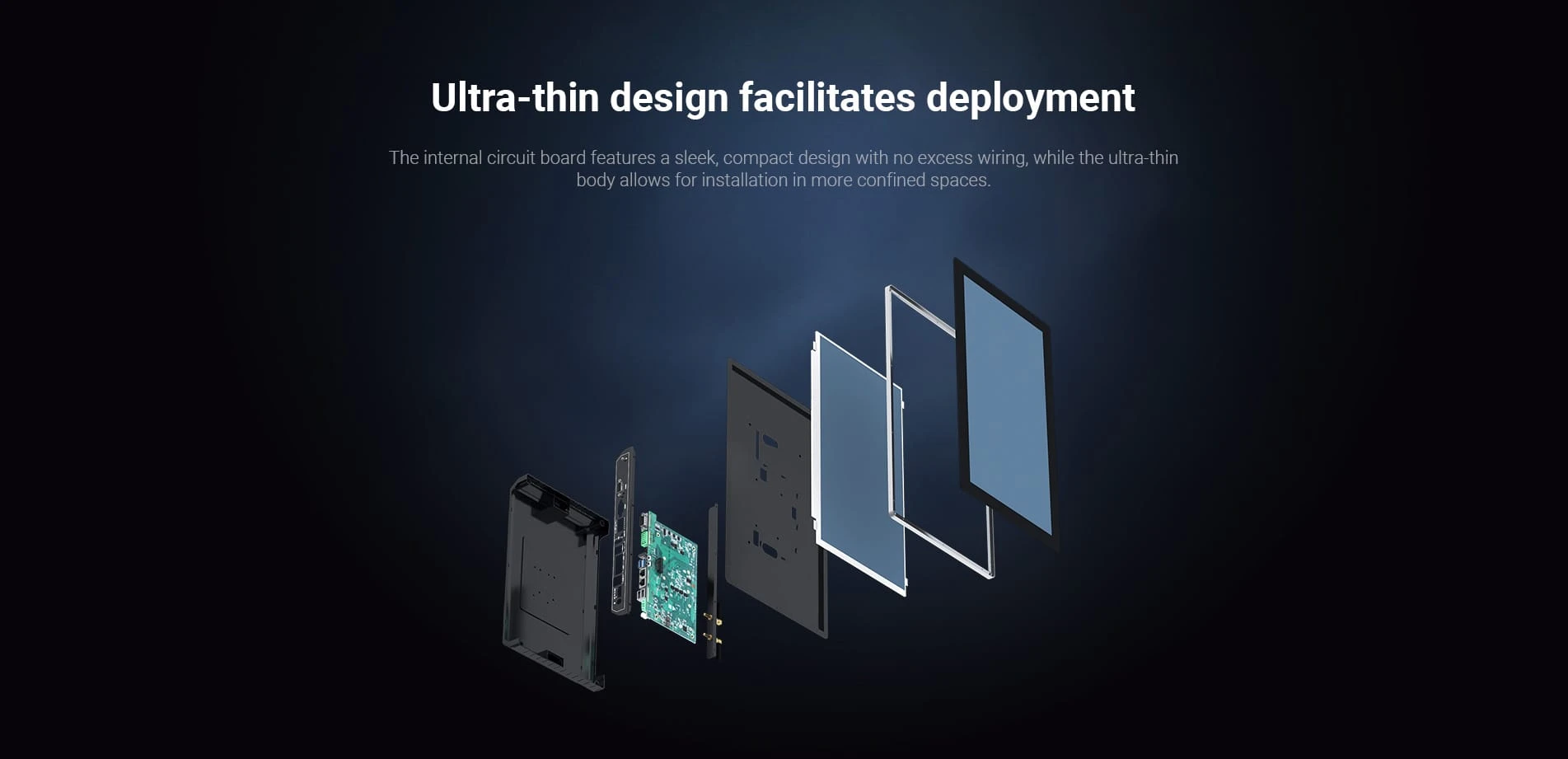

TPC-W29 Z Series Model A X86 Wall-mounted Industrial All in One PC , featuring an ultra-thin dedicated board structure for easy integration and deployment . Supports optional Intel® J6412 , N-series , and 8th-13th Gen Core™ i-series processors to meet diverse computing demands . Equipped with an IP65-rated 10-point touch panel and a fanless , all-metal enclosure , it enhances mechanical rigidity , anti-interference capabilities , and thermal performance . Rich I/O interfaces support multifunctional expansion , making it suitable for device control , visualización, and interactive applications in smart manufacturing , ciudades inteligentes, atención médica inteligente, inteligencia artificial, and other fields .

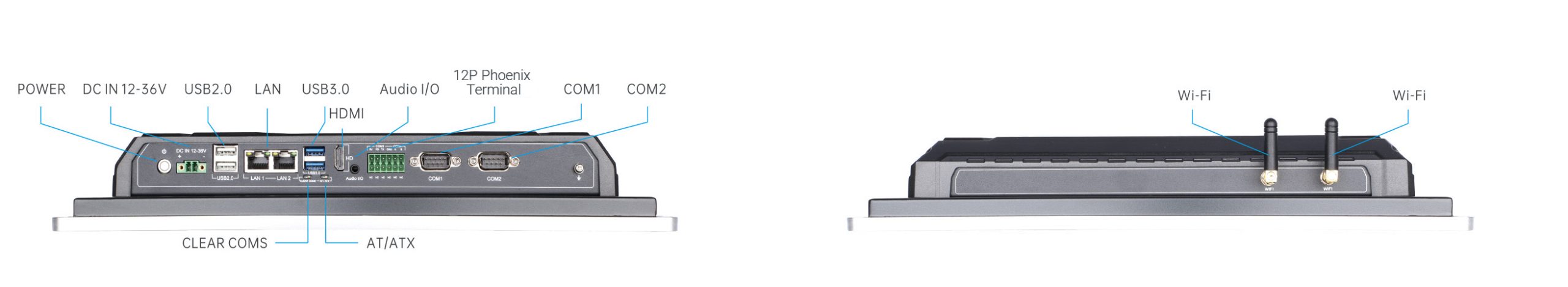

Solo 15″ N97 Wall-mounted All in One PC interface is shown
UPC Intel Celeron J1900 quad-core Intel Celeron J4125 quad-core J6412 quad-core 64-bit , 2.0GHzN97 quad-core , 2.0GHzhard disk 64G/128/256/512G SSD , 1T/2t HDD opcional 64G/128/256/512G SSD , 1T/2t HDD opcional 64G/128/256/512G SSD , 1T/2t HDD opcional 64G/128/256/512G SSD , 1T/2t HDD opcional memoria 4G/8G/16G/32G optional 4G/8G/16G/32G optional 4G/8G/16G/32G optional 4G/8G/16G/32G optional Sistema operativo ventanas 7 (Pro/Ultimate ) / ventanas 10 (Pro/Enterprise/Home ) / ubuntu (16.04.7/18.04.5/18.04.6/20.04.1) / Centos (7.4/7.8) / sombrero rojo 7.4 / Debian 7.0 ventanas 10 (Pro/Enterprise/Home ) / Win11 Pro / ubuntu (16.04.7/18.04.6) / Centos (7.8/8.4) Win10/11,Ubuntu/Centos/Linux Win10/ Win11 3M módulo Support Mobile , China Unicom, and Telecom (opcional)Support Mobile , China Unicom, and Telecom (opcional)Support Mobile , China Unicom, and Telecom (opcional)Support Mobile , China Unicom, and Telecom (opcional)4M módulo Support Mobile , China Unicom, and Telecom (opcional)Support Mobile , China Unicom, and Telecom (opcional)Support Mobile , China Unicom, and Telecom (opcional)Support Mobile , China Unicom, and Telecom (opcional)wifi Dual-band 2.4/5G Dual-band 2.4/5G Dual-band 2.4/5G Dual-band 2.4/5G bluetooth BT4.0 BT4.0 BT5.2 BT5.0 GPS Opcional Opcional Opcional Opcional micrófono Opcional Opcional Opcional Opcional RTC real-time clock Apoyo Apoyo Apoyo Apoyo Regularly turn the power on and off Opcional Apoyo Apoyo Apoyo Wake up to the web Apoyo Apoyo Opcional Apoyo Encendido Apoyo Apoyo Apoyo Apoyo
Parámetros de interfaz interfaz USB 8 Puertos USB (Shoreline 2 USB3.0 TYPEA standard sockets , 2 USB3.0 onboard header interfaces Shoreline 2 USB 2.0 TYPEA standard sockets , incorporado 1 reserved USB2.0 touch connector , 1 USB 2.0 pin socket DC port 1*corriente continua 2.5, support wide voltage 12V-36V power supply Video interface Soporte HDMI, DP data output LVDS 1 interfaz Dual LVDS Ethernet RJ45 It supports 2 RJ45 intel 2.5G network card chips and KTI226V Ethernet interface Soporte para auriculares Output 3.5mm standard interface SIM card SIM card interface Standard interface supports various standards Serial interface COM*6 , the default RS232 protocol , can be changed to 422/485 protocolo
Screen parameters Color 16.7METRO Click on it 0.264milímetros Screen panel Pantalla de control industrial Contraste 1000:1 Mostrar brillo 350cd/m2 Ángulo de visión 89/89/89/89 (L/R/U/D) Full viewing angle Tipo de luz de fondo LED backlight screen lifespan ≥ 50000h Grayscale response time 5EM Touch mode There are three options : no tacto, capacitive touch , and resistive touch Método de instalación: Soporte para colgar, VESA, Montado en la pared, De oficina, Instalación de Louver, Instalación de voladizo, Instalación del tipo de auge, etc..
Confiabilidad del producto Temperatura de funcionamiento -10 ° C ~ 60 ° C Temperatura de almacenamiento -20 ° C ~ 70 ° C Humedad relativa 95% no condensación Tiempo medio entre fallas (MTBF) 7*24h
Power parameters Consumo de energía ≤18W Entrada de energía DC12V-36V
Packing specifications Garantía One year warranty for the whole machine Body color negro Lista de embalaje Industrial all-in-one machine , power cord , adaptador, accesorios de instalación, manual , tarjeta de garantía
Modelo Tamaño de pantalla Resolución Screen ratio Brillo Relación de contraste Viendo a Angie TPC101-W29 10.1″ 1280*800 16:10 400cd/m² 1000:1 85/85/85/85 (L/R/U/D) TPC104-W29 10.4″ 1024*768 4:3 400cd/m² 1000:1 80/80/80/80 (L/R/U/D) TPC116-W29 11.6″ 1920*1080 16:9 250~ 300CD/m² 1000:1 85/85/85/85 (L/R/U/D) TPC120-W29 12″ 1024*768 4:3 500cd/m² 1000:1 85/85/85/85 (L/R/U/D) TPC133-W29 13.3″ 1920*1080 16:9 400cd/m² 1000:1 85/85/85/85 (L/R/U/D) TPC150-W29 15″ 1024*768 4:3 350cd/m² 1000:1 89/89/89/89 (L/R/U/D) TPC156-W29 15.6″ 1920*1080 16:9 300cd/m² 800:1 85/85/85/85 (L/R/U/D) TPC170-W29 17″ 1280*1024 5:4 250~ 300CD/m² 1000:1 85/85/80/80 (L/R/U/D) TPC173-W29 17.3″ 1920*1080 16:9 400cd/m² 600:1 80/80/60/80 (L/R/U/D) TPC185-W29 18.5″ 1920*1080 16:9 270cd/m² 1000:1 89/89/89/89 (L/R/U/D) TPC190-W29 19″ 1280*1024 5:4 250~ 300CD/m² 1000:1 85/85/80/80 (L/R/U/D) TPC215-W29 21.5″ 1920*1080 16:9 250~ 300CD/m² 1000:1 89/89/89/89 (L/R/U/D) TPC238-W29 23.8″ 1920*1080 16:9 250~ 300CD/m² 1000:1 89/89/89/89 (L/R/U/D) TPC270-W29 27″ 1920*1080 16:9 250~ 300CD/m² 1000:1 89/89/89/89 (L/R/U/D)
