10.1-inch Phoenix Contacts All-In-One Panel PC | Intel J4125 | Dual-Ethernet & 4xUSB Ports
Model No.101-W2
Technical Specifications
- Aluminum alloy enclosure, easy embedded design
- IP65 protected flat front panel
- Fanless, excellent heat dissipation design
- Self-developed industrial grade motherboard
- Intel Celeron J6412 quad-core 2.0GHz processor
- High compatibility with 99% of industry software

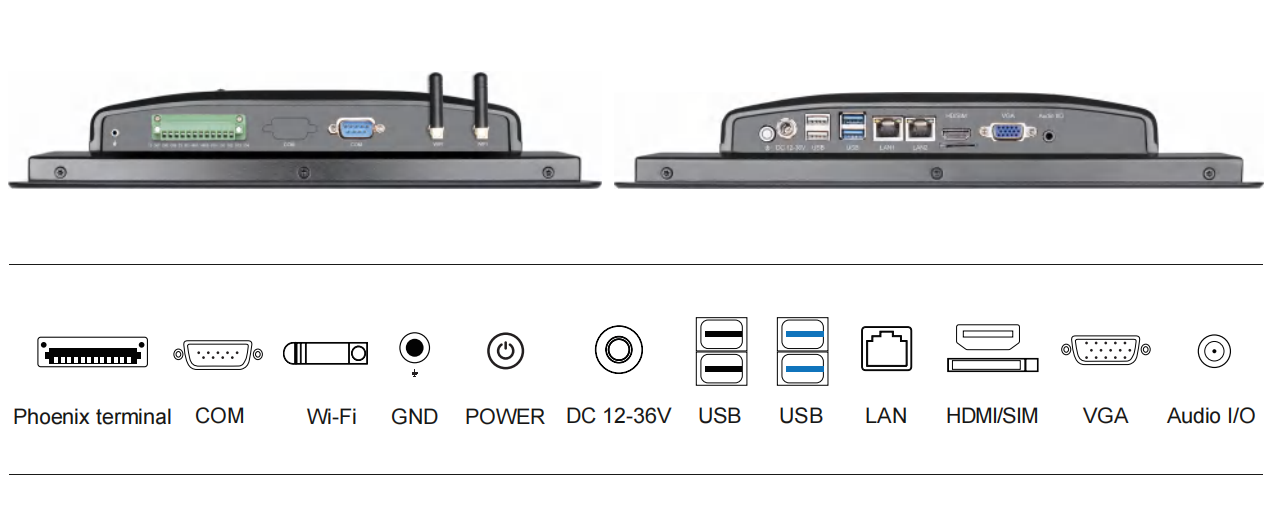

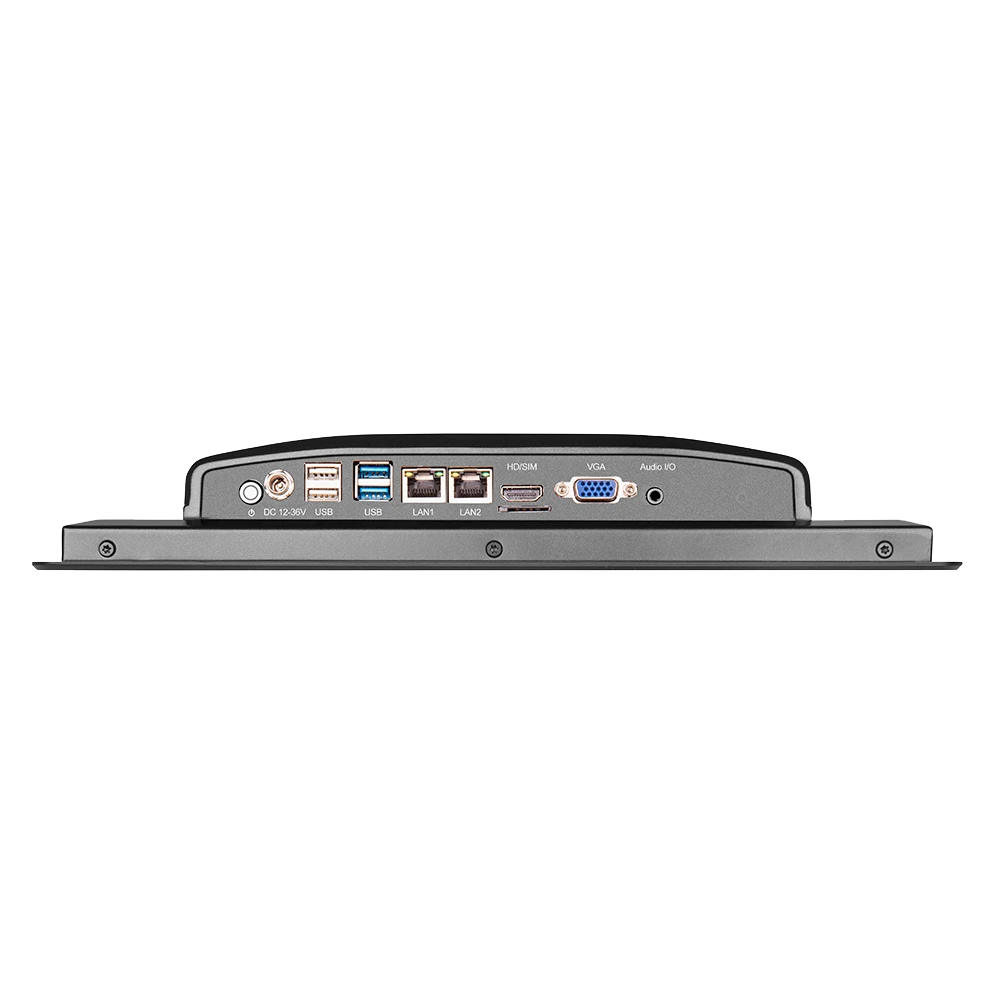

- Dual-Ethernet ports & WiFi6, phoenix terminals, 4xUSB, VGA/HDMI.
Intel Cerelon J6412- 4K HD Visualization
- DC 12-36V
- IP65
- SDK Develpment
- Android
Quick Inquiry
If your requirements differ from our regular products, customization can be acceptable. Please let us know your needs.
Required fields are marked *, We’ll respond within 12 hours.
Product View

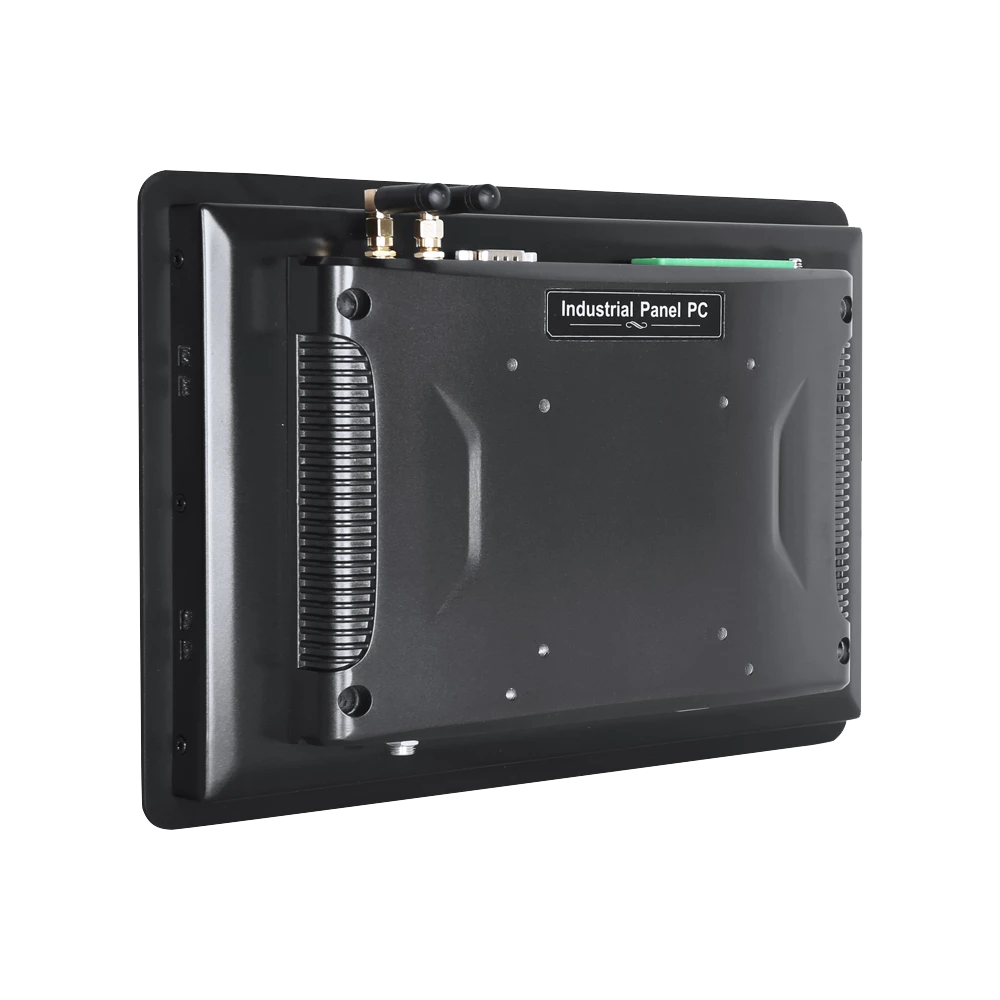

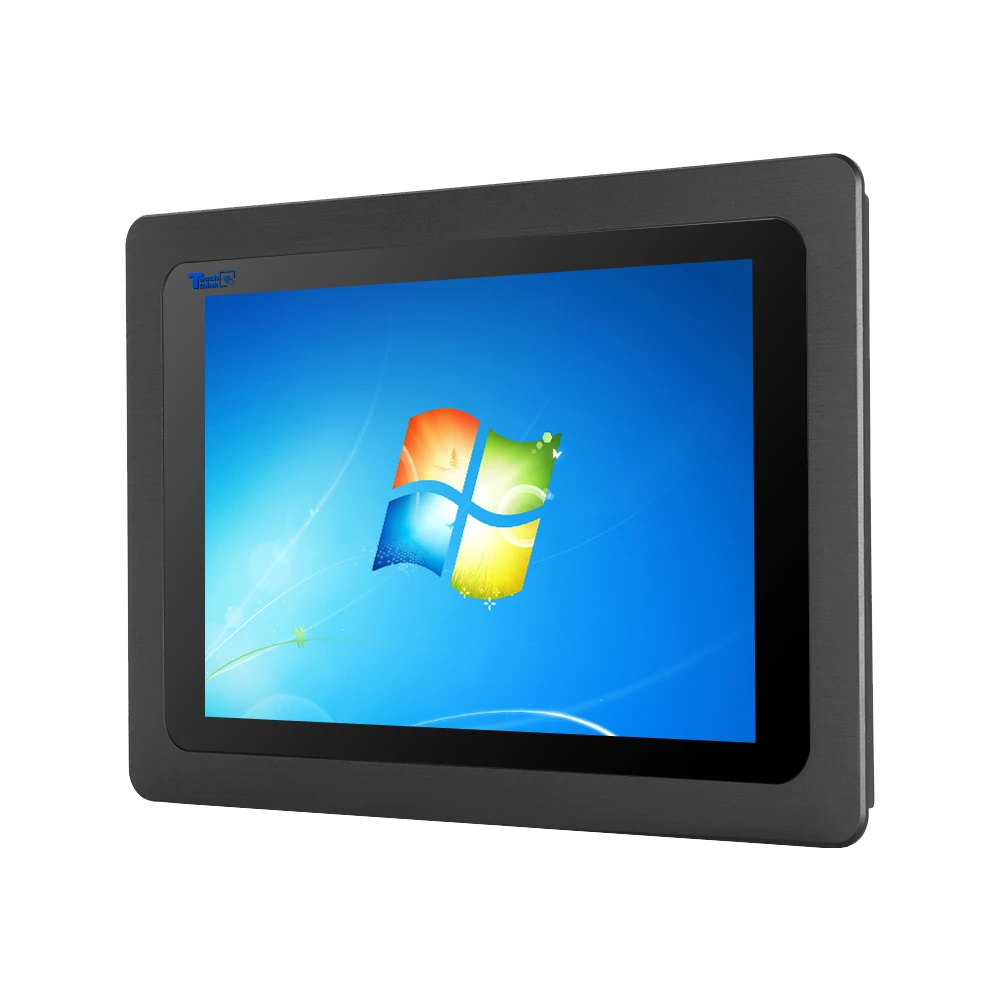

The 3mm bezel and embedded holes design enables easy panel mounting. It is made of self-developed industrial motherboard. Highly durable aluminum alloy with good heat dissipation enclosure, IP65 protected front panel, industrial components makeit to satisfy various applications such as machinery,industrial automation, smart facto-ry, transportation, education, health care, BMS, energy management, robotics, etc.
| General Info | |
|---|---|
| Manufacturer | Touch Think |
| Product Manual |  TPC101-W2.pdf |
| Screen Size | 10.1 inch |

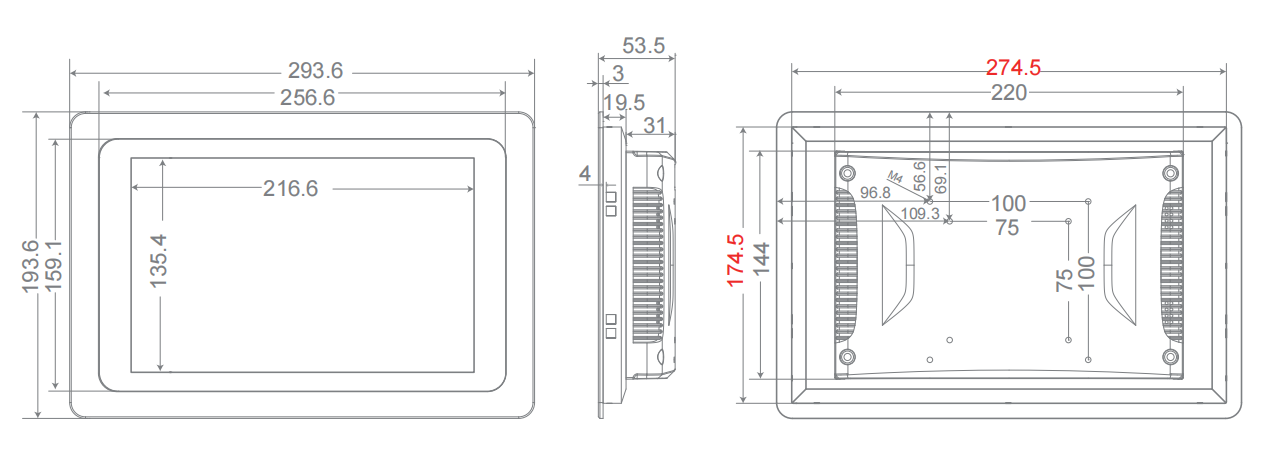

| Overall Dimensions | W293.6x H193.6x D53.5mm |
| Size of Opening | W276.5 x H176.5mm |
| Power input | DC 12V~36V |
| Static power | 18W |
| Screen Parameters | |
|---|---|
| LCD Size | 10.1″ TFT LCD |
| Resolution | 800*1280 |
| Aspect Ratio | 16:10 |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Colour | 16.7M |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 1000:1 |
| Hardware Configuration | |
|---|---|
| CPU | Intel Celeron J4125 quad-core 2GHz (Maximum RF: 2.7GHz) |
| Memory | 4G DDR4 2400MHz (Optional 8G) |
| Storage | 64G SSD (Optional：128/256/512G) |
| Integrated Graphics | Intel UHD Graphics 600 |
| WiFi | 2.4GHz/5GHz, Dual frequencyWiFi |
| Bluetooth | BT4.0（Optional） |
| Operating System | Win10/11/Ubuntu/Centos/Linux |
| Other | RTC real-time clock and timing switch |
| Interface Parameters | |
|---|---|
| Power Key | 1*POWER |
| Power Interface | 1*DC2.5, Supporting wide voltage 12V-36V power supply |
| USB | 2*USB 2.0, 2*USB 3.0 |
| Network Interface | 2*LAN, 1*Realtek PCI-E NIC RTL8111H (Applicable to 1000Mbps) 1*Realtek PCI-E NIC RT8152B (Applicable to 1000Mbps) |
| SIM | 1*SIM, Supporting various formats (Depending on 3G/4G module) |
| VGA | 1*VGA |
| Audio Interface | 1*Audio I/O, Support audio input and output |

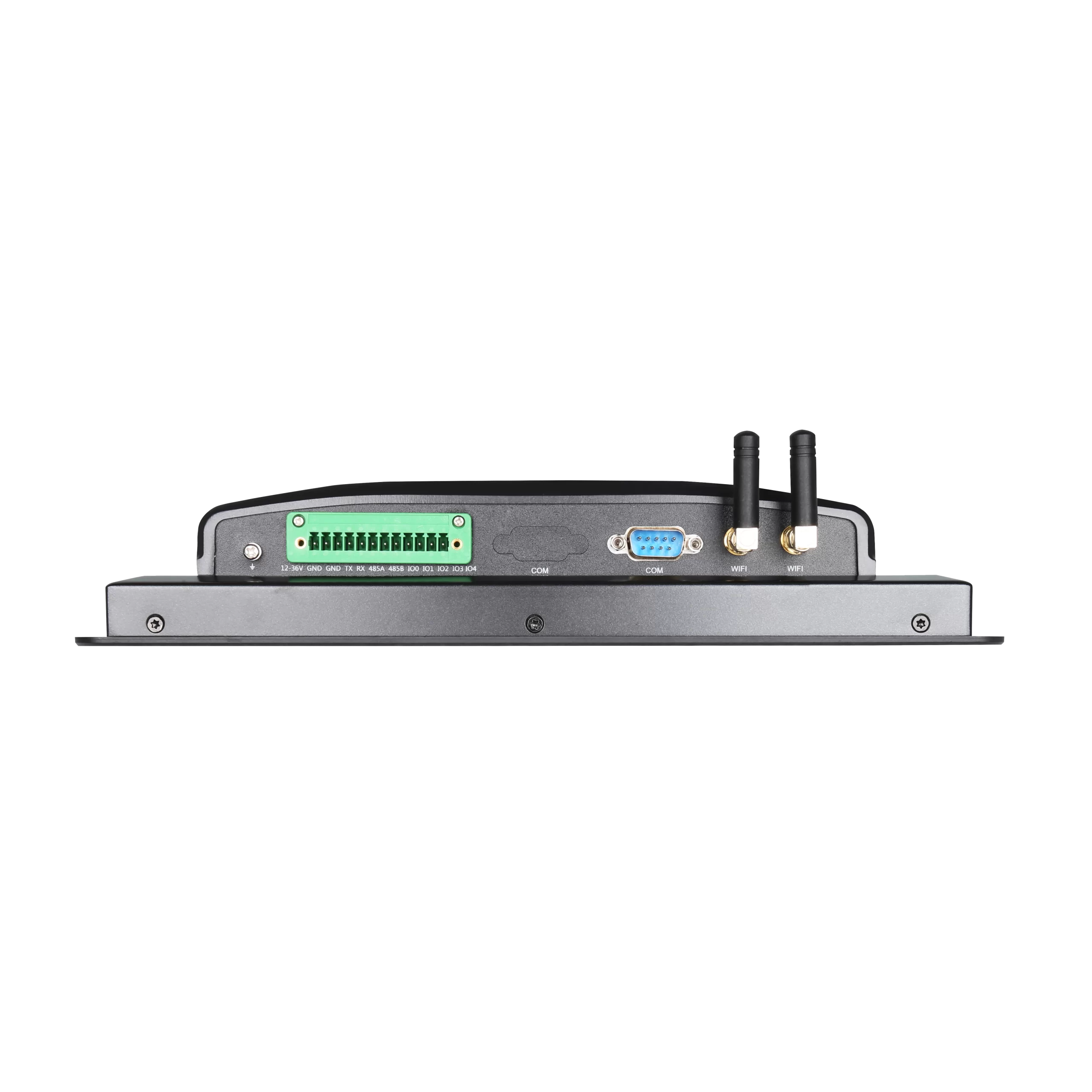

| COM | 2*RS232 |
| WiFi Antenna | 2*WiFi antenna |
| Grounding Column | Support (1*GND) |
| Product Model | |
|---|---|
| Non-Touch | TPC101-W200 |
| Capacitive Touch | TPC101-W210 |
| Resistive Touch | TPC101-W220 |
| Touch Parameters | |||
|---|---|---|---|
| Touch Type | Capacitive touch screen | Resistance touch screen | Non-touch |
| Touch Point | 10-point Touch Projection | Single Point | / |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input Mode | Handwriting or Capacitance pen | Fingertip or stylus | / |
| Controller communication | USB | USB | / |
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Installation Methods | |
|---|---|
| Embedded/Surface-mounted/Wall-mounted/Desktop/Louver/Cantilever/Boom Type/VESA |
| Packing Listing | |
|---|---|
| Panel PC, Power adapter, Power cable, Clamps and Screws, Manual and Warranty card. |
