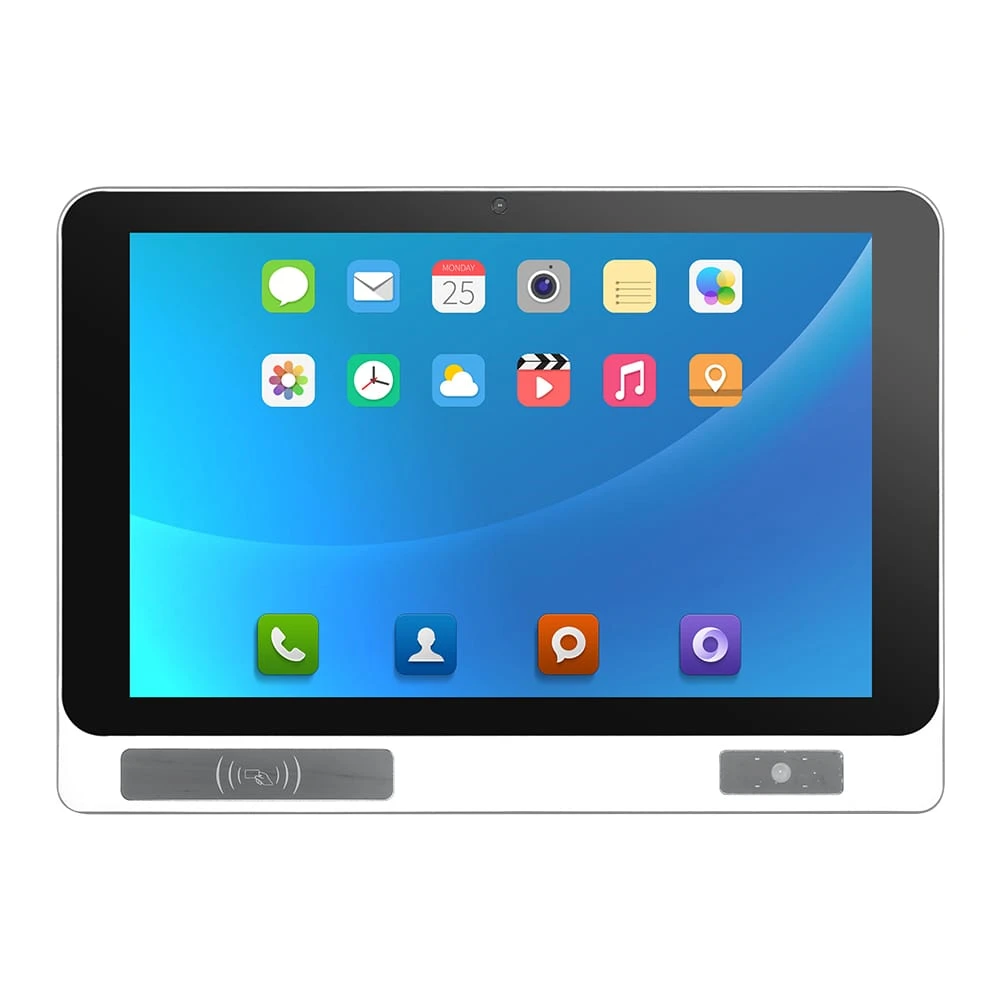

3-in-1 Shop Floor Terminal (100W Camera+Dual-frequency Card Reader+Barcode recognition)
- Optional 10.1″/11.6″/15.6″/21.5″ sizes, full viewing angle, 10-point capacitive touch
- RK3568/RK3576/RK3588 ARM-based CPU and Intel N97 X86-based CPU optional
- 6 TOPS independent NPU, supports 8K video encoding, decoding & output
- 3-in-1 module: Built-in 100W HD camera, 125K+13.56MHz dual-frequency card reader, high-precision barcode recognition module
- 4 groups of 12P Phoenix terminals with customizable interfaces
- Serial ports jumper configurable; opto-isolation upgrade optional
- Standard Android 13, compatible with Linux/Ubuntu; customizable with development APIs
- Multiple mounting: wall mounting, swing arm mounting, desktop mounting, pendant arm mounting

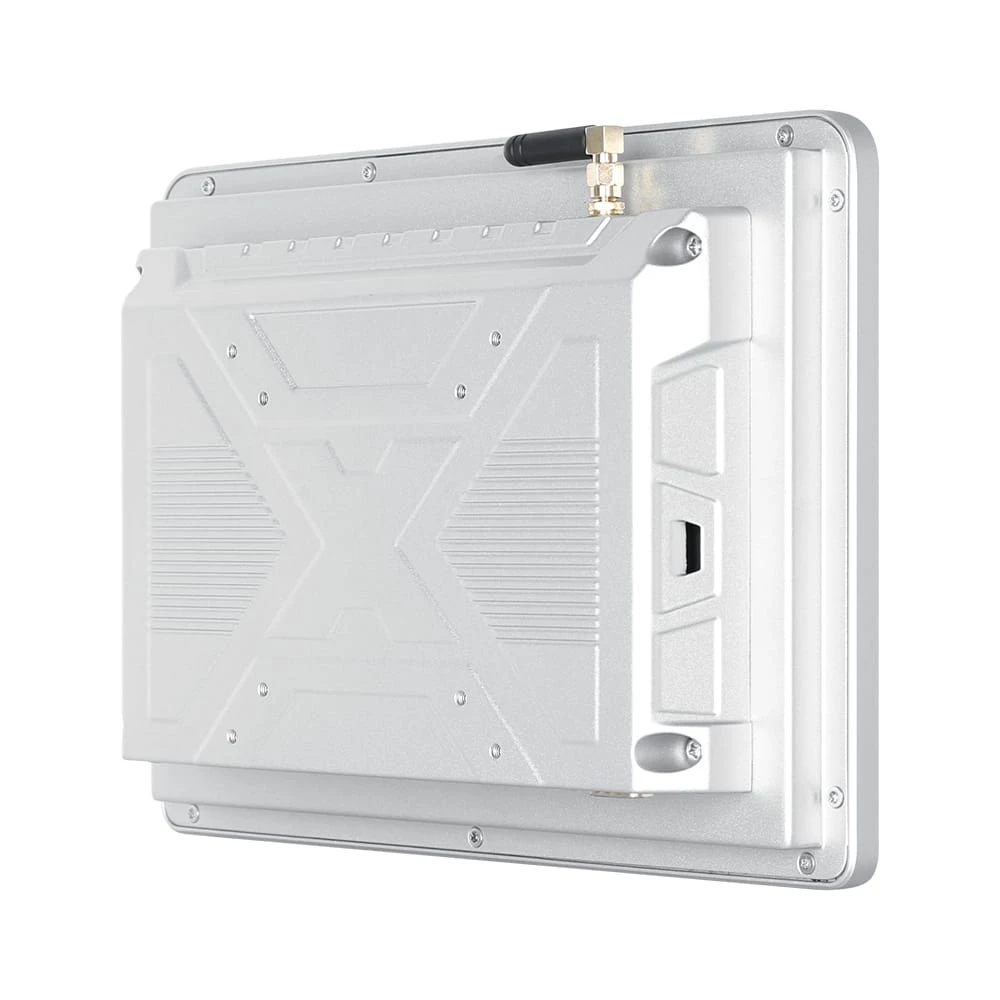

TPC-A38 Barcode-scanning ARM shop floor terminal featuring an aluminum alloy chassis and a fanless design, this industrial-grade device offers low power consumption and a compact form factor. It is specifically engineered for use in a variety of environments and incorporates an in-house developed ARM industrial motherboard, delivering excellent value for money. It is equipped with a 100W HD camera, a 125K+13.56 MHz dual-frequency card reader, and a high-precision Barcode recognition module. It is widely used in smart factories, smart cafeterias, smart campuses, smart conference rooms, and other settings.
| Product Size | 10.1″ | 11.6″ | 15.6″ | 21.5″ |
| Resolution | 800 x 1280 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Screen Scale | 16:10 | 16:9 | 16:9 | 16:9 |
| Brightness | 300cd/m2 | 300cd/m2 | 300cd/m2 | 300cd/m2 |
| Contrast Ratio | 600:1 | 800:1 | 800:1 | 1000:1 |
| Viewing Angle | 80/80/80/80(L/R/U/D) | 85/85/85/85(L/R/U/D) | 85/85/85/85(L/R/U/D) | 89/89/89/89(L/R/U/D) |

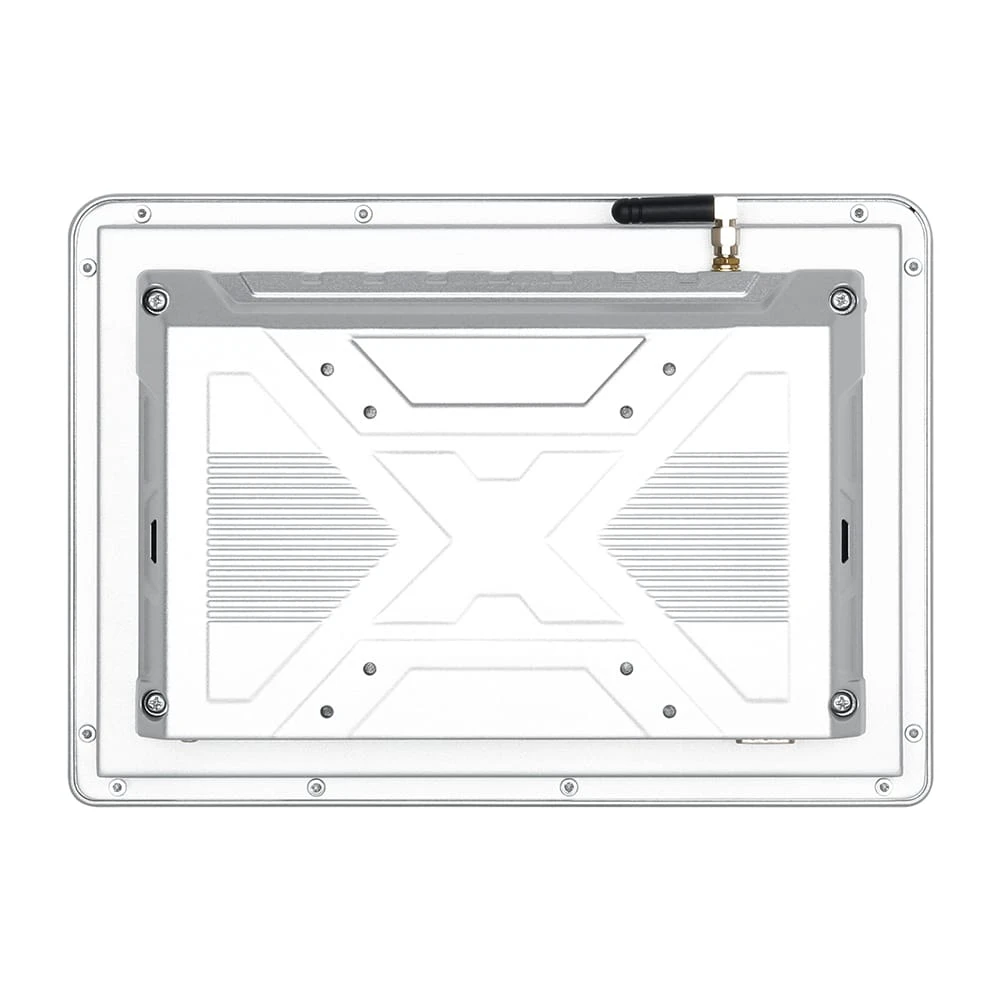

| Back Cover Image |  |  |  |  |
| Configuration | |
| CPU | RK3568 quad-core 64-bit Cortex-A55 architecture, with a clock speed of up to 2.0GHz |
| GPU | ARM Mali-G52 MP2 |
| Memory/RAM | 2GB DDR (optional 4GB/8GB) |
| Storage | 32GB eMMC (optional 64GB/128GB/256GB) |
| Operating System | Android 12/14, Linux/Ubuntu/Debian |
| Wi-Fi | Wi-Fi 6, Dual Band 2.4GHz+5GHz |
| Bluetooth | BT5.3 |
| Camera | 100W |
| Card reader | 125K+13.56Mhz dual-band card reader |
| Barcode Scanning | Supports 1D and 2D barcode formats |

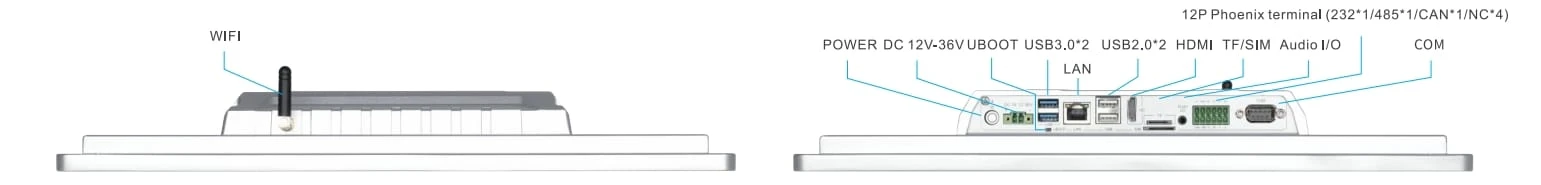

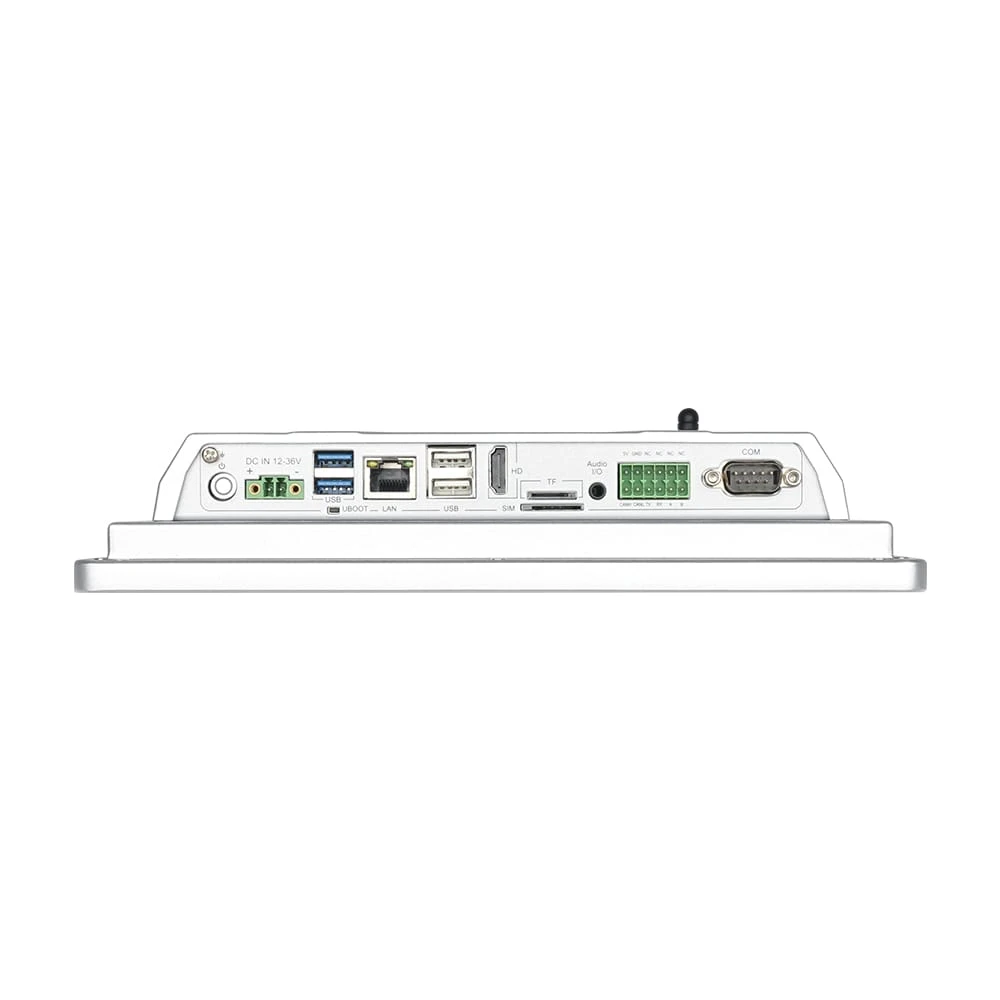

| Interface Parameters | |
| PowerSW | 1*PowerSW |
| Power interface | 3.81-2P Phoenix Terminals (Optional Upgrade: DC 2.0 x 1) |
| Phoenix terminal | 1*12P Phoenix terminal (RS232*1/RS485*1/CAN*1/NC*4), RS232/485 Support Interchangeable, NC*4 supports upgrading custom interfaces |
| USB | 2*USB 2.0 (optional upgrade to Gigabit RJ45, optional upgrade to 6 USB 2.0 ports), 2*USB 3.0 (1 of which supports OTG) |
| TF | Support TF expansion card (1*TF card slot) |
| SIM | 1*SIM, SIM card interface standard interface supports various formats (depending on 3G/ 4G module) |
| HDMI | 1*HDMI 2.0, Supports 4K resolution (3840×2160) at 60 Hz |
| Ethernet | 1*RJ45 Gigabit Ethernet port (optional upgrade to 2*RJ45 Gigabit ports) |
| AUDIO | 1*Audio I/O, Support audio input and output, headphone stand: 3.5mm standard interface |
| Speaker | 2*(8Ω2W) |
| UBOOT | 1*UBOOT |
| Serial port | 1*DB9 232 serial port (RS232/TTL switchable), optional upgrade to 3 232 ports (optional upgrade to optically isolated ports) |
| Wi-Fi antenna | 1*Wi-Fi antenna |
| Touch Parameters | |
| Capacitive Touch | Projection capacitive touch, 10-point multi-touch Touch object: hand or capacitive touch pen Light transmission: >88% Controller: USB (COM customized) |
| Resistive Touch | Resistive touch, Single point Touch object: finger or stylus Light transmission: >78% Controller: USB ( COM customized) |
| Non touch | Transmittance: >92% |
| Reliability Parameters | |
| Operating temperature | -10°C~60°C (-20°C~70°C can be customized) |
| Storage temperature | -20°C~70°C |
| Relative humidity | 95% non-Condensing |
| Other Parameters | |
| Power input | 12V-36V power input |
| Power adapter | 24V/2.5A |
| Fuselage Properties | Body material: aluminum alloy, body color: classic black, technical silver |
| Warranty policy | Three years (one year free warranty) |

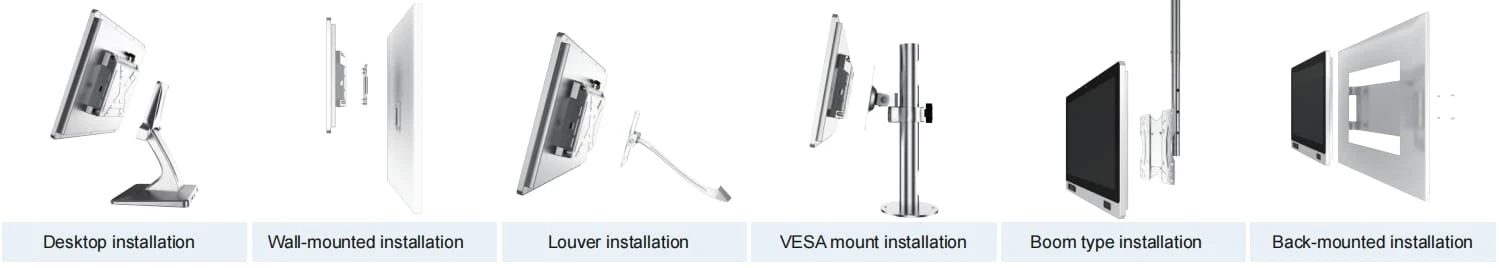

| Installation method | Support desktop, wall mounted, louver, cantilever, boom, back mounted and other installation methods. |
I. Display Panel Customization
- Upgradeable wide-temperature, high-brightness, full viewing angle LCD panels
- Frame bonding and full optical lamination available for upgrade
- Custom anti-glare (AG) & UV-resistant touch screens as optional upgrades
II. Appearance & Interface Customization
- Custom boot logo programmable on request
- DVI / BNC display interfaces available as upgrades
- DC power input interface upgrade supported
- USB touch interface upgrade optional
- Custom housing color available
III. Functional Customization
- Waterproof touch and COM port touch upgrades supported
- Optional 100W / 500W cameras mounted beneath the touch screen
- Built-in speakers available for upgrade
