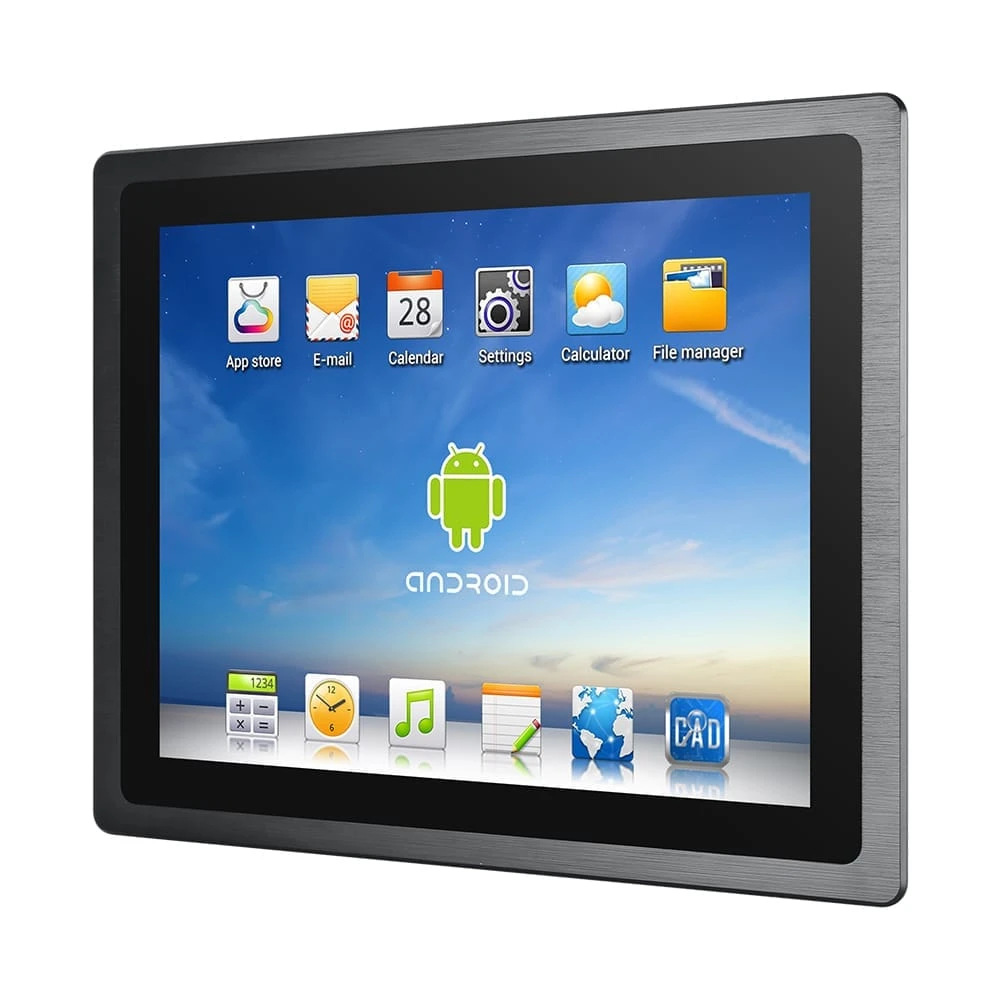

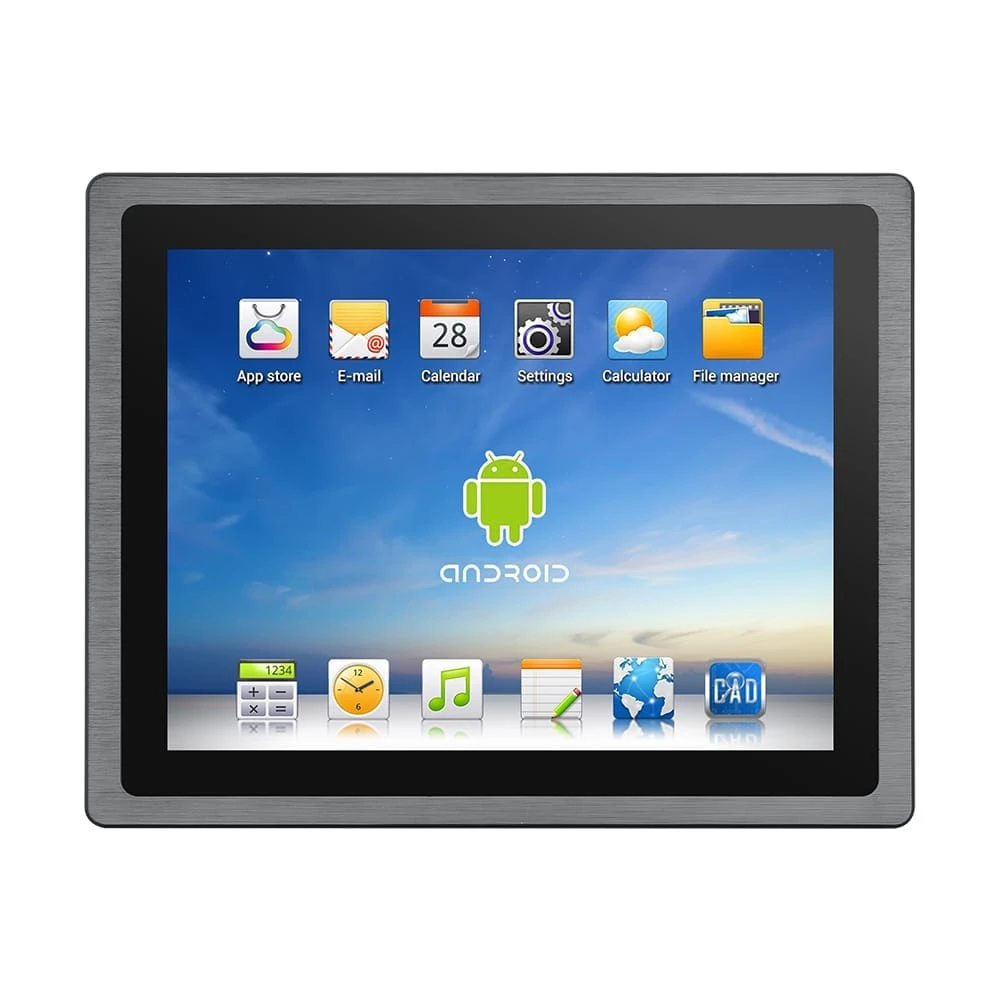

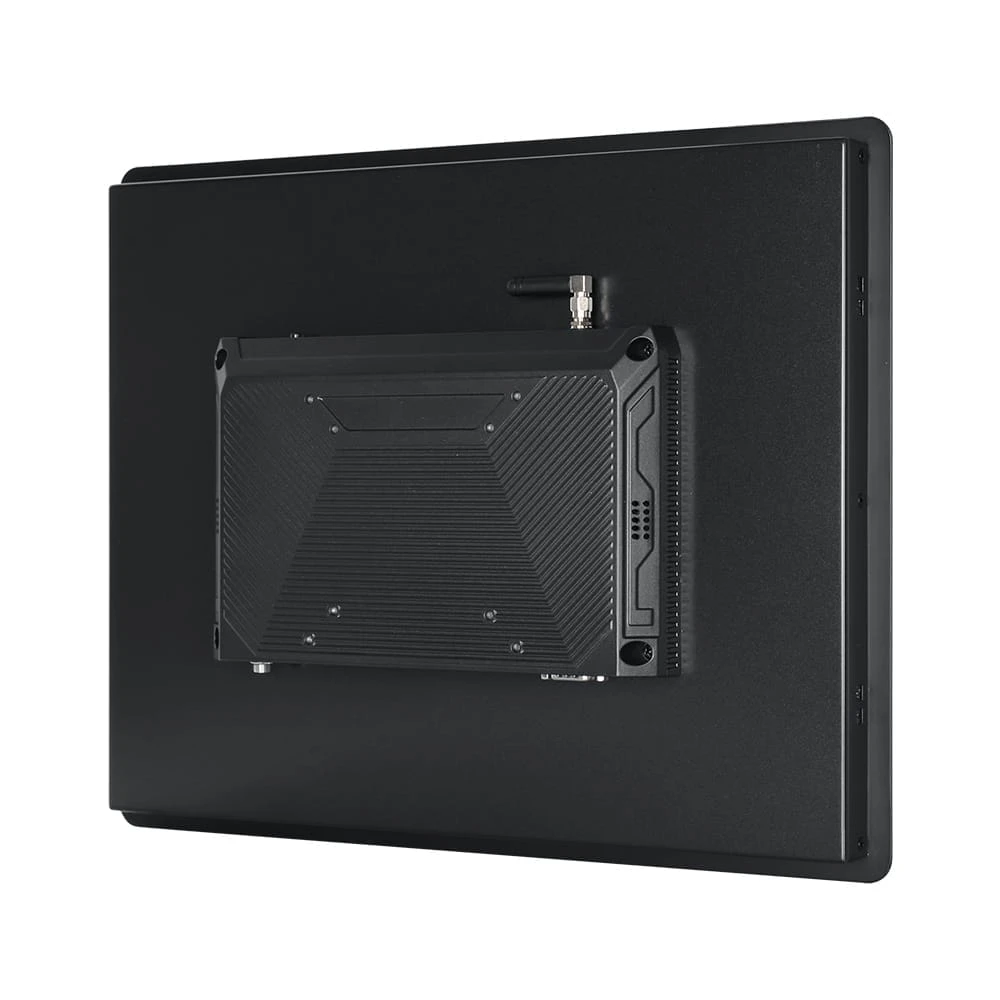

The device features a 3mm slim bezel design that is ideal for embedded installations. It is powered by Allwinner’s A133 64-bit high-performance CPU, offering a combination of high performance and low power consumption. It also provides excellent expandability, practicality, and EMC compliance. It is widely applicable in industrial scenarios such as industrial automation, equipment control, power monitoring, and human-machine interaction.
Only 15″ shown, contact us for full size options (7″–23.8″).
Hardware Configuration
CPU
Allwinner A133, 4-core 64-bit Cortex-A53, 1.5GHz CPU
Memory
2GB (Optional 4GB)
Storage
8GB eMMC (Optional 16GB/32GB/64GB/128GB)
GPU
GE8300 Graphics Processing Unit
Operating system
Android 10.0
Wi-Fi
Wi-Fi 6, Dual Band 2.4GHz+5GHz
Bluetooth
BT5.4
Watchdog Timer
Support
RTC real time clock
Support
Timer switch
Support
Product specifications
Display type
15″ TFT LCD screen
MAX.resolution
1024*768（4:3）
Viewing angle(H/V)
89/89/89/89 (L/R/U/D)
Luminance (cd/m²)
350 cd/m²
Contrast ratio
1000:01
Overall dimensions
W379 x H300x D52.5mm
Installation size
W362.6 x H282.6mm
Material
Aluminum alloy
Color
Black, optional silve
Warranty Policy
Three years (1-year free warranty, 2-year paid warranty)
Installation
Support panel-mount, wall-embedded, wall-mounted, desktop, folding mounting, VESA mount, suspended mounting, etc.
Interface parameters
PowerSW
1*PowerSW
Power interface USB
1*Threaded DC connector (Diameter 5.5*2.1mm)2*USB2.0
Ethernet
1*100 Mbps Ethernet port
TF
1*TF Card
SIM
1*SIM card slot (should be work with 3G/4G module)
Audio
1*Audio I/O, support audio input and output
Serial port
1*COM (The default is RS232, optional RS485/TTL)1*UBOOT
UBOOT
1*Wi-Fi antenna
Wi-Fi antenna Speaker
2*(8Ω2W)
Grounding
1*GND
Touch Parameters
Touchscreen
Projection capacitive, touch 10-point multi touchsingle point
