Factory Price: $150~$450

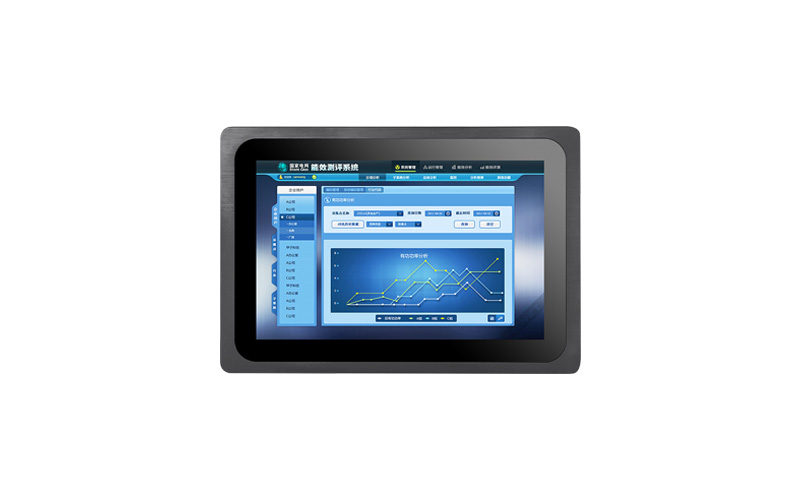

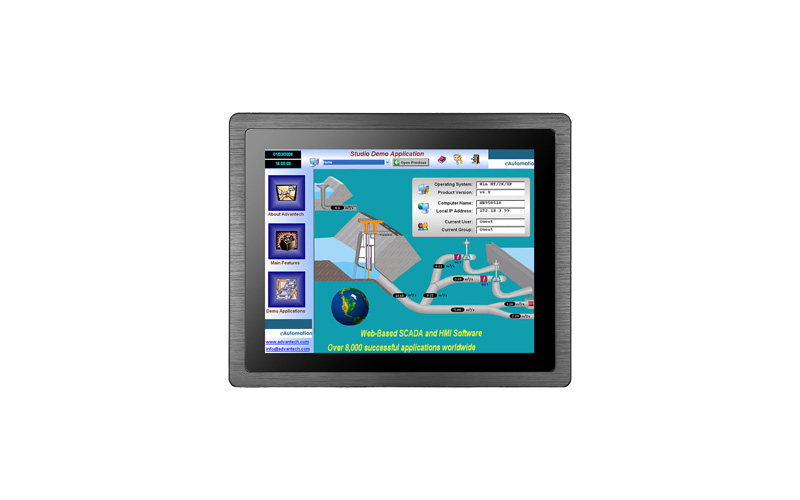

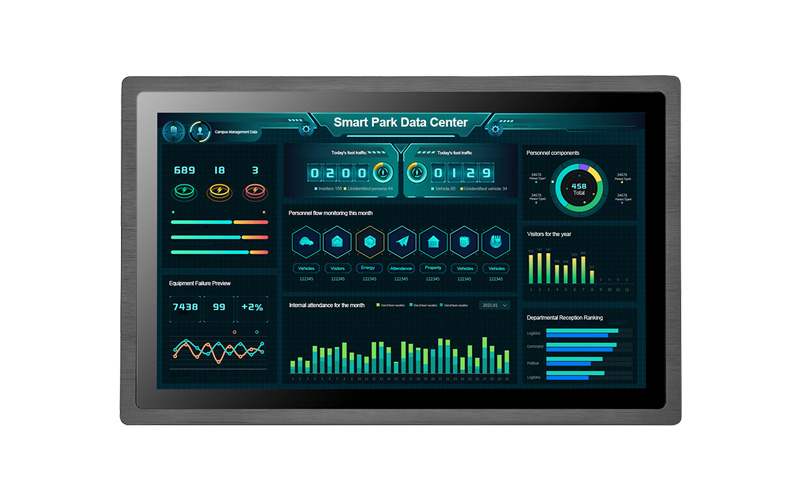

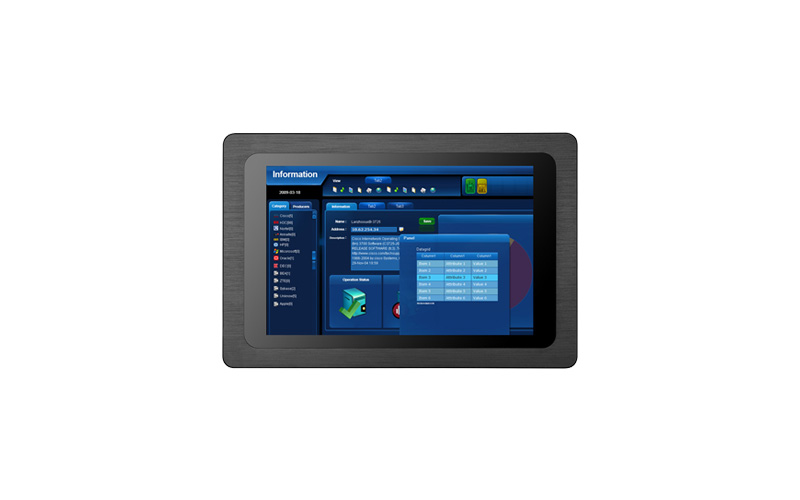

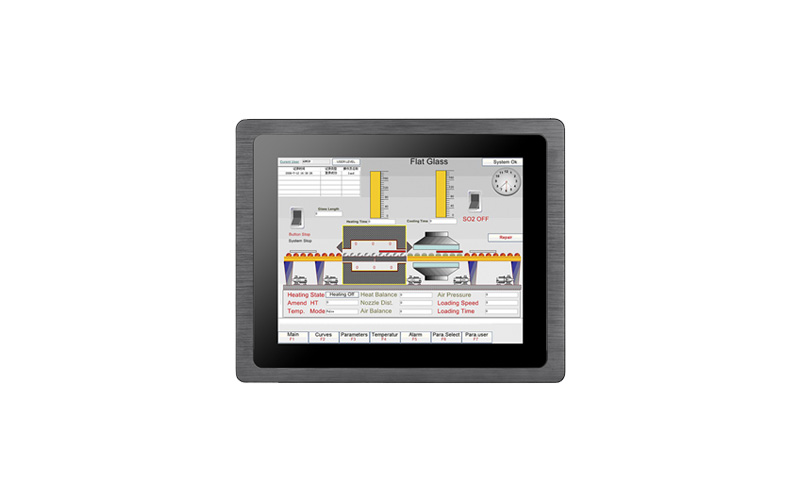

Industrial Embedded Automation Monitor
TouchThink Industrial Embedded Automation touchscreen monitor features a true-flat, 3mm thin bezel panel, and IP65 dustproof and waterproof protection. It can be perfectly embedded into any surface of cabinet equipment and is widely used in industrial control, military industry, communications, electricity, networks, intelligent self-service terminals, etc.
Industrial Embedded Automation Monitor Size
- 10.1 inchEmbedded Automation Monitor
- 10.4 inchEmbedded Automation Monitor
- 11.6 inchEmbedded Automation Monitor
- 12.0 inchEmbedded Automation Monitor
- 12.1 inchEmbedded Automation Monitor
- 13.3 inchEmbedded Automation Monitor
- 15.0 inchEmbedded Automation Monitor
- 15.6 inchEmbedded Automation Monitor
- 17.0 inchEmbedded Automation Monitor
- 17.3 inchEmbedded Automation Monitor
- 18.5 inchEmbedded Automation Monitor
- 19.0 inchEmbedded Automation Monitor
- 19.1 inchEmbedded Automation Monitor
- 21.5 inchEmbedded Automation Monitor
- 23.8 inchEmbedded Automation Monitor
Industrial Embedded Automation Monitor Product Features |
---|
Industrial Embedded Automation Monitor Product Parameters | ||
---|---|---|
Hardware Parameters | CPU | RTD2513 |
Material | Aluminum alloy | |
Menu Language | Multilingual (default: English) | |
Key Function | AUTO/MENU/POWER/LEFT/RIGHT | |
Color | black,Sliver optional | |
Video Input PC-RGB | Format Up to 1920*1080@60HZ, PC-RGB: Color 16bit, 24bit, 32bit |
Touch Parameters | Projection capactivite touch Touch Point: 10-point Light Transmittance: >=88% Input Mode: handwriting or capactivite pen Standard Protocol:USB | Resistive touch 4-5wire/5 Wire Touch Point: single point Light Transmittance: >=78% Input Mode: Fingertip or stylus Standard Protocol:USB | Non-touch Light Transmittance: >=92% | ||
Interface Parameters | DC Port | 1*DC2.1(DC 12-36V) |
HDMI | High-definition audio digital signal transmission, support HDMI data input. | |
VGA | Analog signal transmission, support VGA best resolution. | |
DVI | Digital signal transmission, support the best resolution of DVI digital signal. | |
Touch Interface | RJ45 interface standard(defined as USB), compatible to capacitive/resistive touch | |
Headphone Port | 35mm standard interface. |
Environment Parameters | Working Temperature | -10°C~60°C |
Storage Temperature | -20°C~70°C | |
Relative Humidity | Humidity: 95% Non-Condensing | |
Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis | |
Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
Other Parameters | Power input | DC 12V~36V |
Static power | 18W | |
Installation Method | Supports snap-embedded,wall edbedded,wall mounted,desktop,louvered,cantilever-mounted,boom-mounted,etc. | |
Warranty Policy | Three years ( one year free warranty ) |

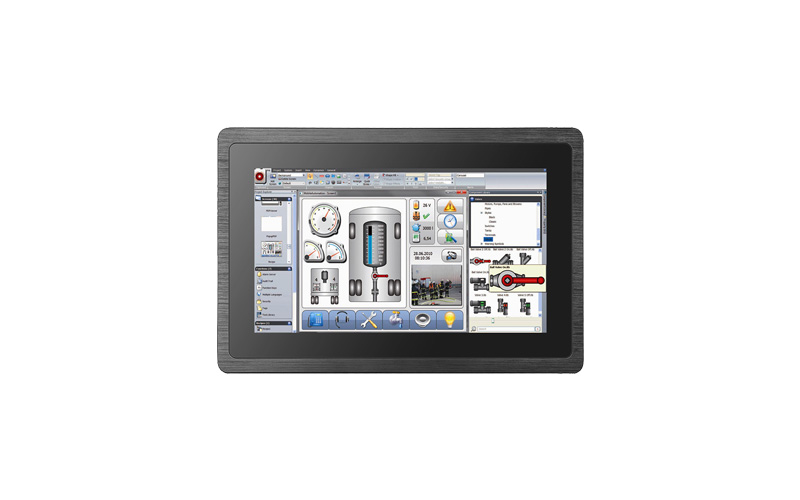

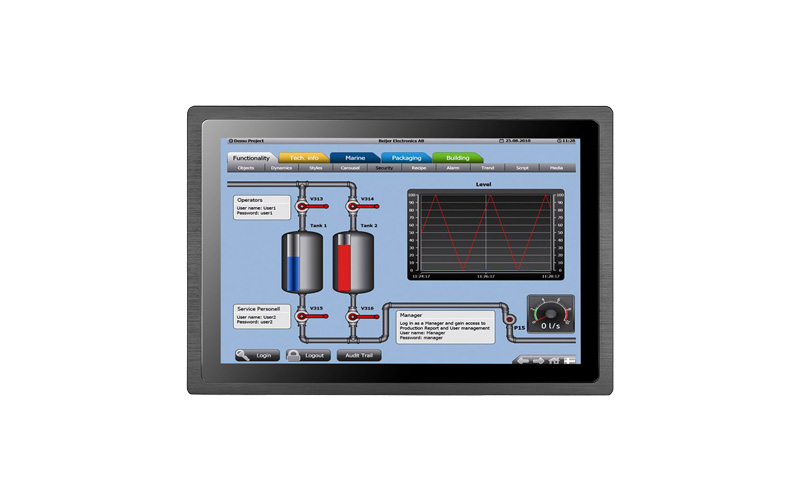

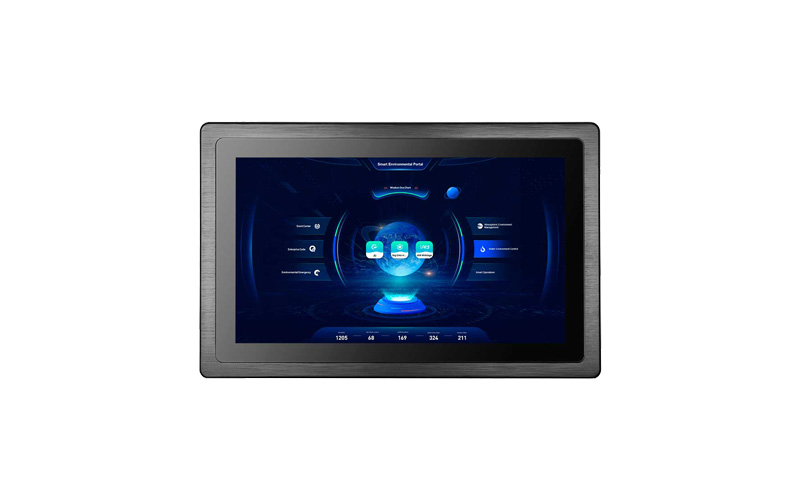

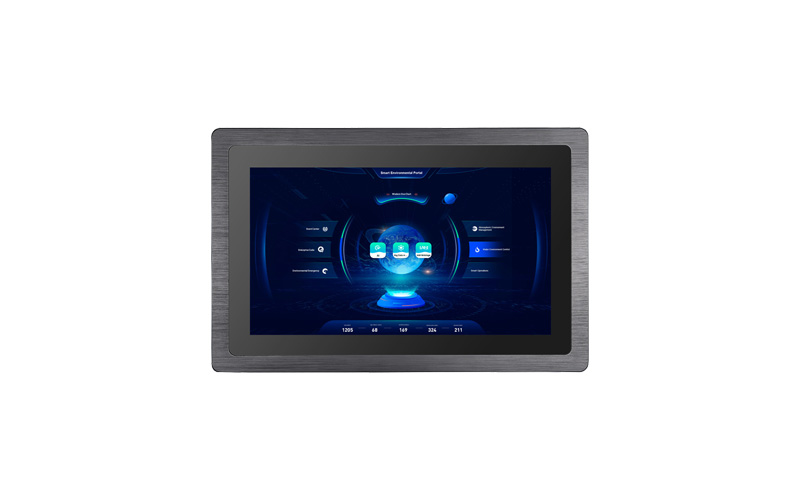

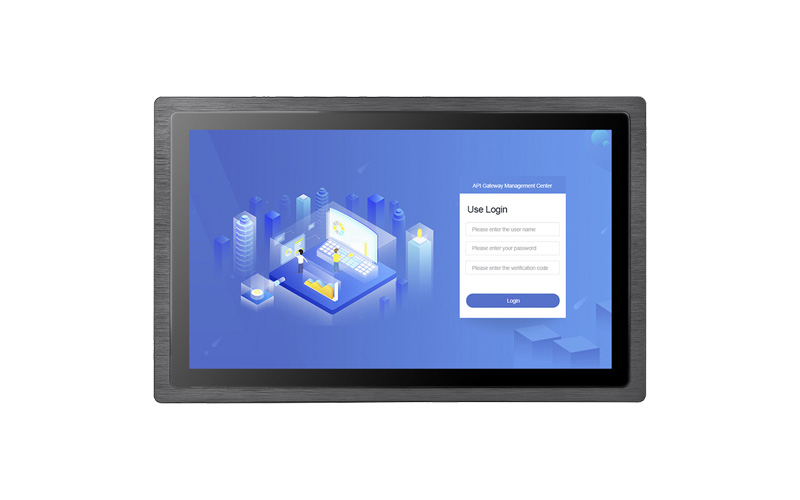

Embedded Automation Android Panel PC
TouchThink Embedded Automation Android Panel PC with 3mm front panel, based on ARM architecture, supports up to Octa-Core 64-bit 2.4GH, providing powerful Al computing capability, and SDK for secondary development. Their compact design and fanless operation make them ideal for space-constrained environments and applications where noise and maintenance requirements must be minimized. Commonly used for machine control, data acquisition, human-machine interface (HMI), process monitoring, and automation.
Industrial Embedded Automation Android Panel PC Size
- 10.1 inchEmbedded Automation Android Panel PC
- 10.4 inchEmbedded Automation Android Panel PC
- 11.6 inchEmbedded Automation Android Panel PC
- 12.0 inchEmbedded Automation Android Panel PC
- 12.1 inchEmbedded Automation Android Panel PC
- 13.3 inchEmbedded Automation Android Panel PC
- 15.0 inchEmbedded Automation Android Panel PC
- 15.6 inchEmbedded Automation Android Panel PC
- 17.0 inchEmbedded Automation Android Panel PC
- 17.3 inchEmbedded Automation Android Panel PC
- 18.5 inchEmbedded Automation Android Panel PC
- 19.0 inchEmbedded Automation Android Panel PC
- 19.1 inchEmbedded Automation Android Panel PC
- 21.5 inchEmbedded Automation Android Panel PC
- 23.8 inchEmbedded Automation Android Panel PC
Embedded Automation Android Panel PC Product Features |
---|
Embedded Automation Android Panel PC Product Parameters | ||
---|---|---|
Hardware Parameters | CPU: RK3588 Octa-Core 64bit 2.4GHz | Android 12.0 |
CPU: RK3568 Quad-Core 64bit 2.0GHz | Android 12.0/Ubuntu5.10 | |
CPU: RK3399 Six-Core 64bit 1.8GHz | Android 7.1/9.0/11, Ubuntu18.04, Debian10.0, Linux4.4+QT | |
CPU: RK3288 Cortex-A17 Quad-Core 1.8GHz | Android 7.1/10.0/12.0, Ubuntu18.04, Debian10.0, Linux4.4 | |
CPU: A64 Cortex-A53 Quad-Core 1.5GHz | Android 6.0 | |
Memory | 2G/4G/8G/16G/32G Optional | |
Storage | 8G/16G/32G/64G/128G/256G eMMC Optional | |
Decoding Resolution | Support up to 4K/60HZ | |
Network Support | 4G, Ethernet, WiFi/Bluetooth support, wireless peripheral expansion |
Screen Parameters | Panel Type | Industrial control screen |
Viewing Angle | Wide view / full view | |
Backlight Type | LED, use time >=50000H | |
Brightness | 300cd/m2 (can be customized =< 1500cd/m2) | |
Display Color | 16.7M | |
Contrast Ratio | 1000:1 |
Touch Parameters | Projection capactivite touch Touch Point: 10-point Light Transmittance: >=88% Input Mode: handwriting or capactivite pen Standard Protocol:USB | Resistive touch 4-5wire/5 Wire Touch Point: single point Light Transmittance: >=78% Input Mode: Fingertip or stylus Standard Protocol:USB | Non-touch Light Transmittance: >=92% | ||
Interface Parameters | DC Port | 1*DC2.1(DC 12-36V) |
HDMI | High-definition audio digital signal transmission, support HDMI data input. | |
SIM | 1*SIM, Supporting various formats (Depending on 3G/4G module) | |
Network interface | 1*LAN, 10M/100M/1000M adaptive Ethernet | |
COM | 2*RS232 | |
Audio interface | 1*Audio I/O, Support audio input and output |
Environment Parameters | Working Temperature | -10°C~60°C |
Storage Temperature | -20°C~70°C | |
Relative Humidity | Humidity: 95% Non-Condensing | |
Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis | |
Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
Other Parameters | Power input | DC 12V~36V |
Static power | 18W | |
Installation Method | Supports snap-embedded,wall edbedded,wall mounted,desktop,louvered,cantilever-mounted,boom-mounted,etc. | |
Warranty Policy | Three years ( one year free warranty ) |

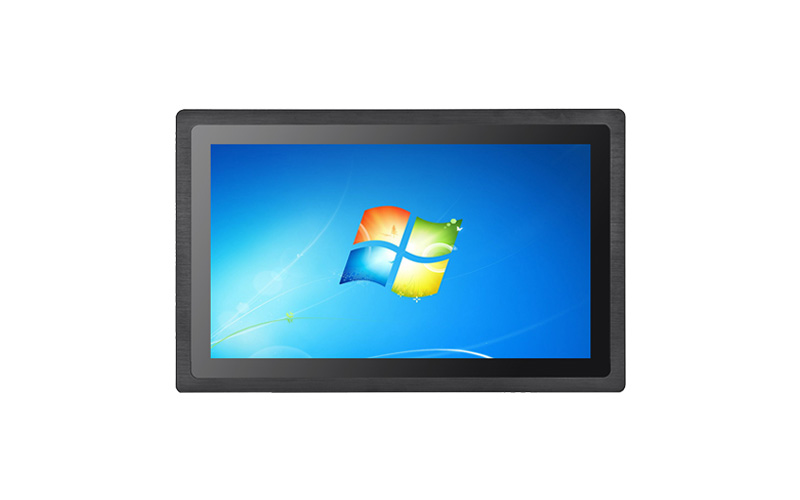

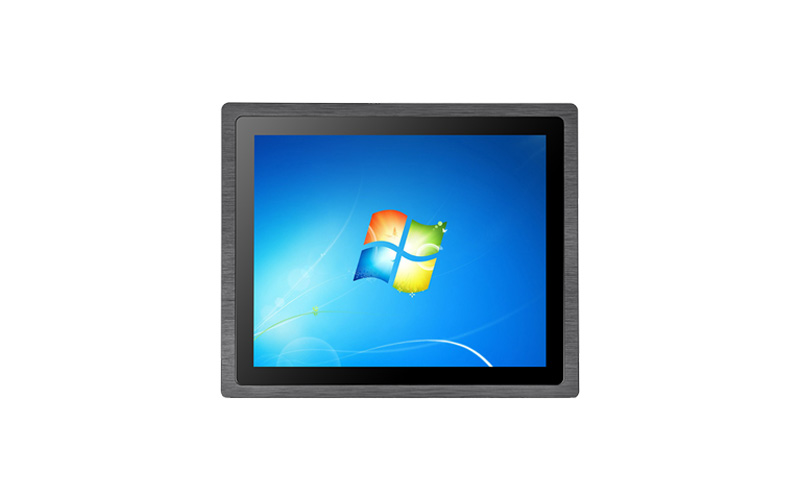

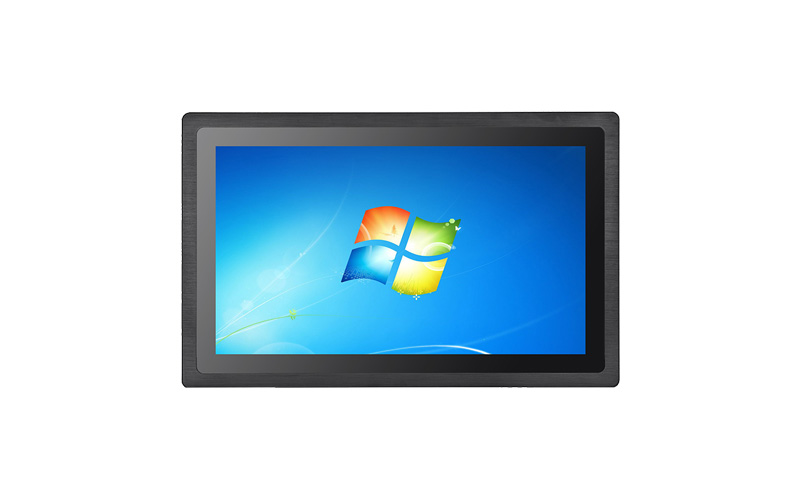

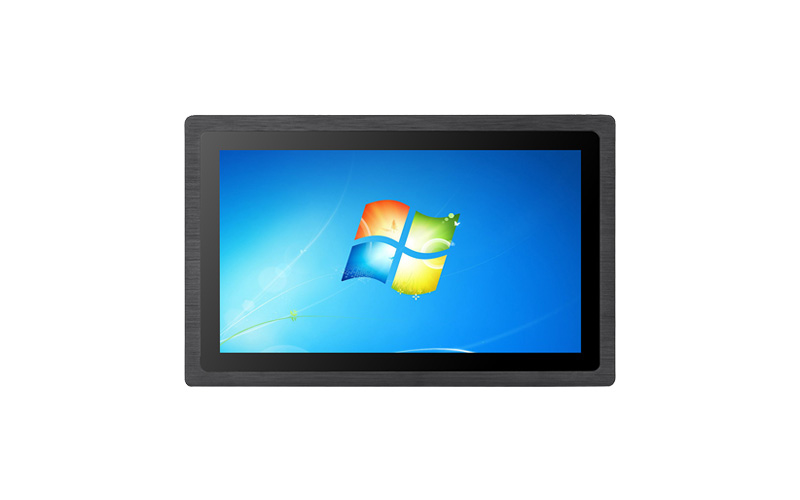

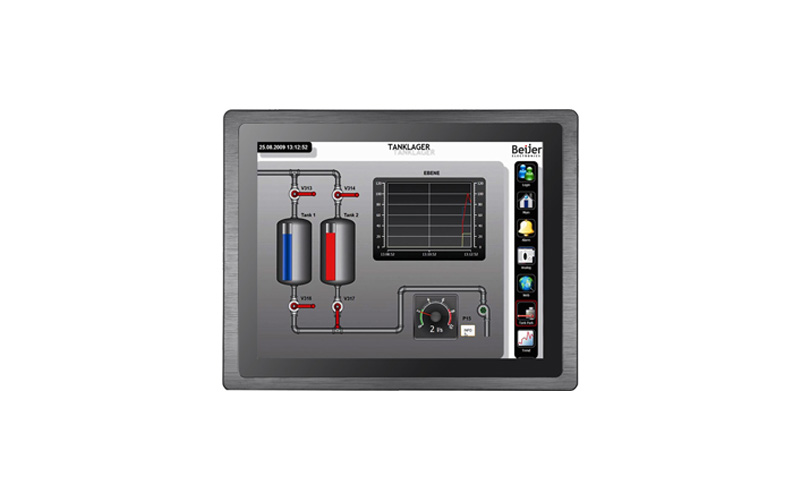

Embedded Automation Windows Panel PC
Touchthink Embedded Automation Windows Panel PCs with 3mm front panels are built with ruggedized enclosures and durable components, powered by X86 processors, these panel PCs offer high computing performance, enabling them to handle complex industrial applications, data processing tasks, and real-time control functions with ease.
Industrial Embedded Automation Windows Panel PC Size
- 10.1 inchEmbedded Automation Windows Panel PC
- 10.4 inchEmbedded Automation Windows Panel PC
- 11.6 inchEmbedded Automation Windows Panel PC
- 12.0 inchEmbedded Automation Windows Panel PC
- 12.1 inchEmbedded Automation Windows Panel PC
- 13.3 inchEmbedded Automation Windows Panel PC
- 15.0 inchEmbedded Automation Windows Panel PC
- 15.6 inchEmbedded Automation Windows Panel PC
- 17.0 inchEmbedded Automation Windows Panel PC
- 17.3 inchEmbedded Automation Windows Panel PC
- 18.5 inchEmbedded Automation Windows Panel PC
- 19.0 inchEmbedded Automation Windows Panel PC
- 19.1 inchEmbedded Automation Windows Panel PC
- 21.5 inchEmbedded Automation Windows Panel PC
- 23.8 inchEmbedded Automation Windows Panel PC
Embedded Automation Windows Panel PC Product Features |
---|
Embedded Automation Windows Panel PC Product Parameters | ||
---|---|---|
Hardware Parameters | CPU: Intel Celeron J1900 Quad Core 1.99GHz | Win7/10, Ubuntu,Centos,Redhat, Debian, Linux |
CPU: Intel Celeron J4125 Quad Core 2.0GHz | Win10/11, Ubuntu,Centos,Linux | |
CPU: Intel Celeron J6412 Quad Core 2.6GHz | Win10/11, Ubuntu,Centos,Linux | |
Memory | 4G/8G/16G/32G Optional | |
Storage | 64G/128G/256G/512G SSD, 1T/2T HDD Optional | |
WIFI | Dual band 2.4G&5G | |
BlueTooth | Support | |
Network Support | 4G, Ethernet, WiFi/Bluetooth support, wireless peripheral expansion |
Screen Parameters | Panel Type | Industrial control screen |
Viewing Angle | Wide view / full view | |
Backlight Type | LED, use time >=50000H | |
Brightness | 300cd/m2 (can be customized =< 1500cd/m2) | |
Display Color | 16.7M | |
Contrast Ratio | 1000:1 |
Touch Parameters | Projection capactivite touch Touch Point: 10-point Light Transmittance: >=88% Input Mode: handwriting or capactivite pen Standard Protocol:USB | Resistive touch 4-5wire/5 Wire Touch Point: single point Light Transmittance: >=78% Input Mode: Fingertip or stylus Standard Protocol:USB | Non-touch Light Transmittance: >=92% | ||
Interface Parameters | DC Port | 1*DC2.1(DC 12-36V) |
HDMI | High-definition audio digital signal transmission, support HDMI data input. | |
SIM | 1*SIM, Supporting various formats (Depending on 3G/4G module) | |
Network interface | 1*LAN, 10M/100M/1000M adaptive Ethernet | |
COM | 2*RS232 | |
Audio interface | 1*Audio I/O, Support audio input and output |
Environment Parameters | Working Temperature | -10°C~60°C |
Storage Temperature | -20°C~70°C | |
Relative Humidity | Humidity: 95% Non-Condensing | |
Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis | |
Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
Other Parameters | Power input | DC 12V~36V |
Static power | 18W | |
Installation Method | Supports snap-embedded,wall edbedded,wall mounted,desktop,louvered,cantilever-mounted,boom-mounted,etc. | |
Warranty Policy | Three years ( one year free warranty ) |
Industrial Embedded Automation Computers Installation Method |
---|
