Mini Industrial Box PC | X86 IPC | 4-network Communication

Model No.: TPC13-WIPC | Size: 230mm x 165mm x 57.1mm

  • Compact size with integrated dedicated board structure
  • Intel Celeron J6412/N97~N305 and Core i3/i5/i7 optional
  • Flexible and expandable, supporting various expansion card applications
  • High-speed communication, upgradable to dual 2.5G + dual Gigabit Ethernet ports
  • Multi-screen display, DP + HDMI (4K/60Hz)
  • Abundant I/O interfaces, 8USB + 6COM, etc.
  • Wide temperature and voltage range, adapted to harsh industrial environments
  • Industrially selected with EMI/ESD/vibration resistance protection

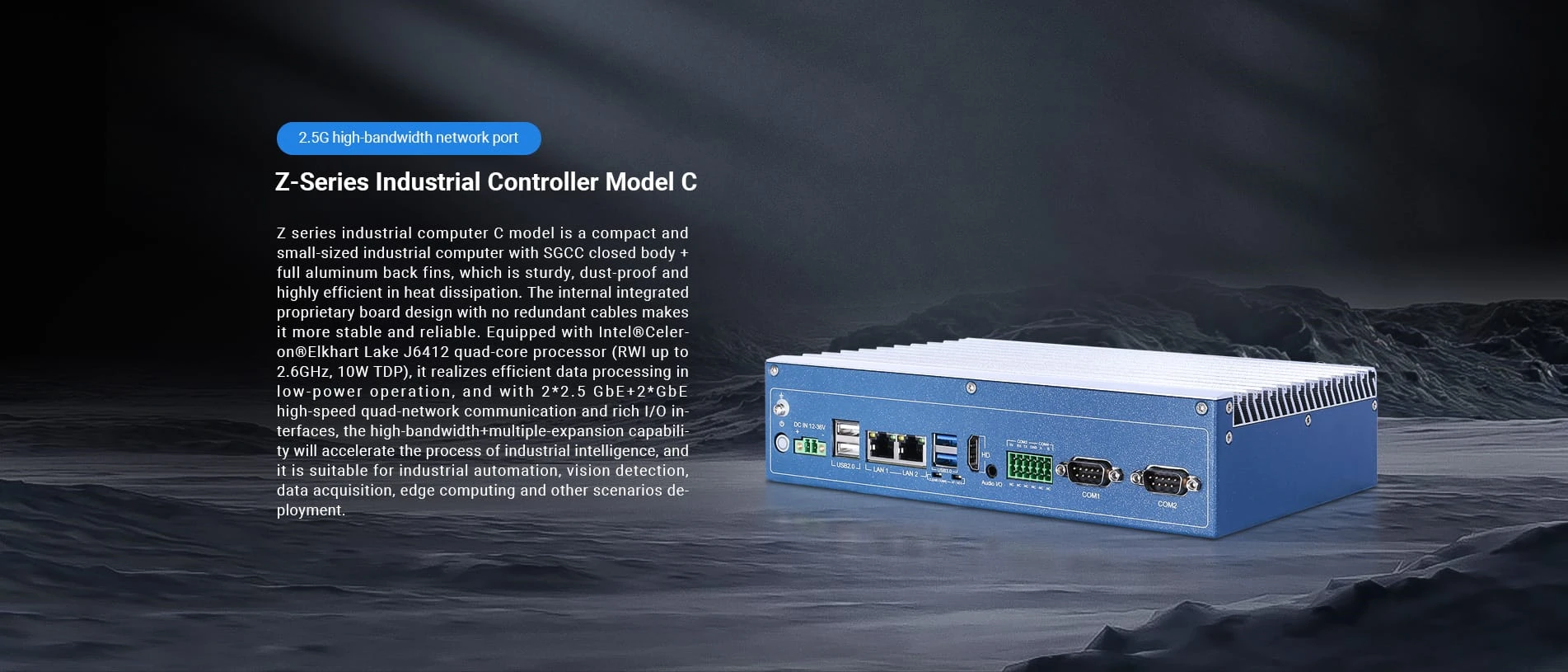

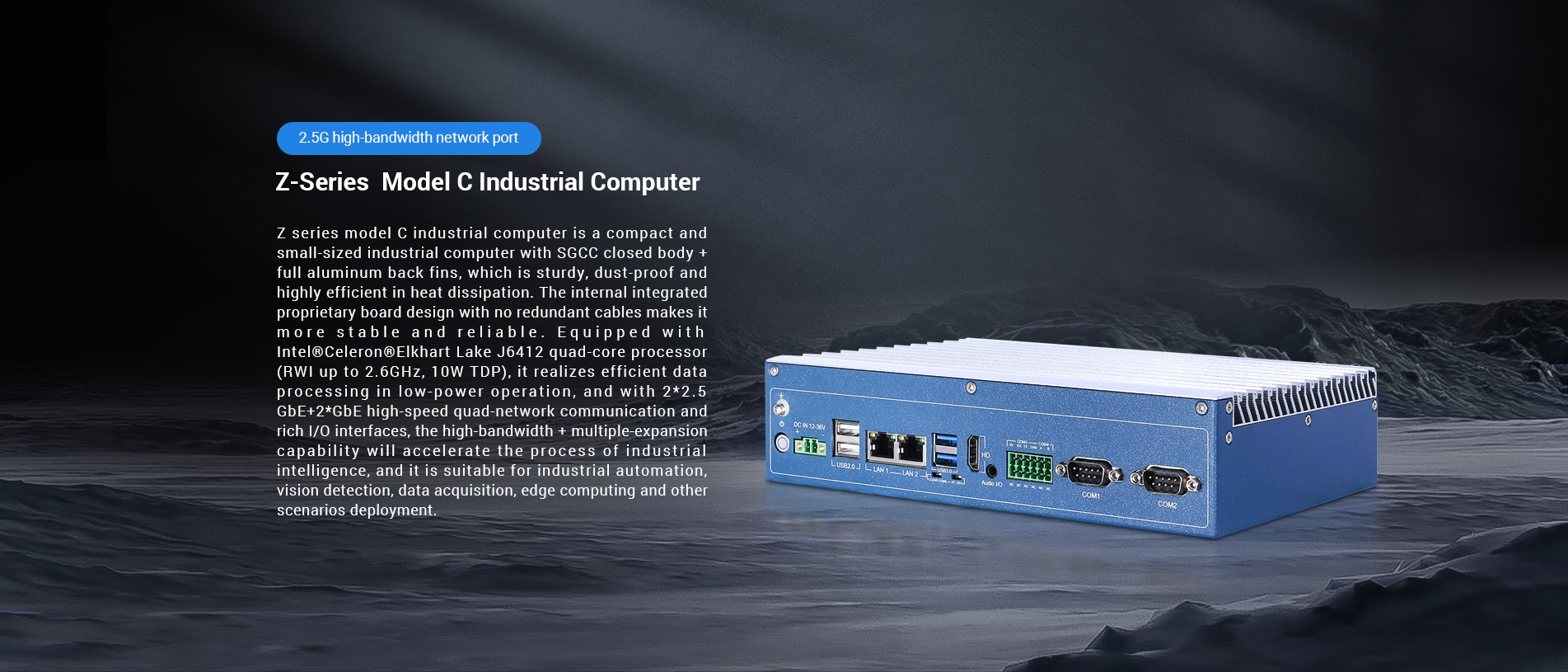

Z series industrial computer C model is a compact and small-sized industrial computer with SGCC closed body + full aluminum back fins, which is sturdy, dust-proof, and highly efficient in heat dissipation. Internal integrated special board design, no redundant cables, more stable and reliable. Supports Intel® J6412, N97 and 8th/10th/12th generation i-series chips, providing excellent computing performance and response speed. With 22.5 GbE+2GbE high-speed quad-network communication and rich I/O interfaces, the high bandwidth + multi-expansion capability will accelerate the process of industrial intelligence and is suitable for industrial automation, vision inspection, data acquisition, edge computing and other scenarios.

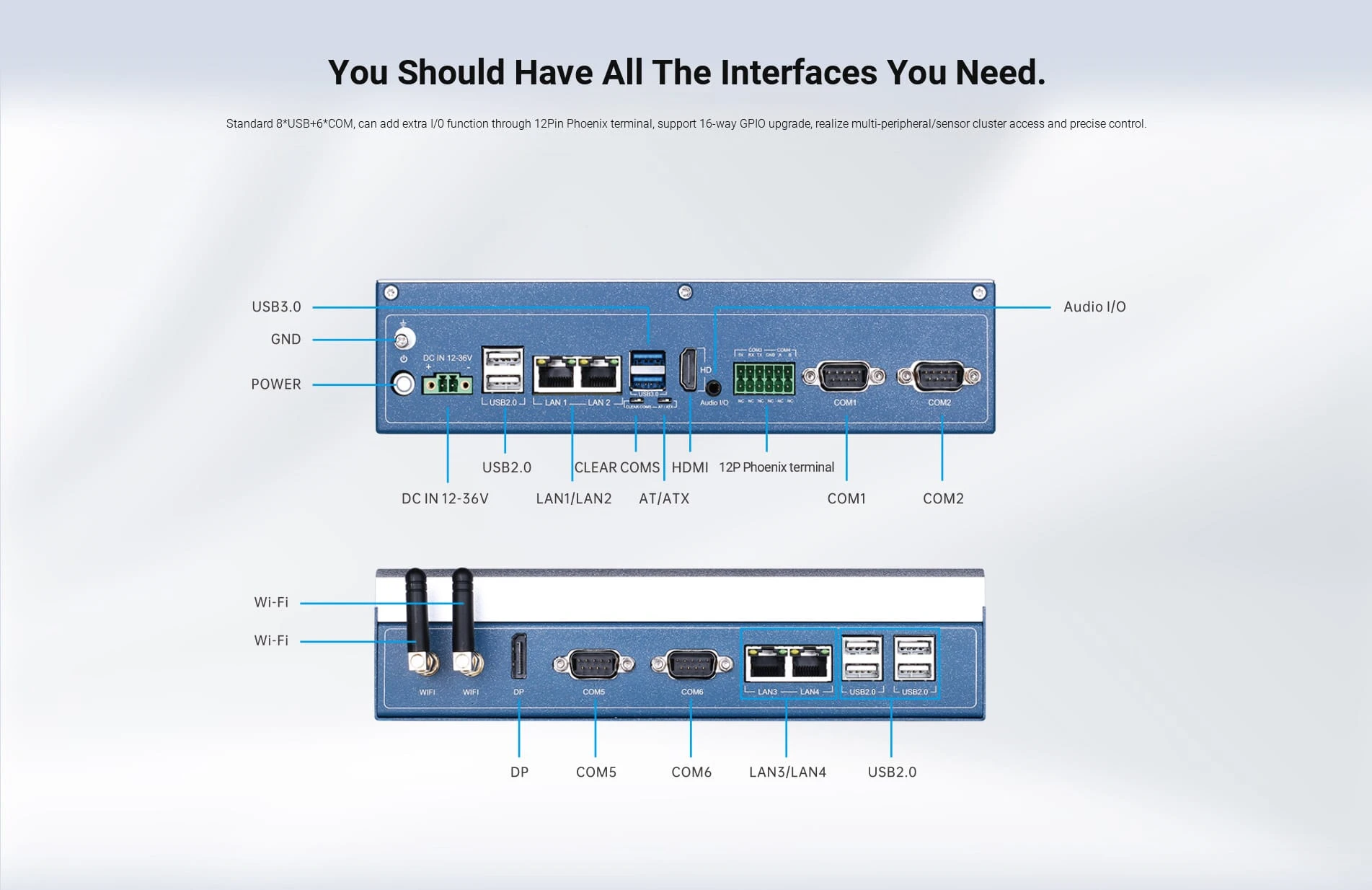

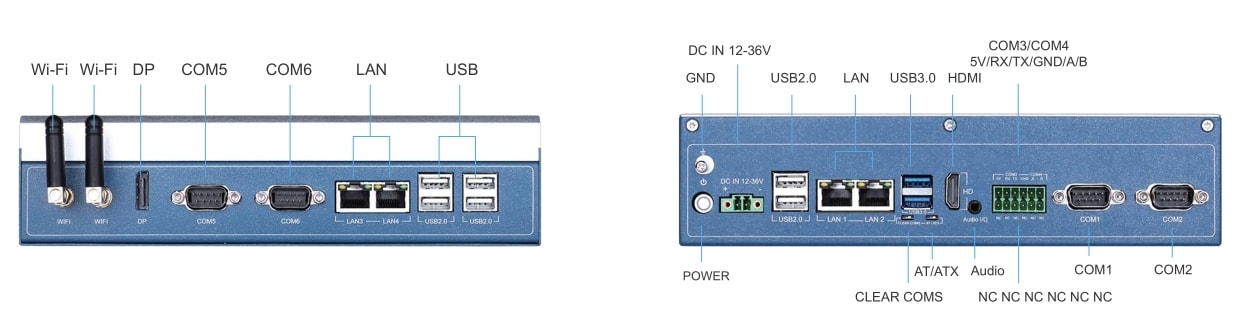

Interfaces for Mini IPC Z Series Model C-IPC Manufacturer
Hardware Configuration
CPU
Intel Celeron J6412 Quad-Core 2GHz
Intel Celeron N97/N100/N150/N200/N305
Intel Core i3/i5/i7 8th/10th/12th/13th generation
RAM
4GB/8GB/16GB/32GB/64GB Optional
Storage
Optional 64GB/128GB/256GB/512GB/1T/2T/4T
Wi-Fi
2.4G/5G
Bluetooth
BT5.0
OS
Windows 10/11,Ubuntu/Centos/Linux/Kylin/UOS
Decoding Resolution
Supports up to 4K@60Hz
GPS
Internal GPS module (optional)
Network Support
4G, Ethernet, Wi-Fi/Bluetooth Support & Wireless Peripheral Expansion

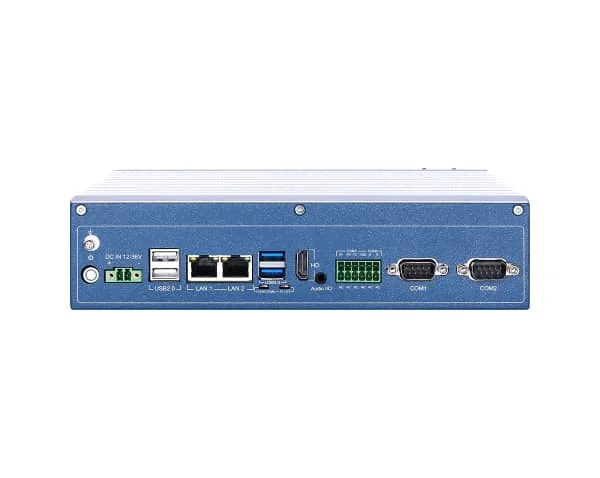

Interface Configuration
Power Switch
1 x Power switch
Power Supply Port
1*2P Phoenix terminal (supports 12-36V)
Phoenix Terminal
1*12P Phoenix terminal (232/485/NC, see specifications for details)
HDMI/DP Interface
Supports HDMI data output up to 4K.
1*standard DP output connector
Serial Port (Computing)
Supports 5RS232 serial sockets and 1485
USB
2USB3.0 TYPEA standard socket ports, 6USB2.0 TYPEA standard socket ports
RJ45 Ethernet
4*Inter 10M-1000M Adaptive RJ45 ports
Audio
1*Audio I/O, support audio input and output, headphone holder: 3.5mm standard interface
GPIO
Support 8*GPIO
WIFI+BT
Built-in M.2 PCIE protocol WIFI , USB protocol Bluetooth 5.0
WiFi Antenna
2*WiFi antenna
Grounding Post
Support (1*GND)
Reliable Parameters
Working Temperature
-20°C ~ 70°C
Storage Temperature
-30 °C ~ 80 °C
Relative Humidity
5% to 95% (non-condensing)
Other Parameters
Power Input
12V-36V Power Input
Power Adapter
12V/2.5A (3.81-2P phoenix terminal)
Enclosure Material
Aluminum Alloy
Enclosure Color
Silver + Dark Blue
Net weight
1.25Kg
Gross Weight
1.6Kg

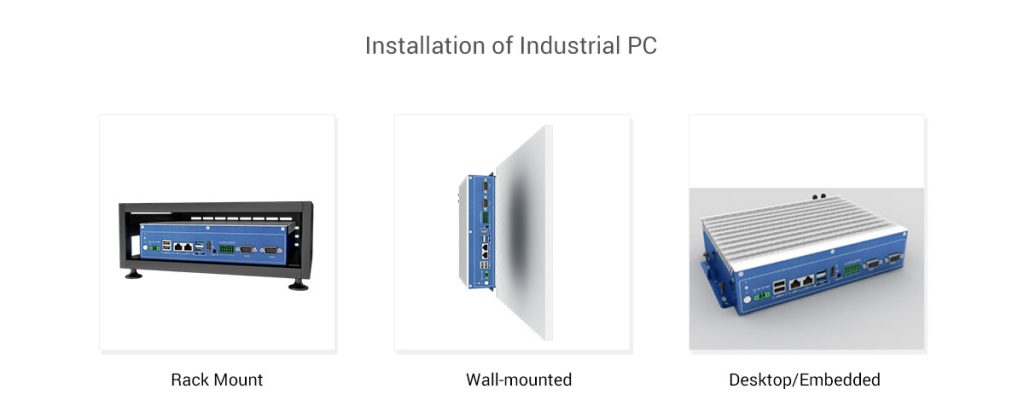

Installation Methods
Supports wall-mounted, desktop, rack-mounted
Warranty Policy
3 Years(1 year free maintenance)
2.5G high-bandwidth Mini Industrial Box PC
Industrial Mini Box PC Features: Compact size, quad-core Intel Celeron J6412, dual 2.5 + dual Gigabit ethernet ports.

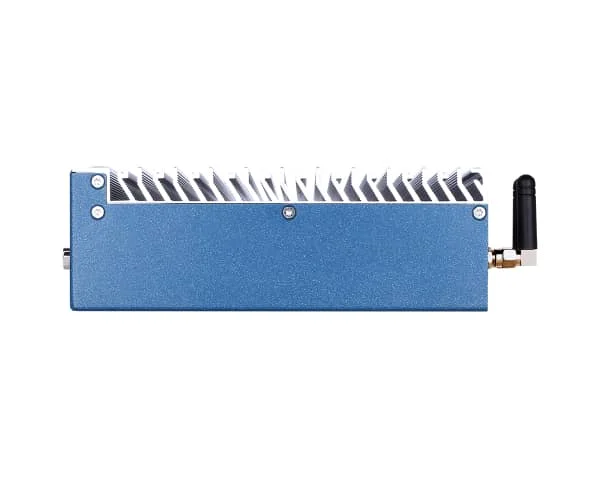

Full Metal Mini Box PC with SGCC and aluminum fin back plate

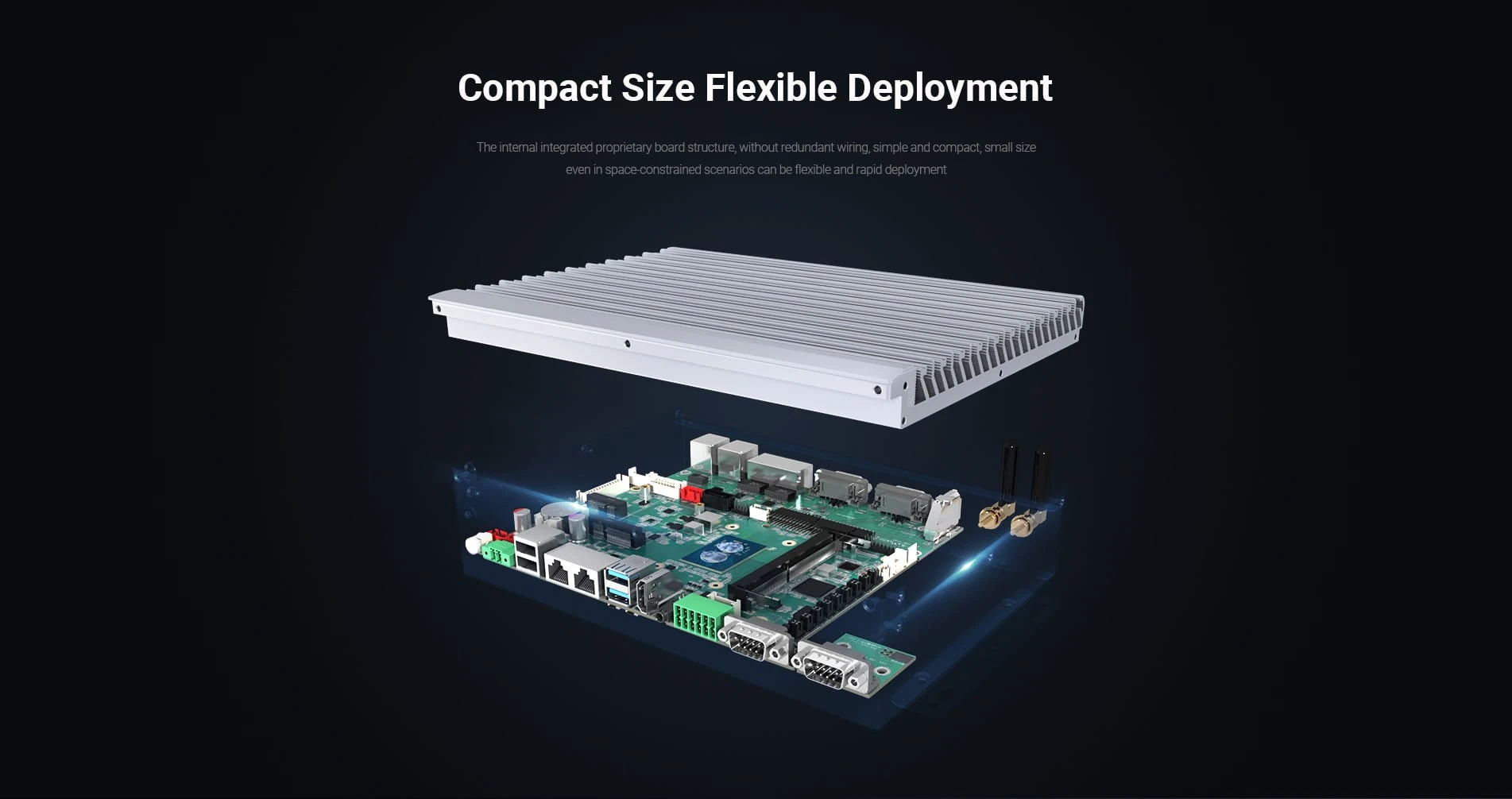

compact industrial Box PC for flexible deployment.

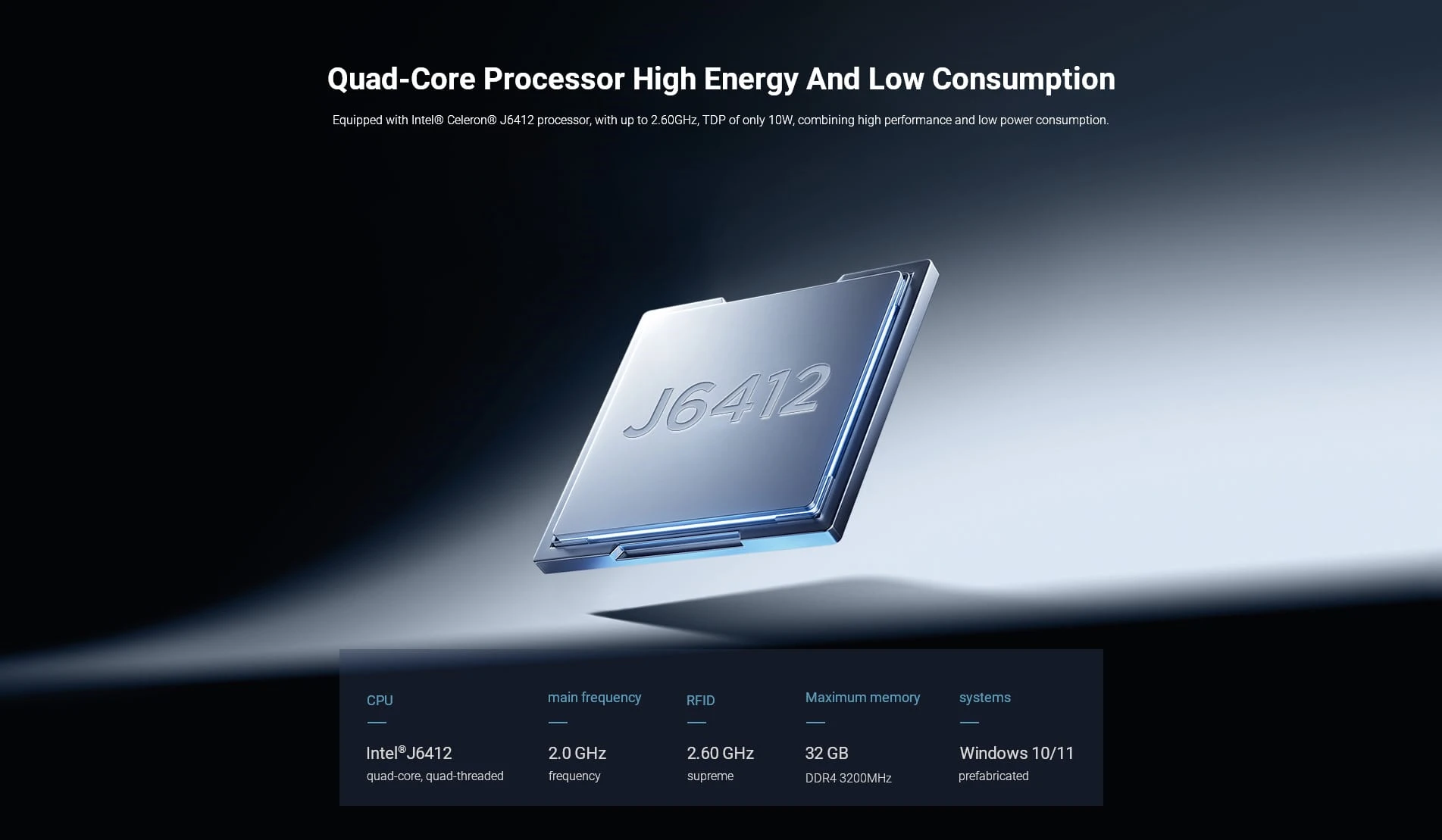

Intel Celeron J6412 Quad core processor and low consumption
M.2 Wifi/BT module, M.2 +SATA+mSATA slot.

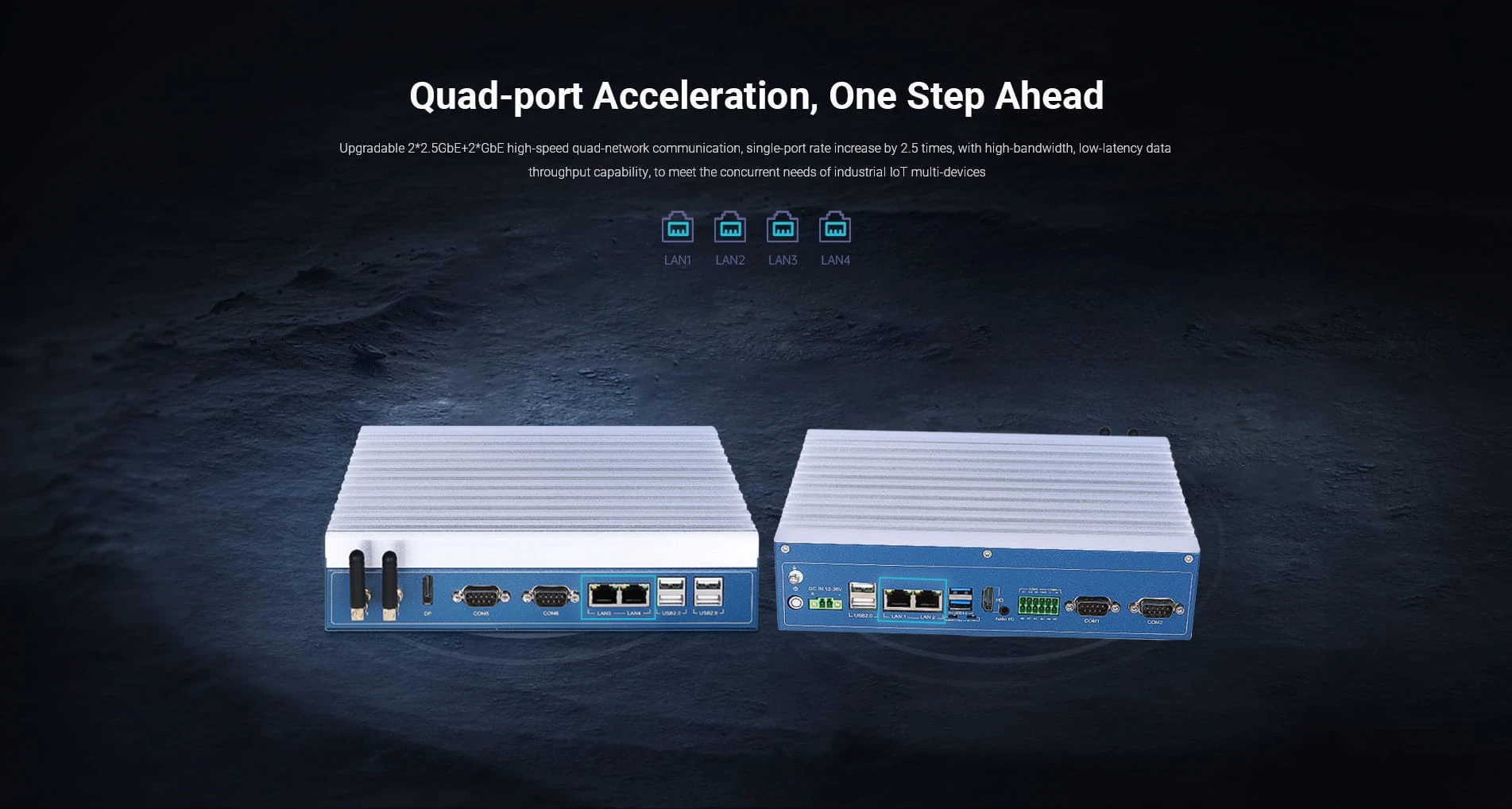

4-Network communication ports ensure fast and stable data transmission.
4K display driver and multi-screen collaboration.
Compatible with Rich Industrial grade ports and peripherals

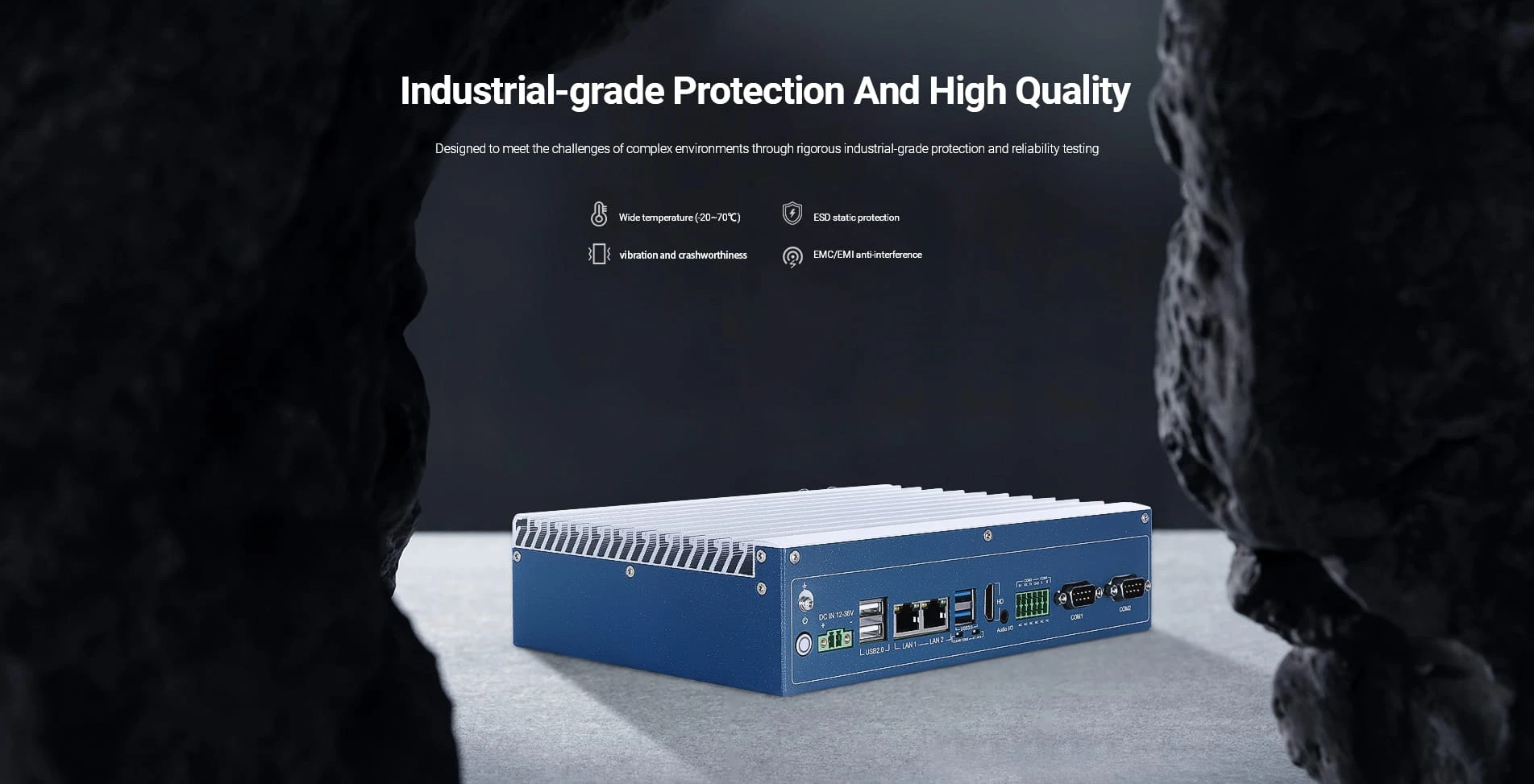

Excellent industrial-grade protection: wide temperature range, ESD protection, vibration
