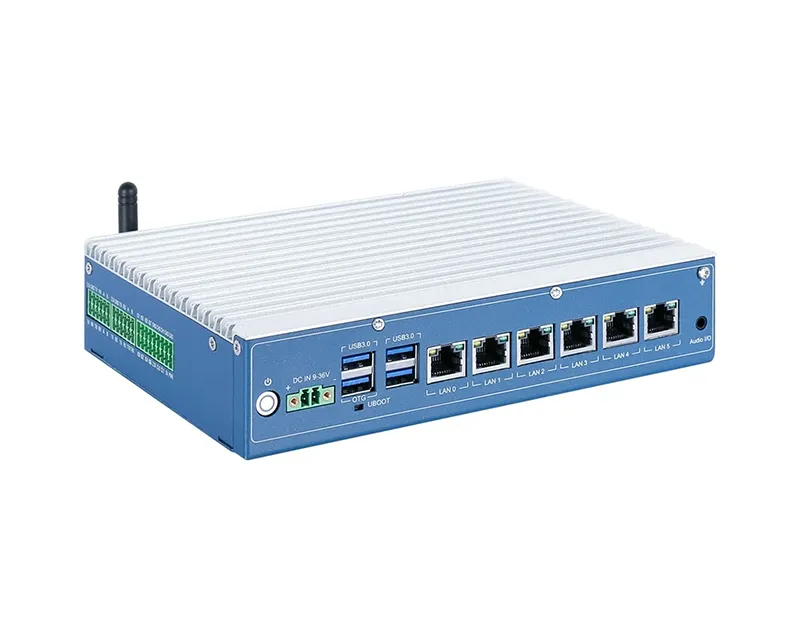

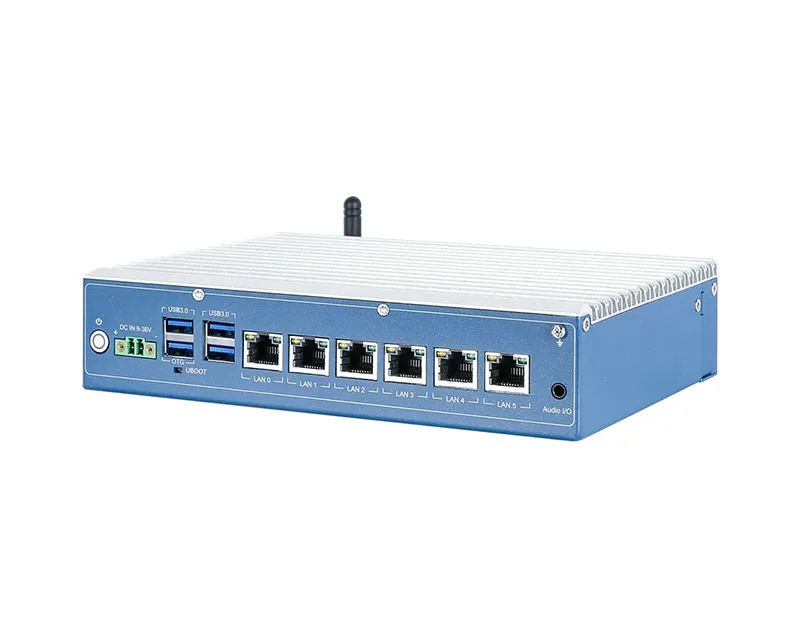

Multifunctional Embedded Computer (Gateway + Data Logger + IPC) All-in-one Industrial Fanless PC

Model No.: TPC14-AIoT | Size: 200x138x46mm

  • RK3588 Octa-core CPU + 6 TOPS NPU
  • 4/8GB RAM + 64~256GB eMMC
  • 8K video encoding and decoding, 8K display output
  • mini-PCIe supports 3G/4G or WiFi + Bluetooth
  • 2 x 2.5GbE + 4 x GbE multiple network port expansion
  • 2 x HDMI input + 4 x HDMI output
  • 10 x COM + 2 x CAN + 8 x GPIO
  • -20℃~70℃ wide operating temperature range, 9V-36V wide voltage input

TPC14-AIoT is a flagship multifunctional industrial control computer positioned at the high-end and designed for complex applications. With groundbreaking interface density, high-performance computing power, and industrial-grade protection, it delivers innovative application solutions for scenarios such as industrial automation, energy and transportation, machine vision, security and surveillance, and stage audio-visual systems. It comes standard with the Rockchip® RK3588 octa-core 64-bit processor, integrates 6 TOPS of AI computing power, and supports 8K video encoding/decoding and 8K display output. The ultra-dense digitally isolated I/O ensures reliable expansion and connection of massive peripheral devices, significantly enhancing system stability and equipment safety in harsh electrical environments.

TouchThink Z Series Model D IPC Embedded PC

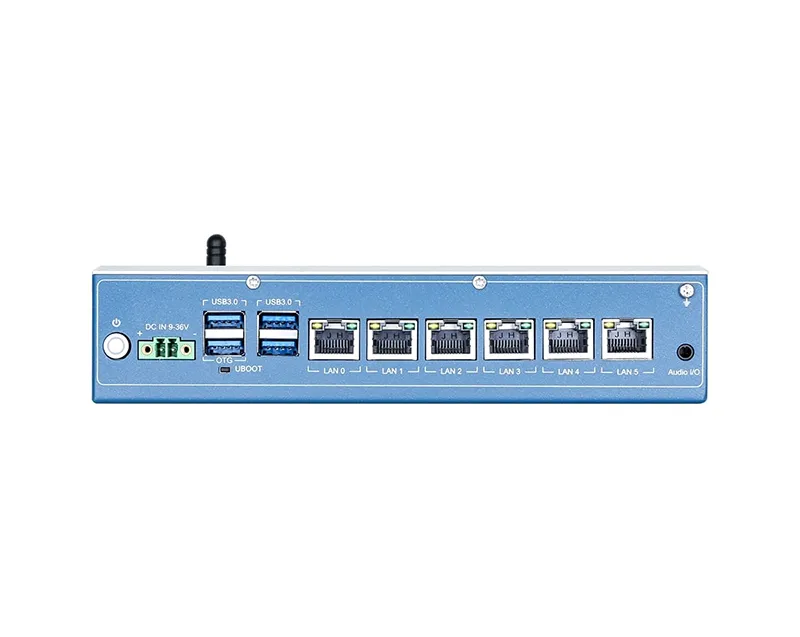

Z Series Model D Industrial Embedded PC Ports
Hardware Configuration
CPURK-3588 Octa-core 1.8GHz
MemoryStandard configuration includes 8GB of RAM (optional LPDDR4X 4GB/16GB/32GB, maximum support is 32GB).
storageStandard configuration includes 64GB eMMC storage (128GB/256GB optional).
operating systemSupports Android 14.0, Linux 5.10, Debian 11, Ubuntu 22.04, and other open-source HarmonyOS systems.
GPUARM Mali-G610 MC4
4G/5G modulesSupport 4G、5G
Wi-FiWi-Fi 6 with built-in 2.4G/5G
BluetoothBT5.3
GPSOptional
MICOptional
RTC real time clocksupport
Timer power on/offsupport
System upgradeSupport local SD and USB upgrade
Interface parameters
USB4 USB 3.0 ports (1 of which supports OTG), 4 USB 2.0 ports, with an optional upgrade to 6 USB 2.0 ports.
Network port2*RJ45 2.5G Ethernet ports, 4*RJ45 Gigabit Ethernet ports
GPIO portsStandard configuration includes 8 GPIO ports, supporting input and output.
Display Interface2x*HDMI, support HDMI data output, maximum support 8K
RS485Standard configuration includes 3 RS-485 serial ports (switching between RS-232 and RS-485), with optional upgrade to 10 ports.
RS232Standard configuration includes 6 RS-232 serial ports (RS-232/RS-485 switchable), with optional upgrade to 10 ports.
Audio Interface1*Audio Out, supports audio output, headphone jack: 3.5mm standard interface
Product reliability
Operating temperature-20°C ~ 70°C
Storage temperature-30°C ~80°C
relative humidity20%-95% (non-condensing)
Mean Time Between Failures (MTBF)7*24H
Power supply parameters
Power consumption2.64W
powered InputAC 100-240V 50/60Hz
Packaging specifications
Warranty PolicyThree-year warranty (one-year free warranty)
Color StandardsSilver + Dark Blue
Packing ListIndustrial PC x 1, Side Strips x 2, Instruction Manual x 1, Warranty Card x 1
InstallationRack mount, desktop, wall mount
Multifunctional Industrial Computer TPC14-AIoT, RK3588, 6TOP NPU AI computing.
Z Series Embedded PC with Surge AI Computing, 10xCOM ports, 6 xHDMI I/O, -20℃~70℃ , 9-36V wide voltage.

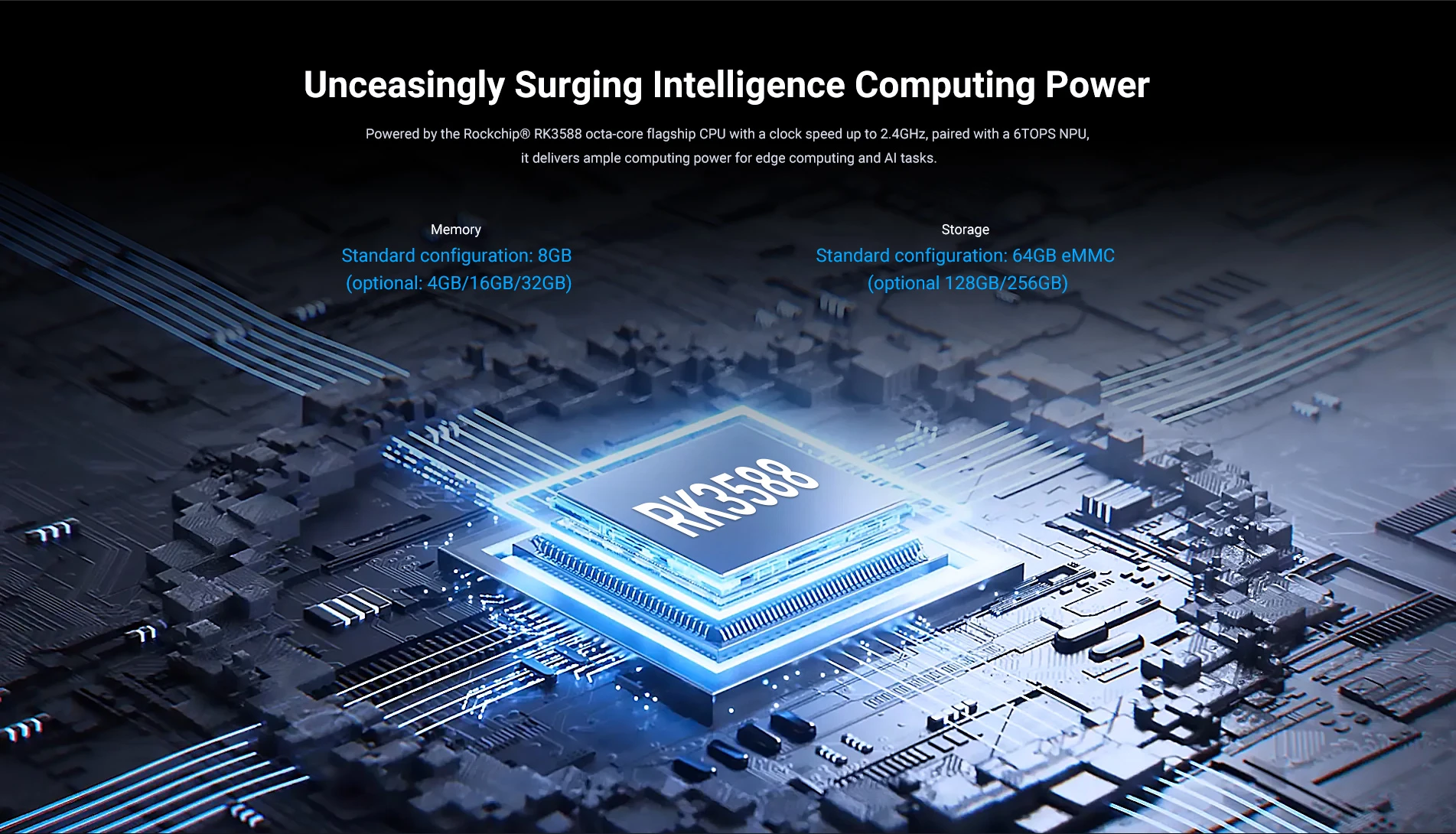

Unceasingly Surging Intelligence Computing Power, RK3588 Octa-core flagship CPU, up to 2.4GHz. 4/8/16/32GB memory, 64eMMC as standard Storage,128/256GB optional.

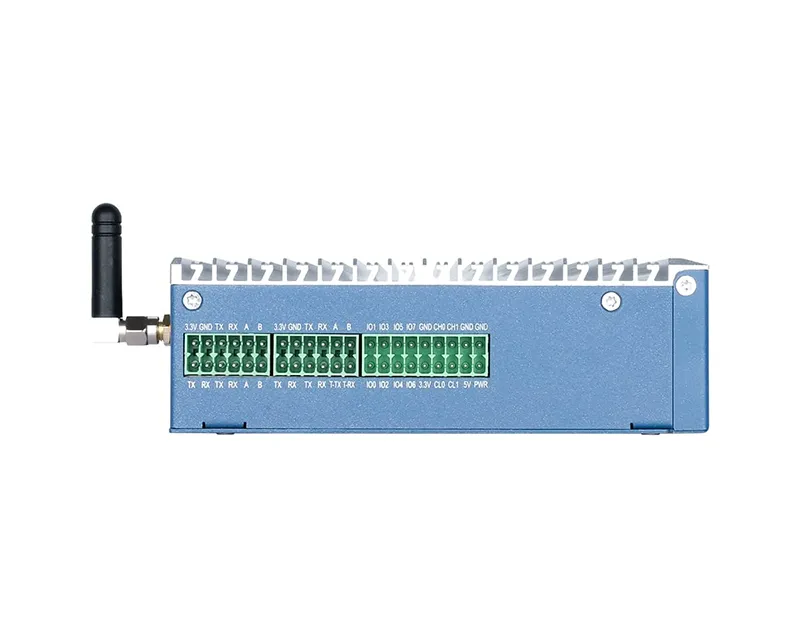

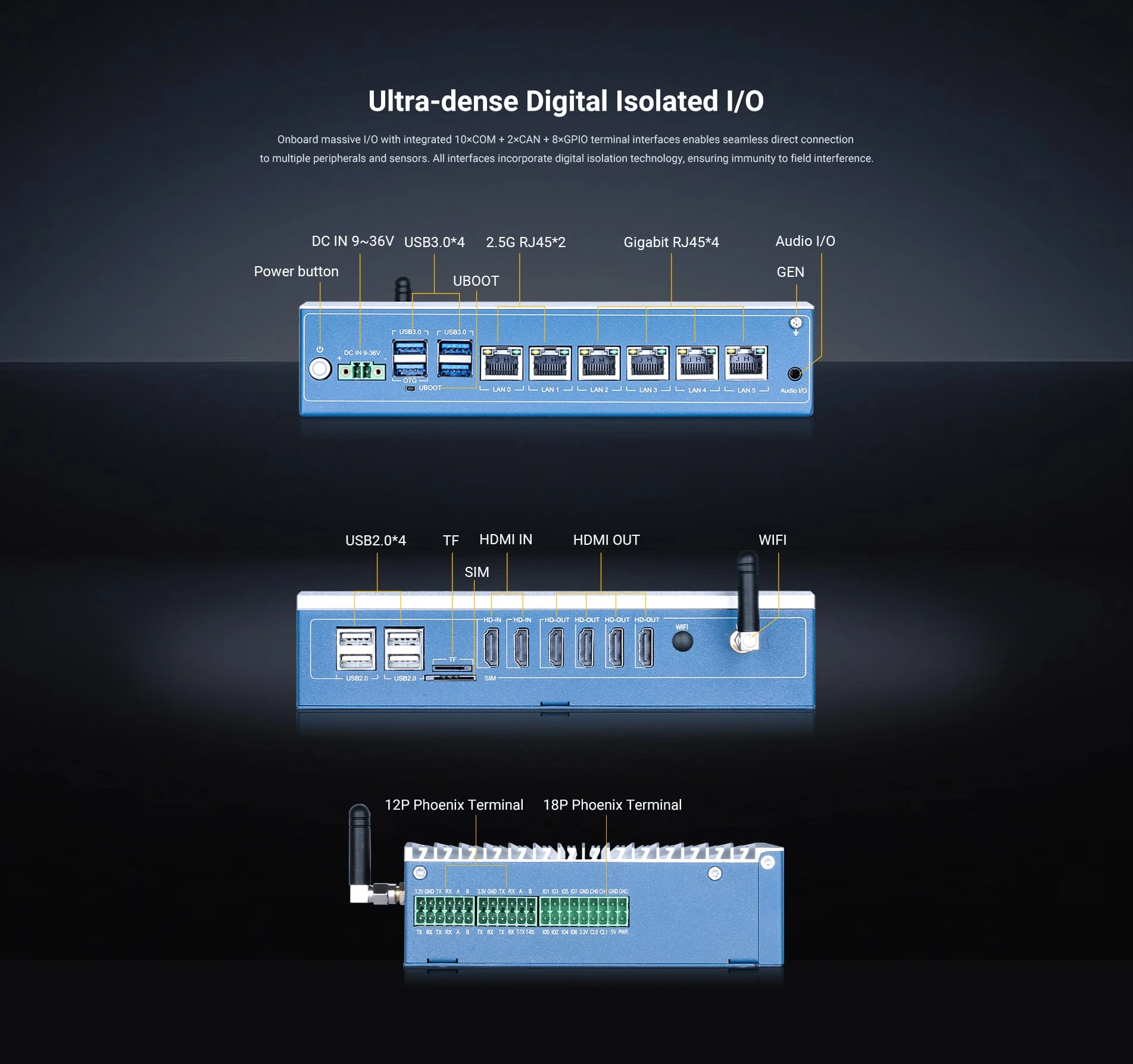

Ultra-dense Digital Isolated I/O integrats 10xCOM + 2xCAN + 8 x GPIO + 2 x 2.5G RJ45, Uboot Upgrade and enables seamless direct connection to multiple peripherals and sensors.

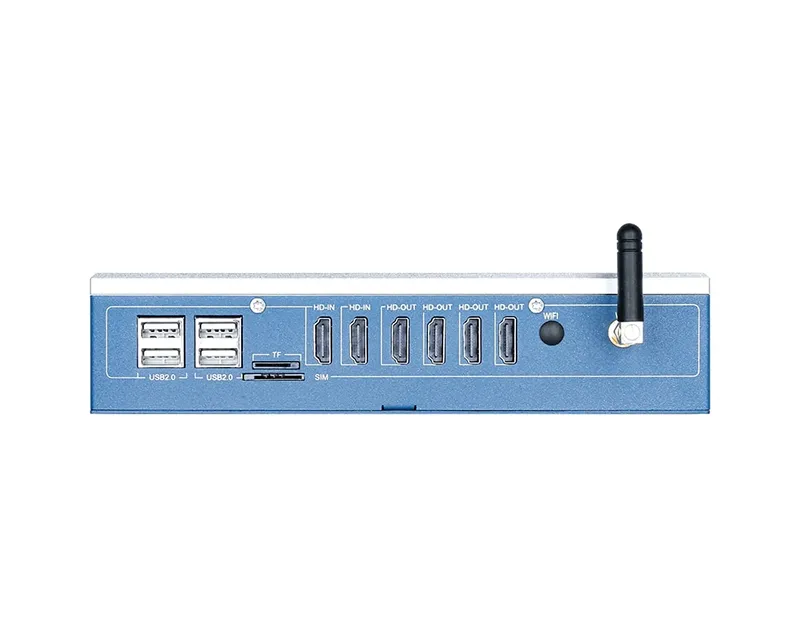

Standard configuration includes 2 x HDMI inputs + 4 x HDMI outputs, featuring dual-channel audio-video syschronous input along side. quad-screen independent display control. It serves as reliable visual information integration and interation hub

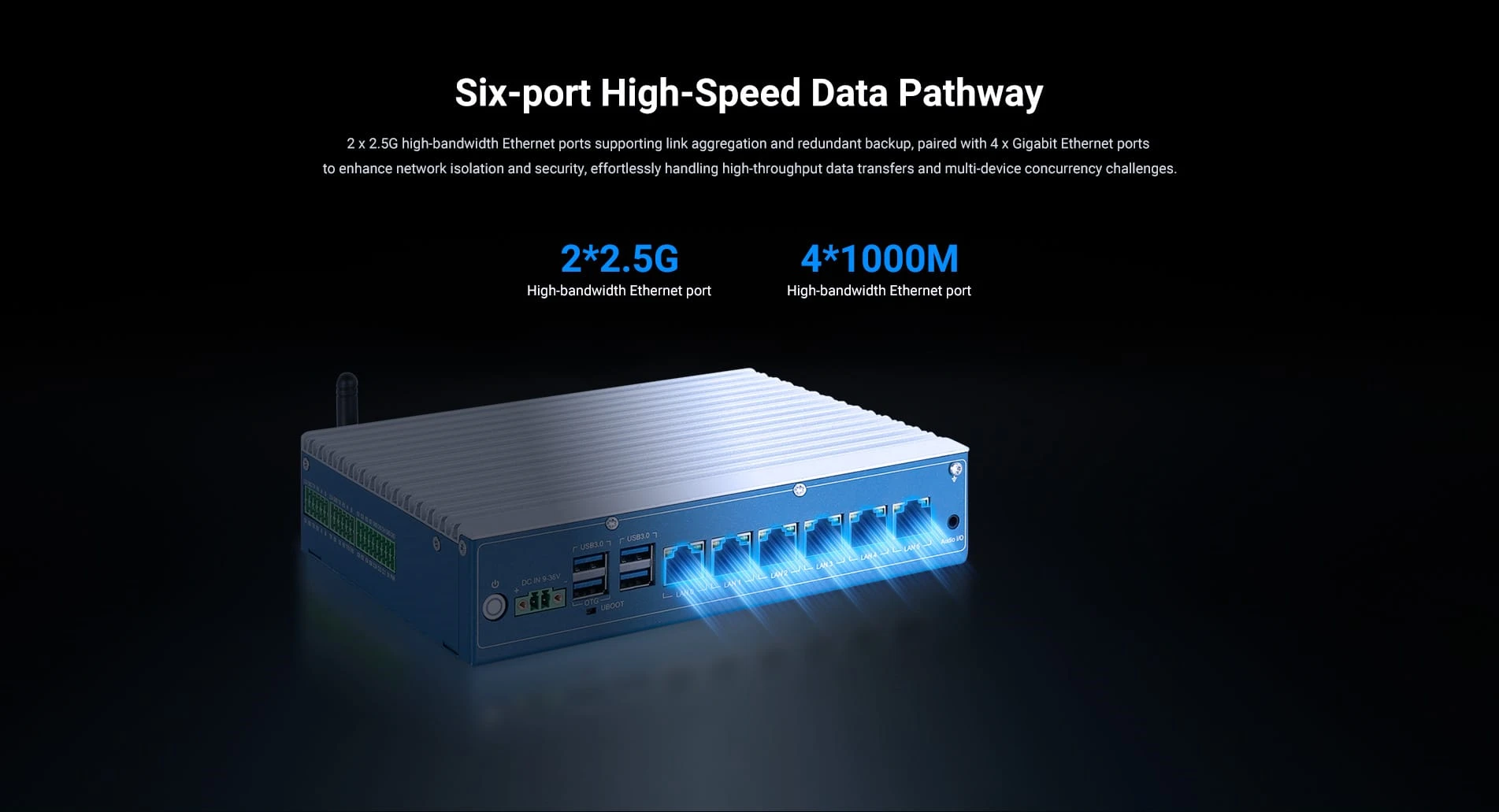

2 x 2.5G high-bandwidth Ethernet ports supporting link aggregation and redundant backup, paired with 4 x Gigabit Ethernet ports to enhance network isolation and security, effortlessly handling high-throughput data transfers and multi-device concurrency challenges.
The OS comes standard with Android 12 and supports customization for Linux, Debian, Ubuntu, and the domestically developed open-source HarmonyOS. It provides API interfaces for secondary development.
Features a passive cooling structure with dual-pressed copper tubes and aluminum fins, delivering fanless, dustproof, and silent operation. Designed for a wide temperature range of -20°C to 70°C, ensuring lasting coolness and reliability.
Industrial motherboard designed with protection-grade specifications, passing multiple reliability tests to withstand demanding operating conditions.
