Industrial Touch Panel PC and Touchscreen Display for Fiber Laser Cutting Machine

Industry Application Overview

Fiber laser cutting is a non-contact processing technology suitable for both metallic and non-metallic materials, offering advantages such as high precision, rapid speed, excellent results, and flexible adaptability. With the advancement of policies promoting new industrialization and new quality productivity, sectors including manufacturing, automotive, aerospace, and electronics will further drive industry innovation and expansion. Laser processing technologies featuring high throughput and precision will gain greater favor, stimulating growth in the demand for laser cutting machines.

Industry Application Requirements

The laser cutting process requires not only the high computing power and real-time network hardware of industrial touch panel to achieve precise positioning, motion control, and sensor communication for the cutting head, but also an easy-to-operate touch panel for process monitoring and status feedback. As the intelligent control terminal for fiber laser cutting machines, the stability of the industrial touch panel PC or touchscreen display itself is also critical. To achieve these objectives, the customer has specified the following requirements for the accompanying fiber Laser cutting machine display:

• High-performance CPU supporting complex motion algorithms;
• X86 architecture, capable of integrating existing CNC systems;
• Equipped with diverse communication and I/O modules to ensure data acquisition and processing;
• Interactive control panel, supporting flush-mounted installation;
• Adaptable to additional environmental challenges during cutting, including metal dust, oil contamination, electromagnetic interference, and vibration.

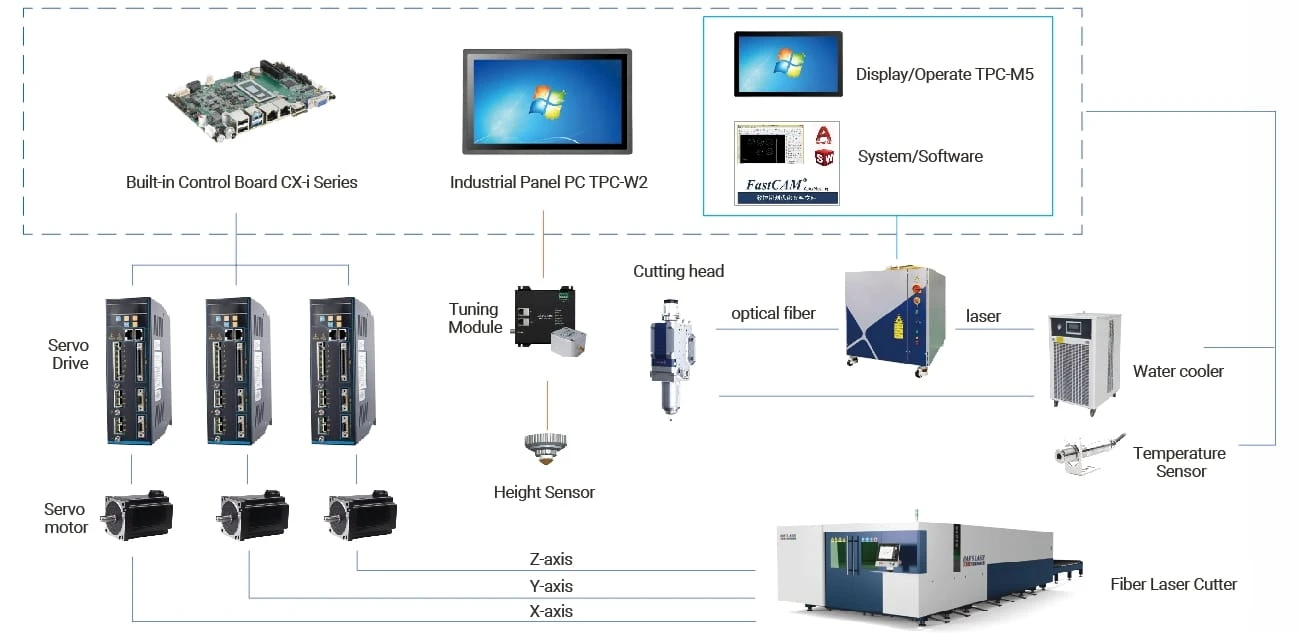

System Application Architecture

Preferred TouchThink Touch Panel and Touchscreen Monitor

x86 Windows Touch Panel and Panel Mount Touchscreen Monitor

• 7-23.8″ IP65 capacitive screen with 10-point touch.
• 3mm Super Thin Front Bezel, Best for Embedded Cabinet.
• High precision aluminum alloy fuselage.
• Intel® N97 as standard, Celeron™ J1900, J4125, J6412, Core™ I3/I5/I7 optional
• Industrial-grade protection, adapt to a variety of harsh environments.
• Superior network communication capability, faster and more stable data transmission
• Provide SDK package, support secondary development and upgrade customization

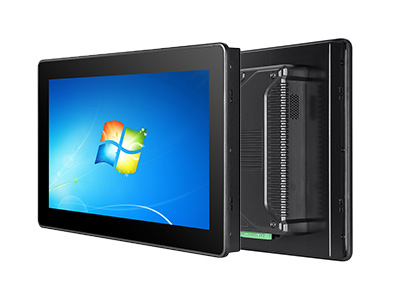

Embedded Industrial Touchscreen Display and X86 Touch Panel PC

• Intel Core i3/i5/i7 scalable performance
• 10.1″–21.5″ multi‑size industrial panel PC
• Fanless rugged aluminum alloy design
• 300–1500 cd/m² high brightness, wide viewing angle
• Capacitive / Resistive / Non‑touch optional
• Wide voltage 12–36V, wide temp -10℃~60℃
• Rich I/O + 4G/WiFi/BT for industrial IoT
• Multi installation: embedded, wall‑mount, VESA, cantilever
