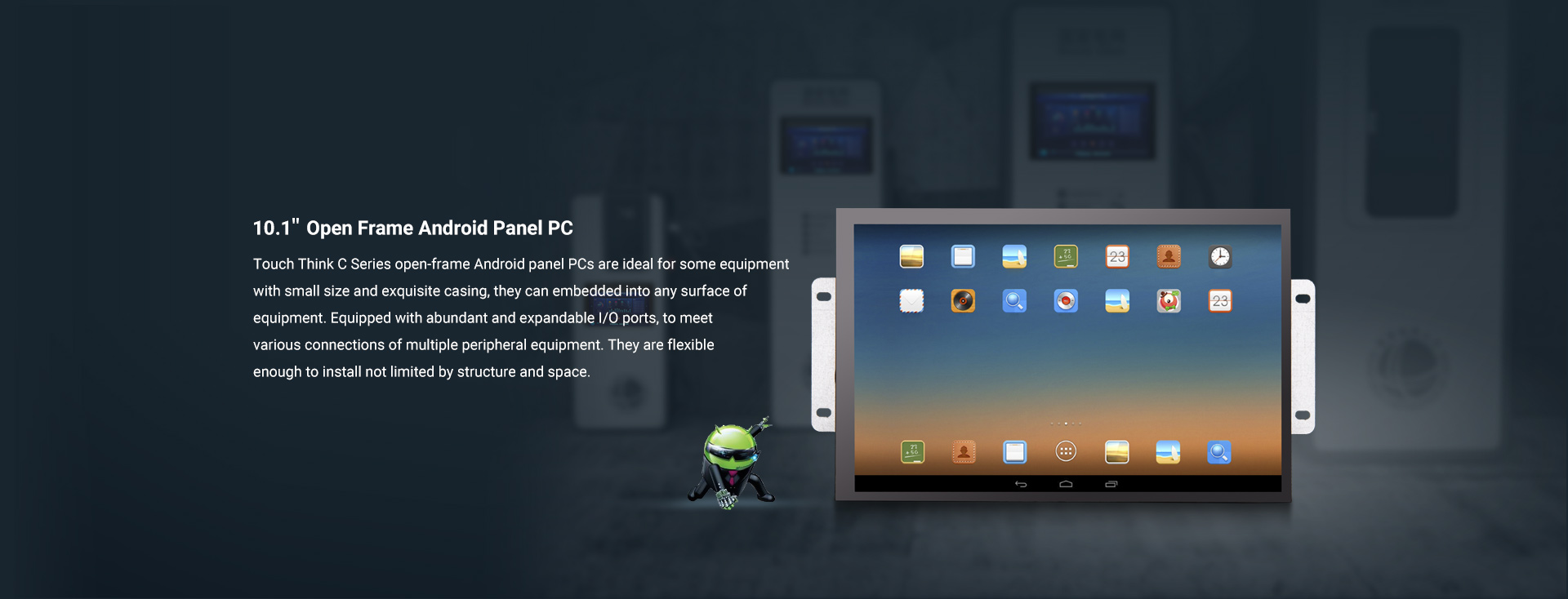

Touchthink 10.1 Inch Open C Series Android All-In-One Panel PC

TPC101-A16

Technical Specifications
TPC101-A16
TPC101-A16
TPC101-A16
TPC101-A16
TPC101-A16

❮
❯




  • High integration, realizing WiFi/Bluetooth/Ethernet triple connection
  • High definition, high definition screen
  • Self-developed ARM architecture motherboard, smooth human-computer interaction experience
  • Rich interfaces for flexible expansion
  • Provide API reference code, support SDK secondary development customization
  • Flexible and versatile open installation
tpc-w2 industrial monitor features image

Quick Inquiry
Touchthink 10.1 Inch Open C Series Android All-In-One Panel PC:
TPC101-A16








    Required fields are marked *, We’ll respond within 12 hours.

    Product View

    It adopts RK3288 Cortex-A17 quad-core processor, and is equipped with Android 7.1 system, with a main frequency of up to 1.8 GHz, and excellent performance. Adopting the M al i – T 764 G P U, it supports most of the mainstream decoding schemes under 1080 P @ 60 f p s and H.264/MVC/VP8 decoding schemes under 1080 P@ 30 f p s. Whether i’ game, score or decoding, i’ super, and i’ your best choice in human-computer interaction project.

    open-frame-c
    open-frame-c
    open-frame-c
    open-frame-c
    General Info
    ManufacturerTouth Think
    Product Manualpdf iconTPC101-A16.pdf
    Screen Size10.1 inch
    Hardware Configuration
    CPURK3288, Cortex-A17 quad-core, 1.8GHz
    Memory2GB DDR3 (Optional: 4GB/8GB)
    Storage16GB eMMC (Optional: 32GB/64GB)
    GPUMali-T764
    WiFi2.4GHz / 5GHz dual bands
    BluetoothBluetooth 5.0
    Operating SystemAndroid 7.1/10.0/12.0/Linux4.4/Ubuntu18.04/20.04/Debian1.0
    Product Model
    Capacitive TouchTPC101-A1611
    Physical Characteristics

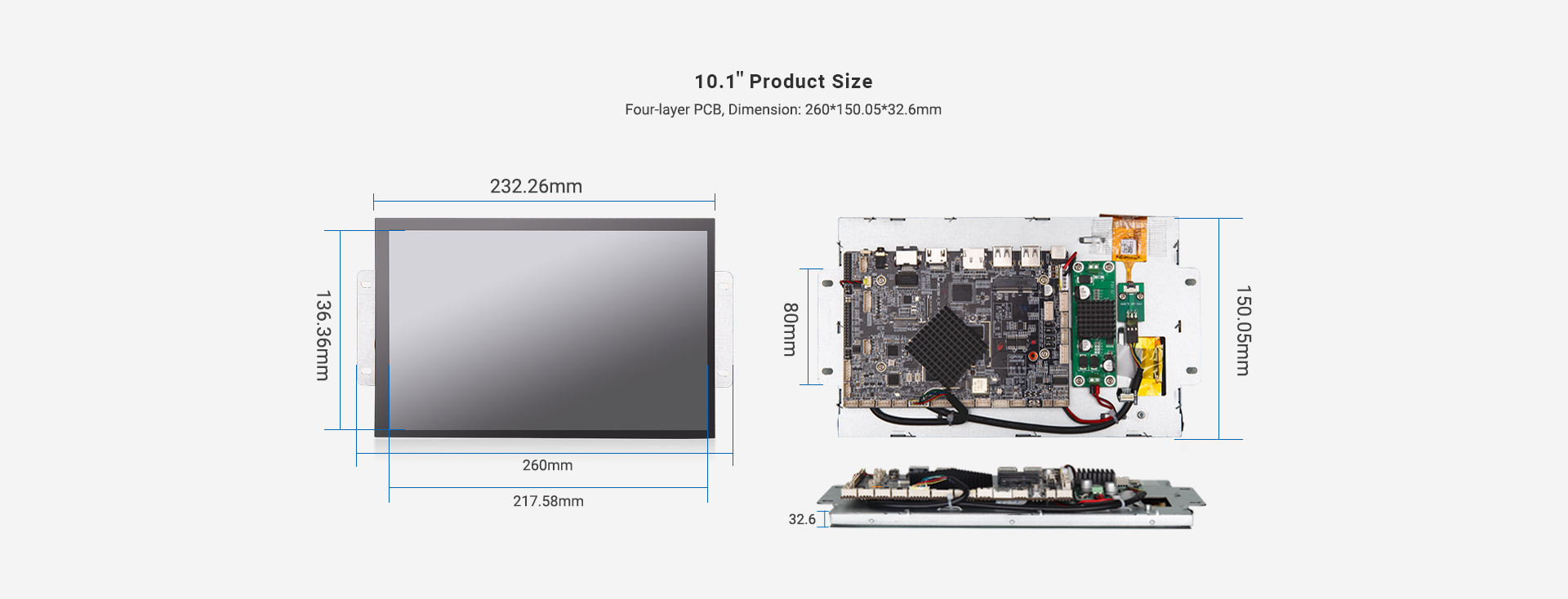

    Overall Dimensions W260*H150.05*D32.6mm
    tpc101 m2 dimensions
    Interface Parameters
    USB interface1*USB OTG, 1*USB HOST, 4*USB sockets
    Picture formatSupport BMP, JPEG, PNG, GIF, etc
    TF cardSupport TF card extension
    Audio and video outputSupport left and right channel output, built-in dual 4R/2W, 8R/2W power amplifier
    System upgradeSupport local TF and USB upgrade
    tpc101 m2 interface
    Screen Parameters
    LCD Size10.1″ TFT LCD
    Resolution 800*1280
    Aspect Ratio 16:10
    Viewing Angle 85/85/85/85 (L/R/U/D)
    Touch Parameters
    Touch screen type10 point touch projection capacitive touch screen
    Light transmittance≥88%
    Input modeHandwriting or capacitive pen
    Controller communicationUSB
    Reliability Parameters
    Working Temperature-10°C~60°C
    Storage Temperature-20°C~70°C
    Relative HumidityHumidity: 95% Non-Condensing
    Vibration ProtectionIEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
    Impact ProtectionIEC 60068-2-27, Half sine wave, Lasting for 11ms
    Product CertificationCCC/CE/FCC/EMC/CB/ROHS
    Waterproof GradeThe front panel reaches IP65 protection level
    Power Parameters
    Power inputDC 12V~36V
    Static power18W
    Packing List
    machine packing list
    Other Items
    Warranty3-Year
    ColorBlack
    After-sales ServiceCall Center and on-line Technical Support
    Place of OriginGuangdong, China
    ExpressUPS/DHL/Fedex/EMS,etc
    Delivery Time1-3 Working Days
    Packaging DetailsPacked in Standard EXPORT Cartons
    Delivery PortShenzhen/Hongkong
    CustomizationLogo,Packaging,Graphic
