TouchThink Android All-In-One PC For Workstation B Series
TPC101-AF111
- Fashionable and simple appearance, independent open mold
- High precision die-cast aluminum molding, efficient heat dissipation
- Self-developed X86 architecture motherboard, high cost performance
- Built-in 100W camera, 13.56M card reader and RGB tricolor light
- Support 12-36V wide voltage power supply
- Support desktop, wall mount, cantilever and other installation methods
Quick Inquiry
TouchThink Android All-In-One PC For Workstation B Series:
TPC101-AF111
TPC101-AF111
Required fields are marked *, We’ll respond within 12 hours.
Product View
The use of aluminum alloy pure flat panel, fanless fully enclosed integrated design, stylish appearance, technological simplicity, independent research and development of X86 industrial motherboard, cost-effective, optional, with 100W camera, 13.56M card reader and RGB tricolor lights, product applications are more abundant.
| General Info | |
|---|---|
| Manufacturer | Touch Think |
| Product Manual |  TPC101-AF111.pdf |
| Screen Size | 10.1 inch |
| Hardware Configuration | |
|---|---|
| CPU | RK3288, Cortex-A17 quad-core, 1.8GHz |
| Memory | 2GB DDR3 (Optional: 4GB/8GB) |
| Storage | 16GB eMMC (Optional: 32GB/64GB) |
| GPU | Mali-T764 |
| Card reader | 13.56MHz, IC card reader (ISO14443-A, ISO14443-B) |
| Camera | 100W pixels |
| LED indicator | Red/green/blue (combination) |
| WiFi | 2.4GHz / 5GHz dual bands |
| Bluetooth | Bluetooth 4.2 |
| Operating System | Android 7.1/10.0, Linux4.4/Ubuntu18.04/Debian10.0/linux4.4+QT |
| Product Model | |
|---|---|
| Non-Touch | TPC101-AF101 |
| Capacitive Touch | TPC101-AF111 |
| Resistive Touch | TPC101-AF121 |
| Physical Characteristics | |
|---|---|
| Overall Dimensions | W261.4 x H185.4 x D59.2mm |

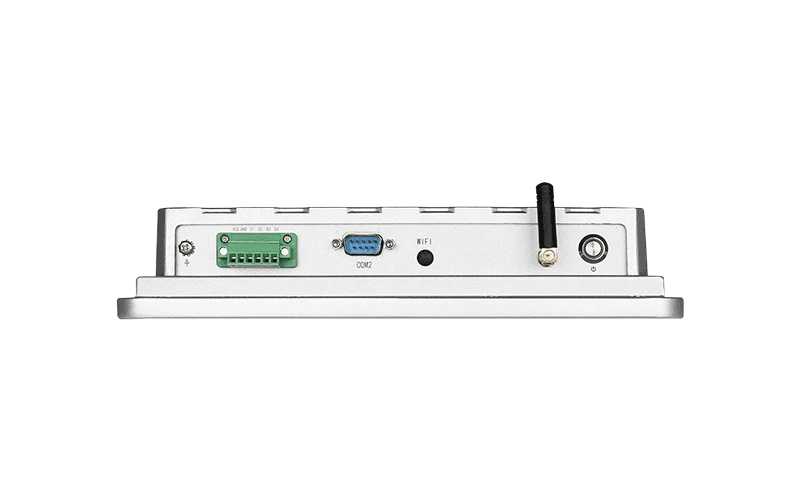

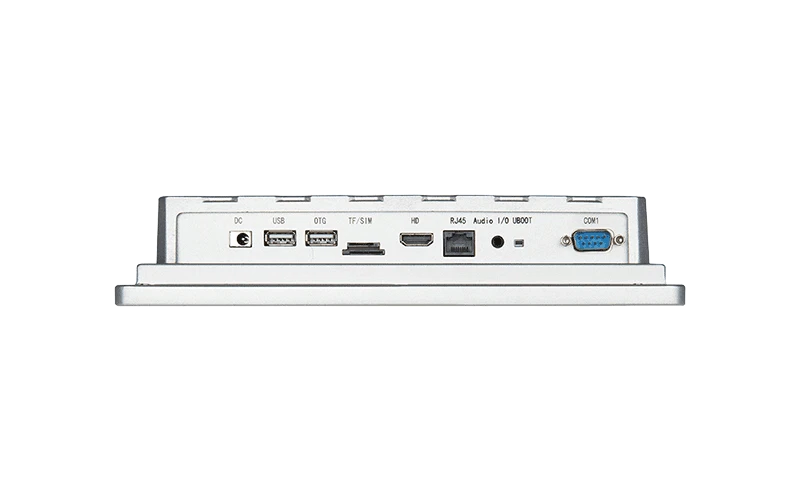

| Interface Parameters | |
|---|---|
| Power Interface1 | 1*Industrial terminal,support 12V power input |
| Power Interface2 | 1*DC2.1, Supporting 12V power input |
| HDMI | 1*HDMI, Support HDMI data output, maximum support to 4K |
| USB | 1*USB HOST，1*USB OTG |
| LAN | 1*RJ45, 10M/100M/1000M adaptive Ethernet |
| AUDIO | 1*Audio Out, Support audio output |
| SIM | Standard SIM card interface, supporting various standards (depending on 3G/4G module) |
| Reset key | Support (1*UBOOT) |
| POWER | Support (1*POWER) |
| COM | 2*RS232 |
| WiFi antenna | 1*WiFi antenna |
| Grounding post | Support (1*GND) |
| Screen Parameters | |
|---|---|
| LCD Size | 10.1″ TFT LCD |
| Resolution | 1280×800 |
| Aspect Ratio | 16:10 |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Colour | 16.7M |
| Brightness | 300 cd/㎡ |
| Contrast Ratio | 1000:1 |
| Touch Parameters | |||
|---|---|---|---|
| Touch Type | Capacitive touch screen | Resistance touch screen | Non-touch |
| Touch Point | 10-point Touch Projection | Single Point | / |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input Mode | Handwriting or Capacitance pen | Fingertip or stylus | / |
| Controller communication | USB | USB | / |
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V |
| Static power | 18W |
| Installation Method |
|---|
| Packing List |
|---|
| Other Items | |
|---|---|
| Warranty | 3-Year |
| Color | Silver |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Logo,Packaging,Graphic |
