Touchthink 10.1 Inch Vehicle Mounted Android All-In-One Panel PC

TPC101-A7

Technical Specifications
TPC101-A7
TPC101-A7
TPC101-A7
TPC101-A7
TPC101-A7

❮
❯




  • Anti-drop aviation connector design, shockproof and anti-drop,dustproof and waterproof
  • Support ACC time delay shutdown, avoiding the impact of sudden power failure on the device
  • Self-developed motherboard, quad-core powerful processor
  • Optional CAN interface for easy connection with vehicles
tpc-w2 industrial monitor features image

Quick Inquiry
TTouchthink 10.1 Inch Vehicle Mounted Android All-In-One Panel PC:
TPC101-A7








    Required fields are marked *, We’ll respond within 12 hours.

    Product View

    Adopt a higher standard LCD screen and a high-precision touch screen. The fuselage is made of aluminum alloy structure. The fully enclosed fanless design scheme is specially designed for complex medical environment, which
    can ensure long-term stable operation under complex medical conditions; All products have obtained medical test reports such as EMI, ESD, safety regulations, pulse group, emission radiation, etc

    Vehicle Mounted Android All-In-One Panel PC
    Vehicle Mounted Android All-In-One Panel PC
    Vehicle Mounted Android All-In-One Panel PC
    Vehicle Mounted Android All-In-One Panel PC
    Vehicle Mounted Android All-In-One Panel PC
    Vehicle Mounted Android All-In-One Panel PC
    Vehicle Mounted Android All-In-One Panel PC

    General Info
    ManufacturerTouth Think
    Product Manualpdf iconTPC101-A7.pdf
    Screen Size10.1 inch
    Hardware Configuration
    CPURK3288, Cortex-A17 quad-core, 1.8GHz
    Memory2GB DDR3 (Optional: 4GB/8GB)
    Storage16GB eMMC (Optional: 32GB/64GB)
    GPUMali-T764
    WiFiSupport WIFI
    BluetoothBluetooth 5.0

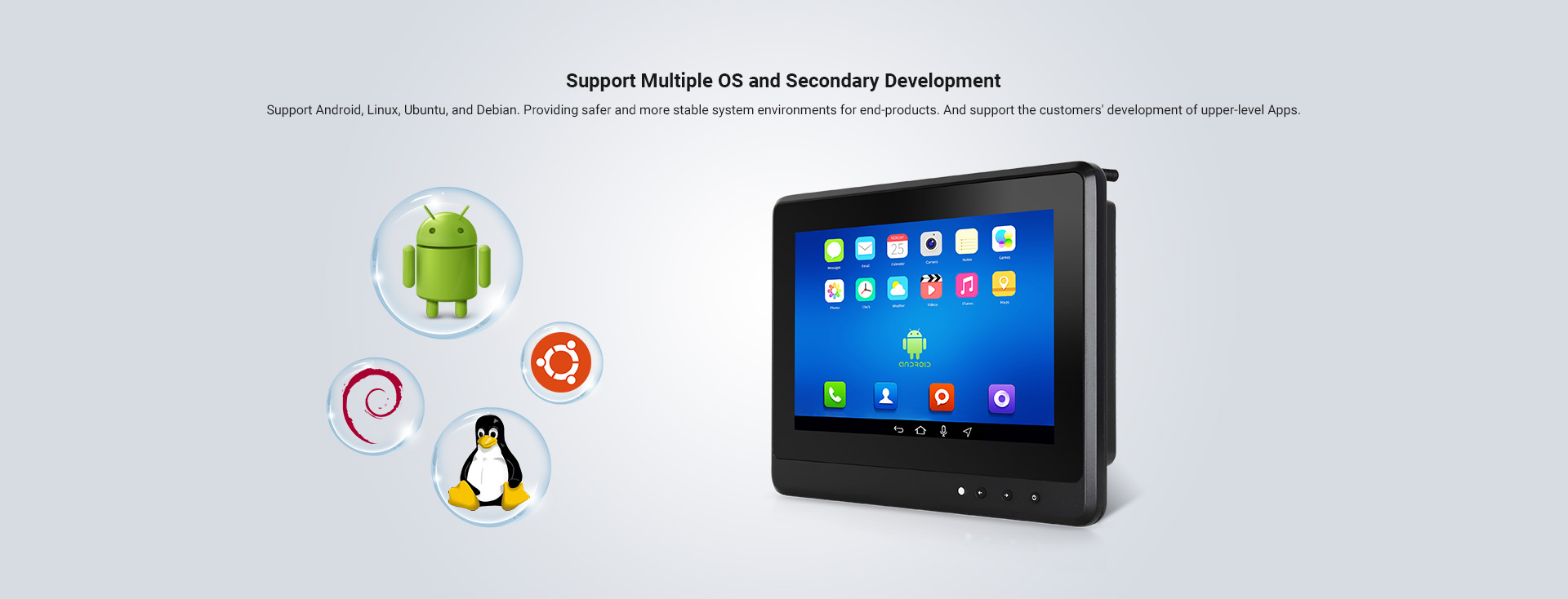

    Operating SystemAndroid 7.1/10.0/12.0/Linux4.4/Ubuntu18.04/20.04/Debian1.0
    Product Model
    Non-TouchTPC101-A700
    Capacitive TouchTPC101-A710
    Resistive TouchTPC101-A720
    Physical Characteristics
    Overall Dimensions W271.5x H209.3x D55mm
    tpc101 m2 dimensions
    Interface Parameters
    Power interface 1*waterproof airhead connector (GX12-3 pin), supports 12V~36V wide voltage power supply
    USB 1*waterproof airline head connector (GX12-4 pin)
    COM 2*waterproof airline head connector (GX12-4 pin)
    tpc101 m2 interface
    Screen Parameters
    LCD Size10.1″ TFT LCD
    Resolution 800*1280
    Aspect Ratio 16:10
    Viewing Angle 85/85/85/85 (L/R/U/D)
    Colour 16.7M
    Brightness 300 cd/m2
    Contrast Ratio 1000:1
    Touch Parameters
    Touch Type Capacitive touch screenResistance touch screenNon-touch
    Touch Point10-point Touch ProjectionSingle Point/
    Transmittance≥88%≥78%≥92%
    Input ModeHandwriting or
    Capacitance pen    		Fingertip or stylus/
    Controller communicationUSBUSB/
    Reliability Parameters
    Working Temperature-10°C~60°C
    Storage Temperature-20°C~70°C
    Relative HumidityHumidity: 95% Non-Condensing
    Vibration ProtectionIEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
    Impact ProtectionIEC 60068-2-27, Half sine wave, Lasting for 11ms
    Product CertificationCCC/CE/FCC/EMC/CB/ROHS
    Waterproof GradeThe front panel reaches IP65 protection level
    Power Parameters
    Power inputDC 12V~36V
    Static power18W

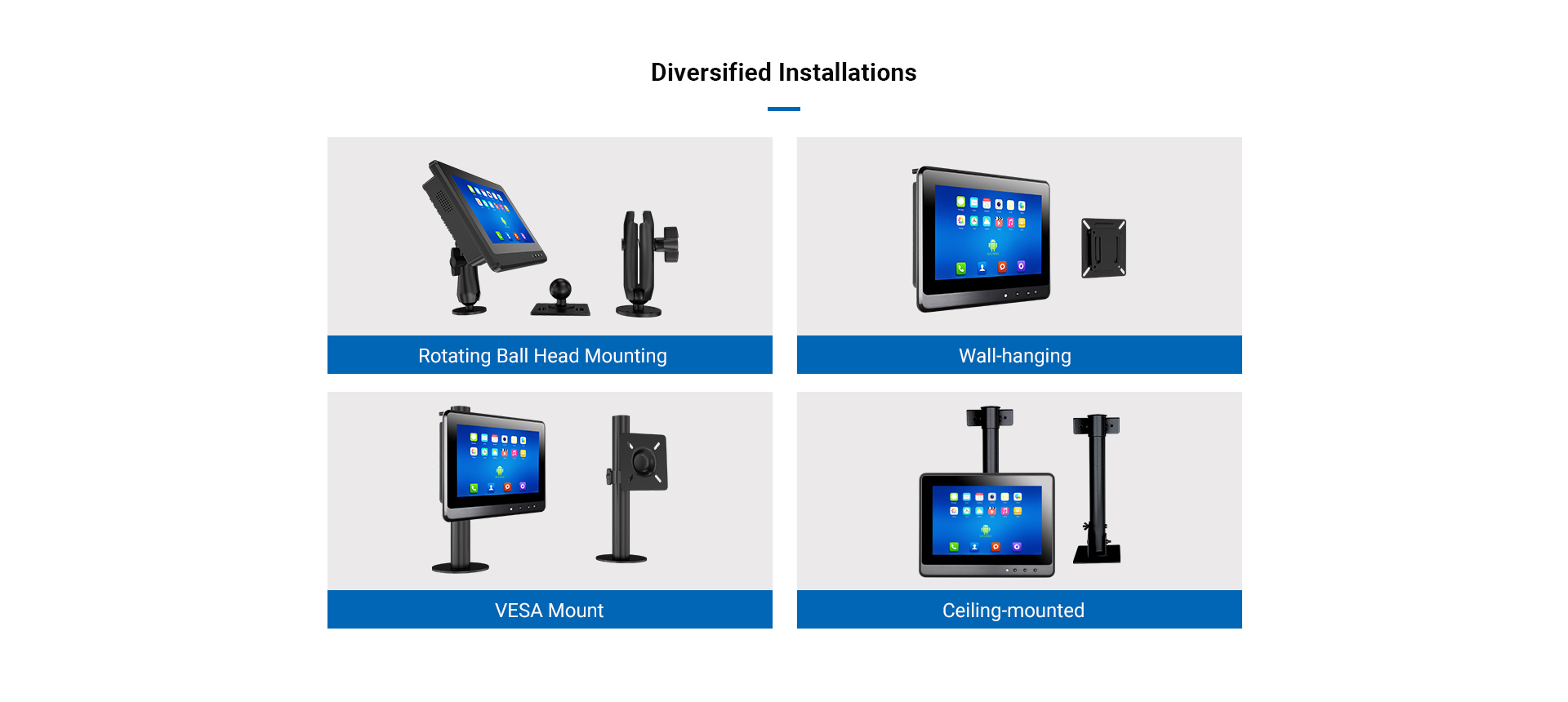

    Installation Method

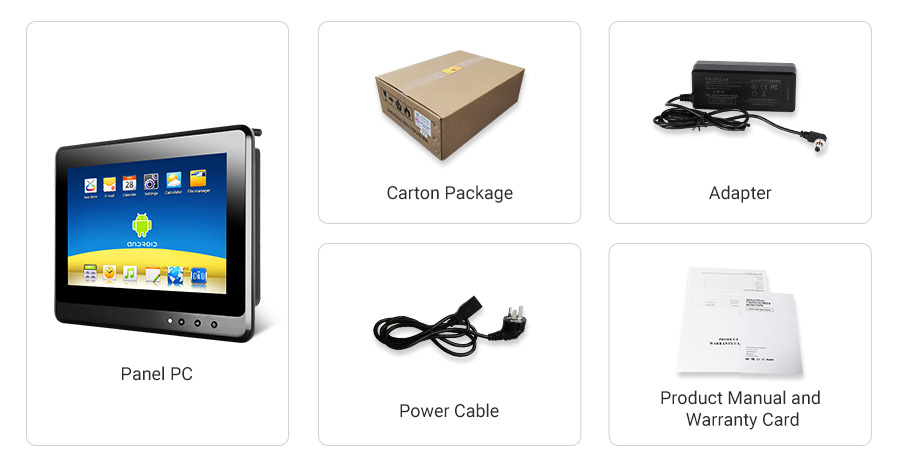

    Packing List
    machine packing list
    Other Items
    Warranty3-Year
    ColorBlack(Silver Optional)
    After-sales ServiceCall Center and on-line Technical Support
    Place of OriginGuangdong, China
    ExpressUPS/DHL/Fedex/EMS,etc
    Delivery Time1-3 Working Days
    Packaging DetailsPacked in Standard EXPORT Cartons
    Delivery PortShenzhen/Hongkong
    CustomizationLogo,Packaging,Graphic
