Touchthink 10.1 Inch Vehicle Mounted Industrial Monitor
TPC101-M7
- Appearance independent die, front panel narrow frame design
- Strong structure design, anti-vibration, dust-proof, waterproof
- Independently developed high-performance display driver board
- Industrial quality, support diversified customization
- Adapt to dust oil pollution, water mist, strong electromagnetic and high
- Frequency vibration and other complex heavy industry environment
Quick Inquiry
Touchthink 10.1 Inch Vehicle Mounted Industrial Monitor:
TPC101-M7
TPC101-M7
Required fields are marked *, We’ll respond within 12 hours.
Product View
The whole aluminum alloy material, strong structure layout, no fan fully closed design, low power consumption, good scalability, practicability and EMC compatibility performance, designed for a variety of complex environment. It can support embedded, wall-mounted, cantilever and other installation modes, and is widely used in industrial control, military, communication, power and network automation fields.
| General Info | |
|---|---|
| Manufacturer | Touth Think |
| Product Manual |  TPC101-M7.pdf |
| Screen Size | 10.1 inch |
| Hardware Configuration | |
|---|---|

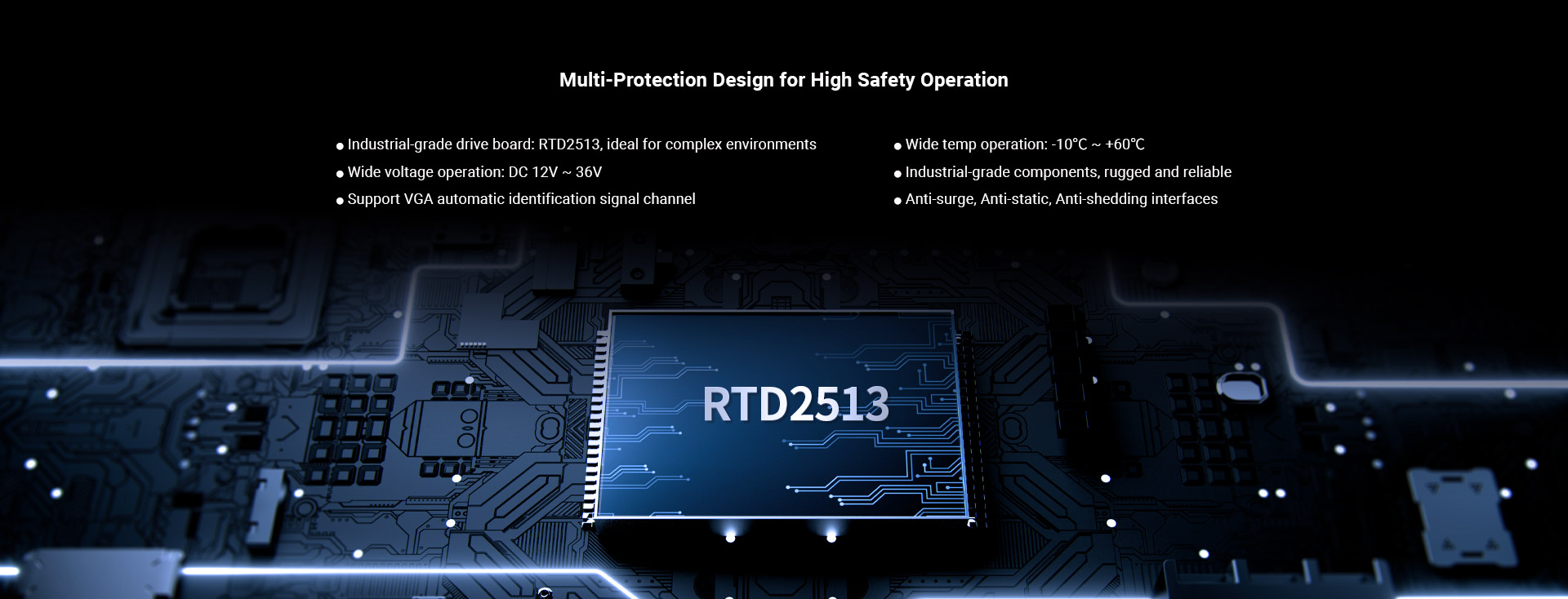

| CPU | RTD2513 |
| Key functions | Volume +, Volume -, Power on/off, Menu, Chanel |
| Menu language | Multi language (default Chinese) |
| Video input | PC-RGB:Format,Up to 1920*1080@60HZ PC-RGB:Color,16bit, 24bit, 32bit |
| Product Model | |
|---|---|
| Non-touch | TPC101-M700 |
| Capacitive Touch | TPC101-M710 |
| Resistive touch | TPC101-M720 |
| Physical Characteristics | |
|---|---|
| Overall Dimensions | W271.5x H209.3x D55mm |
| Interface Parameters | |
|---|---|
| DC | 1 * Waterproof aviation head (GX12-3 pin), Support 12V~36V wide voltage power supply |
| USB | 1 * Waterproof aviation head (GX12-4 pin) |
| VGA | 1 * Waterproof aviation head (GX20-15 pin) |
| Screen Parameters | |
|---|---|
| LCD Size | 10.1″ TFT LCD |
| Resolution | 800*1280 |
| Aspect Ratio | 16:10 |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Colour | 16.7M |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 1000:1 |
| Touch Parameters | |||
|---|---|---|---|
| Touch Type | Capacitive touch screen | Resistance touch screen | Non-touch |
| Touch Point | 10-point Touch Projection | Single Point | / |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input Mode | Handwriting or Capacitance pen | Fingertip or stylus | / |
| Controller communication | USB | USB | / |
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V~36V |
| Static power | 18W |
| Installation Method |
|---|
| Packing List |
|---|
| Other Items | |
|---|---|
| Warranty | 3-Year |
| Color | Black(Silver Optional) |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Logo,Packaging,Graphic |
