Touchthink 11.6 Inch Face Recognition D Series Android All in one PC

TPC116-A17

Technical Specifications
TPC116-A17
TPC116-A17
TPC116-A17
TPC116-A17
TPC116-A17

❮
❯

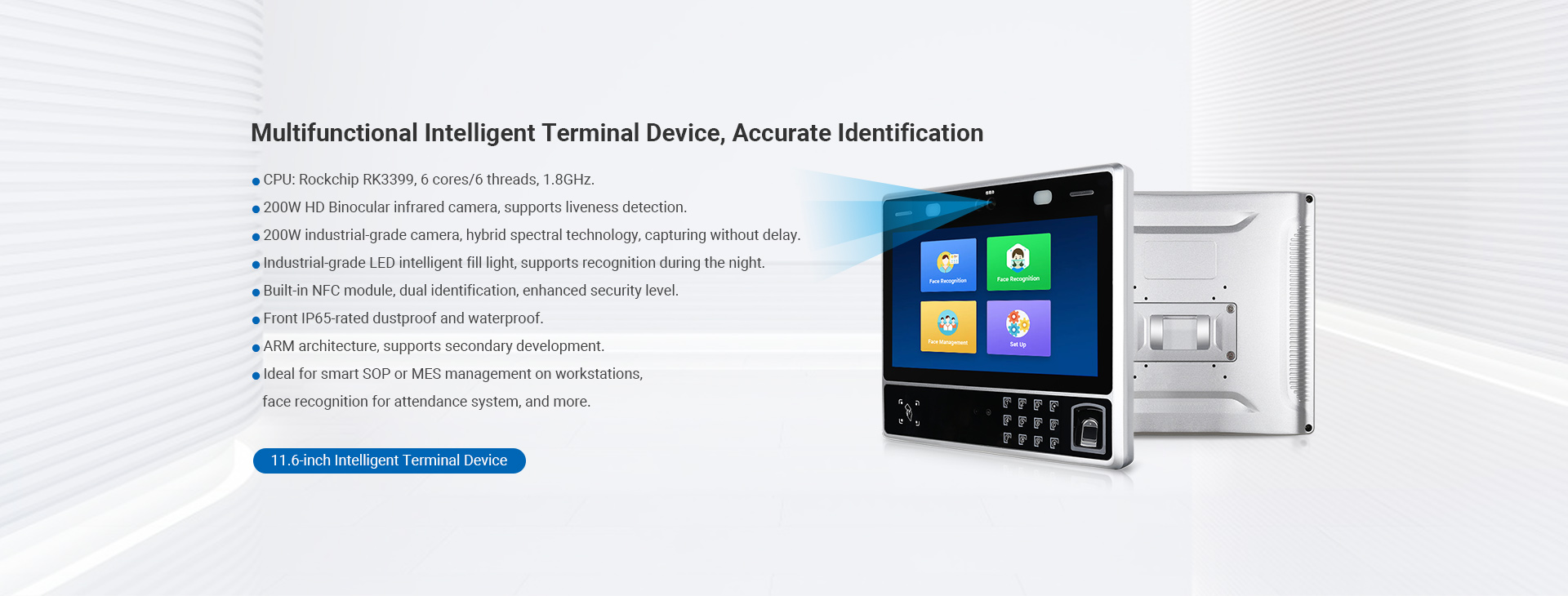

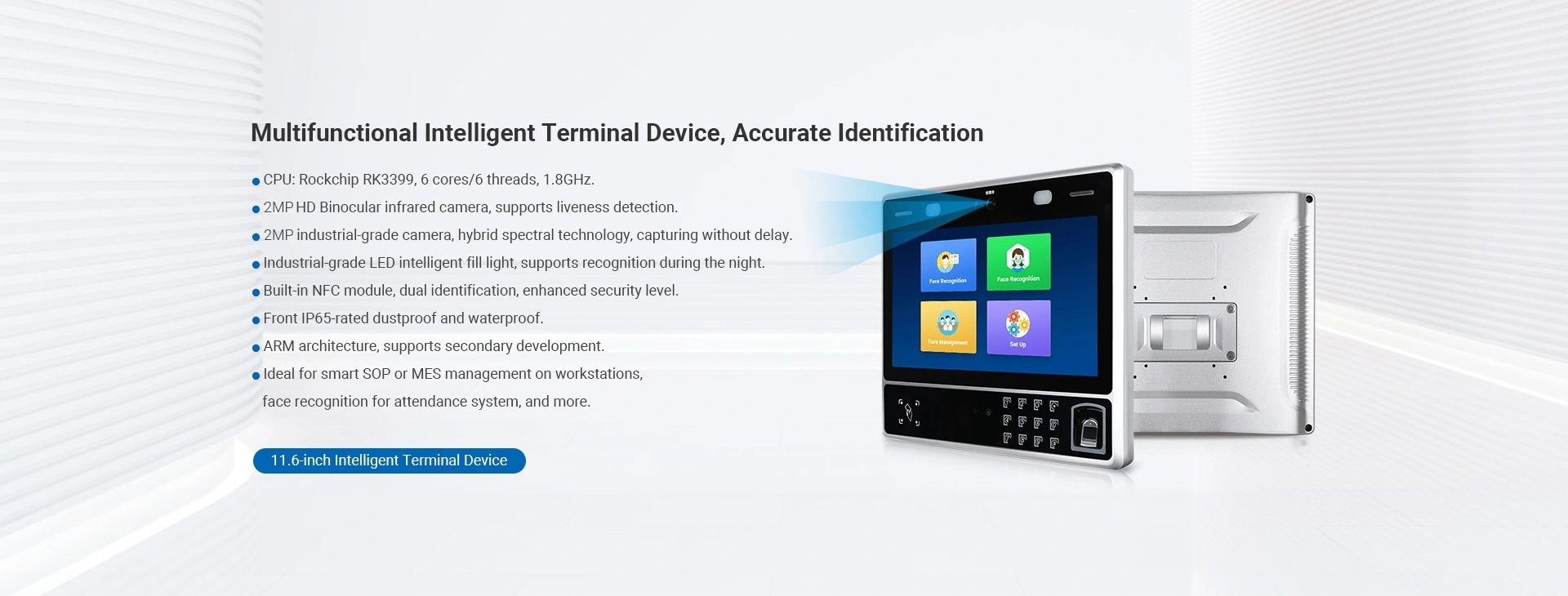

  • Appearance independent mold opening, industrial body, exquisite and compact
  • Binocular high-definition camera , wide dynamic living body detection technology
  • Built-in infrared sensor module , NFC card reader module , readable IC card
  • Industrial-grade LED intelligent filight , accurate identification of day and night
  • Multi-function module combination selection , compatible with multiple recognition methods
  • Provide SDK package , support secondary development and upgrade customization
Face-Recognition-A-Series

Quick Inquiry
Touchthink 11.6 Inch Face Recognition D Series Android All in one PC:
TPC116-A17








    Required fields are marked *, We’ll respond within 12 hours.

    Product View

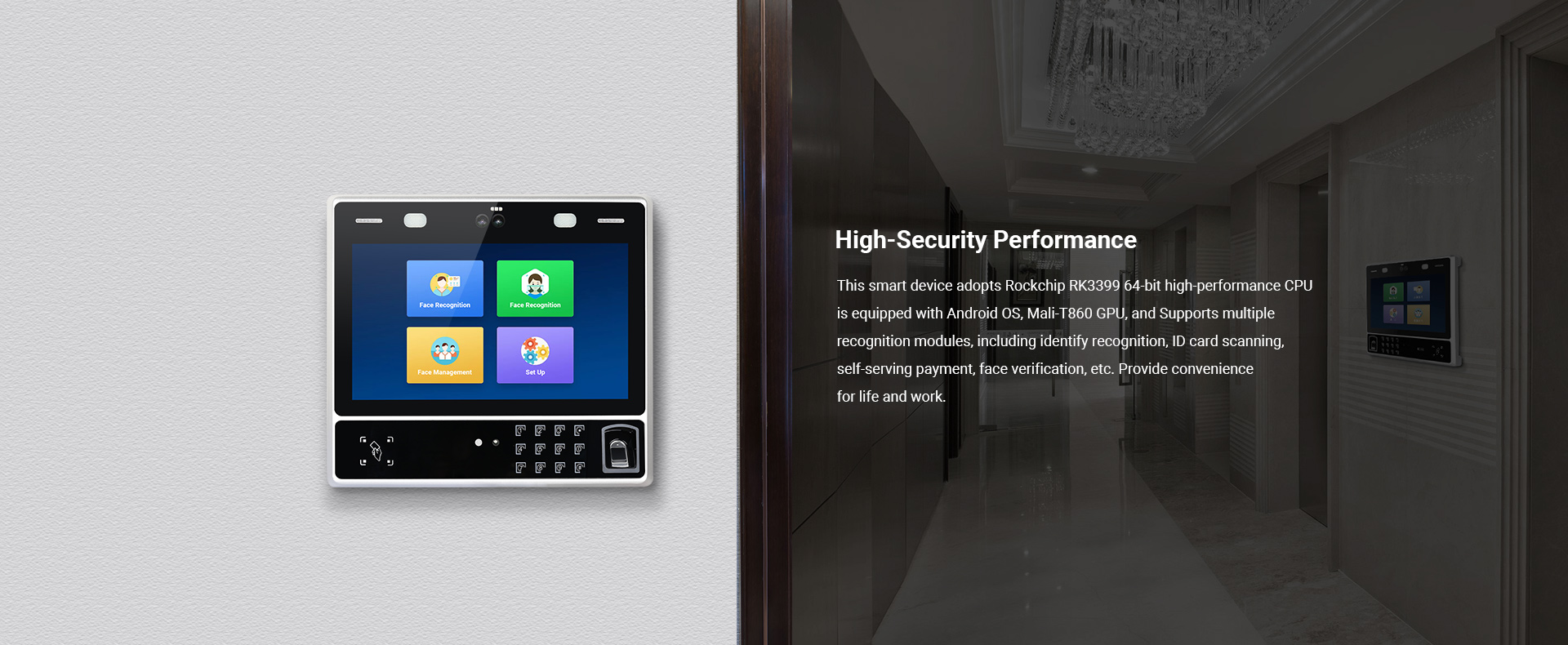

    The fuselage is made of high-precision aluminum alloy die-casting, low power consumption, small and delicate, industrial-grade protection, ergonomic design principle, accurate and fast recognition technology, which meets the application requirements of multi-scenes and multi-recognition functions, and is widely used in smart parks, smart retail, smart medical and other fields.

    tpc101 a2
    tpc101 a2

    General Info
    ManufacturerTouch Think
    Product Manualpdf iconTPC116-A17.pdf
    Screen Size11.6 inch
    Hardware Configuration
    CPURK3399 Cortex-A72 six-core CPU 2.0GHz
    Memory4GB DDR3 (Optional: 2GB)
    Storage32GB eMMC (Optional: 16GB)
    GPUMali-T764
    WiFi2.4GHz / 5GHz dual bands
    BluetoothBT4.1(Optional)
    Operating SystemAndroid 7.1/10.0
    Product Model
    Non-touchTPC116-A1701
    Capacitive TouchTPC116-A1711
    Physical Characteristics
    Overall Dimensions W306x H274.68 x D44.5mm
    tpc116 m2 dimensions
    Interface Parameters
    Power interface 1*DC 2.1,Support 12V voltage power supply
    USB-OTG 1*typeA, external USB flash disk and computer can be connected
    Wigan output 1*Wigan output [supporting 26-bit and 34-bit Wigan]
    RJ45 Ethernet 1*10M/100M Ethernet
    Relay terminal 1*Relay terminal,can communicate with various access controllers to control the opening/closing of gate or access control
    RS485 1*RS485 [half duplex communication, transmission distance greater than 100 meters]
    tpc116 m2 interface
    Screen Parameters
    LCD Size11.6″ TFT LCD
    Resolution 1920*1080
    Aspect Ratio 16:9
    Viewing Angle 85/85/85/85 (L/R/U/D)
    Colour 16.7M
    Brightness 300 cd/m2
    Contrast Ratio 800:1
    Touch Parameters
    Touch Type Capacitive touch screenNon-touch
    Touch Point10-point Touch Projection/
    Transmittance≥88%≥92%
    Input ModeHandwriting or
    Capacitance pen    		/
    Controller communicationUSB/
    Reliability Parameters
    Working Temperature-10°C~60°C
    Storage Temperature-20°C~70°C
    Relative HumidityHumidity: 95% Non-Condensing
    Vibration ProtectionIEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
    Impact ProtectionIEC 60068-2-27, Half sine wave, Lasting for 11ms
    Product CertificationCCC/CE/FCC/EMC/CB/ROHS
    Waterproof GradeThe front panel reaches IP65 protection level
    Power Parameters
    Power inputDC 12V
    Static power18W
    Installation Method
    installation method
    Packing List
    machine packing list
    Other Items
    Warranty3-Year(1yr free, 2-3yr paid)
    ColorBlack
    After-sales ServiceCall Center and on-line Technical Support
    Place of OriginGuangdong, China
    ExpressUPS/DHL/Fedex/EMS,etc
    Delivery Time1-7 Working Days
    Packaging DetailsPacked in Standard EXPORT Cartons
    Delivery PortShenzhen/Hongkong
    CustomizationAppearance,Screen,Interfaces,Environmental
