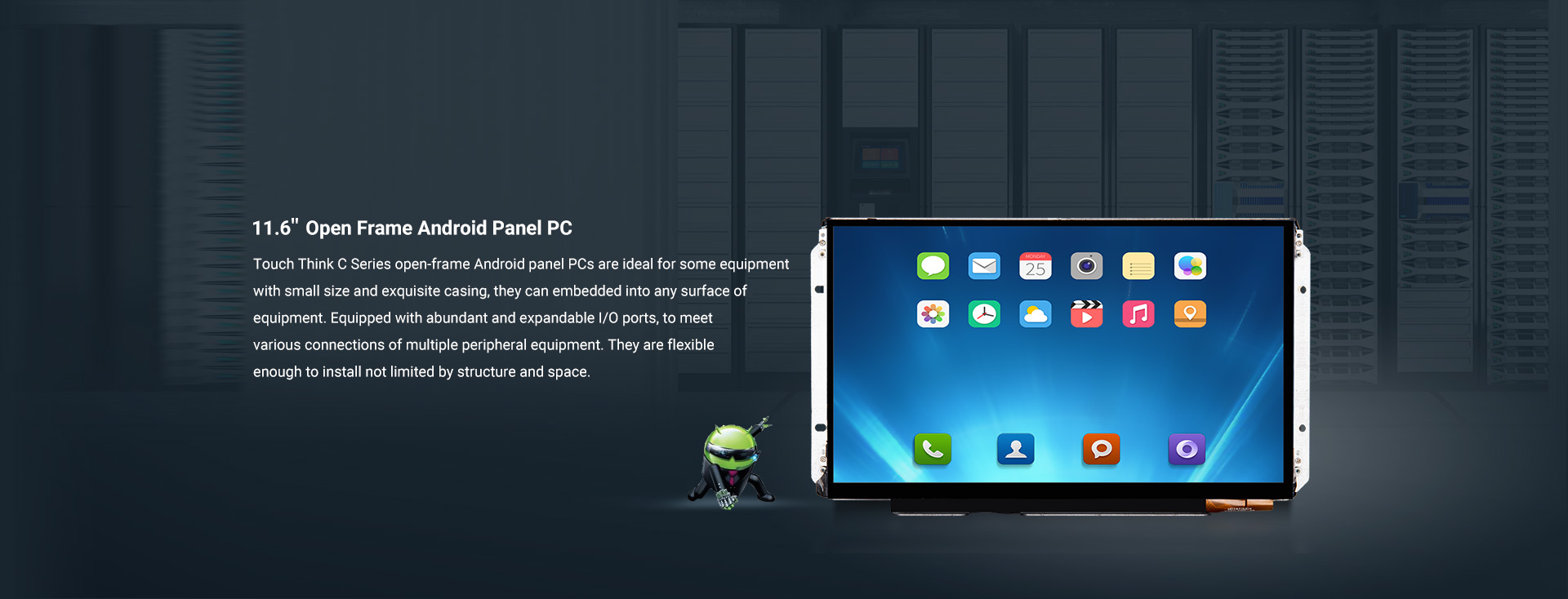

Touchthink 11.6 Inch Open C Series Android All-In-One Panel PC

TPC116-A16

Technical Specifications
TPC116-A16
TPC116-A16
TPC116-A16
TPC116-A16
TPC116-A16

❮
❯




  • High integration, realizing WiFi/Bluetooth/Ethernet triple connection
  • High definition, high definition screen
  • Self-developed ARM architecture motherboard, smooth human-computer interaction experience
  • Rich interfaces for flexible expansion
  • Provide API reference code, support SDK secondary development customization
  • Flexible and versatile open installation
tpc-w2 industrial monitor features image

Quick Inquiry
Touchthink 11.6 Inch Open C Series Android All-In-One Panel PC:
TPC116-A16








    Required fields are marked *, We’ll respond within 12 hours.

    Product View

    It adopts RK3288 Cortex-A17 quad-core processor, and is equipped with Android 7.1 system, with a main frequency of up to 1.8 GHz, and excellent performance. Adopting the M al i - T 764 G P U, it supports most of the mainstream decoding schemes under 1080 P @ 60 f p s and H.264/MVC/VP8 decoding schemes under 1080 P@ 30 f p s. Whether it's game, score or decoding, it's super, and it's your best choice in human-computer interaction project.

    open-frame-c
    open-frame-c
    open-frame-c
    open-frame-c
    General Info
    ManufacturerTouth Think
    Product Manualpdf iconTPC116-A16.pdf
    Screen Size11.6 inch
    Hardware Configuration
    CPU RK3288, Cortex-A17 quad-core, 1.8GHz
    Memory 2GB DDR3 (Optional: 4GB/8GB)
    Storage 16GB eMMC (Optional: 32GB/64GB)
    GPU Mali-T764
    WiFi 2.4GHz / 5GHz dual bands
    Bluetooth Bluetooth 5.0
    Operating System Android 7.1/10.0/12.0/Linux4.4/Ubuntu18.04/20.04/Debian1.0
    Product Model
    Capacitive TouchTPC116-A1611
    Physical Characteristics

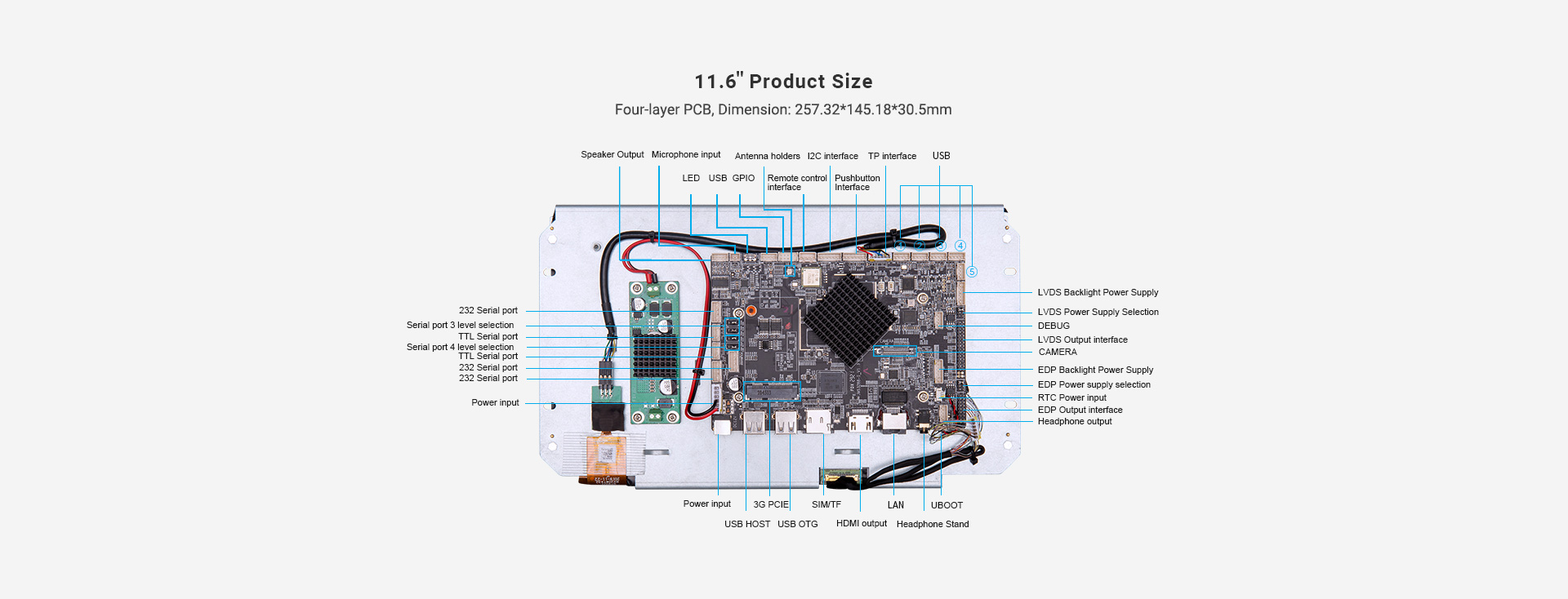

    Overall Dimensions W257.32*H145.18*D30.5mm
    tpc116 m2 dimensions
    Interface Parameters
    USB interface 1*USB OTG, 1*USB HOST, 4*USB sockets
    Picture format Support BMP, JPEG, PNG, GIF, etc
    TF card Support TF card extension
    Audio and video output Support left and right channel output, built-in dual 4R/2W, 8R/2W power amplifier
    System upgrade Support local TF and USB upgrade
    tpc116 m2 interface
    Screen Parameters
    LCD Size11.6″ TFT LCD
    Resolution 1366*768
    Aspect Ratio 16:9
    Viewing Angle 85/85/85/85 (L/R/U/D)
    Touch Parameters
    Touch screen type 10 point touch projection capacitive touch screen
    Light transmittance ≥88%
    Input mode Handwriting or capacitive pen
    Controller communication USB
    Reliability Parameters
    Working Temperature -10°C~60°C
    Storage Temperature -20°C~70°C
    Relative Humidity Humidity: 95% Non-Condensing
    Vibration Protection IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
    Impact Protection IEC 60068-2-27, Half sine wave, Lasting for 11ms
    Product Certification CCC/CE/FCC/EMC/CB/ROHS
    Waterproof Grade The front panel reaches IP65 protection level
    Power Parameters
    Power input DC 12V~36V
    Static power 18W

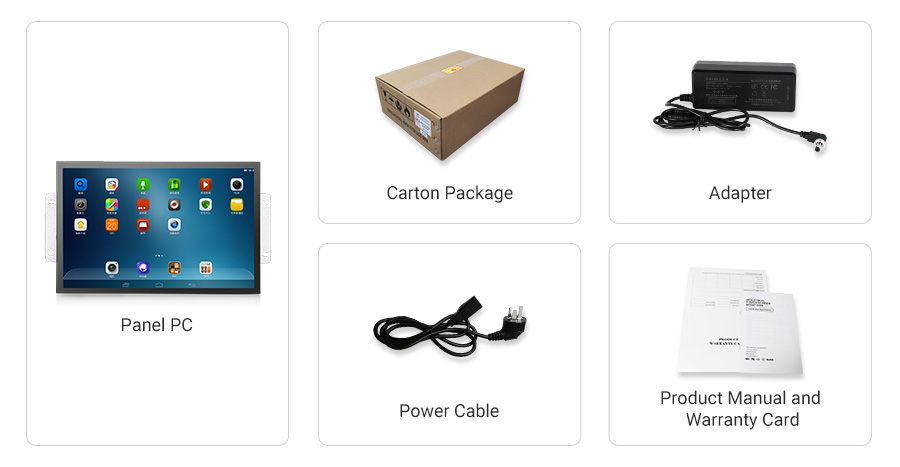

    Packing List
    machine packing list

    Other Items
    Warranty 3-Year
    Color Black
    After-sales Service Call Center and on-line Technical Support
    Place of Origin Guangdong, China
    Express UPS/DHL/Fedex/EMS,etc
    Delivery Time 1-3 Working Days
    Packaging Details Packed in Standard EXPORT Cartons
    Delivery Port Shenzhen/Hongkong
    Customization Logo,Packaging,Graphic
