Touchthink 11.6 Inch Open C Series Android All-In-One Panel PC
TPC116-A16
- High integration, realizing WiFi/Bluetooth/Ethernet triple connection
- High definition, high definition screen
- RK3568 quad-core 64-bit Cortex-A55 core architecture, Up to 2.0GHz,Smooth human-computer interaction experience
- Rich interfaces for flexible expansion
- Provide API reference code, support SDK secondary development customization
- Flexible and versatile open installation
Quick Inquiry
Touchthink 11.6 Inch Open C Series Android All-In-One Panel PC:
TPC116-A16
TPC116-A16
Required fields are marked *, We’ll respond within 12 hours.
Product View
Open Android all-in-one PC adopts CX3568-A high-performance, low-power android series products, with 22nm advanced process; with a 4-core 64-bit Cortex-A55 core architecture, the main frequency up to 2.0GHz; built-in
independent NPU, with 1TOPS AI computing power, support for lightweight AI application development, it is the best choice for you in the human-computer interaction, intelligent terminals, industrial control projects. It is your
best choice for human-computer interaction, intelligent terminal and industrial control projects.
| General Info | |
|---|---|
| Manufacturer | Touth Think |
| Product Manual |  TPC116-A16.pdf |
| Screen Size | 11.6 inch |
| Hardware Configuration | |
|---|---|
| CPU | RK3568, Quad-core 64-bit Cortex-A55 core architecture, Up to 2.0GHz |
| Memory | 2G LPDDR4 (Optional 4G/8G) |
| Storage | 32G eMMC (64G/128G Optional) |
| GPU | ARM Mali-G52 2EE |
| NPU | Built-in NPU with 1TOPS AI computing power |
| WiFi | 2.4GHz |
| Bluetooth | BT5.0(Optional) |
| Operating System | Android 12.0, Linux5.10, Ubuntu/Debian |
| Product Model | |
|---|---|
| Capacitive Touch | TPC116-A1611 |
| Physical Characteristics | |
|---|---|

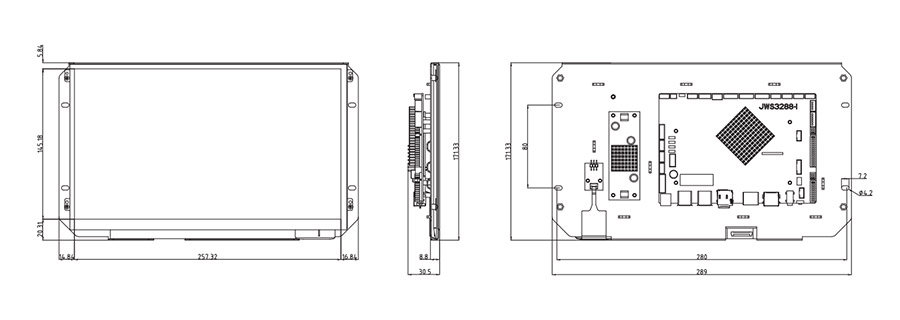

| Overall Dimensions | W257.32*H145.18*D30.5mm |

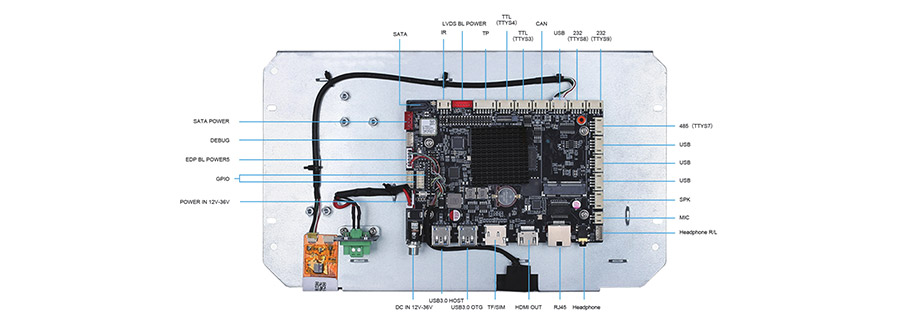

| Interface Parameters | |
|---|---|
| USB interface | 1*USB3.0 OTG, 1*USB3.0 HOST, 4*USB sockets |
| NPU | Built-in NPU with 1TOPS AI computing power |
| COM | Default 2 * 232, 1 * DEBUG port, optional 2 * TTL |
| Picture format | Support BMP, JPEG, PNG, GIF, etc |
| GPS | External GPS (optional) |
| Audio and video output | Support left and right channel output, built-in dual 4R/2W, 8R/2W power amplifier |
| System upgrade | Support local TF and USB upgrade |
| Screen Parameters | |
|---|---|
| LCD Size | 11.6″ TFT LCD |
| Resolution | 1366*768 |
| Aspect Ratio | 16:9 |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Touch Parameters | |||
|---|---|---|---|
| Touch screen type | 10 point touch projection capacitive touch screen | ||
| Light transmittance | ≥88% | ||
| Input mode | Handwriting or capacitive pen | ||
| Controller communication | USB | ||
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V~36V |
| Static power | 18W |
| Packing List |
|---|
| Other Items | |
|---|---|
| Warranty | 3-Year |
| Color | Black |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Logo,Packaging,Graphic |
