TouchThink Windows All-In-One PC For Workstation C Series
TPC116-A14
- Fashionable and simple appearance, independent open mold
- High precision die-cast aluminum molding, efficient heat dissipation
- Self-developed ARM architecture motherboard, high cost performance
- Built-in 100W HD camera 13.56M card reader and barcode scanning module
- Provide API reference code and support SDK secondary development
- Support desktop, wall mount, cantilever and other installation methods
Quick Inquiry
TouchThink Android All-In-One PC For Workstation B Series:
TPC116-A14
TPC116-A14
Required fields are marked *, We’ll respond within 12 hours.
Product View
Adopting aluminium alloy flat plate, fanless fully enclosed integrated design, fashionable appearance, simple craftsmanship, self-developed ARM industrial motherboard, cost-effective, optional, built-in 100W HD camera 13.56M card reader and barcode scanning module, so that the product application is more abundant.
| General Info | |
|---|---|
| Manufacturer | Touch Think |
| Product Manual |  TPC116-A14.pdf |
| Screen Size | 11.6 inch |
| Hardware Configuration | |
|---|---|
| CPU | RK3288, Cortex-A17 quad-core, 1.8GHz |
| Memory | 2GB DDR3 (Optional: 4GB/8GB) |
| Storage | 16GB eMMC (Optional: 32GB/64GB) |
| GPU | Mali-T764 |
| Card reader | 13.56MHz, IC card reader (ISO14443-A, ISO14443-B) |
| Camera | 100W pixels |
| LED indicator | Red/green/blue (combination) |
| WiFi | 2.4GHz / 5GHz dual bands |
| Bluetooth | Bluetooth 4.2 |
| Bar code scanning module | Support 1D/2D barcode scanning functions for easy information entry |
| Operating System | Android 7.1/10.0, Linux4.4/Ubuntu18.04/Debian10.0/linux4.4+QT |
| Product Model | |
|---|---|
| Non-Touch | TPC116-A1401 |
| Capacitive Touch | TPC116-A1411 |
| Resistive Touch | TPC116-A1421 |
| Physical Characteristics | |
|---|---|
| Overall Dimensions | W305.9x H211.2x D59mm |
| Interface Parameters | |
|---|---|
| Power Interface1 | 1*Industrial terminal,support 12V power input |
| Power Interface2 | 1*DC2.1, Supporting 12V power input |
| HDMI | 1*HDMI, Support HDMI data output, maximum support to 4K |
| USB | 1*USB HOST，1*USB OTG |
| TF | 1*TF card standard interface |
| LAN | 1*RJ45, 10M/100M/1000M adaptive Ethernet |
| AUDIO | 1*Audio Out, Support audio output |
| SIM | Standard SIM card interface, supporting various standards (depending on 3G/4G module) |
| Reset key | Support (1*UBOOT) |
| POWER | Support (1*POWER) |
| COM | 2*RS232 |
| WiFi antenna | 1*WiFi antenna |
| Grounding post | Support (1*GND) |
| Screen Parameters | |
|---|---|
| LCD Size | 11.6″ TFT LCD |
| Resolution | 1366*768 |
| Aspect Ratio | 16:9 |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Colour | 16.7M |
| Brightness | 250 cd/㎡ |
| Contrast Ratio | 1000:1 |
| Touch Parameters | |||
|---|---|---|---|
| Touch Type | Capacitive touch screen | Resistance touch screen | Non-touch |
| Touch Point | 10-point Touch Projection | Single Point | / |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input Mode | Handwriting or Capacitance pen | Fingertip or stylus | / |
| Controller communication | USB | USB | / |
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V |
| Static power | 18W |
| Installation Method |
|---|

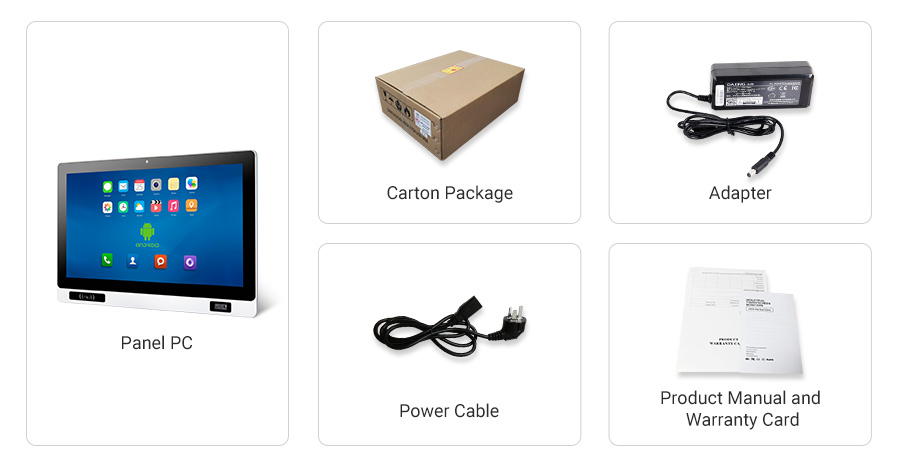

| Packing List |
|---|
| Other Items | |
|---|---|
| Warranty | 3-Year |
| Color | Silver |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Logo,Packaging,Graphic |
