TouchThink Andriod All-In-One PC For Workstation A Series
TPC116-AS01
- Independent molded appearance, pure aluminum structure
- Self-developed ARM architecture motherboard, high cost performance
- Support NFC, a variety of identification methods can be customized
- Compatible with various MES manufacturing management systems
- Real-time production status display and monitoring, support voice intercom
- External alarm light can be connected to deal with abnormal situations
Quick Inquiry
TouchThink Andriod All-In-One PC For Workstation A Series:
TPC116-AS01
TPC116-AS01
Required fields are marked *, We’ll respond within 12 hours.
Product View

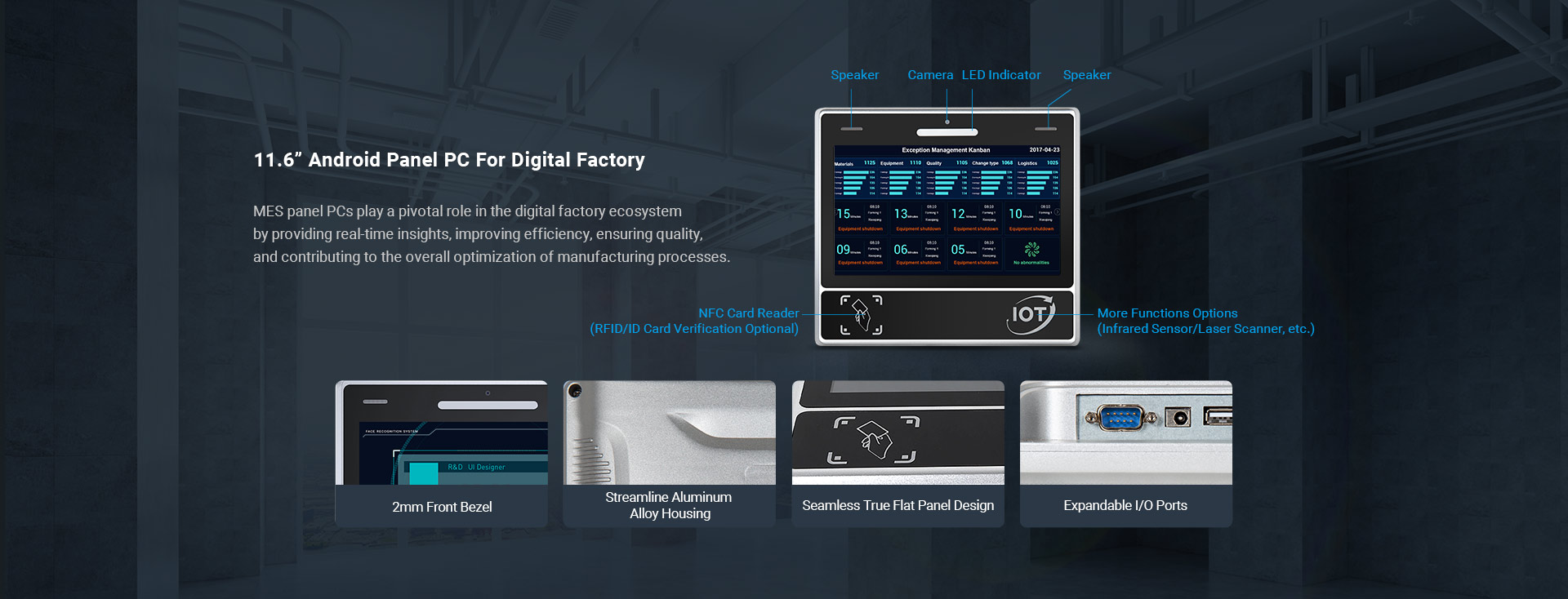

The whole machine is made of aluminum alloy in one piece, with self-developed motherboard, low power consumption, which can ensure stable work for a long time in harsh environment. It can be upgraded with IC card identification, QR code, scan gun, alarm light, HDMI input module, etc.to meet the functions of SOP, task browsing, equipment management, defect registration, abnormal alarm, etc. It is widely used in smart factories, smart canteens, smart campuses, smart meeting reservations, etc.
| General Info | |
|---|---|
| Manufacturer | Touth Think |
| Product Manual |  TPC116-AS01.pdf |
| Screen Size | 11.6 inch |
| Hardware Configuration | |
|---|---|
| CPU | RK3288, Cortex-A17 quad-core, 1.8GHz |
| Memory | 2GB DDR3 (Optional: 4GB/8GB) |
| Storage | 16GB eMMC (Optional: 32GB/64GB) |
| GPU | Mali-T764 |
| WiFi | 2.4GHz / 5GHz dual bands |
| Bluetooth | Bluetooth 4.2 |
| Camera | 100W pixels |
| LED indicator | Red/green/blue (combination) |
| Operating System | Android 7.1/10.0, Linux4.4/Ubuntu18.04/Debian10.0/linux4.4+QT |
| Product Model | |
|---|---|
| Non-Touch | TPC116-AS01 |
| Capacitive Touch | TPC116-AS11 |
| Resistive Touch | TPC116-AS12 |
| Physical Characteristics | |
|---|---|
| Overall Dimensions | W306x H274.68x D44.5mm |
| Interface Parameters | |
|---|---|
| Power interface1 | 1*Industrial terminal,support 12V power input |
| Power interface2 | 1*DC2.1, Support 12V power input |
| USB | 1*USB HOST，1*USB OTG |
| TF | 1*TF card standard interface |
| SIM | 1*SIM, Supporting various formats (Depending on 3G/4G module) |
| HDMI | 1*HDMI, Supporting HDMI data output, up to 4K |
| Network interface | 1*LAN, 10M/100M/1000M adaptive Ethernet |
| Audio interface | 1*Audio I/O, Support audio input and output |
| Reset key | Support (1*UBOOT) |
| COM | 1*RS232 |
| WiFi antenna | 1*WiFi antenna |
| Power on/off | 1*POWER |
| Screen Parameters | |
|---|---|
| LCD Size | 11.6″ TFT LCD |
| Resolution | 1920*1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Colour | 16.7M |
| Brightness | 300 cd/㎡ |
| Contrast Ratio | 1000:1 |
| Touch Parameters | |||
|---|---|---|---|
| Touch Type | Capacitive touch screen | Resistance touch screen | Non-touch |
| Touch Point | 10-point Touch Projection | Single Point | / |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input Mode | Handwriting or Capacitance pen | Fingertip or stylus | / |
| Controller communication | USB | USB | / |
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V |
| Static power | 18W |

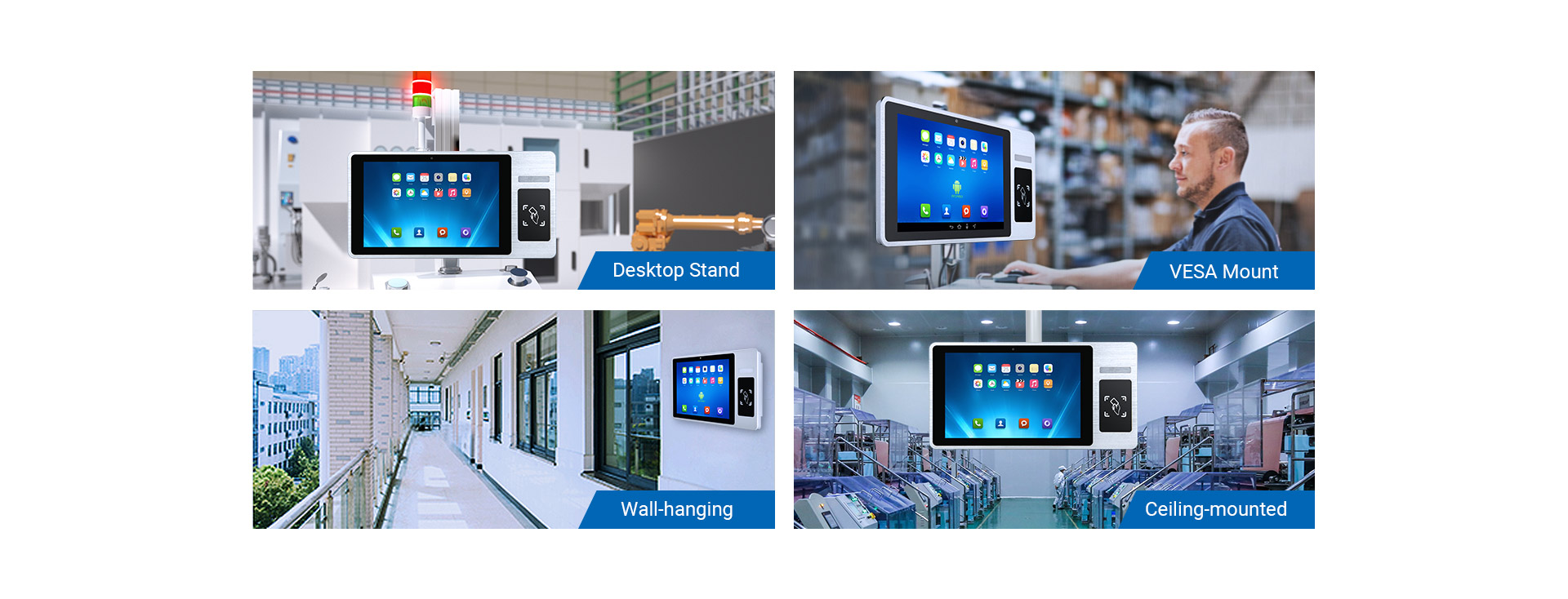

| Installation Method |
|---|

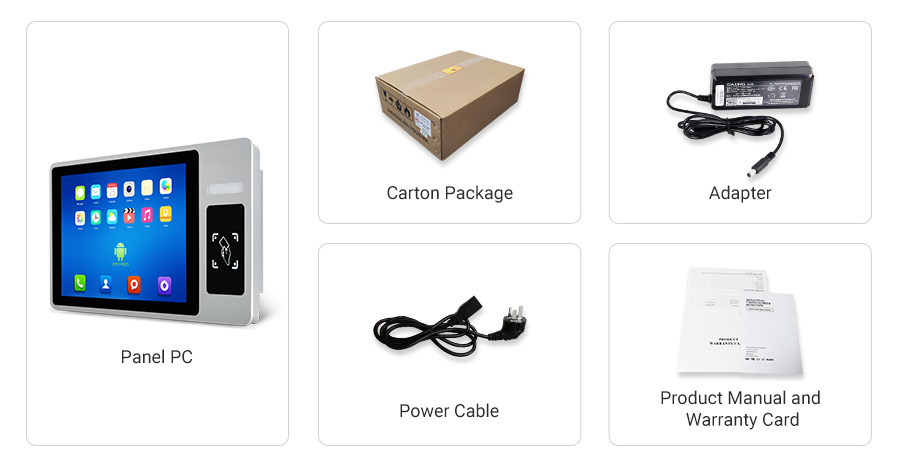

| Packing List |
|---|
| Other Items | |
|---|---|
| Warranty | 3-Year |
| Color | Silver |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Logo,Packaging,Graphic |
