Touch Think 2nd Gen Series A Industrial Monitor

TPC104-M2

TPC104-M2.pdf

❮

❯

3mm Super Thin Front Bezel, Best for Embedded Cabinet.
Pure flat panel IP65 dust-proof and waterproof.

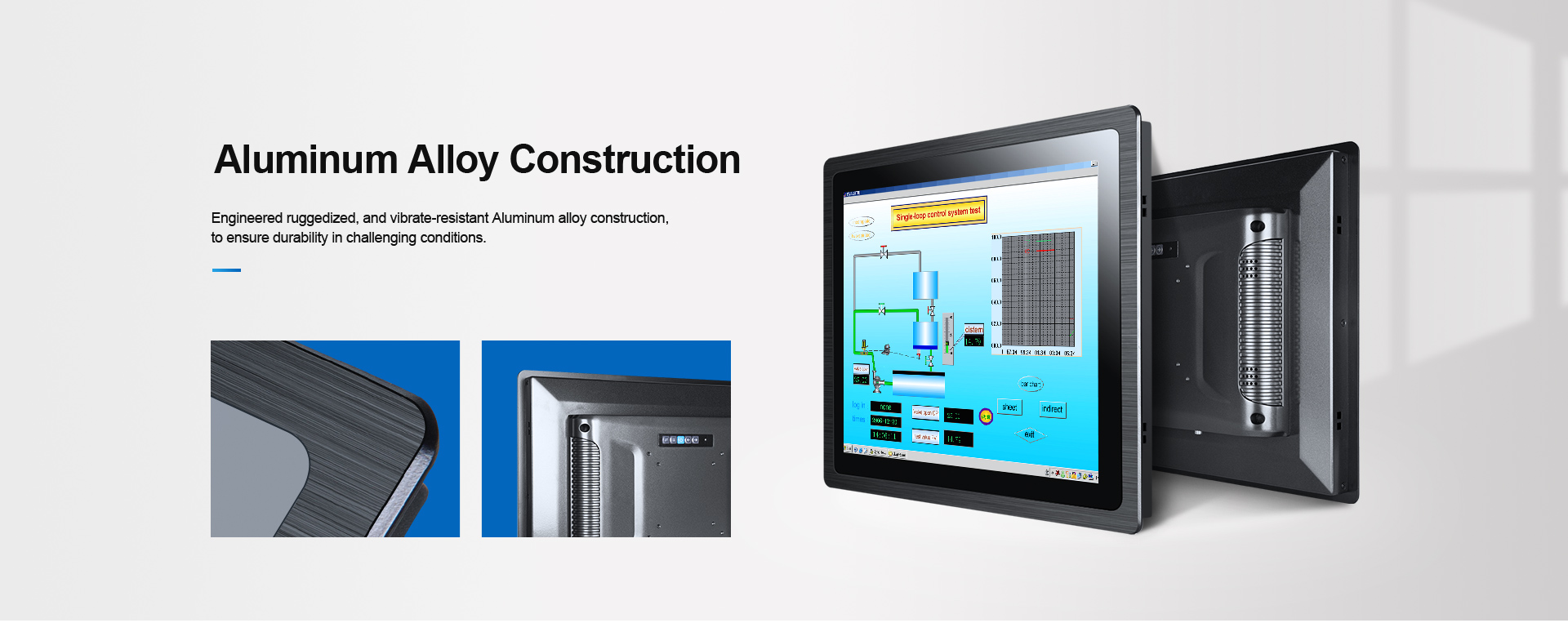

High precision aluminum alloy material.
Self-developed display drive board with multiple touch modes
Industrial protection, Applicable to various harsh environments
Support VGA, HDMI, DVI, Automatic identification signal channel

tpc-w2 industrial monitor features image

Quick Inquiry

Touch Think 2nd Gen Industrial Monitor:
TPC104-M2

Required fields are marked *, We’ll respond within 12 hours.

Product View

The 2nd GEN A Series industrial monitors are meticulously crafted with a 3mm ultra-thin front bezel, excellent for embedding into any surface of industrial or commercial cabinets, or machinery, thus presenting a truly flat, seamless appearance. It features front IP65 panels, and aluminum alloy housing, ensuring reliability in challenging conditions. Ideal for industrial equipment, and various indoor or outdoor kiosks.

General Info
Manufacturer	Touth Think
Product Manual	TPC104-M2.pdf
Screen Size	10.4 inch

Product Model
Non-Touch	TPC104-M200
Capacitive Touch	TPC104-M210
Resistive Touch	TPC104-M220

Physical Characteristics
Overall Dimensions	W288x H231x D56.5mm
Size of Opening	W273 x H216mm

Interface Parameters
Grounding column	Support (1*GND)
Power interface	1*DC2.1, Support 12V-36V wide voltage power supply
HDMI	1*HDMI, Support HDMI data input, With a maximum of 1080P
Touch interface	1*TOUCH(RJ45)
VGA	1*VGA, Analog signal transmission
DVI	1*DVI, Digital signal transmission
Audio interface	1*Audio I/O, Support audio input and output

Screen Parameters
LCD Size	10.4″ TFT LCD
Resolution	1024*768
Aspect Ratio	4:3
Viewing Angle	80/80/80/80 (L/R/U/D)
Colour	16.7M
Brightness	400 cd/m2
Contrast Ratio	1000:1

Touch Parameters
Touch Type	Capacitive touch screen	Resistance touch screen	Non-touch
Touch Point	10-point Touch Projection	Single Point	/
Transmittance	≥88%	≥78%	≥92%
Input Mode	Handwriting or Capacitance pen	Fingertip or stylus	/
Controller communication	USB	USB	/

Hardware Configuration
CPU	RTD2513
Key Function	AUTO/MENU/POWER/LEFT/RIGHT
System Language	Multilingual (default: English)
Video Input	PC-RGB:Format Up to 1920*1080@60HZ Color 16bit/24bit/32bit

Reliability Parameters
Working Temperature	-10°C~60°C
Storage Temperature	-20°C~70°C
Relative Humidity	Humidity: 95% Non-Condensing
Vibration Protection	IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
Impact Protection	IEC 60068-2-27, Half sine wave, Lasting for 11ms
Product Certification	CCC/CE/FCC/EMC/CB/ROHS
Waterproof Grade	The front panel reaches IP65 protection level

Power Parameters
Power input	DC 12V~36V
Static power	18W

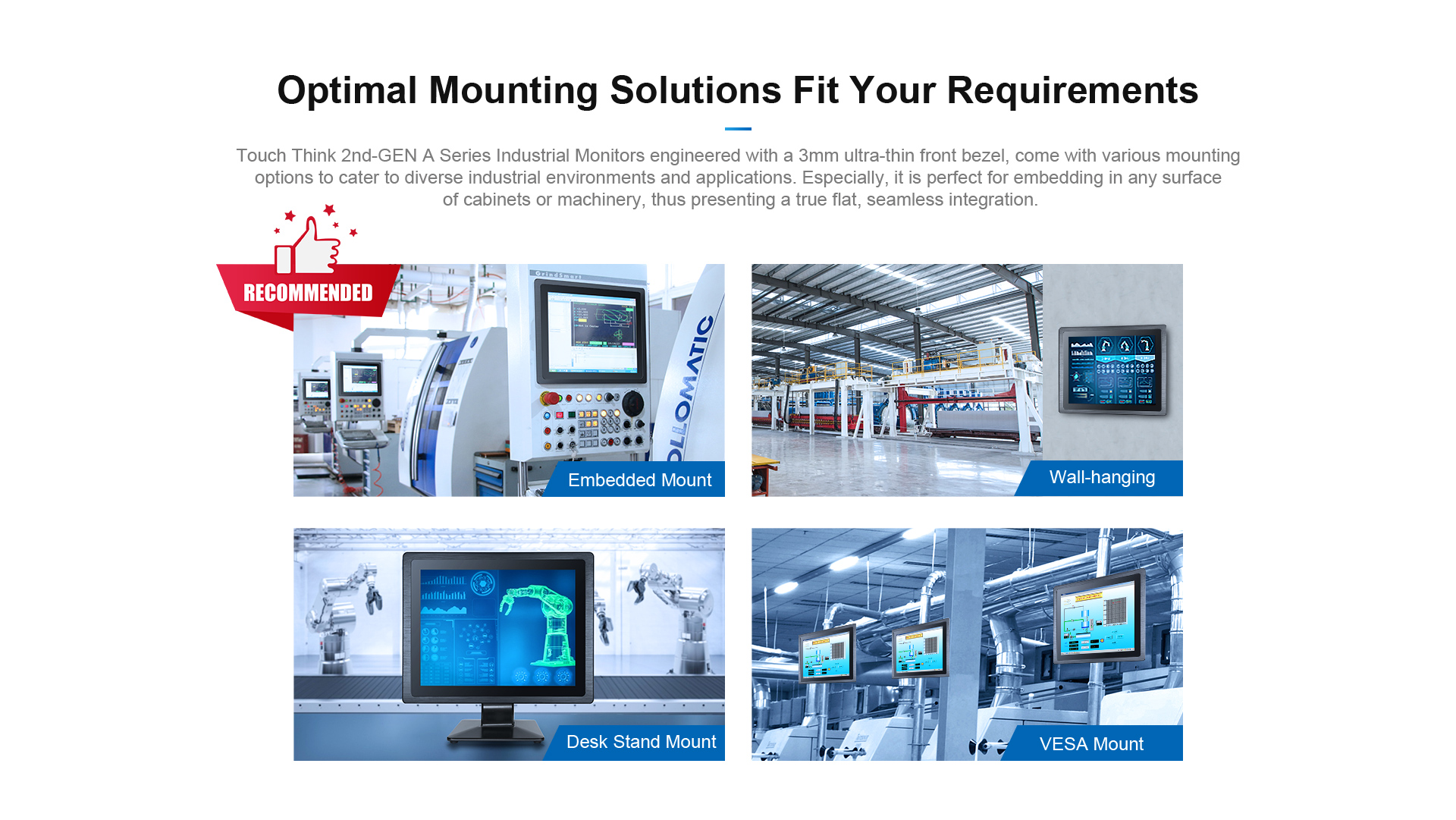

Installation Method

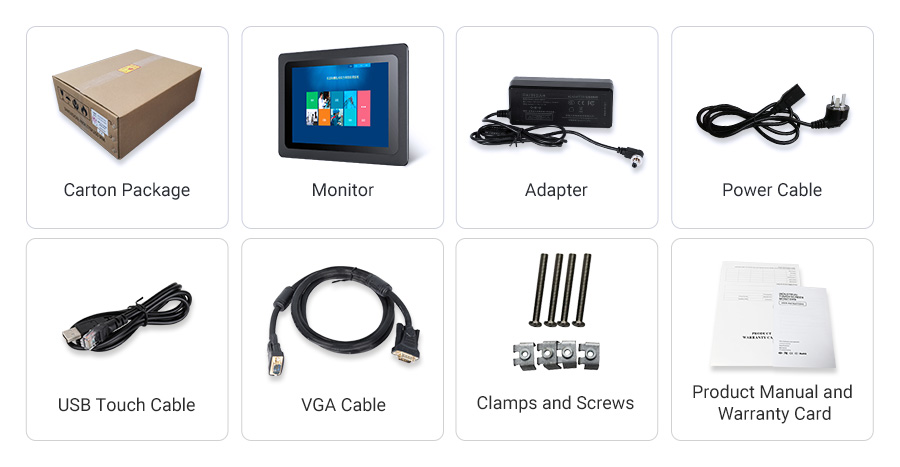

Packing List

Other Items
Warranty	3-Year
Color	Black
After-sales Service	Call Center and on-line Technical Support
Place of Origin	Guangdong, China
Express	UPS/DHL/Fedex/EMS,etc
Delivery Time	1-3 Working Days
Packaging Details	Packed in Standard EXPORT Cartons
Delivery Port	Shenzhen/Hongkong
Customization	Logo,Packaging,Graphic
