Touch Think 4th Gen i Series Windows i3 All-In-One Panel PC
TPC190-W11
- The appearance is exquisite and full of technology

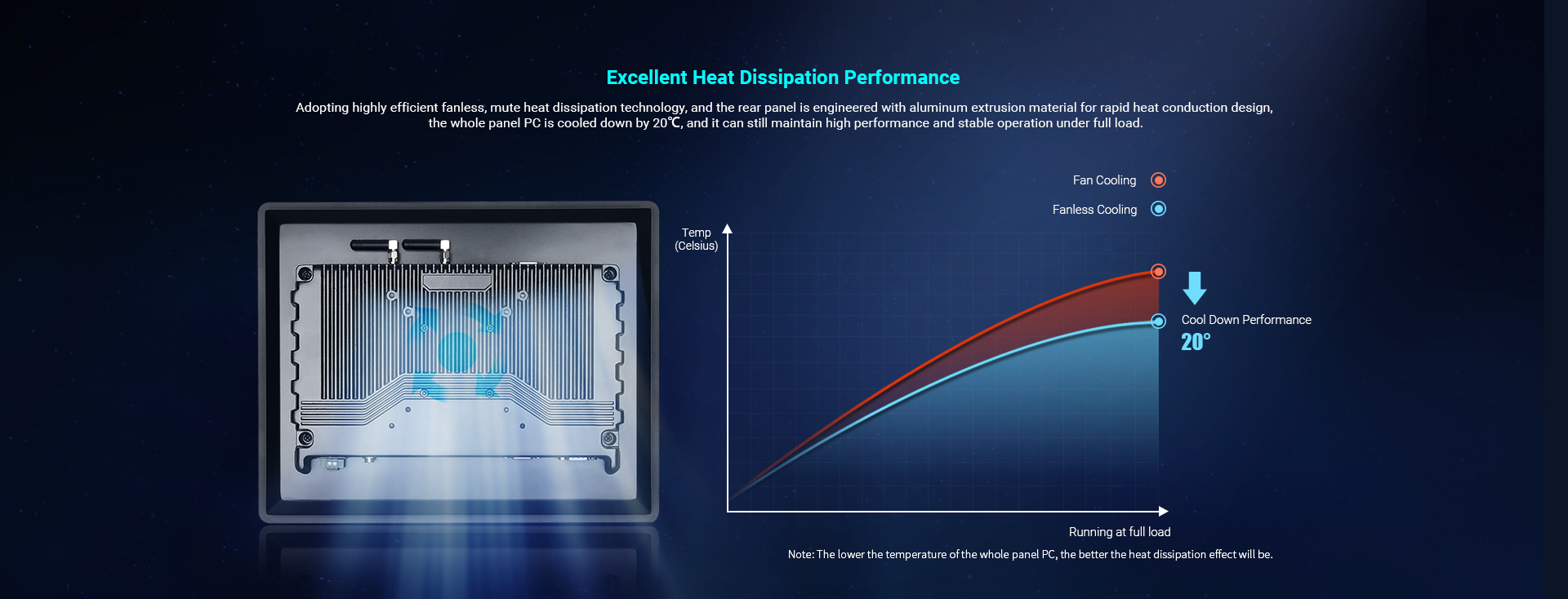

- The whole machine adopts fanless and efficient heat dissipation design
- Used in a variety of complex and harsh working environments
- Made of aluminum alloy material, the whole machine is light and wear-resistantIn
- Line with EMC anti-static, anti-electromagnetic interference standards
- Equipped with dual gigabit networks and rich scalable interfaces.
- Support 12-36V wide voltage power supply.
- Support desktop type, wall mounting, cantilever, lily type and other installation
Quick Inquiry
Touch Think Windows i3 All-In-One PC:
TPC190-W11
TPC190-W11
Required fields are marked *, We’ll respond within 12 hours.
Product View
The aluminum alloy flat panel is adopted, and the fan free fully enclosed integrated design is adopted. The overall feature is “industrial quality, commercial appearance. It is widely used in industrial control, military, communication, power and other fields, network, intelligent self-service terminal equipment and other automation applications.
| General Info | |
|---|---|
| Manufacturer | Touth Think |
| Product Manual |  TPC190-W11.pdf |
| Screen Size | 19.0 inch |
| Hardware Configuration | |||
|---|---|---|---|

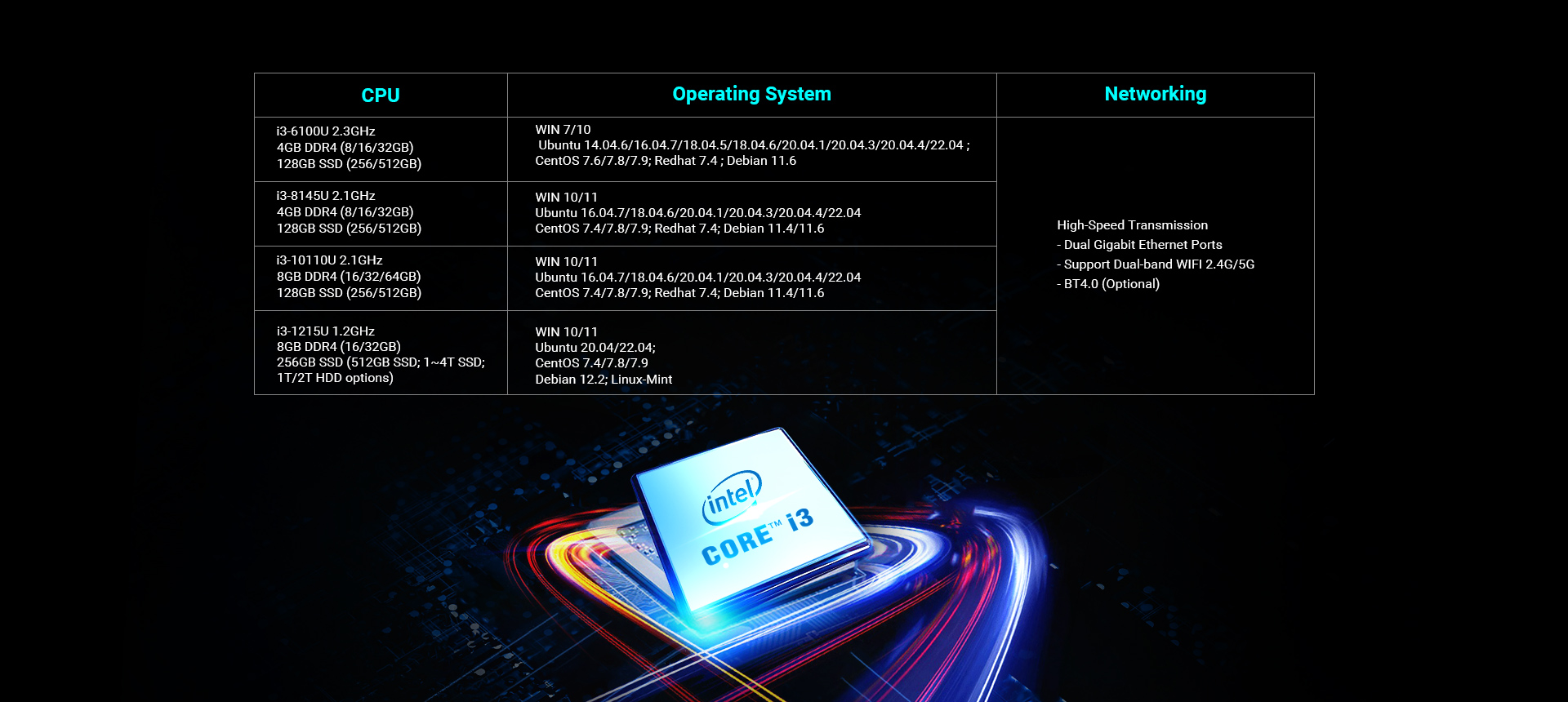

| CPU | I3-6100U | I3-8145U | I3-10110U |
| CPU Frequency | 2.3GHz | 2.1GHz | 2.1GHz |
| Integrated Graphics | Inte HD Graphic 520 | Inte HD Graphic 620 | Intel UHD Graphic 620 |
| RAM | 4GB DDR4(Optional 8GB/16GB/32GB) | 4GB DDR4(Optional 8GB/16GB/32GB) | 8GB DDR4(Optional 16GB/32GB/64GB) |
| Storage | 128GB SSD (Optional 256GB/512GB) | ||
| GPU | Intel HD Graphics | ||
| WiFi | 2.4GHz / 5GHz dual bands | ||
| Bluetooth | BT4.0(Optional) | ||
| Operating System | Windows7/10/11; Ubuntu16.04.7/8.04.5/20.04.3; Centos7.6/7.8 | ||
| Other Support | Support RTC real-time clock and timing switch | ||
| Product Model | |
|---|---|
| Non-Touch | TPC190-W1190 |
| Capacitive Touch | TPC190-W1111 |
| Resistive Touch | TPC190-W1121 |
| Physical Characteristics | |
|---|---|
| Overall Dimensions | W423.3 x H372.8 x D59.9mm |
| Interface Parameters | |
|---|---|
| Power Interface1 | 1*DC 2.5, Supporting 12V-36V power input |
| Power Interface2 | 1*Industrial terminal, Supporting 12V-36V power input |
| HDMI | 1*HDMI, Supporting HDMI data output, Up to 4K |
| USB | 2*USB 2.0 2*USB 3.0 |
| LAN | 2*LAN, Dual 1000M adaptive Ethernet |
| AUDIO | 1*Audio Out, Support audio output |
| SIM | 1*SIM, Supporting various formats (Depending on 3G/4G module) |
| VGA | 1*VGA |
| COM | 2*RS232 |
| WiFi Antenna | 2*WiFi antenna |
| POWER | Support (1*POWER) |
| Grounding Post | 1*Grounding post (GND) |
| Screen Parameters | |
|---|---|
| LCD Size | 19.0″ TFT LCD |
| Resolution | 1280×1024 |
| Aspect Ratio | 5:4 |
| Viewing Angle | 85/85/80/80 (L/R/U/D) |
| Colour | 16.7M |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 1000:1 |
| Touch Parameters | |||
|---|---|---|---|
| Touch Type | Capacitive touch screen | Resistance touch screen | Non-touch |
| Touch Point | 10-point Touch Projection | Single Point | / |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input Mode | Handwriting or Capacitance pen | Fingertip or stylus | / |
| Controller communication | USB | USB | / |
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V~36V |
| Static power | 18W |
| Installation Method |
|---|

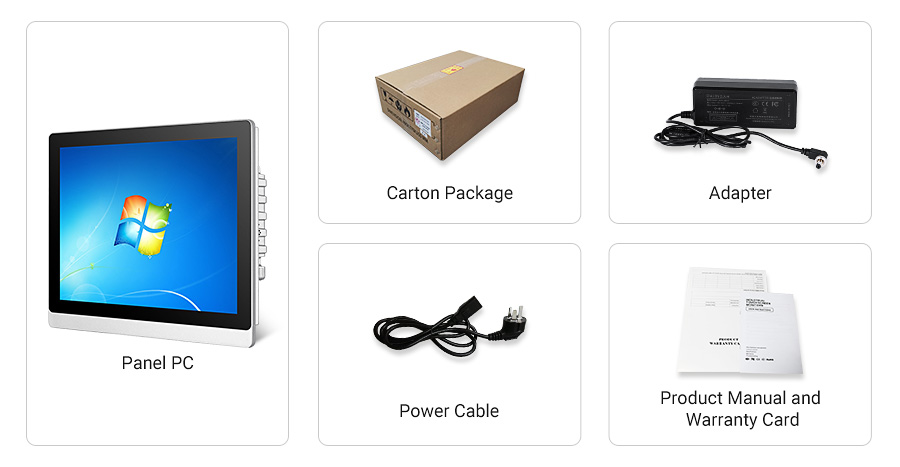

| Packing List |
|---|
| Other Items | |
|---|---|
| Warranty | 3-Year |
| Color | Black / Silver |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Logo,Packaging,Graphic |
