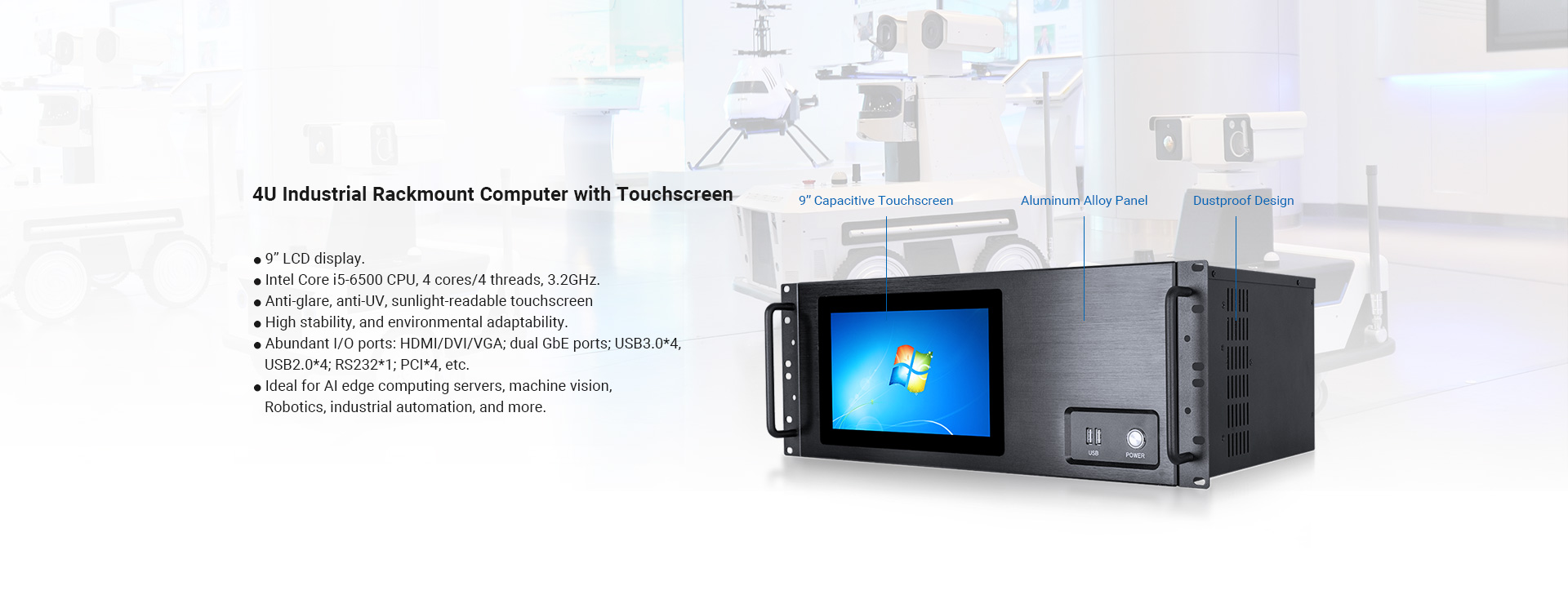

TPC03-WIPC
- Support inter6/7/8/9th Core/pentium/Celeron i3/i5/i7 independent CPU
- The whole machine design multi-fan cooling intelligent fan cooling
- Dual-port gigabit network faster and more stable data transmission
- Front panel embedded LCM display module, stylish and beautiful, more convenient human-machine interaction
- Professional EMC design, with super anti-electromagnetic interference and anti-radiation ability
TPC03-WIPC
Product View
The front panel is designed with aluminum alloy flat panel, the body is designed with metal sheet metal structure, the honeycomb cooling structure with fan efficient cooling design program, the whole machine for high performance, is designed specifically for the server room rack-mounted environment and designed for industrial computers, can ensure long and stable work in harsh environments. Configured with 9-inch full-view LCD screen and ten-point capacitive touch screen, configuration compatible with Intel 6/7/8/9 generation Core/Pentium/Celeron i3/i5/i7 independent processors, rich interfaces and expansionslots, support a variety of expansion card access, through the PCI/PCIE interface, external video capture card, visual motion control card, light source brightness control card, etc., widely used in industrial control, military, communications, power, network and other automation fields, Communication, electric power, network and other automation fields.
| General Info | |
|---|---|
| Manufacturer | Touth Think |
| Product Manual |  TPC03-WIPC.pdf |
| Hardware Configuration | |||
|---|---|---|---|
| CPU | Intel Core I5-6500 Standalone CPU Quad-core 3.2GHz | Intel® Pentium/Celeron/6-7 Generation Core i3/i5/i7 Standalone CPU | Intel® Core /Pentium/Celeron 8th-9th generation i3/i5/i7 discrete CPU |
| Display Chips | Intel® H110 | TDP 65W & Intel® H310 | TDP 65W |
| Memory | 8GB DDR4 (upgradeable 16GB/32GB) | ||
| Storage | Standard: 1T mechanical hard drive with 4 * SATA3.0 + 1 * mSATA support [3] | ||
| Display | 1 * VGA DB15 port + 1 * DVI port + 1 * HDMI port | ||
| Audio Chip | Realtek ALC662 5.1 Channel HD Audio Codec, Support 1* MIC + 1 * Line-out + 1 * Line-in | ||
| NIC chip | 1 * Intel I211AT + 1 * Intel I219-LM for 1000Mbps | ||
| Heat Dissipation System | Intelligent fan cooling | ||
| Operating System | Windows 7/8/10, Server 2008/2012, Linux | ||
| BIOS | AMI UEFI BIOS | ||
| Power supply | ATX | ||
| COM | Default RS232*1, reserved COM*4; Support: 4 * RS232 + 2 * RS232/RS485 [4] | ||
| USB | 8*USB, default USB2.0*4, USB3.0*4 | ||
| PS/2 | 1*PS/2 (mouse and keyboard 2-in-1) | ||
| RJ45 | 2*RJ45 | ||
| RS232 | 1*RS232 | ||
| Product Model | |
|---|---|
| Non-Touch | TPC03-WIPC |
| Physical Characteristics | |
|---|---|
| Overall Dimensions | 430*299*176mm (W*D*H) |
| Weights | 7.5KG |
| Expansion Slots | |
|---|---|

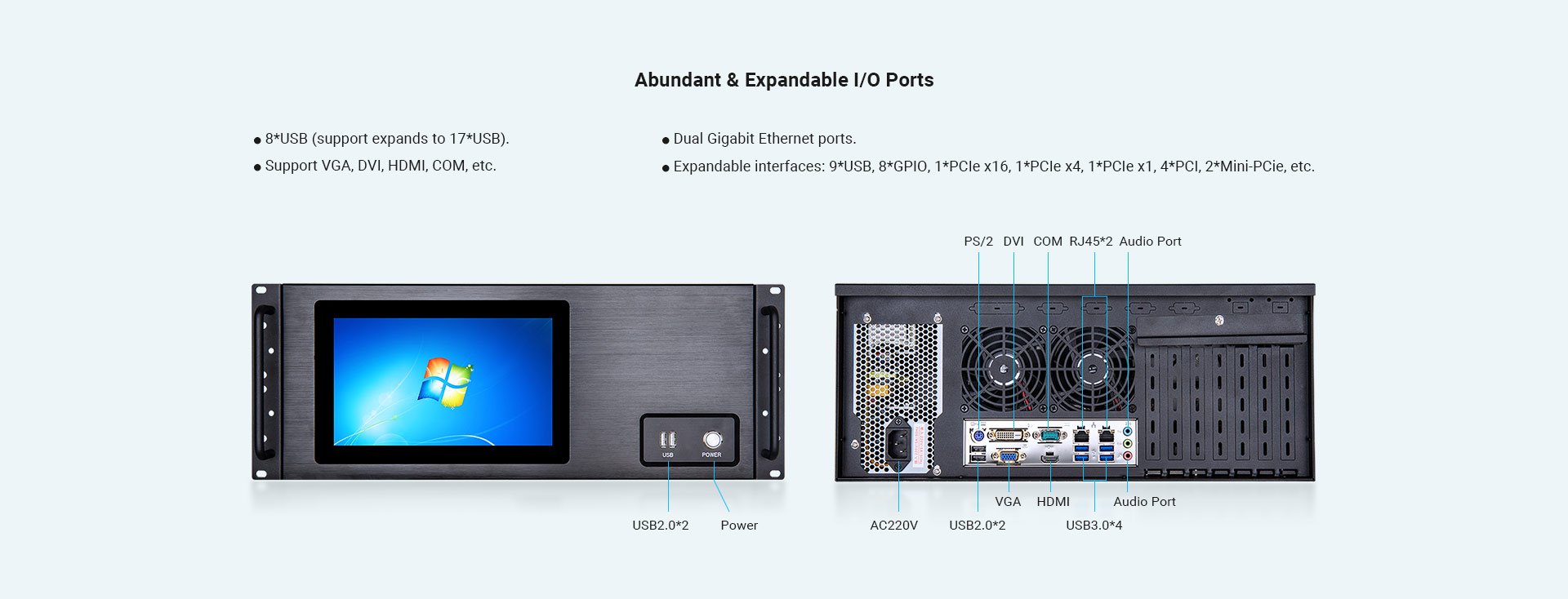

| USB | 9 * USB: 4*USB3.0 (Rear I/O) + 2*USB2.0(Rear I/O)+3* USB2.0(Header) |
| GPIO | 8 * GPIO |
| LPT Header | 1 * LPT Header |
| SMB Header | 1 * SMB Header |
| Front Panel | 1 * Front Panel Header |
| PCIE | 1 * PCIE 16X Slot |
| PCIE | 1 * PCIE 4X Slot |
| PCIE | 1 * PCIE 1X Slot |
| PCI | 4 * PCI Slot |
| PS/2 | 1 * PS/2 Connector (keyboard or mouse) |
| PCI-E | 2 * Mini PCI-E |
| SIM | 1 * SIM Card Slot |
| Fan Header | 3 * CPU Fan Header |
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~65°C |
| Storage Temperature | -20°C~75°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | 220V power input |
| Static power | 35W |
| Installation Method |
|---|
| Packing List |
|---|
| Other Items | |
|---|---|
| Chassis structure | Chassis material: SGCC galvanized plate, surface process: spray oil |
| Warranty | 3-Year |
| Color | Gun black/Silver |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Installation method | Shenzhen/Hongkong |

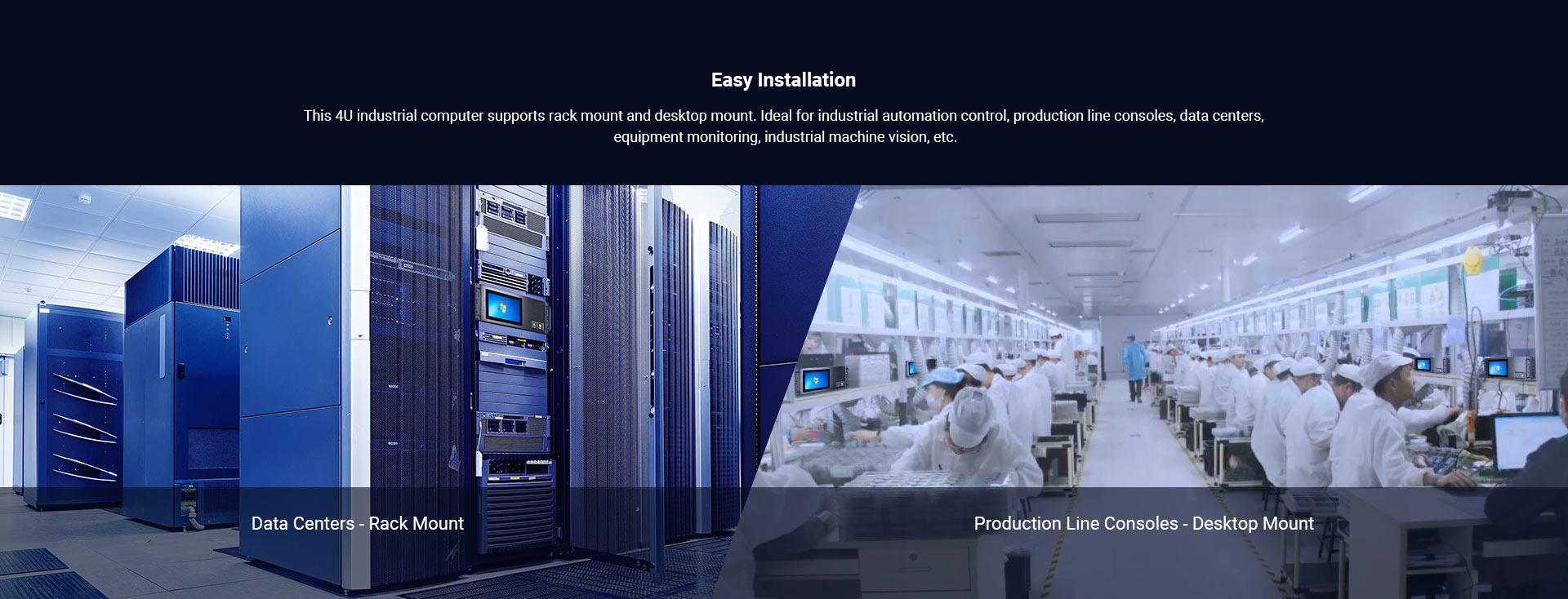

| Customization | Support desktop and rack installation |
