Touch Think 5th Gen i Series Windows i5 All-In-One Panel PC

TPC120-W5

Technical Specifications
TPC120-W5
TPC120-W5
TPC120-W5
TPC120-W5
TPC120-W5

❮
❯




  • Narrow bezel design, independent mold opening appearance
  • Aluminum alloy – body die-casting molding, efficient heat dissipation
  • Self-developed fanless X86 architecture industrial motherboard
  • Dual gigabit adaptive Ethernet ports for faster transmission
  • Supporting 12V-36V wide voltage power supply
  • Rich interfaces and strong extensibili
  • Adapt to complex heavy industrial environments such as dust, oil
  • water mist, strong electromagnetic and high-frequency vibration
tpc-w2 industrial monitor features image

Quick Inquiry
Touch Think Windows i5 All-In-One PC:
TPC120-W5








    Required fields are marked *, We’ll respond within 12 hours.

    Product View

    The whole adopts ultra-narrow frame, pure flat board, aluminum alloy structure, fanless fully enclosed design. Support desktop, wall-mounted, embedded, cantilever type, boom type and other installation methods, widely used in industrial control, military, communications, power, network and other high-end automation fields.


    i3 cpu
    tpc101 a2
    tpc101 a2
    tpc101 a2
    tpc101 a2

    General Info
    ManufacturerTouch Think
    Product Manualpdf iconTPC120-W5.pdf
    Screen Size12.0 inch
    Hardware Configuration
    CPUI5-6200UI5-7200UI5-8265UI5-10210U
    CPU Frequency2.3GHz2.5GHz1.6GHz1.6GHz
    Integrated GraphicsInte HD Graphic 520Intel HD Graphics 620Intel Ultra HD Graphics 620Intel UHD620 Graphics
    RAM4GB DDR4(Optional 8GB/16GB/32GB)4GB DDR4(Optional 8GB/16GB/32GB)4GB DDR4(Optional 8GB/16GB/32GB)8G DDR4(Optional 16G/32G /64G)
    Storage128G SSD (Optional 256/512G)
    GPUIntel HD Graphics
    WiFi2.4GHz / 5GHz dual bands
    BluetoothBT4.0(Optional)
    Operating SystemWindows7/10/11; Ubuntu16.04.7/8.04.5/20.04.3; Centos7.6/7.8
    Other SupportSupport RTC real-time clock and timing switch
    Product Model
    Non-TouchTPC120-W500
    Capacitive TouchTPC120-W510
    Resistive TouchTPC120-W520
    Physical Characteristics
    Overall Dimensions W297.97x H236.5x D61mm
    Size of opening W287.97 x H226.5mm
    tpc120 m2 dimensions

    [tpc_W2_i5_interface_parameters]

    tpc120 m2 interface
    Screen Parameters
    LCD Size12.0″ TFT LCD
    Resolution 1024*768
    Aspect Ratio 4:3
    Viewing Angle 85/85/85/85 (L/R/U/D)
    Colour 16.7M
    Brightness 500 cd/m2
    Contrast Ratio 1000:1
    Touch Parameters
    Touch Type Capacitive touch screenResistance touch screenNon-touch
    Touch Point10-point Touch ProjectionSingle Point/
    Transmittance≥88%≥78%≥92%
    Input ModeHandwriting or
    Capacitance pen    		Fingertip or stylus/
    Controller communicationUSBUSB/
    Reliability Parameters
    Working Temperature-10°C~60°C
    Storage Temperature-20°C~70°C
    Relative HumidityHumidity: 95% Non-Condensing
    Vibration ProtectionIEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
    Impact ProtectionIEC 60068-2-27, Half sine wave, Lasting for 11ms
    Product CertificationCCC/CE/FCC/EMC/CB/ROHS
    Waterproof GradeThe front panel reaches IP65 protection level
    Power Parameters
    Power inputDC 12V~36V
    Static power18W
    Installation Method
    installation method

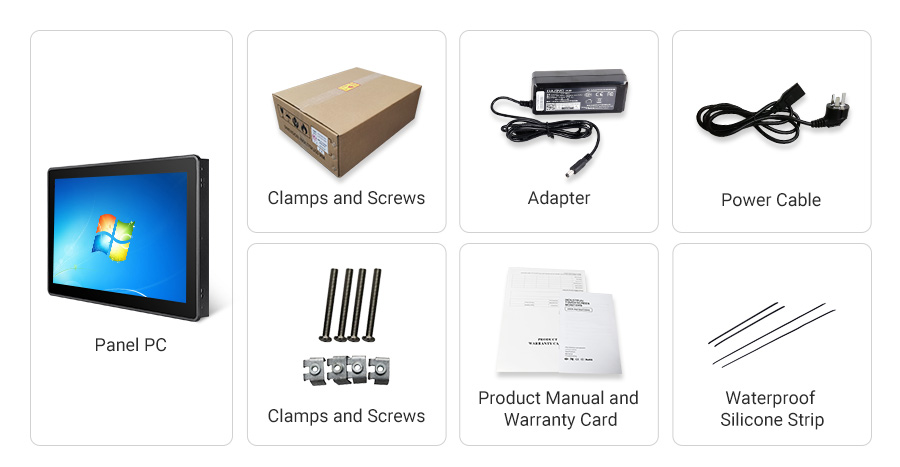

    Packing List
    machine packing list
    Other Items
    Warranty3-Year(1yr free, 2-3yr paid)
    ColorBlack
    After-sales ServiceCall Center and on-line Technical Support
    Place of OriginGuangdong, China
    ExpressUPS/DHL/Fedex/EMS,etc
    Delivery Time1-7 Working Days
    Packaging DetailsPacked in Standard EXPORT Cartons
    Delivery PortShenzhen/Hongkong
    CustomizationAppearance,Screen,Interfaces,Environmental
