TouchThink 5th Gen Rugged Panel PC RK3588 10.4’’ Fanless All in One LCD Touchscreen Computer WIFI 6Tops NPU Mali G610 GPU HDMI COM

Model No.TPC104-A5

Technical Specifications

❮

❯

Industrial aesthetic design, independent mold opening
Aluminum alloy – body die casting, efficient heat dissipation
Self-developed ARM architecture industrial motherboard
RK3588 Octa-core with 6 TOPS NPU
Wide Temperature Adaptation Efficient Heat Dissipation.
Provide SDK package, Support secondary development and upgrade customization

RK3588 Octa Core
Fanless Cooling
DC 12-36V
IP65 Front
SDK Develpment
Android 13

Quick Inquiry

If your requirements differ from our regular products, customization can be acceptable. Please let us know your needs.

Required fields are marked *, We’ll respond within 12 hours.

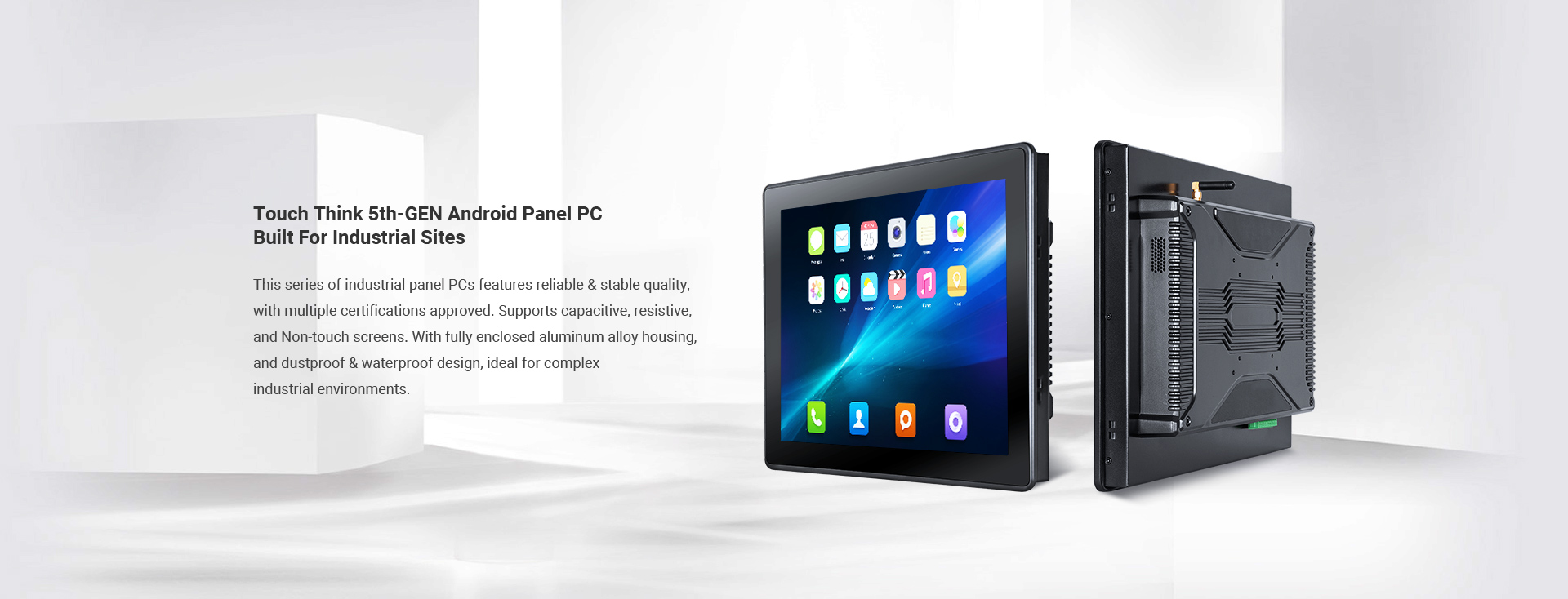

Product View

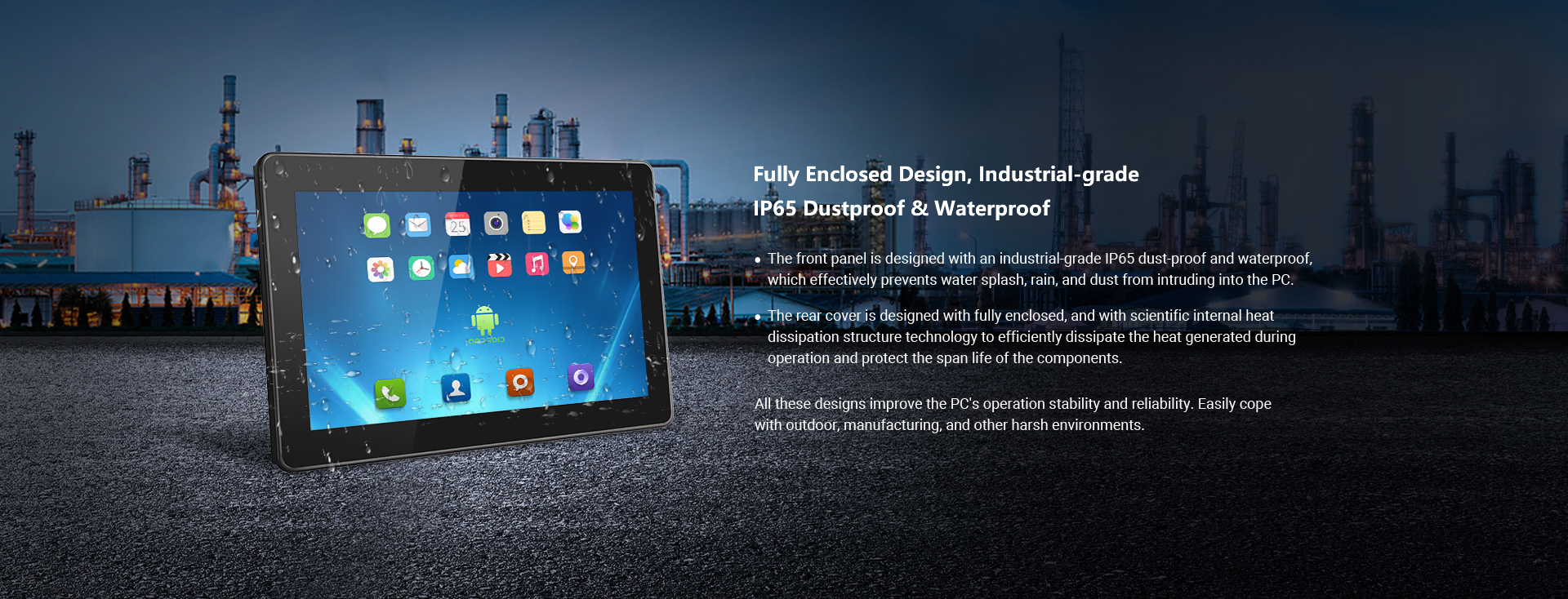

The machine is made of aluminum alloy material, strong structure, fully closed without fan design, efficient heat dissipation, designed for a variety of complex harsh environment.built-in independent NPU, with 6TOPS AI computing capability, and supports lightweight AI application development. With a fanless fully enclosed, and front IP65 dustproof & waterproof design. The whole panel PC has high scalability, practicality, and EMC compatibility.

General Info
Manufacturer	Touch Think
Product Manual	TPC104-A5.pdf
Screen Size	10.4″ TFT LCD screen
Overall dimensions	W265.6X H213X D61MM
Installation size	W255.6X H203MM
Material	Aluminum alloy
Color	Black, optional silve
Installation	Support Embedded/Wall-mounted/Desktop/Folding mounting/VESA mount/Suspended mounting
Power Input	DC 12V-36V
Static Power	24V/2.5A

Screen Parameters
Display type	10.4″ TFT LCD screen
MAX.resolution	1024*768 (4:3）
Viewing angle(H/V)	80/80/80/80 (L/R/U/D)
Luminance (cd/m²)	400 cd/m²
Contrast ratio	1000:1

Product Model
Non-Touch	TPC104-A500
Capacitive Touch	TPC104-A510
Resistive Touch	TPC104-A520

Hardware Configuration
CPU	RK3588 Octa-core 64-bit, 2.4GHz, 4Cortex-A76+4Cortex-A55
Memory/RAM	8GB DDR4 (Optional 4GB/16GB/32GB, Supports up to 32GB)
Storage	64GB eMMC (Optional 128GB/256GB, Supports up to 256GB)
NPU	Built-in NPU with 6TOPS AI computing power

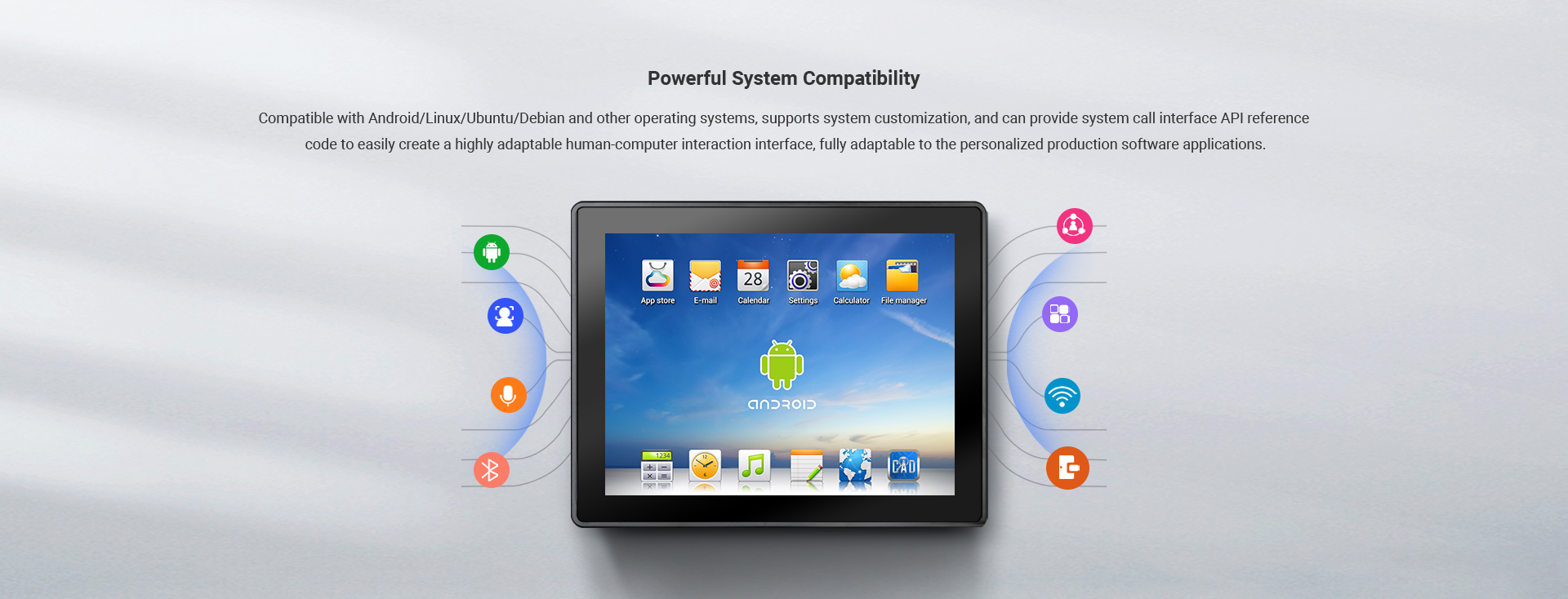

Operating system	Android 13.0, Linux5.10/Ubuntu20.04/Ubuntu22.04/Debian11
GPU	ARM Mali G610
Wi-Fi	Wi-Fi 6, Dual Band 2.4GHz+5GHz
Bluetooth	BT5.0
Watchdog Timer	Support
RTC real time clock	Support
Timer switch	Support

Interface Parameters
PowerSW	1*PowerSW
Power interface	1Threaded DC connector (Diameter 5.52.1mm)
Phoenix terminal	112P Phoenix terminal (DC/RS2321/RS4851/CAN1/GPIO*3)
USB	1USB, 1OTG
TF	1*TF card standard interface
SIM	1*SIM card slot (should be work with 3G/4G module)
HDMI	1*HDMI output, up to 4K
Ethernet	2*LAN, 10M/100M/1000M adaptive Ethernet, 3G/4G customized
Audio	1*Audio I/O, Support audio input and output
Serial port	1*COM (The default is RS232, optional RS485/RS422)
UBOOT	1*UBOOT
Wi-Fi antenna	1*Wi-Fi antenna
Grounding	1*GND
Speaker	2*(8Ω2W)

Touch Parameters
Touch Type	Capacitive touch screen	Resistance touch screen	Non-touch
Touch Point	10-point Touch Projection	Single Point	/
Transmittance	≥88%	≥78%	≥92%
Input Mode	Handwriting or Capacitance pen	Fingertip or stylus	/
Controller communication	USB	USB	/

Reliability Parameters
Working Temperature	-10°C~60°C
Storage Temperature	-20°C~70°C
Relative Humidity	Humidity: 95% Non-Condensing
Vibration Protection	IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
Impact Protection	IEC 60068-2-27, Half sine wave, Lasting for 11ms
Product Certification	CCC/CE/FCC/EMC/CB/ROHS
Waterproof Grade	The front panel reaches IP65 protection level

Installation Method

Packing List

Other Items
Warranty	3-Year
Color	Black
After-sales Service	Call Center and on-line Technical Support
Place of Origin	Guangdong, China
Express	UPS/DHL/Fedex/EMS,etc
Delivery Time	1-3 Working Days
Packaging Details	Packed in Standard EXPORT Cartons
Delivery Port	Shenzhen/Hongkong
Customization	Logo,Packaging,Graphic
