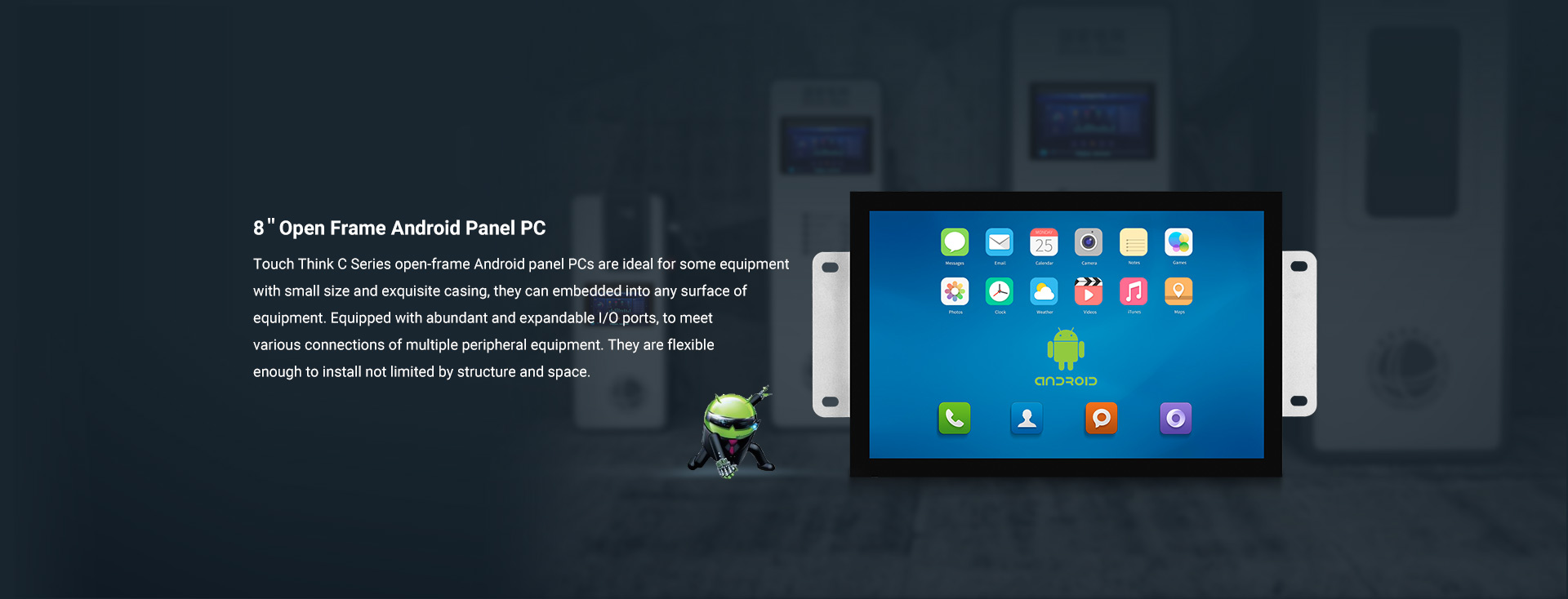

Touchthink 8.0 Inch Open C Series Android All-In-One Panel PC
TPC080-A16
- High integration, realizing WiFi/Bluetooth/Ethernet triple connection
- High definition, high definition screen
- Self-developed ARM architecture motherboard, smooth human-computer interaction experience
- Rich interfaces for flexible expansion
- Provide API reference code, support SDK secondary development customization
- Flexible and versatile open installation
Quick Inquiry
Touchthink 8.0 Inch Open C Series Android All-In-One Panel PC:
TPC080-A16
TPC080-A16
Required fields are marked *, We’ll respond within 12 hours.
Product View
It adopts RK3288 Cortex-A17 quad-core processor, and is equipped with Android 7.1 system, with a main frequency of up to 1.8 GHz, and excellent performance. Adopting the M al i – T 764 G P U, it supports most of the mainstream decoding schemes under 1080 P @ 60 f p s and H.264/MVC/VP8 decoding schemes under 1080 P@ 30 f p s. Whether i’ game, score or decoding, i’ super, and i’ your best choice in human-computer interaction project.
| General Info | |
|---|---|
| Manufacturer | Touth Think |
| Product Manual |  TPC080-A16.pdf |
| Screen Size | 8.0 inch |
| Hardware Configuration | |
|---|---|
| CPU | RK3288, Cortex-A17 quad-core, 1.8GHz |
| Memory | 2GB DDR3 (Optional: 4GB/8GB) |
| Storage | 16GB eMMC (Optional: 32GB/64GB) |
| GPU | Mali-T764 |
| WiFi | 2.4GHz / 5GHz dual bands |
| Bluetooth | Bluetooth 5.0 |
| Operating System | Android 7.1/10.0/12.0/Linux4.4/Ubuntu18.04/20.04/Debian1.0 |
| Product Model | |
|---|---|
| Capacitive Touch | TPC080-A1611 |
| Physical Characteristics | |
|---|---|

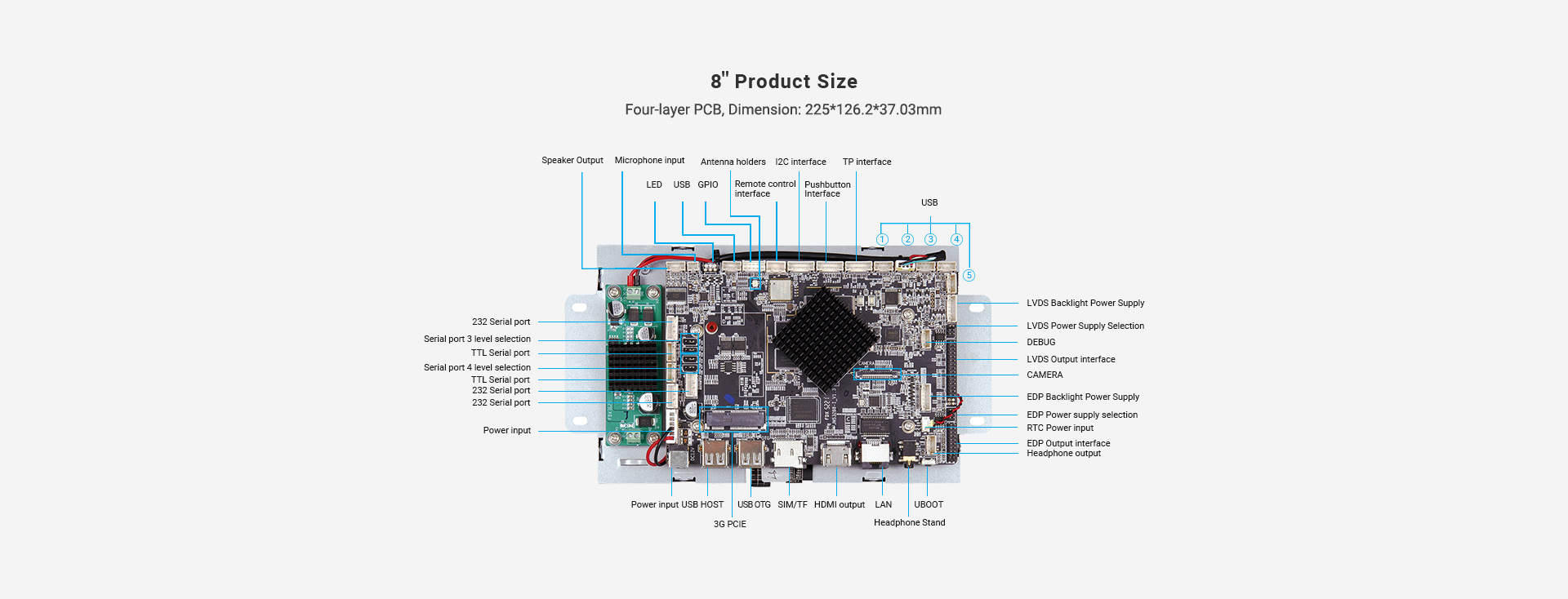

| Overall Dimensions | W225*H126.2*D37.03mm |
| Interface Parameters | |
|---|---|
| USB interface | 1*USB OTG, 1*USB HOST, 4*USB sockets |
| Picture format | Support BMP, JPEG, PNG, GIF, etc |
| TF card | Support TF card extension |
| Audio and video output | Support left and right channel output, built-in dual 4R/2W, 8R/2W power amplifier |
| System upgrade | Support local TF and USB upgrade |
| Screen Parameters | |
|---|---|
| LCD Size | 8.0″ TFT LCD |
| Resolution | 800*1280 |
| Aspect Ratio | 16:10 |
| Viewing Angle | 75/75/70/75 (L/R/U/D) |
| Touch Parameters | |||
|---|---|---|---|
| Touch screen type | 10 point touch projection capacitive touch screen | ||
| Light transmittance | ≥88% | ||
| Input mode | Handwriting or capacitive pen | ||
| Controller communication | USB | ||
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V~36V |
| Static power | 18W |
| Packing List |
|---|
| Other Items | |
|---|---|
| Warranty | 3-Year |
| Color | Black |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Logo,Packaging,Graphic |
