Touchthink 8.0 Inch Open C Series Android All-In-One Panel PC

TPC080-A16

Technical Specifications
TPC080-A16
TPC080-A16
TPC080-A16
TPC080-A16
TPC080-A16

❮
❯




  • High integration, realizing WiFi/Bluetooth/Ethernet triple connection
  • High definition, high definition screen
  • RK3568 quad-core 64-bit Cortex-A55 core architecture, Up to 2.0GHz,Smooth human-computer interaction experience
  • Rich interfaces for flexible expansion
  • Provide API reference code, support SDK secondary development customization
  • Flexible and versatile open installation
tpc-w2 industrial monitor features image

Quick Inquiry
Touchthink 8.0 Inch Open C Series Android All-In-One Panel PC:
TPC080-A16








    Required fields are marked *, We’ll respond within 12 hours.

    Product View

    Open Android all-in-one PC adopts CX3568-A high-performance, low-power android series products, with 22nm advanced process; with a 4-core 64-bit Cortex-A55 core architecture, the main frequency up to 2.0GHz; built-in
    independent NPU, with 1TOPS AI computing power, support for lightweight AI application development, it is the best choice for you in the human-computer interaction, intelligent terminals, industrial control projects. It is your
    best choice for human-computer interaction, intelligent terminal and industrial control projects.

    open-frame-c
    open-frame-c
    open-frame-c
    open-frame-c
    General Info
    ManufacturerTouch Think
    Product Manualpdf iconTPC080-A16.pdf
    Screen Size8.0 inch
    Hardware Configuration
    CPURK3568, Quad-core 64-bit Cortex-A55 core architecture, Up to 2.0GHz
    Memory2G LPDDR4 (Optional 4G/8G)
    Storage32G eMMC (64G/128G Optional)
    GPUARM Mali-G52 2EE
    NPUBuilt-in NPU with 1TOPS AI computing power
    WiFi2.4GHz
    BluetoothBT5.0(Optional)
    Operating SystemAndroid 12.0, Linux5.10, Ubuntu/Debian
    Product Model
    Capacitive TouchTPC080-A1611
    Physical Characteristics

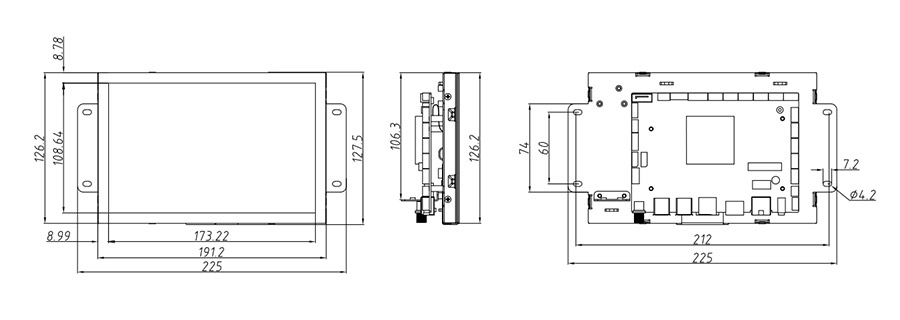

    Overall Dimensions W225*H126.2*D37.03mm
    tpc080 m2 dimensions

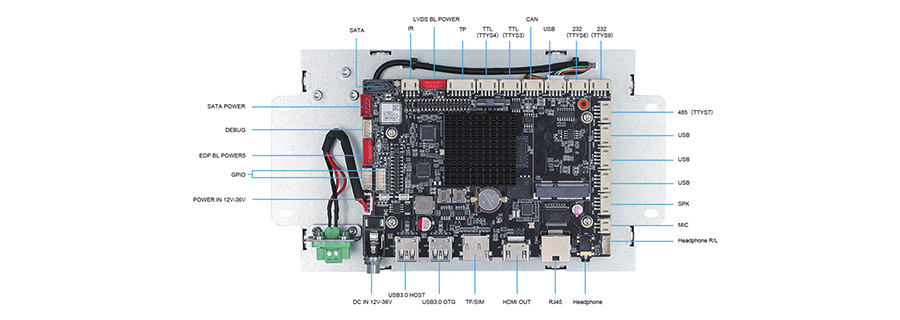

    Interface Parameters
    USB interface1*USB3.0 OTG, 1*USB3.0 HOST, 4*USB sockets
    NPUBuilt-in NPU with 1TOPS AI computing power
    COMDefault 2 * 232, 1 * DEBUG port, optional 2 * TTL
    Picture formatSupport BMP, JPEG, PNG, GIF, etc
    GPSExternal GPS (optional)
    Audio and video outputSupport left and right channel output, built-in dual 4R/2W, 8R/2W power amplifier
    System upgradeSupport local TF and USB upgrade
    tpc080 m2 interface
    Screen Parameters
    LCD Size8.0″ TFT LCD
    Resolution 800*1280
    Aspect Ratio 16:10
    Viewing Angle 85/85/85/85 (L/R/U/D)
    Touch Parameters
    Touch screen type10 point touch projection capacitive touch screen
    Light transmittance≥88%
    Input modeHandwriting or capacitive pen
    Controller communicationUSB
    Reliability Parameters
    Working Temperature-10°C~60°C
    Storage Temperature-20°C~70°C
    Relative HumidityHumidity: 95% Non-Condensing
    Vibration ProtectionIEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
    Impact ProtectionIEC 60068-2-27, Half sine wave, Lasting for 11ms
    Product CertificationCCC/CE/FCC/EMC/CB/ROHS
    Waterproof GradeThe front panel reaches IP65 protection level
    Power Parameters
    Power inputDC 12V~36V
    Static power18W
    Packing List
    machine packing list
    Other Items
    Warranty3-Year(1yr free, 2-3yr paid)
    ColorBlack
    After-sales ServiceCall Center and on-line Technical Support
    Place of OriginGuangdong, China
    ExpressUPS/DHL/Fedex/EMS,etc
    Delivery Time1-7 Working Days
    Packaging DetailsPacked in Standard EXPORT Cartons
    Delivery PortShenzhen/Hongkong
    CustomizationAppearance,Screen,Interfaces,Environmental
