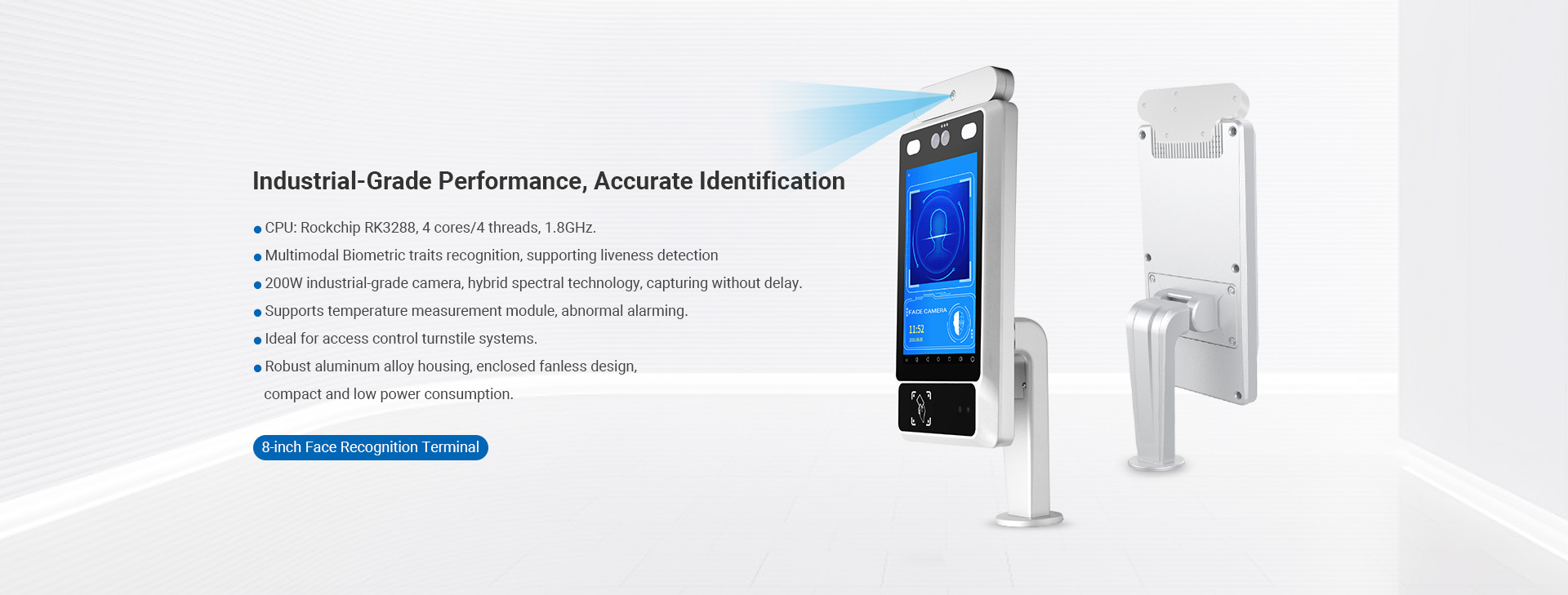

Touchthink 8 Inch Face Recognition A Series Android All in one PC
TPC080-A17
- Appearance independent mold opening, industrial body, exquisite and compact
- Binocular high-definition camera , wide dynamic living body detection technology
- Built-in infrared sensor module , NFC card reader module , readable IC card
- Industrial-grade LED intelligent filight , accurate identification of day and night
- Multi-function module combination selection , compatible with multiple recognition methods
- Provide SDK package , support secondary development and upgrade customization
Quick Inquiry
Touchthink 8 Inch Face Recognition A Series Android All in one PC:
TPC080-A17
TPC080-A17
Required fields are marked *, We’ll respond within 12 hours.
Product View

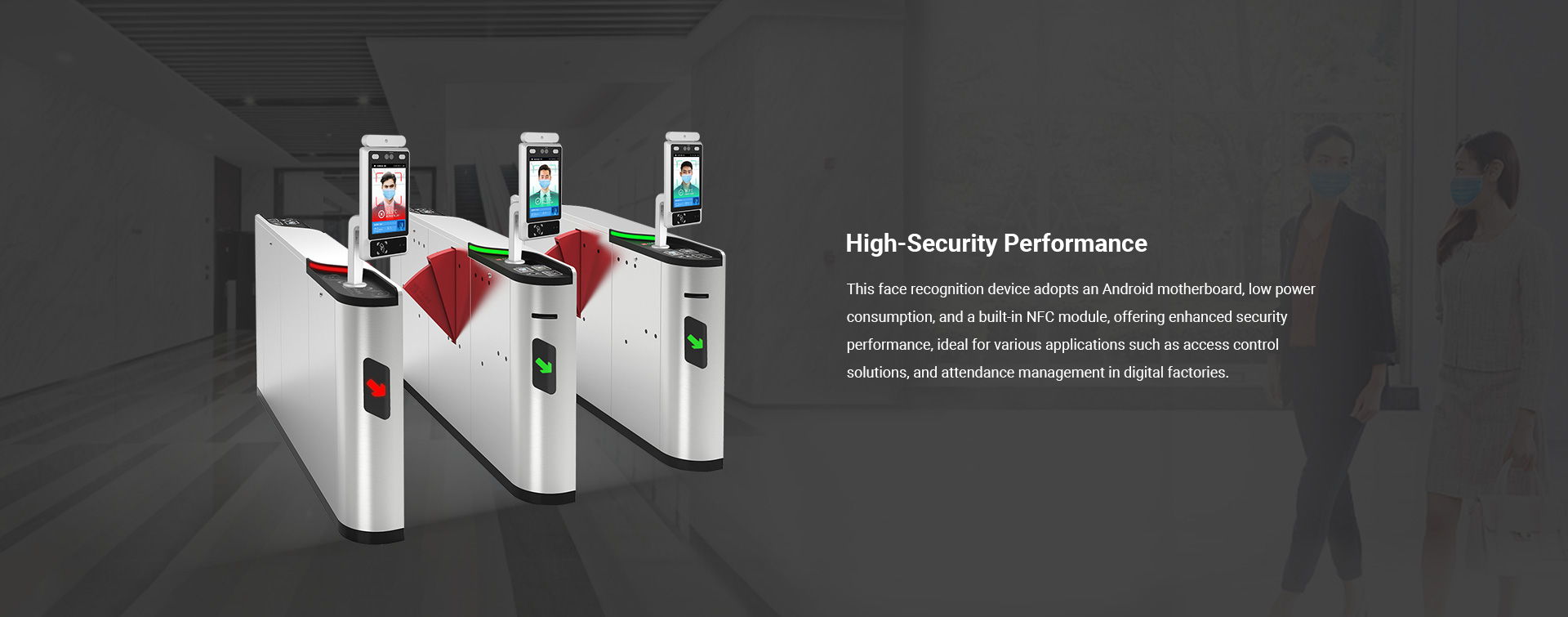

The fuselage is made of high-precision aluminum alloy die-casting, low power consumption, small and delicate, industrial-grade protection, ergonomic design principle, accurate and fast recognition technology, which meets the application requirements of multi-scenes and multi-recognition functions, and is widely used in smart parks, smart retail, smart medical and other fields.
| General Info | |
|---|---|
| Manufacturer | Touch Think |
| Product Manual |  TPC080-A17.pdf |
| Screen Size | 8.0 inch |
| Hardware Configuration | |
|---|---|
| CPU | RK3288, Cortex-A17 quad-core, 1.8GHz |
| Memory | 2GB DDR3 (Optional: 4GB/8GB) |
| Storage | 16GB eMMC (Optional: 32GB/64GB) |
| GPU | Mali-T764 |
| WiFi | 2.4GHz / 5GHz dual bands |
| Bluetooth | BT4.1(Optional) |
| Operating System | Android 7.1/10.0 |
| Product Model | |
|---|---|
| Non-touch | TPC080-A1701 |
| Capacitive Touch | TPC080-A1711 |
| Physical Characteristics | |
|---|---|
| Overall Dimensions | W148.11 x H286.11 x D30mm |
| Interface Parameters | |
|---|---|
| Power interface | 1*DC 2.1,Support 12V voltage power supply |
| USB-OTG | 1*typeA, external USB flash disk and computer can be connected |
| Wigan output | 1*Wigan output [supporting 26-bit and 34-bit Wigan] |
| RJ45 Ethernet | 1*10M/100M Ethernet |
| Relay terminal | 1*Relay terminal,can communicate with various access controllers to control the opening/closing of gate or access control |
| RS485 | 1*RS485 [half duplex communication, transmission distance greater than 100 meters] |
| Screen Parameters | |
|---|---|
| LCD Size | 8.0″ TFT LCD |
| Resolution | 800×1080 |
| Aspect Ratio | 16:10 |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Colour | 16.7M |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 800:1 |
| Touch Parameters | |||
|---|---|---|---|
| Touch Type | Capacitive touch screen | Resistance touch screen | Non-touch |
| Touch Point | 10-point Touch Projection | Single Point | / |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input Mode | Handwriting or Capacitance pen | Fingertip or stylus | / |
| Controller communication | USB | USB | / |
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V |
| Static power | 18W |
| Installation Method |
|---|
| Packing List |
|---|
| Other Items | |
|---|---|
| Warranty | 3-Year(1yr free, 2-3yr paid) |
| Color | Black |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-7 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Appearance,Screen,Interfaces,Environmental |
