Indoor High-Brightness B Series Monitor
These high-brightness displays ensure excellent visibility and readability in brightly lit indoor environments, making them ideal for applications such as indoor kiosks, transportation display systems, industrial control rooms, and marine navigation.
TouchThink B Series Indoor High-Brightness Monitor
| Product Size | Resolution | Aspect Ratio | Contrast Ratio | Brightness | Quick Inquiry |
|---|---|---|---|---|---|
| 10.1″ | 1280*800 | 16:10 | 1000:1 | 700cd/㎡~1000cd/㎡ | Inquiry Now |
| 15.6″ | 1920*1080 | 16:9 | 800:1 | 700cd/㎡~1000cd/㎡ | Inquiry Now |
| 17.0″ | 1280*1024 | 5:4 | 1000:1 | 700cd/㎡~1000cd/㎡ | Inquiry Now |
| Product Features |
|---|

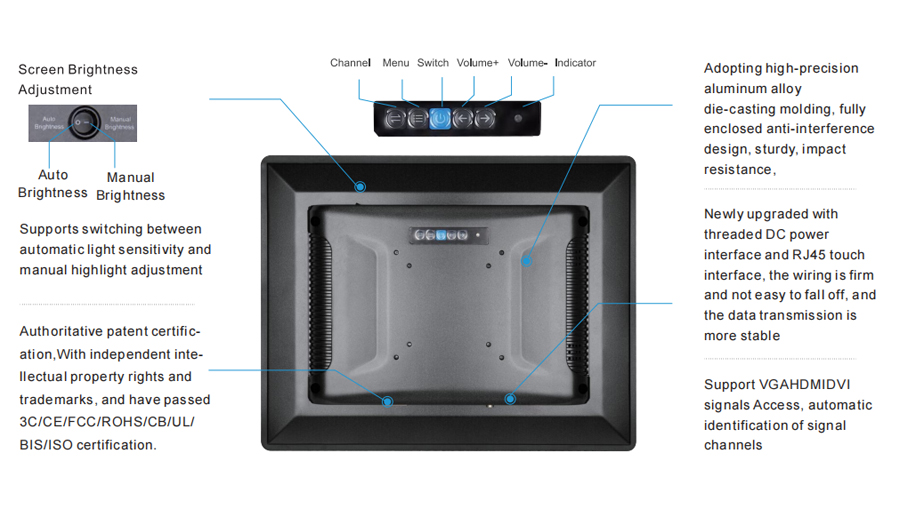

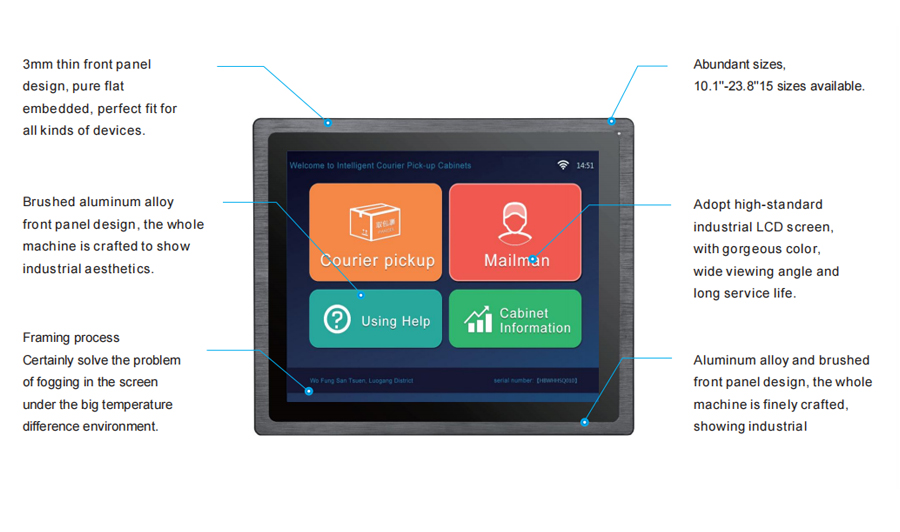

Ultra-thin Frame Design
Industrial Technology Design
| Product Parameters | ||
|---|---|---|
| Hardware Parameters | CPU | RTD2513/RTD2556 |
| Material | Aluminum alloy | |
| Menu Language | Multilingual (default: English) | |
| Key Function | AUTO/MENU/POWER/LEFT/RIGHT | |
| Color | Black,Sliver Optional | |
| Video Input | PC-RGB:Format Up to 1920*1080@60HZ; PC-RGB:Color 16bit,24bit,32bit | |
| Screen Parameters | Panel Type | Industrial control screen |
| Viewing Angle | Wide view / full view | |
| Backlight Type | LED, use time >=50000H | |
| Brightness | 700cd/㎡~1000cd/㎡ | |
| Display Color | 16.7M | |
| Contrast Ratio | 1000:1 |
| Touch Parameters | Projection capactivite touch Touch Point: 10-point Light Transmittance: >=88% Input Mode: handwriting or capactivite pen Standard Protocol:USB | Resistive touch 4-5wire/5 Wire Touch Point: single point Light Transmittance: >=78% Input Mode: Fingertip or stylus Standard Protocol:USB | Non-touch Light Transmittance: >=92% | ||
| Environment Parameters | Working Temperature | -20°C~70°C |
| Storage Temperature | -30°C~80°C | |
| Relative Humidity | Humidity: 95% Non-Condensing | |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis | |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Other Parameters | Power input | DC 12V~36V |
| Static power | 18W | |
| Installation Method | Supports snap-embedded,wall edbedded,wall mounted,desktop,louvered,cantilever-mounted,boom-mounted,etc. | |
| Warranty Policy | Three years ( one year free warranty ) |
