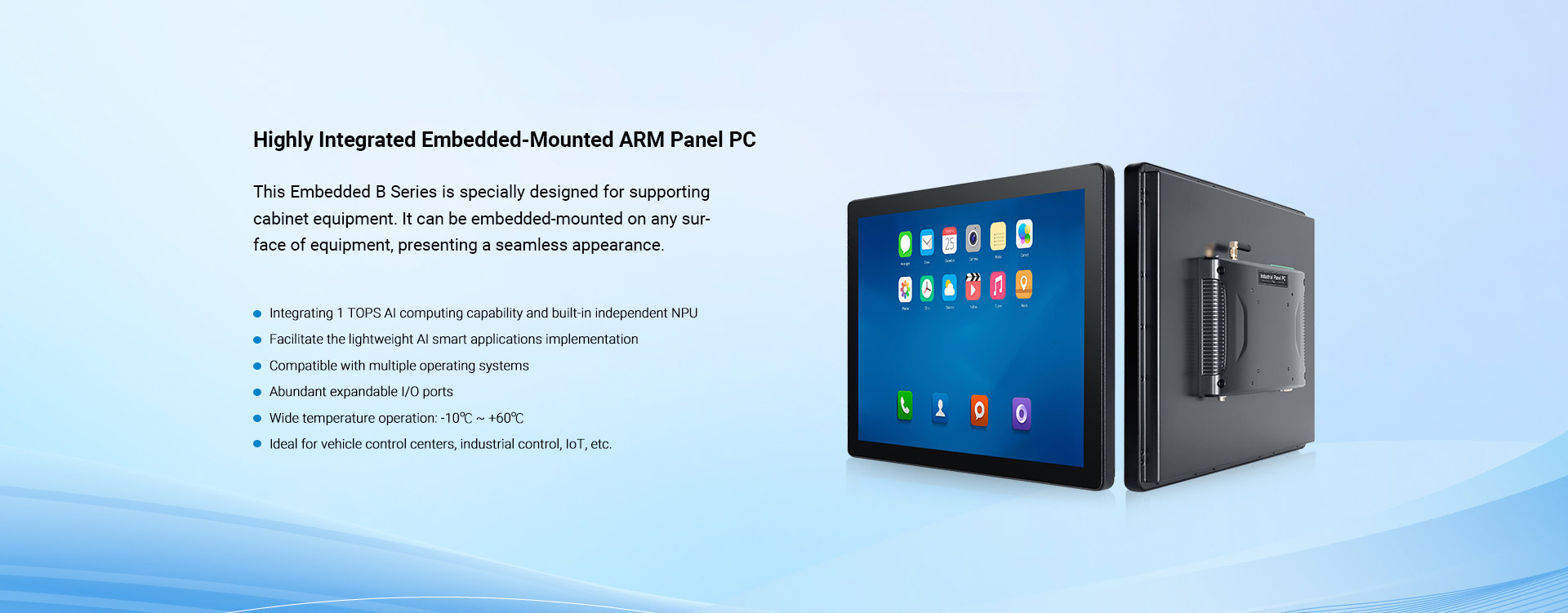

Touchthink Embedded B Series 12.0 Inch Android All-In-One Panel PC
TPC120-A19
- Narrow bezel design built for flush mount applications

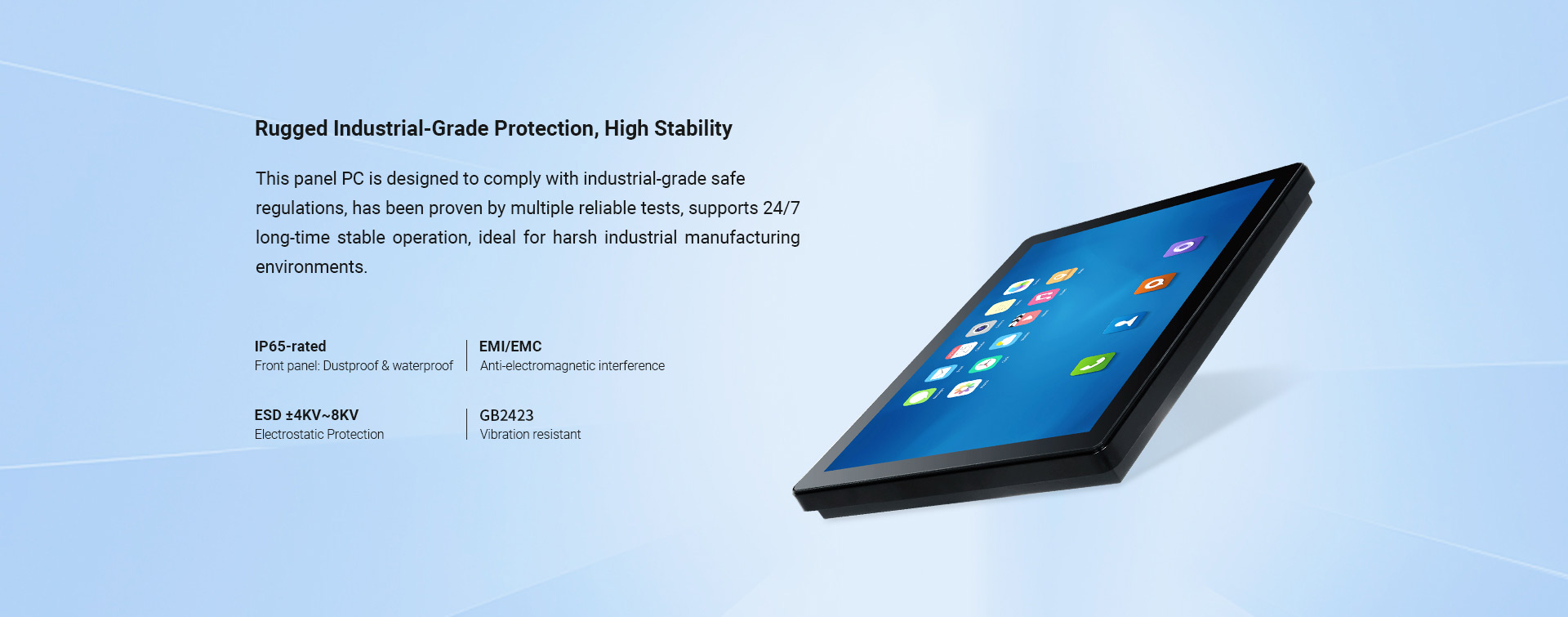

- High-precision aluminum alloy die-casting, IP65 waterproof and dustproof front panel
- Self-developed ARM architecture industrial motherboard

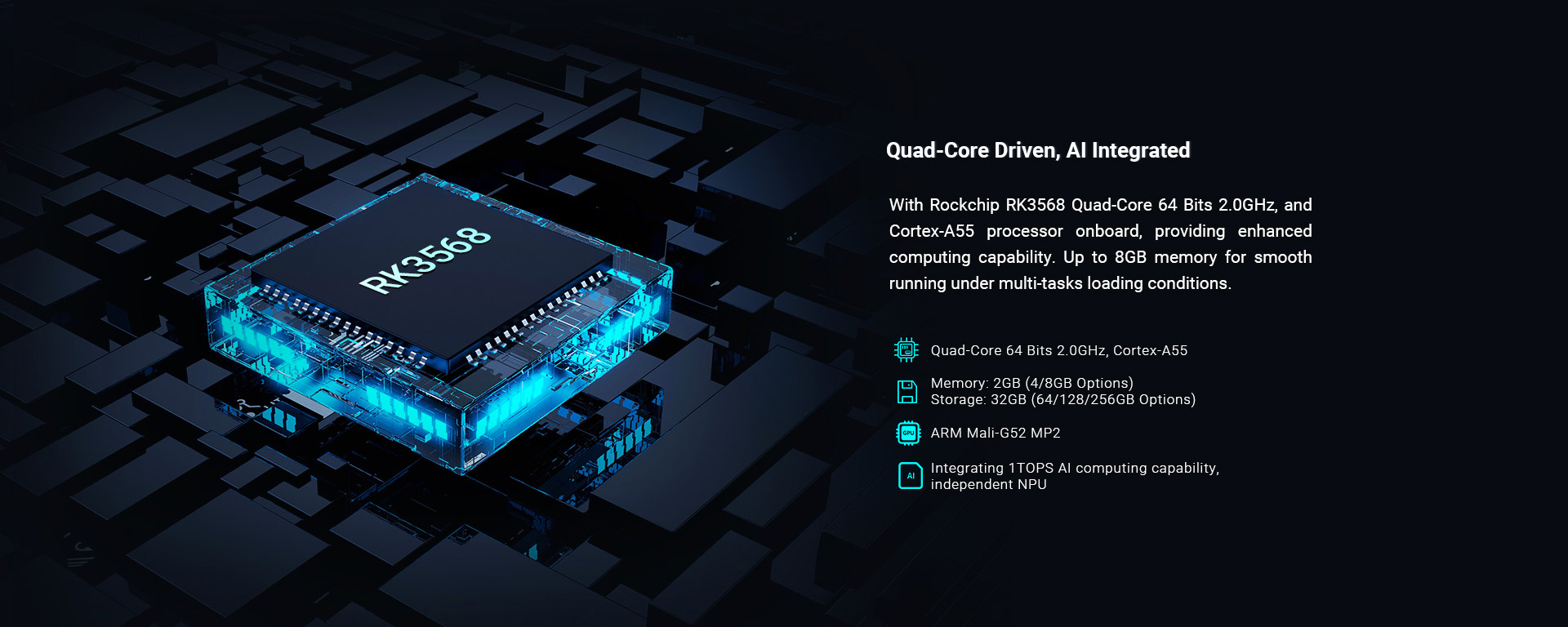

- RK3568 Quad-core 64-bit Cortex-A55 core architecture, up to 2.0GHz
- Built-in independent NPU with 1TOPS AI computing power
- Provide SDK package, Support secondary development and upgrade
Quick Inquiry
Touchthink Embedded B Series 12.0 Inch Android All-In-One Panel PC:
TPC120-A19
TPC120-A19
Required fields are marked *, We’ll respond within 12 hours.
Product View

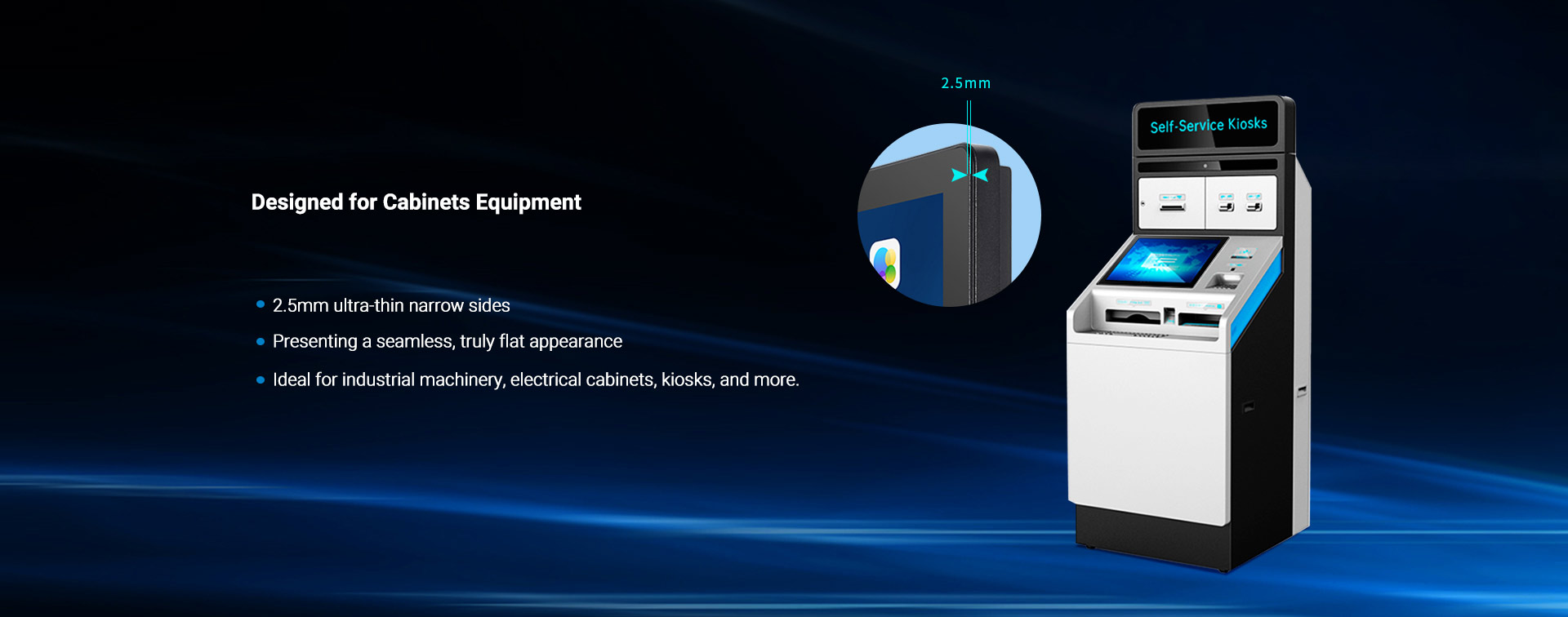

Aluminum alloy panel structure, IP65 waterproof front panel, the whole machine has low power consumption, 2.5mm short step narrow edge panel design, designed for cabinet equipment supporting the creation of seamless embedded installation, the panel is flush in the cabinet, harmonious and neat, highlighting the beauty of science and technology
| General Info | |
|---|---|
| Manufacturer | Touth Think |
| Product Manual |  TPC120-A19.pdf |
| Screen Size | 12.0 inch |
| Hardware Configuration | |
|---|---|
| CPU | RK3568, Quad-core 64-bit Cortex-A55 core architecture, Up to 2.0GHz |
| Memory | 2GB LPDDR4 (Optional 4GB/8GB) |
| Storage | 32GB eMMC (64GB/128GB/256GB Optional) |
| GPU | ARM Mali-G52 2EE |
| NPU | Built-in NPU with 1TOPS AI computing power |
| WiFi | WIFI 6 Single Band, 2.4G |
| Bluetooth | Bluetooth 5.2 |
| Operating System | Android 12.0, Linux5.10, Ubuntu/Debian |
| Product Model | |
|---|---|
| Non-Touch | TPC120-A1900 |
| Capacitive Touch | TPC120-A1910 |
| Resistive Touch | TPC120-A1920 |
| Physical Characteristics | |
|---|---|
| Overall Dimensions | W294.07x H232.6x D65.5mm |
| Interface Parameters | |
|---|---|

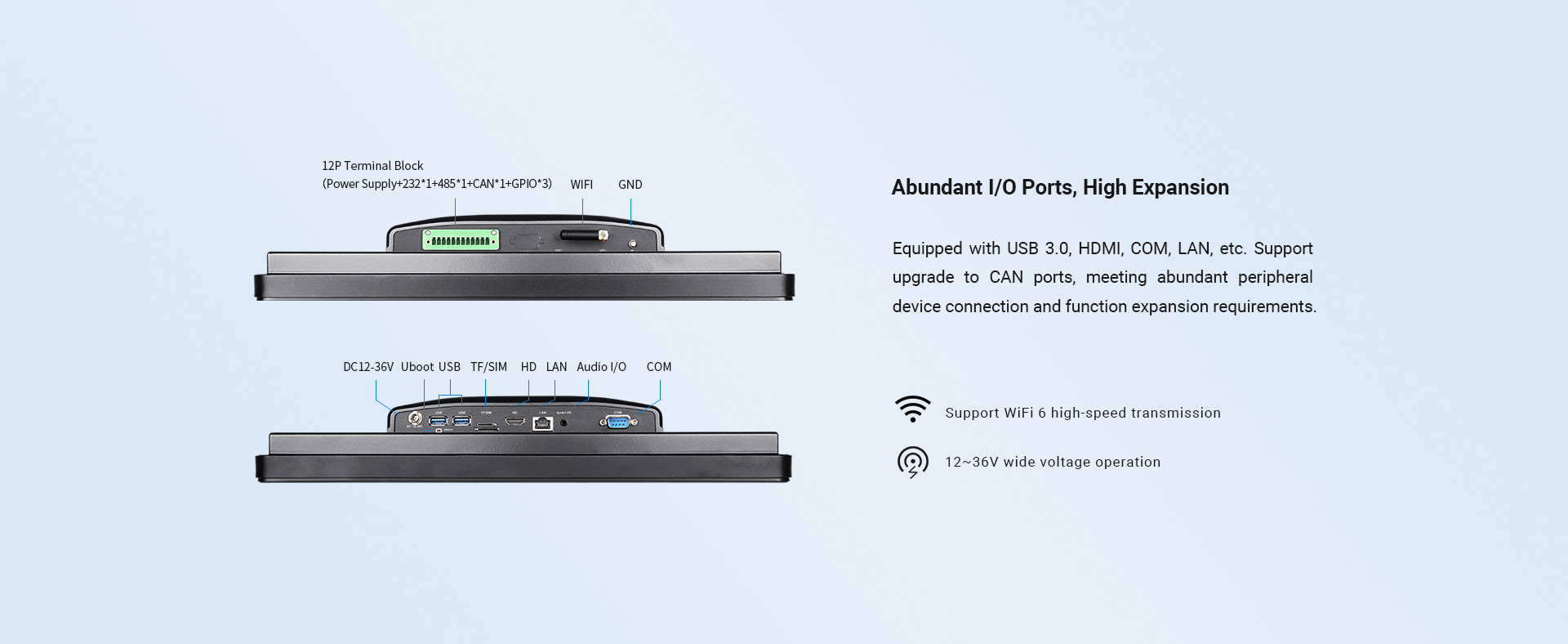

| Industrial terminals | 1*12P Phoenix terminal (Power supply/RS232*1/RS485*1/CAN*1/GPIO*3) |
| Power interface | 1*DC2.1, Support 12V-36V wide voltage power supply |
| USB | 2*USB3.0 |
| Audio Interface | 1* Audio output, support audio output |

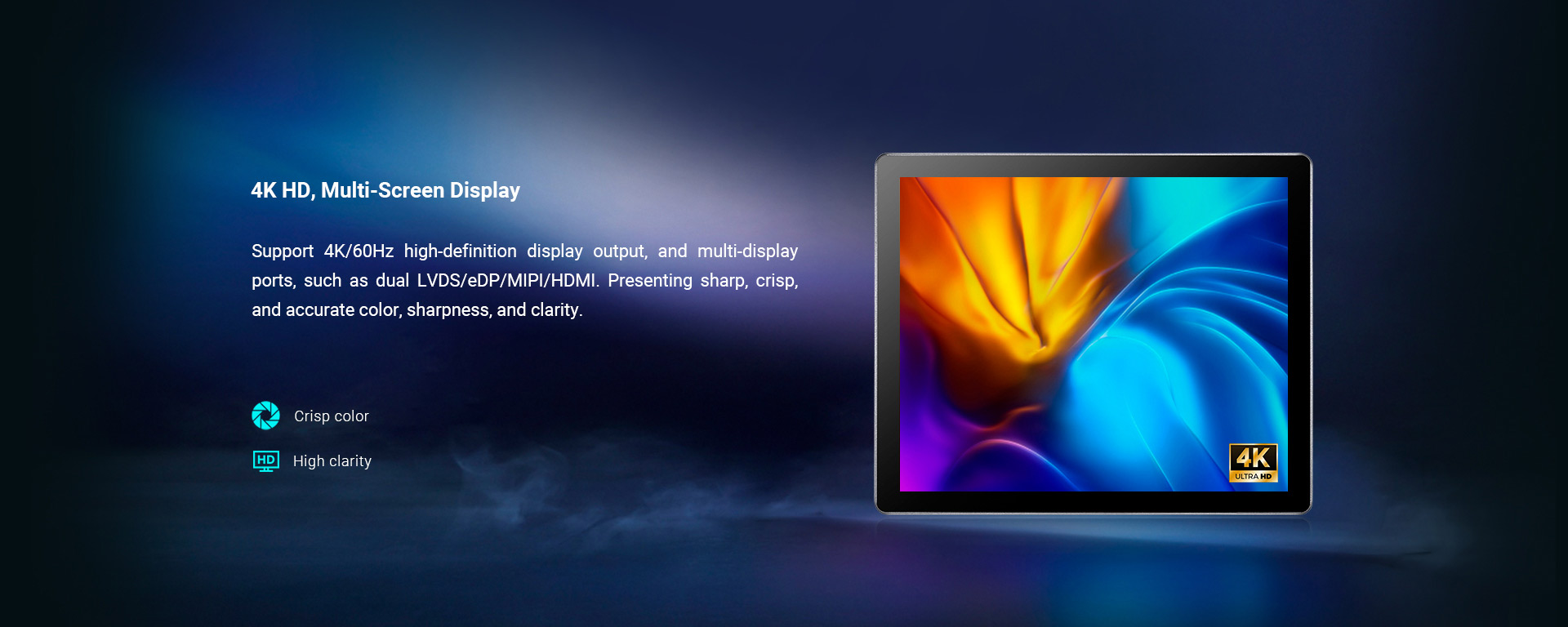

| HDMI | 1*HDMI, Supporting HDMI data output, up to 4K |
| TF | 1*TF card standard interface |
| SIM | 1*SIM, Supporting various formats (Depending on 3G/4G module) |
| Network interface | 1*LAN, 10M/100M/1000M adaptive Ethernet |
| COM | 1*RS232 |
| Reset key | Support (1*UBOOT) |
| WiFi antenna | 1*WiFi antenna |
| Grounding post | Support (1*GND) |
| Screen Parameters | |
|---|---|
| LCD Size | 12.0″ TFT LCD |
| Resolution | 1024*768 |
| Aspect Ratio | 4:3 |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Colour | 16.7M |
| Brightness | 500 cd/㎡ |
| Contrast Ratio | 1000:1 |
| Touch Parameters | |||
|---|---|---|---|
| Touch Type | Capacitive touch screen | Resistance touch screen | Non-touch |
| Touch Point | 10-point Touch Projection | Single Point | / |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input Mode | Handwriting or Capacitance pen | Fingertip or stylus | / |
| Controller communication | USB | USB | / |
| Reliability Parameters | |
|---|---|

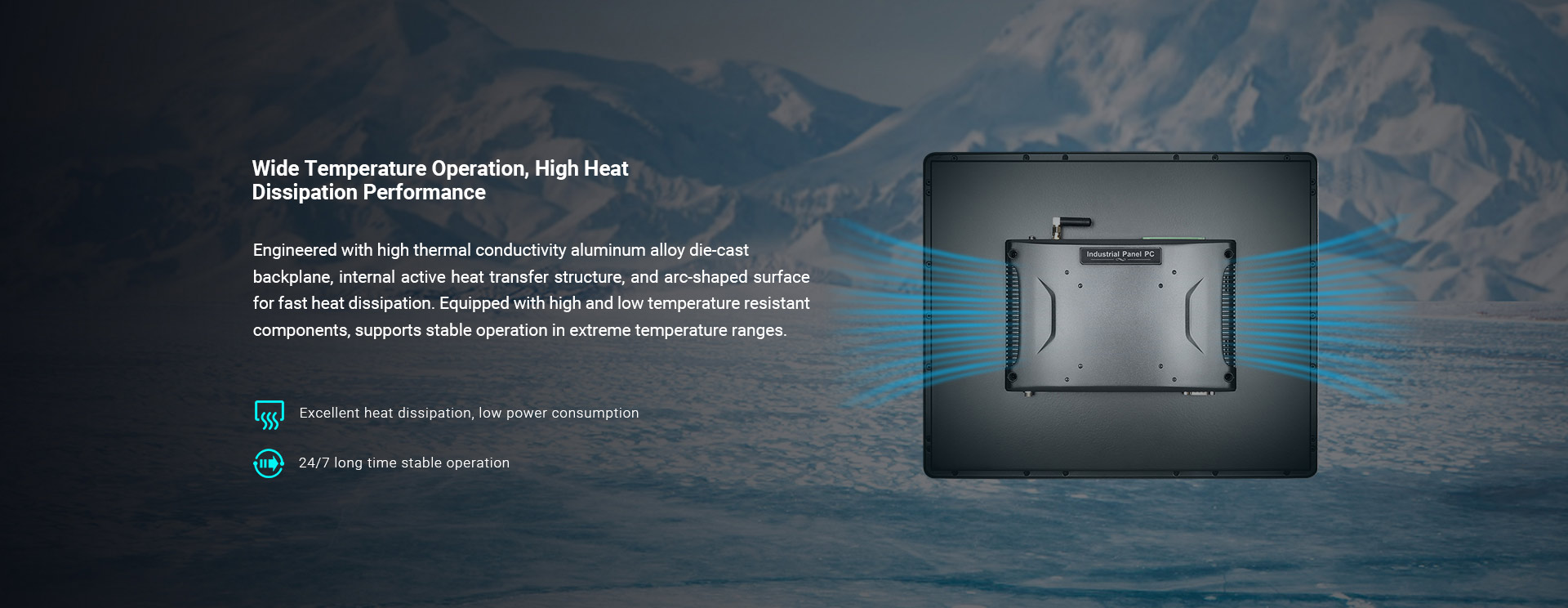

| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V~36V |
| Static power | 18W |
| Installation Method |
|---|
| Packing List |
|---|
| Other Items | |
|---|---|
| Warranty | 3-Year |
| Color | Black |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Logo,Packaging,Graphic |
