Touchthink Embedded B Series 15.6 Inch High-definition Touch Screen Monitor
TPC156-M19
- 10.1″-23.8″ multiple sizes are available
- 2.5mm thin narrow edge panel, specially designed for cabinets
- Independent research and development of industrial-grade driver boards
- High-definition industrial control LCD screen, a variety of touch methods are optional, precise touch

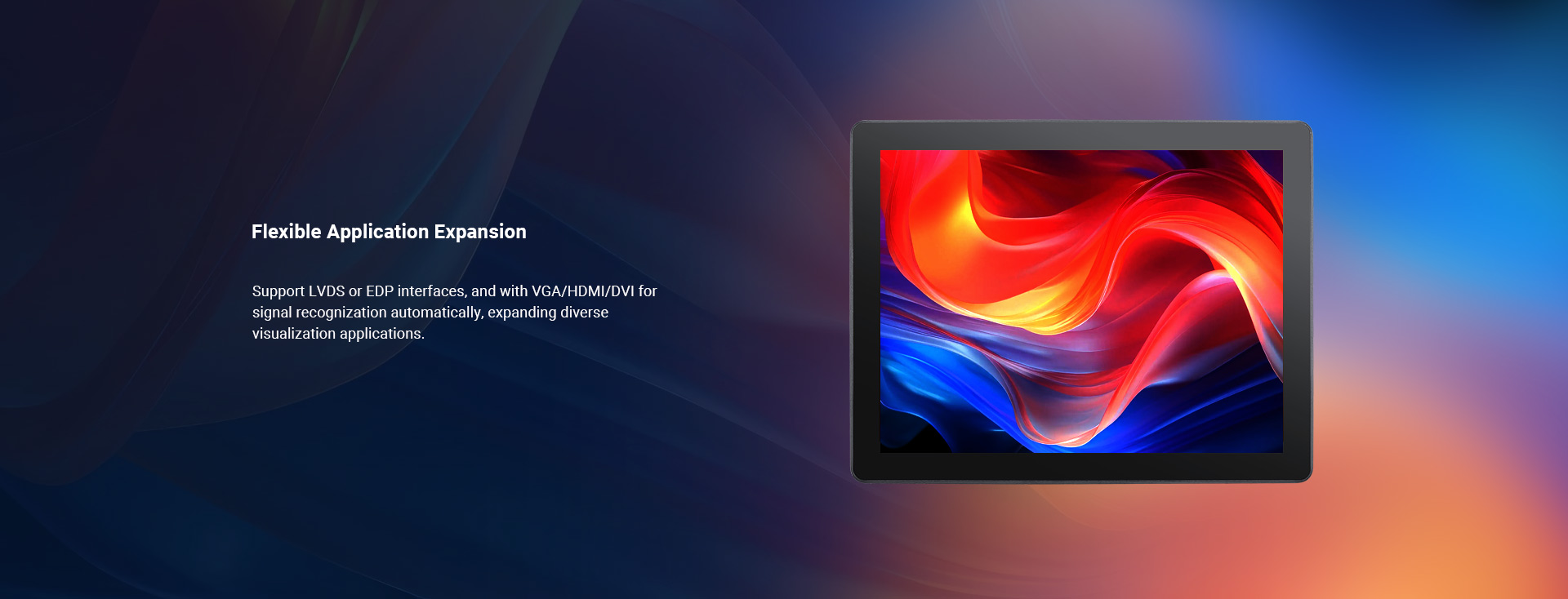

- Abundant expandable interfaces
Quick Inquiry
Touchthink Embedded B Series 15.6 Inch High-definition Touch Screen Monitor:
TPC156-M19
TPC156-M19
Required fields are marked *, We’ll respond within 12 hours.
Product View

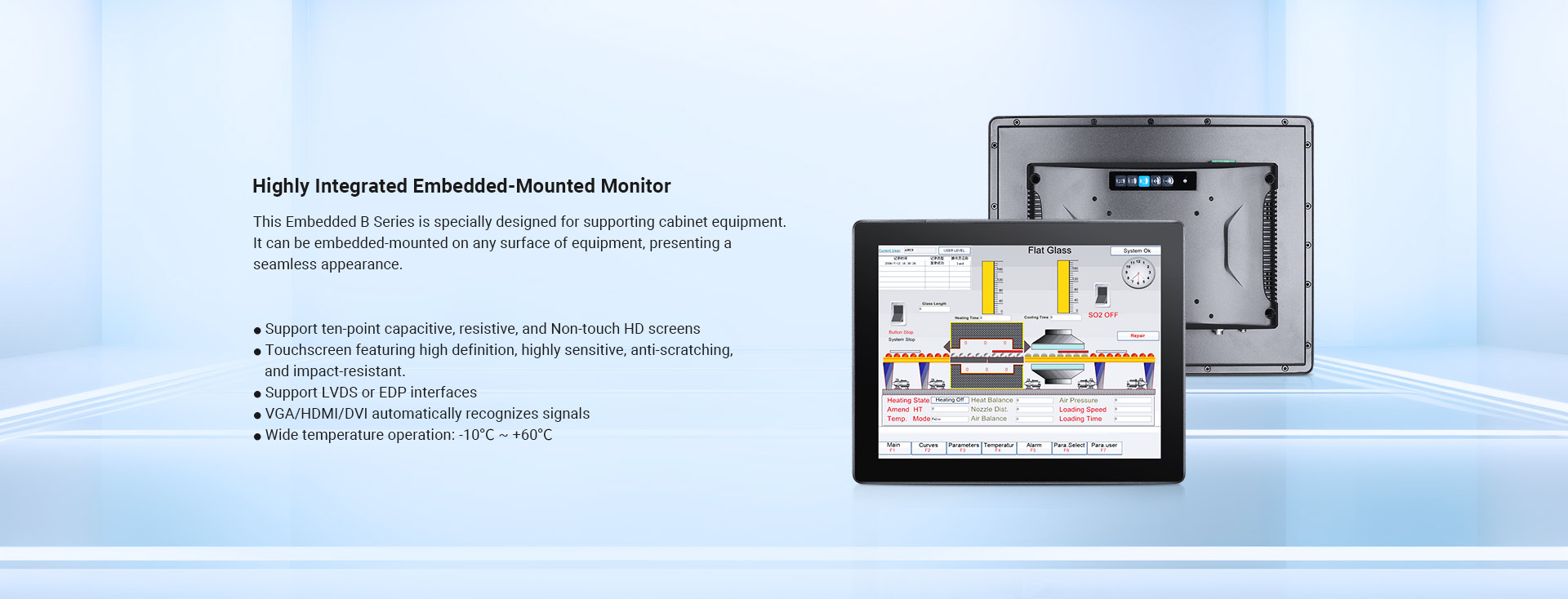

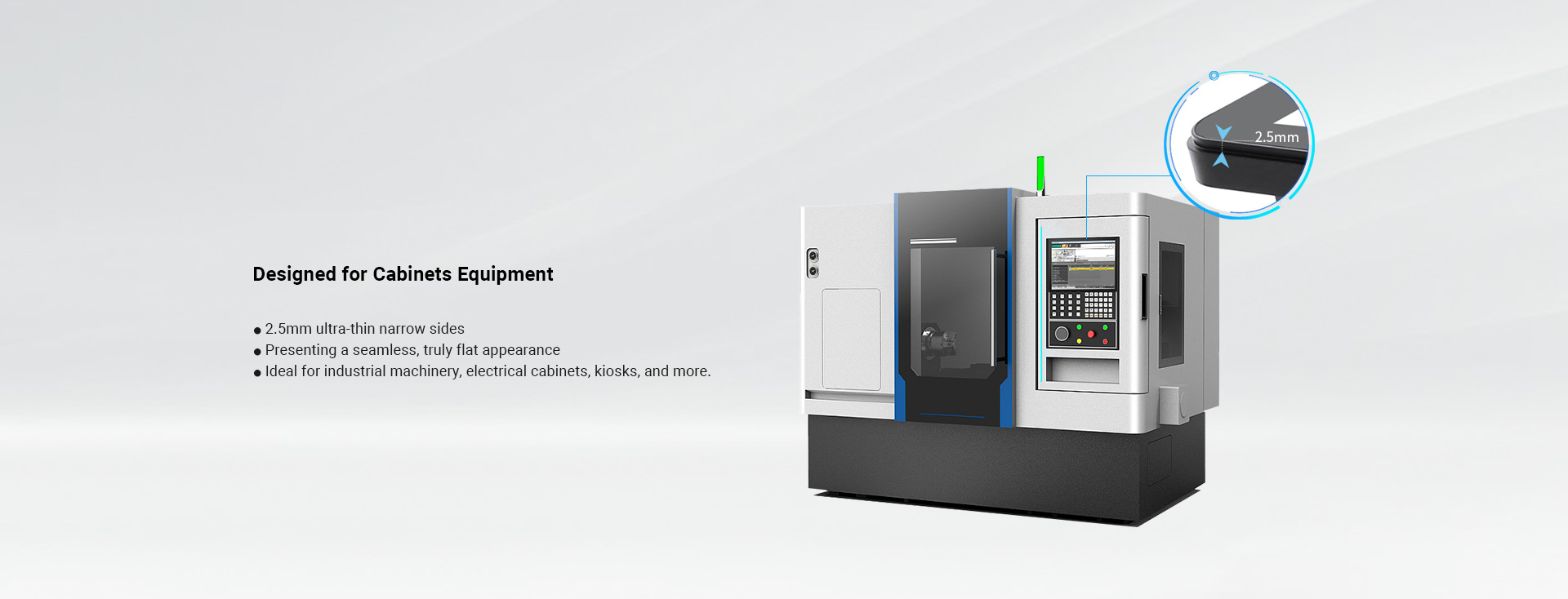

Aluminum alloy panel structure, IP65 waterproof front panel, low power consumption, 2.5mm low-end narrow panel design, specially designed for cabinet equipment, seamless embedded installation, panel flush with cabinet,
harmonious and regular, highlighting the beauty of science and technology. Through multiple industrial-grade reliability tests, and calmly copes with the harsh industrial environment.
| General Info | |
|---|---|
| Manufacturer | Touth Think |
| Product Manual |  TPC156-M19.pdf |
| Screen Size | 15.6 inch |
| Product Model | |
|---|---|
| Non-Touch | TPC156-M1900 |
| Capacitive Touch | TPC156-M1910 |
| Resistive Touch | TPC156-M1920 |
| Physical Characteristics | |
|---|---|
| Overall Dimensions | W391.55x H240.98x D51.9mm |

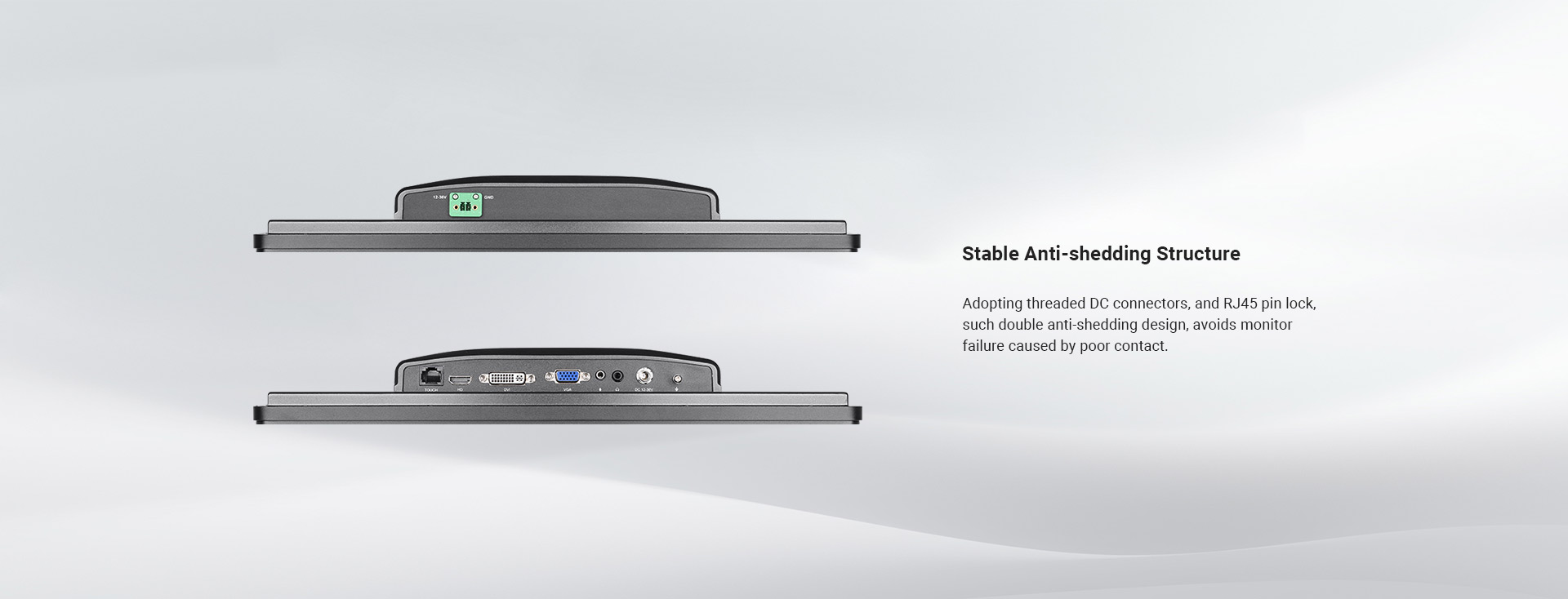

| Interface Parameters | |
|---|---|
| Power interface1 | 1*Industrial terminals, Support 12V-36V wide voltage power supply |
| Power interface2 | 1*DC2.1, Support 12V-36V wide voltage power supply |
| DVI | 1*DVI, Digital signal transmission |
| VGA | 1*VGA, Analog signal transmission |
| Audio Interface | 1* Audio output, support audio output |
| HDMI | 1*HDMI, Support HDMI data input, With a maximum of 1080P |
| Touch interface | 1*TOUCH（RJ45) |
| Grounding post | Support (1*GND) |

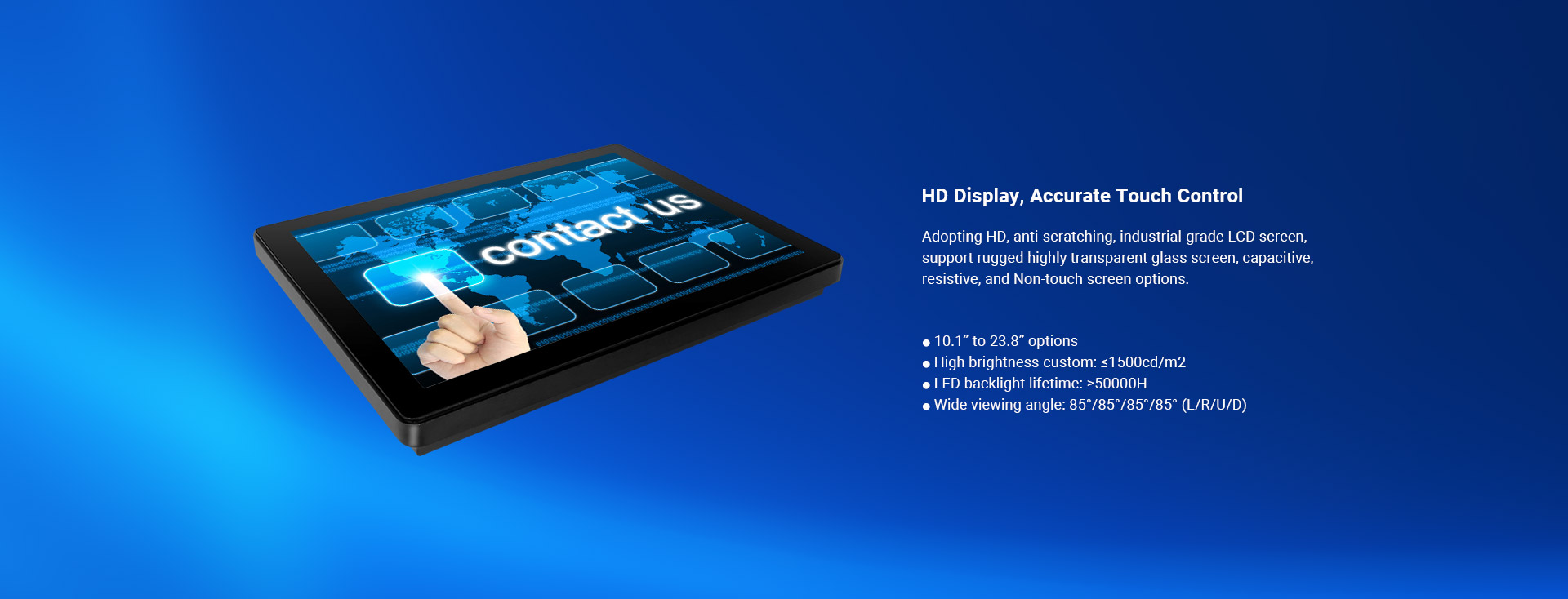

| Screen Parameters | |
|---|---|
| LCD Size | 15.6″ TFT LCD |
| Resolution | 1920*1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Colour | 16.7M |
| Brightness | 300 cd/㎡ |
| Contrast Ratio | 800:1 |
| Touch Parameters | |||
|---|---|---|---|
| Touch Type | Capacitive touch screen | Resistance touch screen | Non-touch |
| Touch Point | 10-point Touch Projection | Single Point | / |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input Mode | Handwriting or Capacitance pen | Fingertip or stylus | / |
| Controller communication | USB | USB | / |
| Hardware Configuration | |
|---|---|
| CPU | RTD2513 |
| Key Function | AUTO/MENU/POWER/LEFT/RIGHT |
| System Language | Multilingual (default: English) |
| Video Input | PC-RGB:Format Up to 1920*1080@60HZ Color 16bit/24bit/32bit |

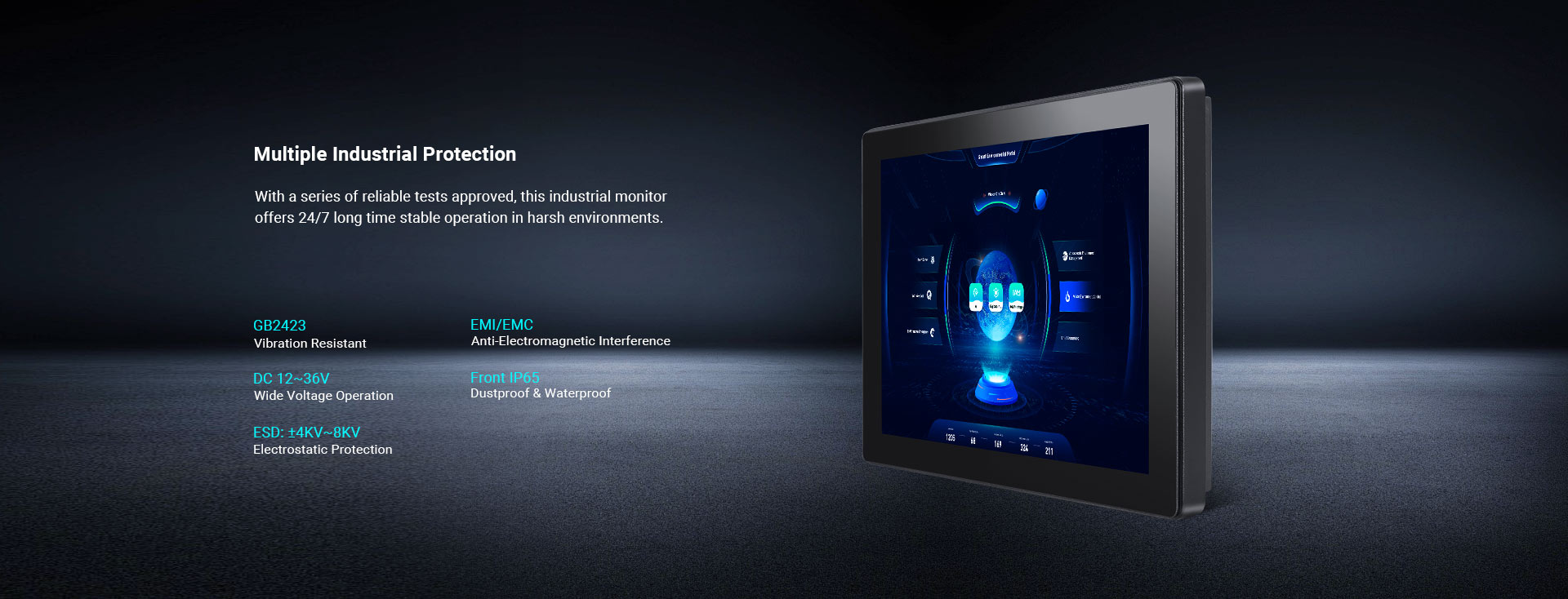

| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V~36V |
| Static power | 18W |
| Installation Method |
|---|

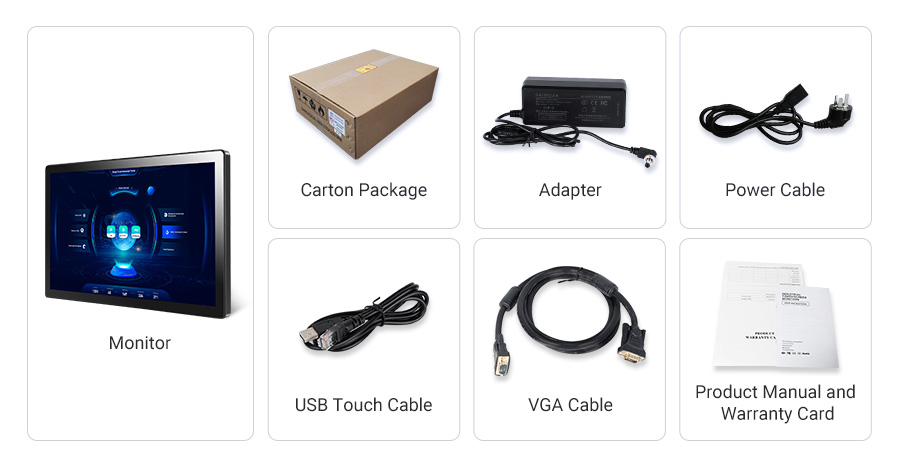

| Packing List |
|---|
| Other Items | |
|---|---|
| Warranty | 3-Year |
| Color | Black |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Logo,Packaging,Graphic |
