Touchthink Industrial Computer A Series Cutting-Edge Android Mini PC
TPC01-302AI0T
- Exquisite and compact appearance, easy to install
- Self-developed ARM architecture motherboard, a variety of solutions to choose from
- RK3568 quad-core 64-bit 2.0GHz high-performance CPU, built-in NPU with 1TOPS AI power.
- Highly integrated, WiFi / Bluetooth / Ethernet triple play

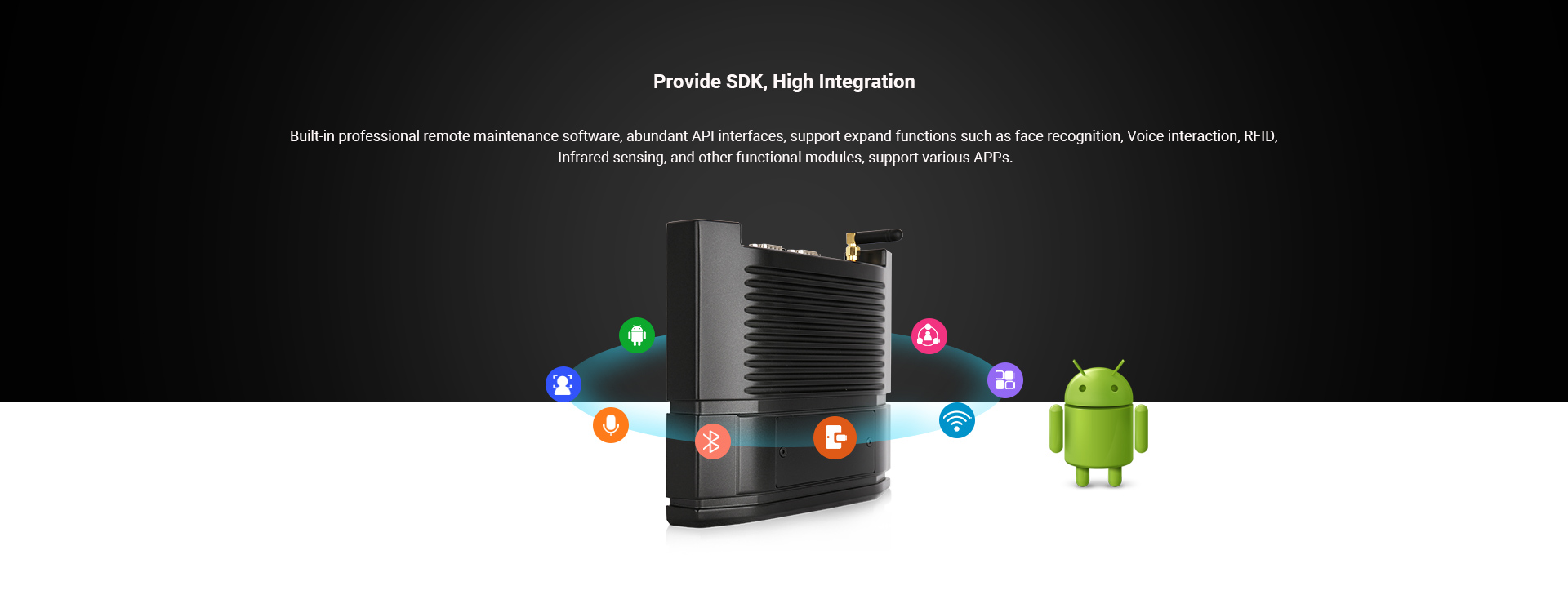

- Provide API reference code, support SDK secondary development
- Rich interfaces to meet the needs of a variety of external devices
Quick Inquiry
Touchthink Industrial Computer A Series Cutting-Edge Android Mini PC:
TPC01-302AI0T
TPC01-302AI0T
Required fields are marked *, We’ll respond within 12 hours.
Product View

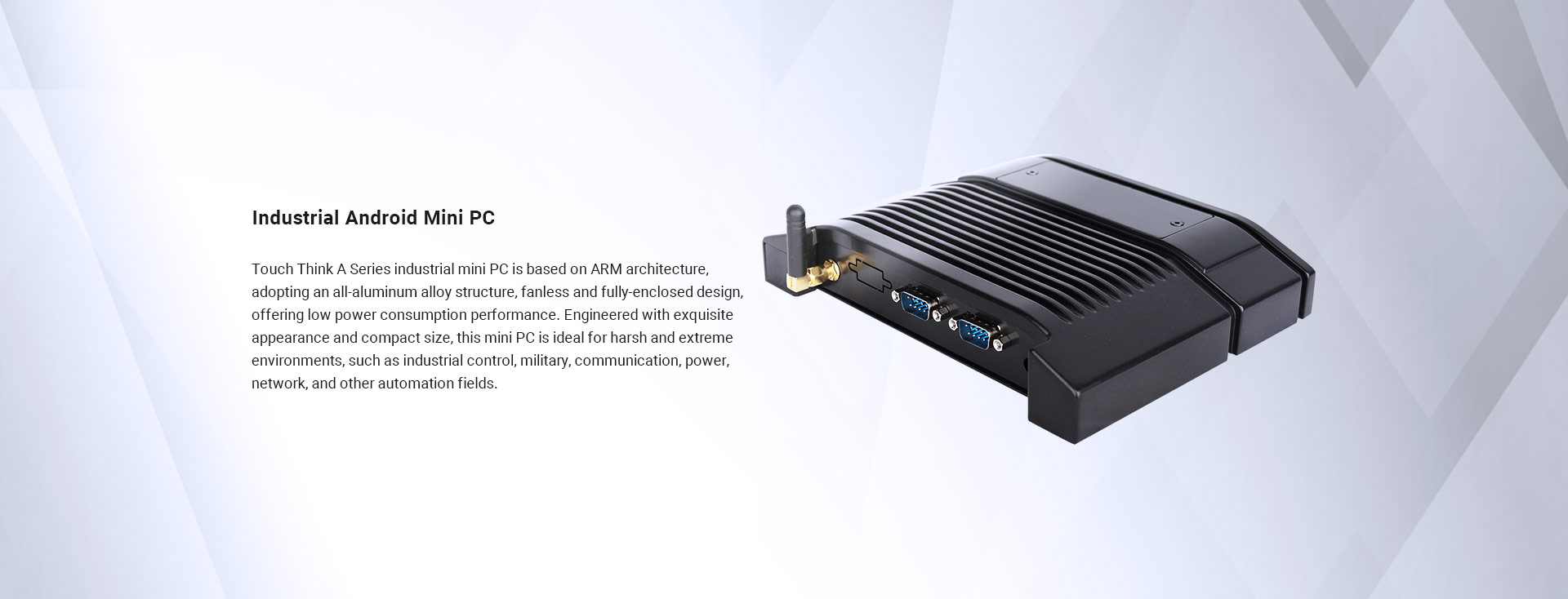

Adopting all-aluminium alloy structure, fanless and fully enclosed design, low power consumption of the whole machine, compact shape, more convenient to use and install; equipped with a quad-core 64-bit RK3568 high-performance processor, built-in NPU, with 1TOPS AI arithmetic, support for the development of light AI applications, and powerful open-source attributes to support higher levels of expansion and upgrading of applications. Rich interface, support expansion, widely used in industrial control,military, communications, power, network and other automation fields
| General Info | |
|---|---|
| Manufacturer | Touth Think |
| Product Manual |  TPC01-302AI0T.pdf |
| Hardware Configuration | |
|---|---|
| CPU | RK-3568 Quad-core 64-bit Cortex-A55 core architecture up to 2.0GHz |
| Memory | 2GB LPDDR4 (optional 4GB/8GB) |
| Storage | 32GB EMMC (optional 64GB/128GB) |
| GPU | ARM Mali-G52 2EE |
| NPU | 1TOPS AI arithmetic |
| WiFi | Support |
| ROM | 4KB EEPROM |
| Decoding resolution | Supports up to 8K/60HZ |
| 4G | 4G module interface with built-in MINI PCIE |
| Network support | 4G, Ethernet, wireless peripheral expansion, etc. |
| Bluetooth | Support |
| Operating System | Android 12.0, Linux5.10, Ubuntu/Debian |
| Barcode scanning module | Wide view barcode scanning module |
| Product Model | |
|---|---|
| Non-Touch | TPC01-AIOT |
| Physical Characteristics | |
|---|---|
| Overall Dimensions | W213.1 * H199.5 * D58.3 mm |
| Weights | 1.9KG |
| Interface Parameters | |
|---|---|
| Industrial terminals | 1*12P Phoenix terminal (power supply/232*1/485*1/CAN*1/GPIO*3) |
| Network interface | 1*LAN, 10M/100M/1000M adaptive Ethernet |
| USB | 2*USB3.0 |
| Network interface | 1*LAN, 10M/100M/1000M adaptive Ethernet |
| SIM | 1*SIM, Supporting various formats |
| DC | 1*DC55*21 with thread, can support 12-36V wide voltage power supply |
| Audio Interface | 1* Audio output, support audio output |
| HDMI | 1*HDMI, Supporting HDMI data output, Up to 4K |
| TF | Support TF expansion card (1*TF card slot) |
| UBOOT | 1* UBOOT |
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V-36V |
| Static power consumption | 15W |
| Installation Method |
|---|
| Packing List |
|---|
| Other Items | |
|---|---|

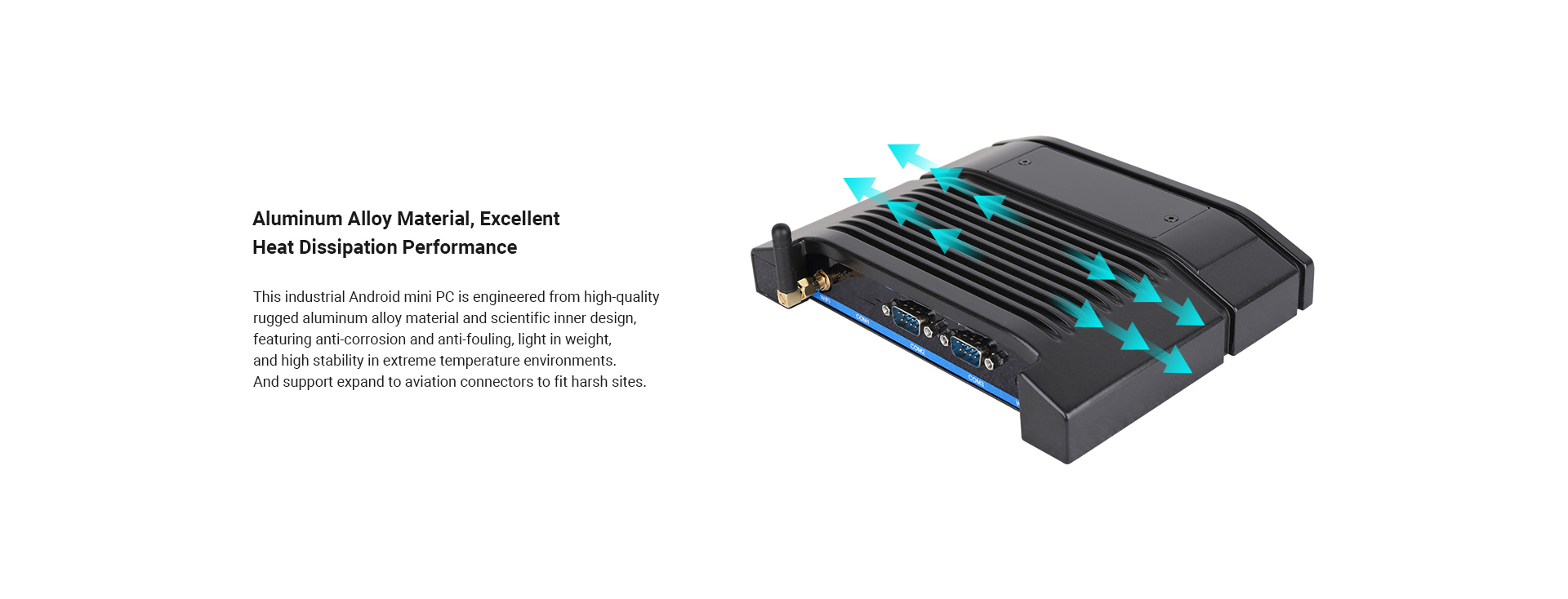

| Chassis structure | Aluminium alloy for chassis face |

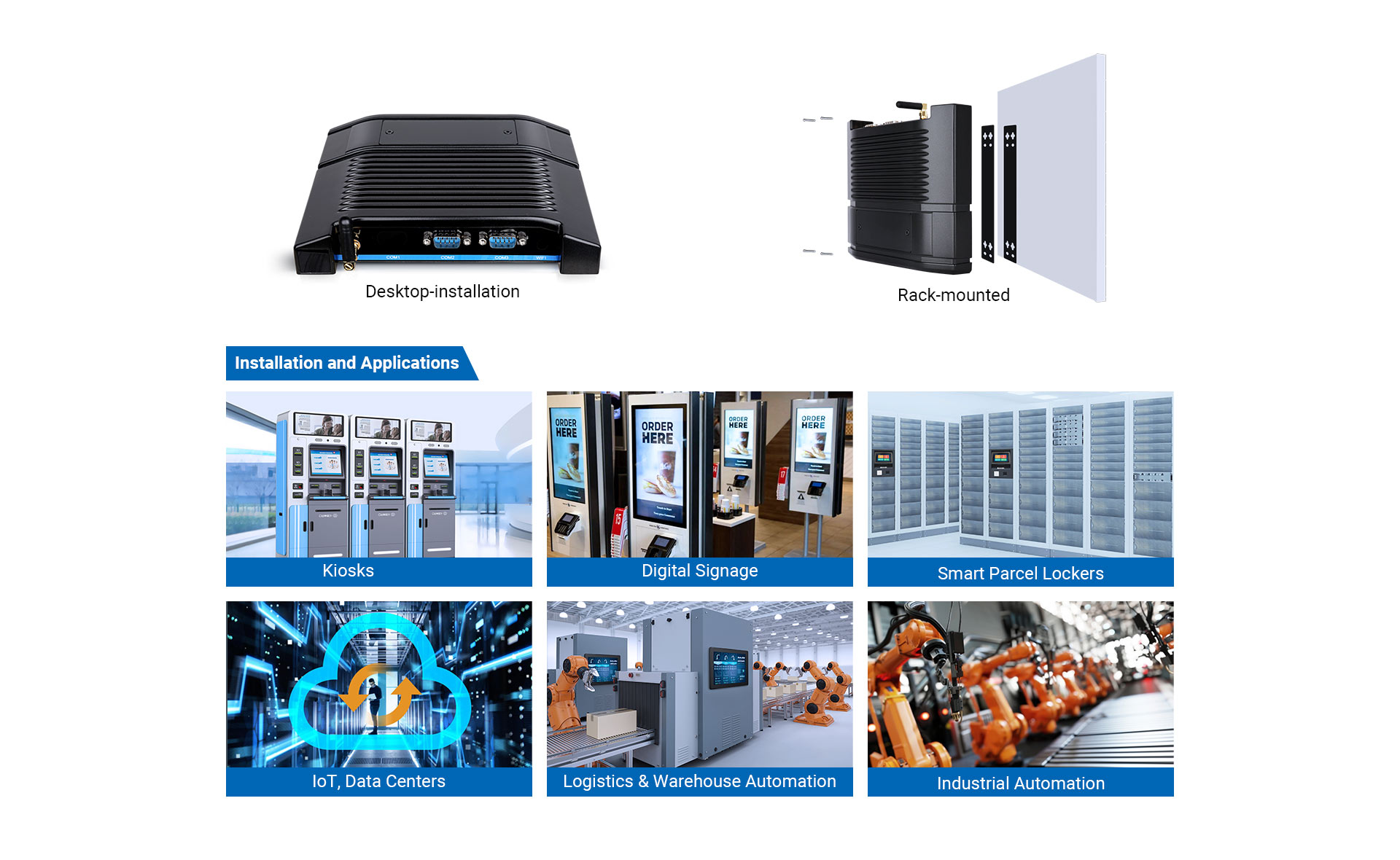

| Mounting method | Supports desktop and rack mounting |
| Warranty | 3-Year |
| Color | Gun black |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Logo,Packaging,Graphic |
