Touchthink Industrial Computer B Series Classic X86 Mini PC

TPC01-WIPC

Technical Specifications

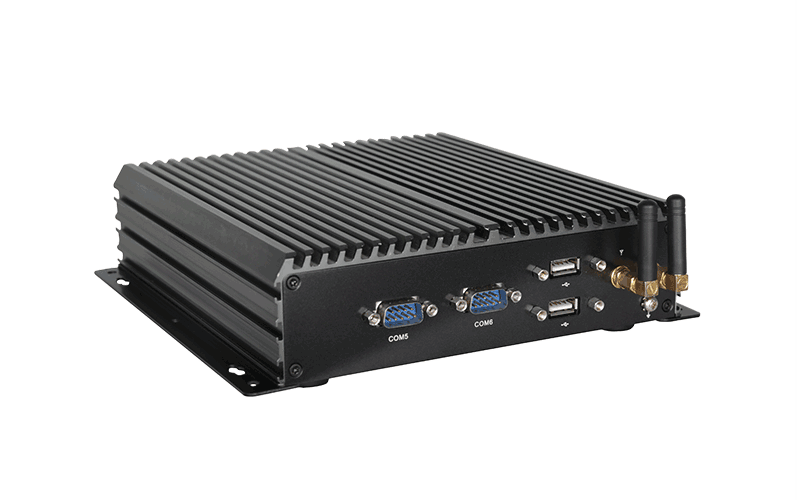

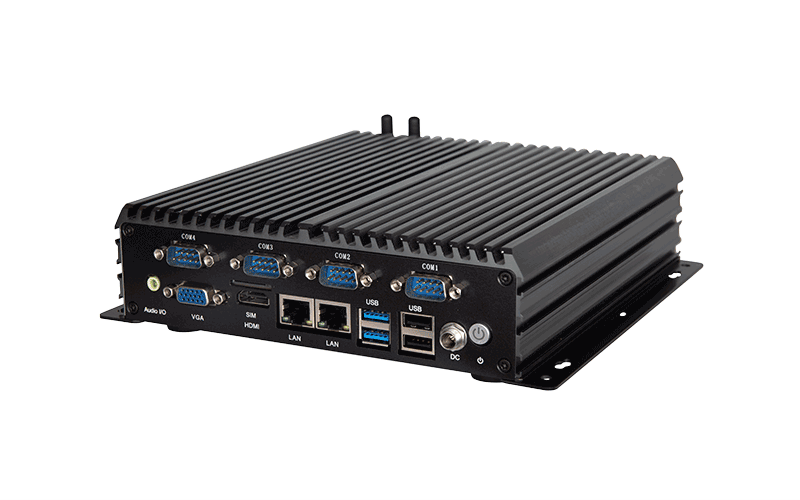

TPC01_WIPC

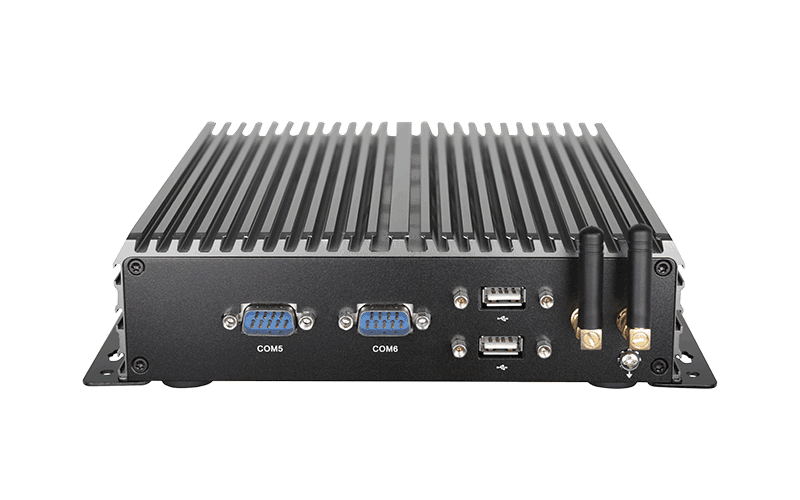

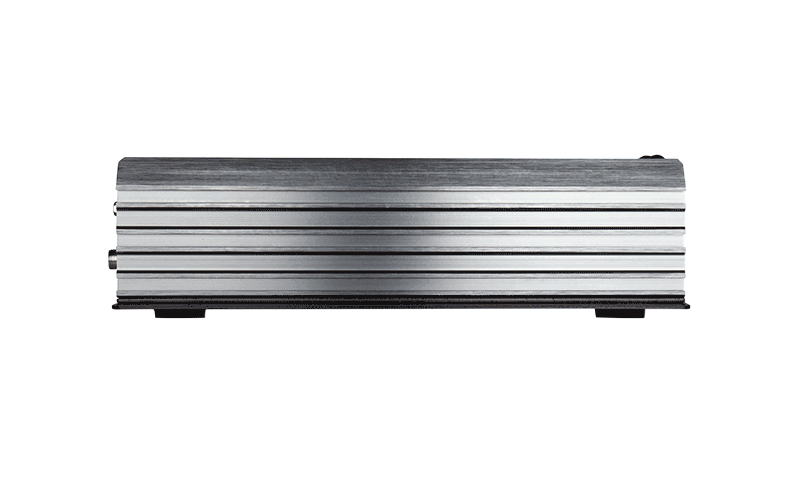

TPC01_WIPC

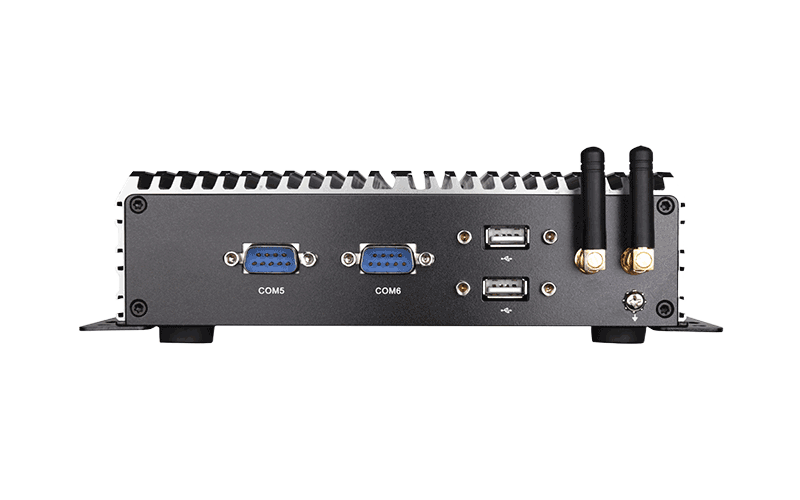

TPC01_WIPC

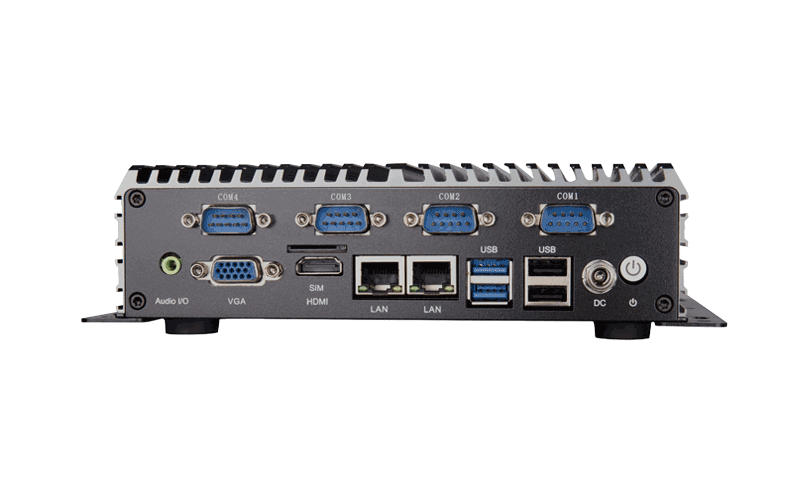

TPC01_WIPC
TPC01_WIPC
TPC01_WIPC

❮
❯





  • Delicate and compact appearance, convenient installation.
  • self-developed X86 architecture motherboard with multiple options
  • Fanless totally enclosed design, low power consumption of the whole machine
  • High integration, realizing wiFi/Bluetooth/Ethernet triple connection
  • Abundant interfaces to meet the needs of various external equipment
  • Industrial protection grade, stable system operation
tpc-w2 industrial monitor features image

Quick Inquiry
Touchthink Industrial Computer B Series Classic X86 Mini PC:
TPC01-WIPC








    Required fields are marked *, We’ll respond within 12 hours.

    Product View

    It adopts all-aluminum alloy structure, fanless and totally enclosed design, light and compact, with low power consumption. It is an industrial product specially designed for a variety of environments. It has rich interfaces, supports expansion, can meet the access of a variety of external devices, and supports 12V-36V wide voltage power supply; The
    complete machine has good scalability, practicability and EMC compatibility, and is widely used in industrial control, military industry, communication, power and network and other automation fields.

    Industrial-Computer-B
    Industrial-Computer-B
    Industrial-Computer-B
    Industrial-Computer-B

    General Info
    ManufacturerTouch Think
    Product Manualpdf iconTPC01-WIPC.pdf
    Hardware Configuration
    CPUI7-6500UI7-7500UI7-8565UI7-10210U
    CPU frequency2.5GHz2.7GHz1.8GHz1.8GHz
    Integrated graphicsInte HD Graphic 520Intel HD Graphics 620Intel Ultra HD Graphic 620Intel UHD630 Graphics
    RAM4G DDR4(Optional 8G/16G/32G)4G DDR4(Optional 8G/16G/32G)4G DDR4(Optional 8G/16G/32G)8G DDR4(Optional 16G/32G /64G)
    Storage64GB SSD (optional SSD 128GB-512GB, HDD 500GB-1T)
    WiFi2.4GHz / 5GHz dual bands
    BluetoothBT4.0(Optional)
    Audio chipOnboard Realtek ALC662 HD audio decoding controller
    Chip cardOnboard 1*Realtek RTL 811E Gigabit network card
    Resolution supportAbove 800*600
    Power onSupport
    Remote wakeupSupport
    Automatic resetSupport
    HD support1080P
    Operating SystemWin10 Professional/Win10 Enterprise/Win10 Home/Win11 Professional Ubuntu 16.04.7/Ubuntu 18.04.6/Centos7.8/Centos7.9/
    Centos8.4
    Product Model
    Non-TouchTPC01-WIPC
    Physical Characteristics
    Overall Dimensions W213.1 * H199.5 * D58.3 mm
    Weights 1.9KG

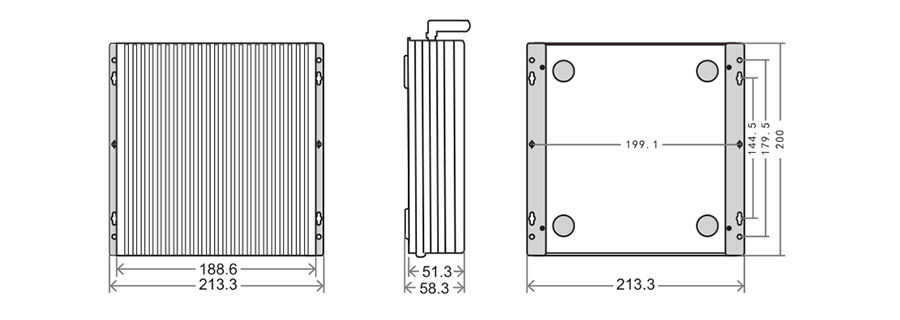

    tpc101 m2 dimensions

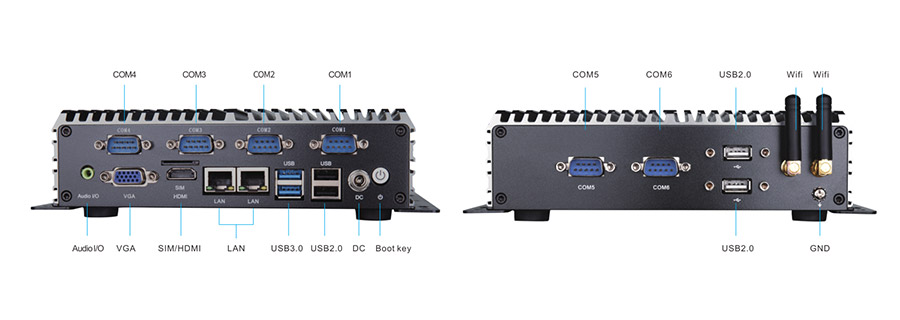

    tpc101 m2 interface
    Reliability Parameters
    Working Temperature-10°C~60°C
    Storage Temperature-20°C~70°C
    Relative HumidityHumidity: 95% Non-Condensing
    Vibration ProtectionIEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
    Impact ProtectionIEC 60068-2-27, Half sine wave, Lasting for 11ms
    Product CertificationCCC/CE/FCC/EMC/CB/ROHS
    Waterproof GradeThe front panel reaches IP65 protection level
    Power Parameters
    Power inputDC 12V-36V
    Static power consumption15W
    Installation Method
    installation method
    Packing List

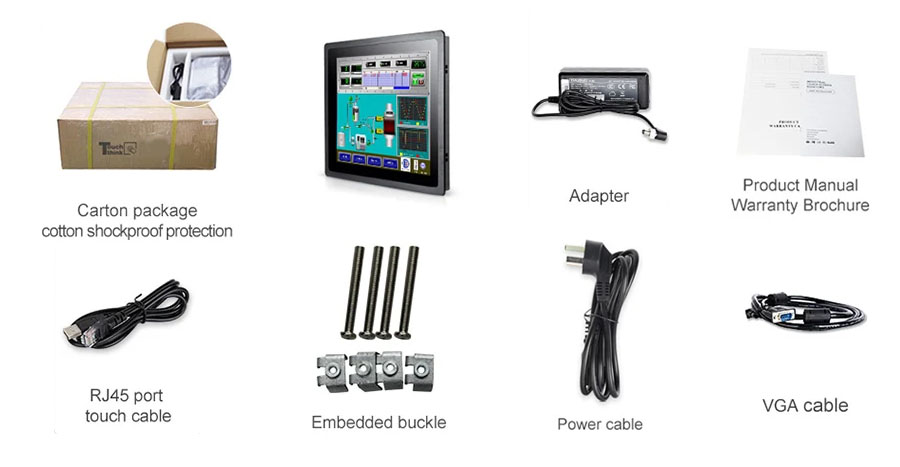

    machine packing list
    Other Items
    Chassis structureAluminium alloy for chassis face
    Mounting methodSupports desktop and rack mounting
    Warranty3-Year(1yr free, 2-3yr paid)
    ColorGun black
    After-sales ServiceCall Center and on-line Technical Support
    Place of OriginGuangdong, China
    ExpressUPS/DHL/Fedex/EMS,etc
    Delivery Time1-7 Working Days
    Packaging DetailsPacked in Standard EXPORT Cartons
    Delivery PortShenzhen/Hongkong
    CustomizationAppearance,Screen,Interfaces,Environmental
