Touchthink Industrial Computer B Series Classic X86 Mini PC
TPC01_WIPC
- Delicate and compact appearance, convenient installation.
- self-developed X86 architecture motherboard with multiple options
- Fanless totally enclosed design, low power consumption of the whole machine
- High integration, realizing wiFi/Bluetooth/Ethernet triple connection
- Abundant interfaces to meet the needs of various external equipment
- Industrial protection grade, stable system operation
Quick Inquiry
Touchthink Industrial Computer B Series Classic X86 Mini PC:
TPC01_WIPC
TPC01_WIPC
Required fields are marked *, We’ll respond within 12 hours.
Product View

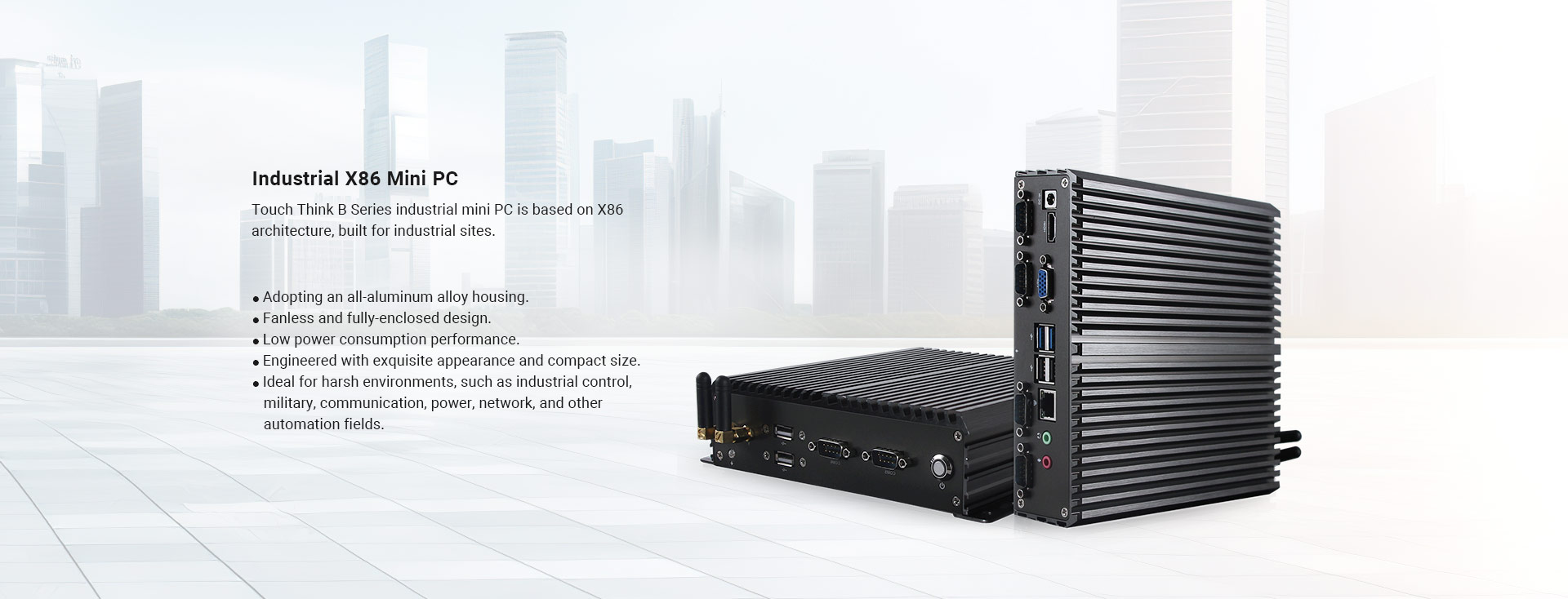

It adopts all-aluminum alloy structure, fanless and totally enclosed design, light and compact, with low power consumption. It is an industrial product specially designed for a variety of environments. It has rich interfaces, supports expansion, can meet the access of a variety of external devices, and supports 12V-36V wide voltage power supply; The
complete machine has good scalability, practicability and EMC compatibility, and is widely used in industrial control, military industry, communication, power and network and other automation fields.
| General Info | |
|---|---|
| Manufacturer | Touth Think |
| Product Manual |  TPC01_WIPC.pdf |
| Hardware Configuration | |
|---|---|
| CPU | Intel Celeron J4125 quad-core 2GHz |
| Memory | 4GB DDR3 1333/1600M（Optional：8GB） |
| Storage | 64GB SSD (optional: SSD 128GB/512GB, HDD 500GB/1T) |
| Integrated graphics | Intel UHD Graphics 600 |
| WiFi | Support 2.4G/5G dual-band WiFi WIFI |
| Bluetooth | Bluetooth 4.0 |

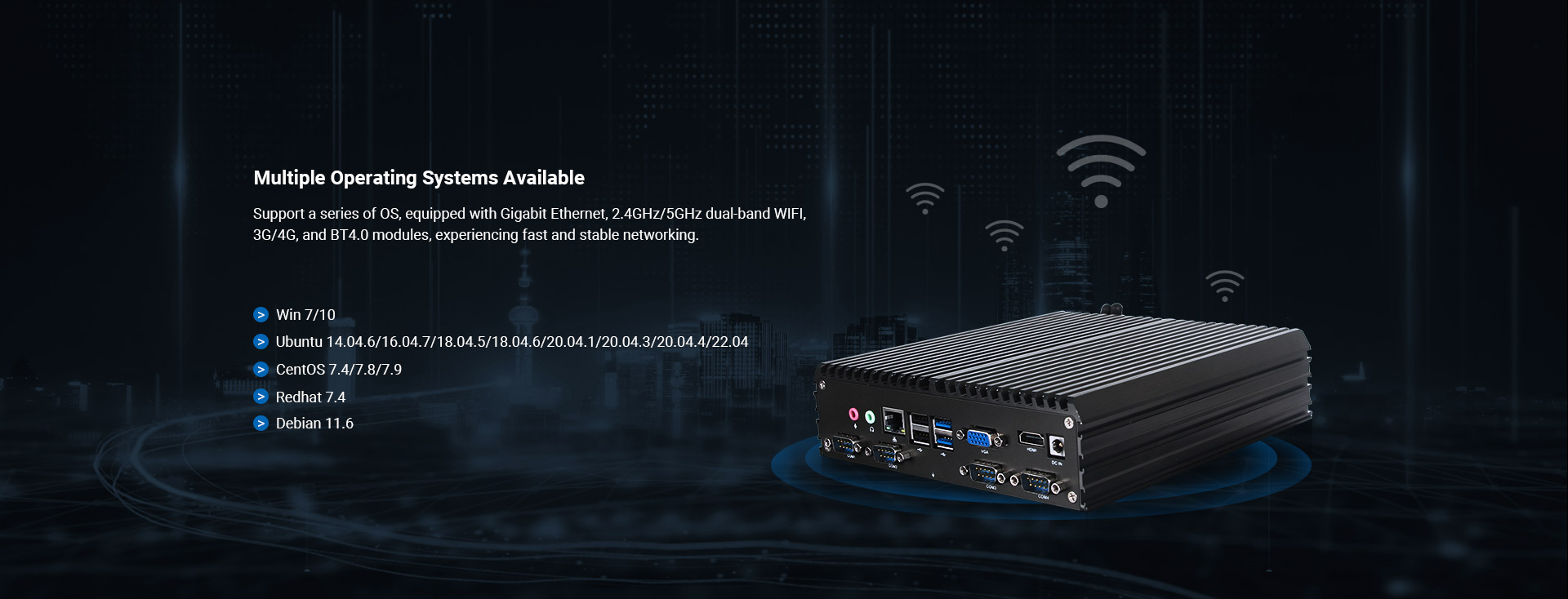

| Operating System | Windows 7 Professional/Windows 7 Ultimate/Windows 10 Professional/Windows 10 Enterprise/Windows 10 Home/ Windows 11 Professional, Ubuntu16.04.7/Ubuntu18.04.5/Ubuntu20.04.3、Centos7.6/Centos7.8 |
| Audio chip | Onboard Realtek ALC662 HD audio decoding controller |
| Chip card | Onboard 1 * Realtek RTL 811E Gigabit network card |
| Resolution support | Above 800 * 600 |
| Power on | Support |
| Remote Wakeup | Support |

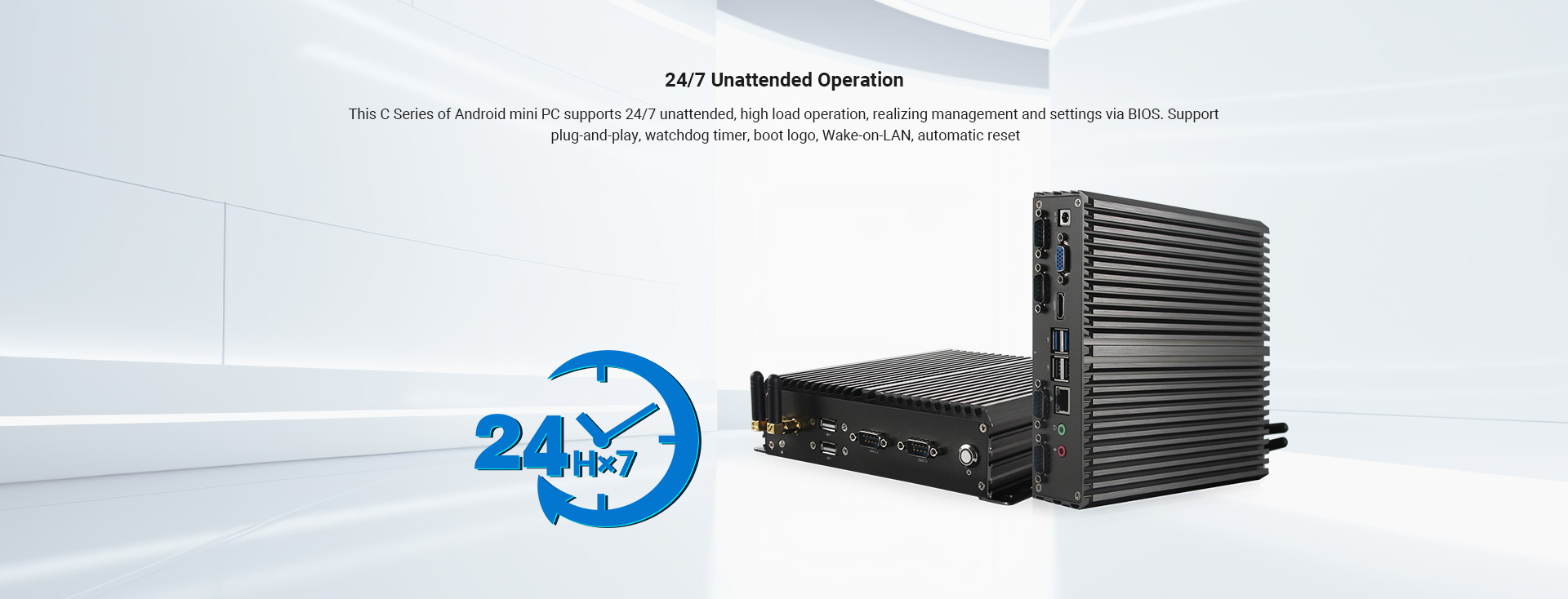

| Automatic reset | Support |
| HD support | 1080P |
| Product Model | |
|---|---|
| Non-Touch | TPC01_WIPC |
| Physical Characteristics | |
|---|---|
| Overall Dimensions | W213.1 * H199.5 * D58.3 mm |
| Weights | 1.9KG |
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V-36V |
| Static power consumption | 15W |
| Installation Method |
|---|
| Packing List |
|---|
| Other Items | |
|---|---|
| Chassis structure | Aluminium alloy for chassis face |

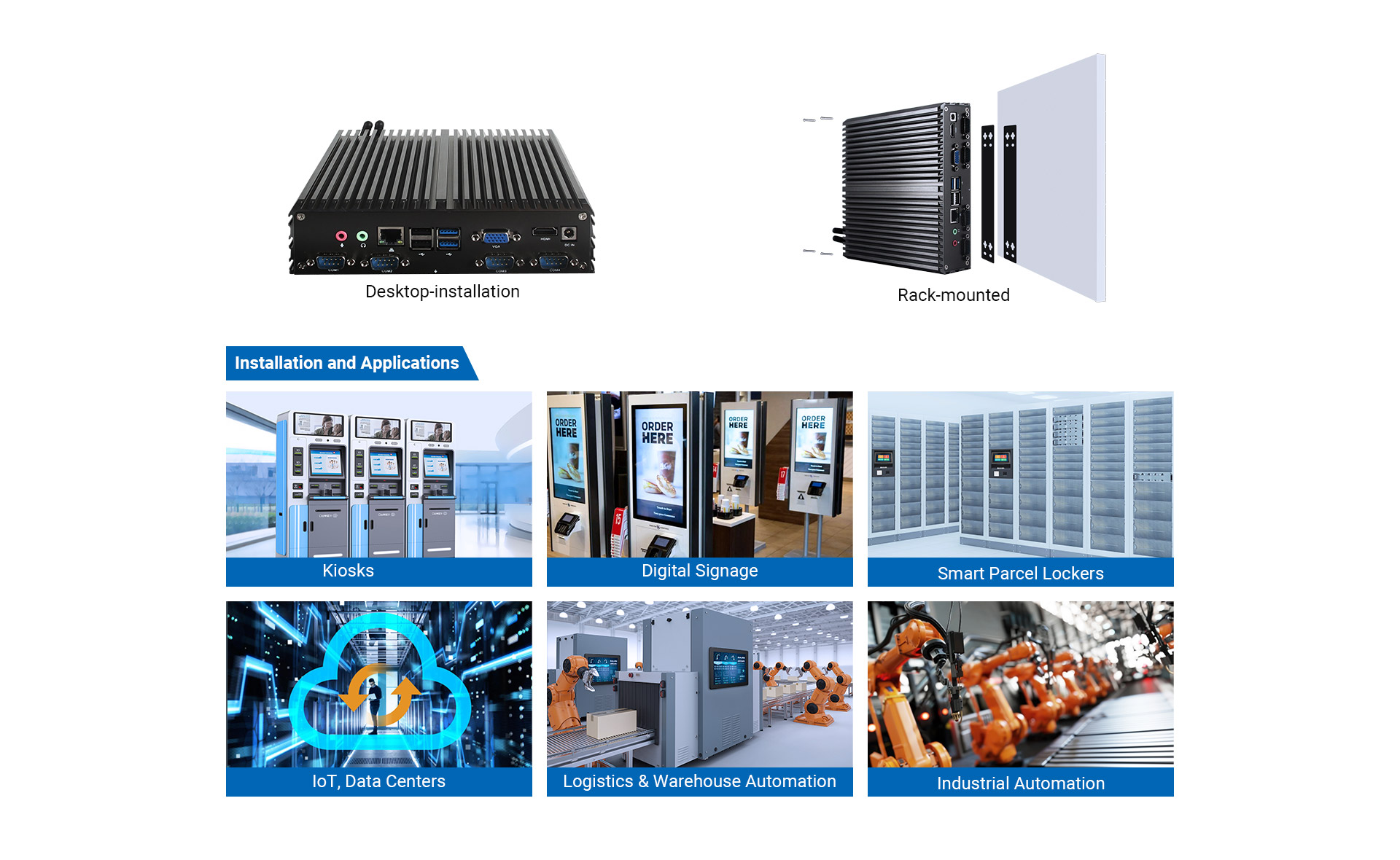

| Mounting method | Supports desktop and rack mounting |
| Warranty | 3-Year |
| Color | Gun black |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Logo,Packaging,Graphic |
