Touchthink Medical M Series Touch Screen Monitor
TPC070-MT
- Self-developed industrial motherboard with multiple touch modes
- Anti-vibration, anti-radiation, anti-static layout structure design
- Upgraded anti-interference internal layout, ESD up to: ±8KV~±15KV
- Industrial-grade protection, adapt to a variety of harsh environments
- Obtained medical industry test report EN 60601-1-2:2015
- Supports desktop, wall, cantilever, boom and recessed mounting
Quick Inquiry
Touchthink Medical M Series Touch Screen Monitor:
TPC070-MT
TPC070-MT
Required fields are marked *, We’ll respond within 12 hours.
Product View
Adopt a higher standard LCD screen and a high-precision touch screen. The fuselage is made of aluminum alloy structure. The fully enclosed fanless design scheme is specially designed for complex medical environment, which can ensure long-term stable operation under complex medical conditions; All products have obtained medical test reports such as EMI, ESD, safety regulations, pulse group, emission radiation, etc
| General Info | |
|---|---|
| Manufacturer | Touth Think |
| Product Manual |  TPC070-MT.pdf |
| Screen Size | 7.0 inch |
| Product Model | |
|---|---|
| Non-Touch | TPC070-MT02 |
| Capacitive Touch | TPC070-MT12 |
| Resistive Touch | TPC070-MT22 |
| Physical Characteristics | |
|---|---|
| Overall Dimensions | W225.04x H160.7x D59mm |
| Size of Opening | W212.84x H148.5mm |
| Interface Parameters | |
|---|---|
| Grounding column | Support (1*GND) |
| Power interface1 | 1*Industrial terminals, Support 12V-36V wide voltage power supply |
| Power interface2 | 1*DC2.1, Support 12V-36V wide voltage power supply |
| HDMI | 1*HDMI, Support HDMI data input, and supports 1080P at most |
| Touch interface | 1*TOUCH(RJ45) |
| VGA | 1*VGA, Analog signal transmission |
| DVI | 1*DVI, Digital signal transmission |
| Audio interface | 1*Audio I/O, Support audio input and output |
| Screen Parameters | |
|---|---|
| LCD Size | 7.0″ TFT LCD |
| Resolution | 1024*600 |
| Aspect Ratio | 16:9 |
| Viewing Angle | 75/75/70/75 (L/R/U/D) |
| Colour | 16.7M |
| Brightness | 300 cd/㎡ |
| Contrast Ratio | 500:1 |
| Touch Parameters | |||
|---|---|---|---|
| Touch Type | Capacitive touch screen | Resistance touch screen | Non-touch |
| Touch Point | 10-point Touch Projection | Single Point | / |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input Mode | Handwriting or Capacitance pen | Fingertip or stylus | / |
| Controller communication | USB | USB | / |
| Hardware Configuration | |
|---|---|
| CPU | RTD2513 |
| Key Function | AUTO/MENU/POWER/LEFT/RIGHT |
| System Language | Multilingual (default: English) |
| Video Input | PC-RGB:Format Up to 1920*1080@60HZ Color 16bit/24bit/32bit |
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V~36V |
| Static power | 18W |
| Installation Method |
|---|

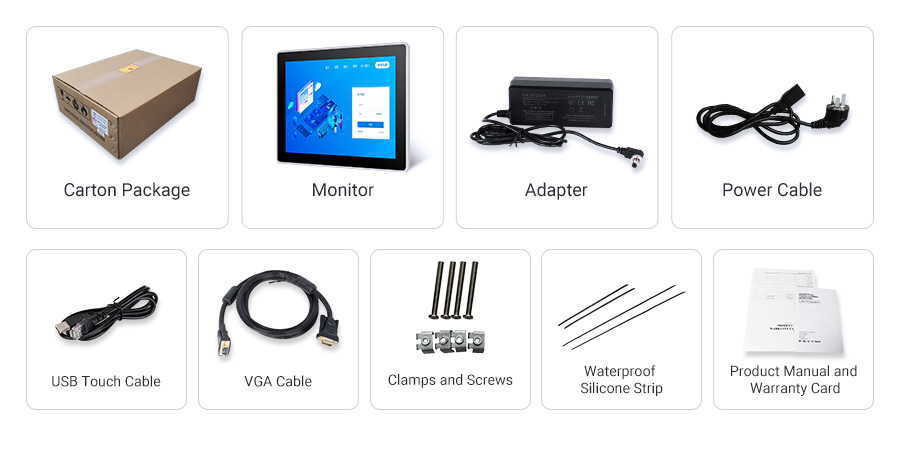

| Packing List |
|---|
| Other Items | |
|---|---|
| Warranty | 3-Year |
| Color | Black / Silver |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Logo,Packaging,Graphic |
