Touchthink Medical M Series Andriod RK3288 All-In-One Panel PC

TPC101-AT

Technical Specifications
TPC101-AT
TPC101-AT
TPC101-AT
TPC101-AT
TPC101-AT

❮
❯




  • Self-developed industrial motherboard with multiple touch modes
  • Anti-vibration, anti-radiation, anti-static layout structure design
  • Upgraded anti-interference internal layout, ESD up to: ±8KV~±15KV
  • Industrial-grade protection, adapt to a variety of harsh environments
  • Obtained medical industry test report EN 60601-1-2:2015
  • Supports desktop, wall, cantilever, boom and recessed mounting
tpc-w2 industrial monitor features image

Quick Inquiry
Touchthink Medical M Series Andriod RK3288 All-In-One Panel PC:
TPC101-AT








    Required fields are marked *, We’ll respond within 12 hours.

    Product View

    Adopt a higher standard LCD screen and a high-precision touch screen. The fuselage is made of aluminum alloy structure. The fully enclosed fanless design scheme is specially designed for complex medical environment, which
    can ensure long-term stable operation under complex medical conditions; All products have obtained medical test reports such as EMI, ESD, safety regulations, pulse group, emission radiation, etc

    tpc101 a2
    tpc101 a2
    tpc101 a2
    tpc101 a2
    tpc101 a2

    General Info
    ManufacturerTouth Think
    Product Manualpdf iconTPC101-AT.pdf
    Screen Size10.1 inch
    Hardware Configuration
    CPURK3288, Cortex-A17 quad-core, 1.8GHz
    Memory2GB DDR3 (Optional: 4GB/8GB)
    Storage16GB eMMC (Optional: 32GB/64GB)
    GPUMali-T764
    WiFiSupport WIFI
    BluetoothBluetooth 5.0
    Operating SystemAndroid 7.1/10.0/12.0/Linux4.4/Ubuntu18.04/20.04/Debian1.0
    Product Model
    Non-TouchTPC101-AT02
    Capacitive TouchTPC101-AT12
    Resistive TouchTPC101-AT22
    Physical Characteristics
    Overall Dimensions W267.5x H186.28x D61mm
    Size of opening W257.5x H176.28mm
    tpc101 m2 dimensions
    Interface Parameters
    Power interface1 2*Industrial terminals, Support 12V-36V wide voltage power supply
    Power interface2 1*DC2.1, Support 12V-36V wide voltage power supply
    USB 1*USB HOST，1*USB OTG
    Network interface 1*LAN, 10M/100M/1000M adaptive Ethernet
    SIM 1*SIM, Supporting various formats (Depending on 3G/4G module)
    VGA 1*VGA
    Audio Interface 1* Audio output, support audio output
    HDMI 1*HDMI, Supporting HDMI data output, Up to 4K
    TF Support TF expansion card (1*TF card slot)
    Reset key Support (1*UBOOT)
    tpc101 m2 interface
    Screen Parameters
    LCD Size10.1″ TFT LCD
    Resolution 800*1280
    Aspect Ratio 16:10
    Viewing Angle 85/85/85/85 (L/R/U/D)
    Colour 16.7M
    Brightness 300 cd/m2
    Contrast Ratio 1000:1
    Touch Parameters
    Touch Type Capacitive touch screenResistance touch screenNon-touch
    Touch Point10-point Touch ProjectionSingle Point/
    Transmittance≥88%≥78%≥92%
    Input ModeHandwriting or
    Capacitance pen    		Fingertip or stylus/
    Controller communicationUSBUSB/
    Reliability Parameters
    Working Temperature-10°C~60°C
    Storage Temperature-20°C~70°C
    Relative HumidityHumidity: 95% Non-Condensing
    Vibration ProtectionIEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
    Impact ProtectionIEC 60068-2-27, Half sine wave, Lasting for 11ms
    Product CertificationCCC/CE/FCC/EMC/CB/ROHS
    Waterproof GradeThe front panel reaches IP65 protection level
    Power Parameters
    Power inputDC 12V~36V
    Static power18W

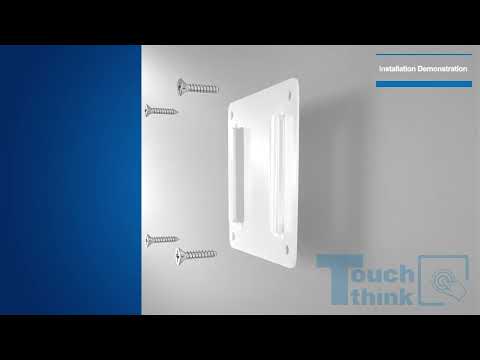

    Installation Method


    Packing List
    machine packing list
    Other Items
    Warranty3-Year
    ColorBlack(Silver Optional)
    After-sales ServiceCall Center and on-line Technical Support
    Place of OriginGuangdong, China
    ExpressUPS/DHL/Fedex/EMS,etc
    Delivery Time1-3 Working Days
    Packaging DetailsPacked in Standard EXPORT Cartons
    Delivery PortShenzhen/Hongkong
    CustomizationLogo,Packaging,Graphic
