Touchthink Medical S Series 10.1 Inch Vehicle Mounted Touch Screen Monitor
TPC101-M20
- Specially built for medical mobile equipment
- Self-developed display driver board, independent mold
- Industrial protection, adapting to various harsh environments
- Upgrade anti-interference internal layout, ESD up to: ± 8KV~± 15KV
- Anti-vibration, anti-interference, anti-static structure design
- Obtained medical industry test reports EN60601-1:2006, GB9706
Quick Inquiry
Touchthink Medical S Series 10.1 Inch Vehicle Mounted Touch Screen Monitor:
TPC101-M20
TPC101-M20
Required fields are marked *, We’ll respond within 12 hours.
Product View

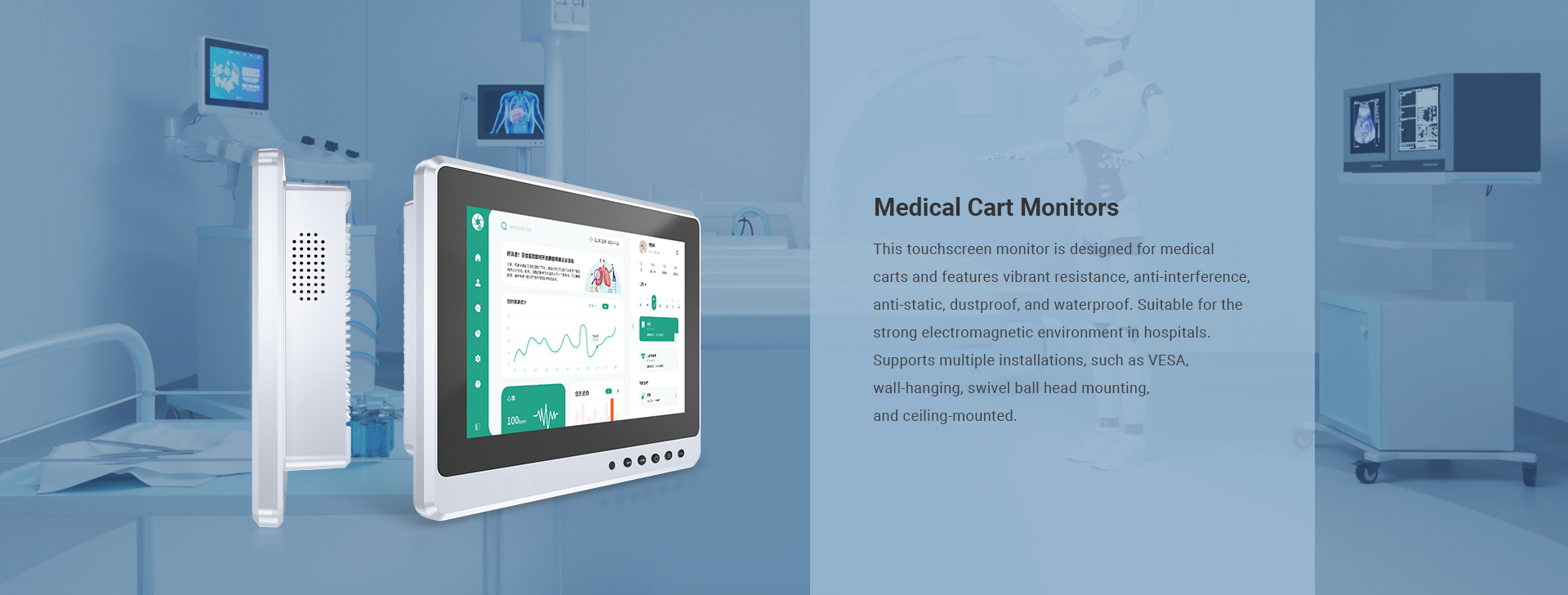

Medical vehicle series products are intelligent terminal series devices specially developed for complex medical environments. This series of products are made of aluminum alloy. The front panel is IP65 waterproof, the back
cover is dust-proof and the interface is waterproof. They are compact and durable. Capacitive touch screen, with the function of display key panel, makes the operation more intuitive; The shockproof structure layout inside the
fuselage is specially designed for the requirements of anti vibration, anti-interference, anti-static, radiation protection, waterproof and dust-proof of medical mobile carts. It is compatible with 99% medical industry software and
can meet various needs of medical mobile carts.
| General Info | |
|---|---|
| Manufacturer | Touth Think |
| Product Manual |  TPC101-M20.pdf |
| Screen Size | 10.1 inch |
| Hardware Configuration | |
|---|---|

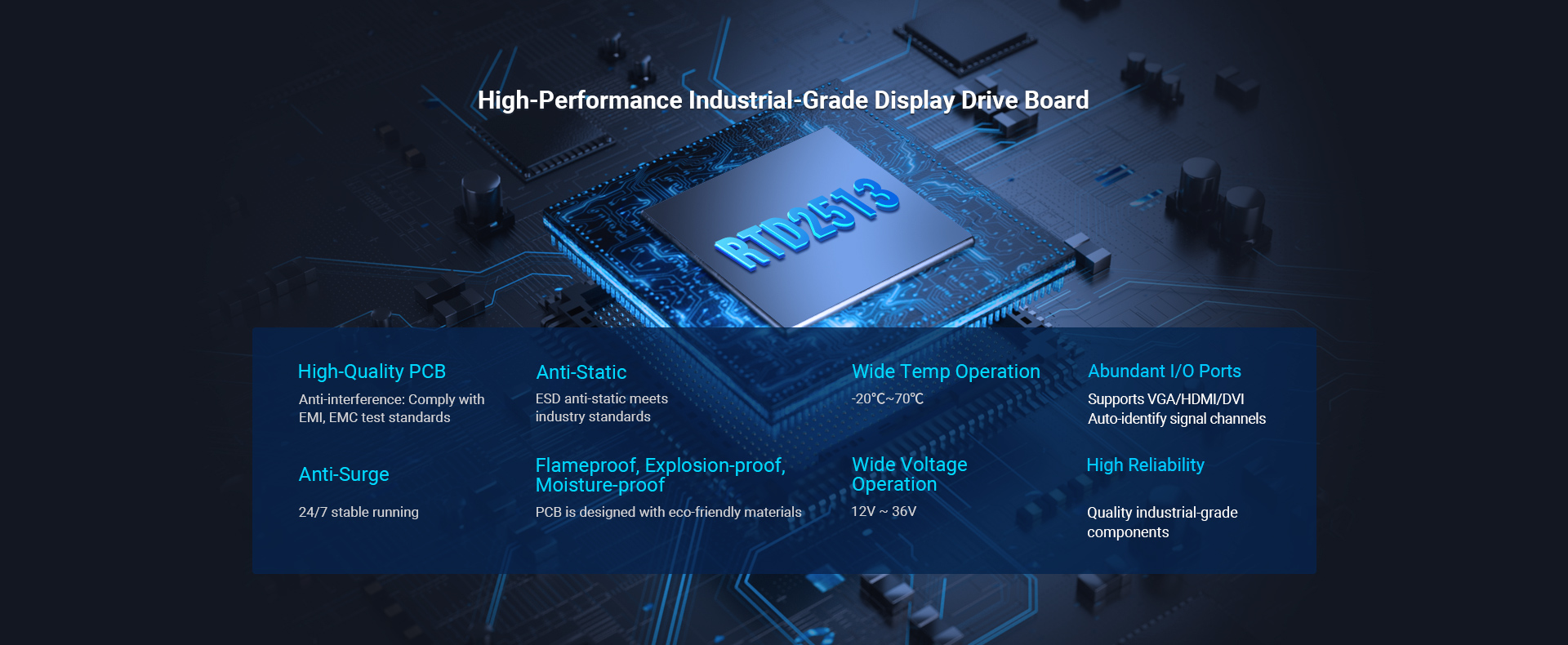

| CPU | RTD2513 |
| Key functions | Volume +, Volume -, Power on/off, Menu, Chanel |
| Menu language | Multi language (default Chinese) |
| Video input | PC-RGB:Format,Up to 1920*1080@60HZ PC-RGB:Color,16bit, 24bit, 32bit |
| Product Model | |
|---|---|
| Capacitive Touch | TPC101-M2012 |
| Physical Characteristics | |
|---|---|
| Overall Dimensions | W271.5x H209.3x D55mm |
| Interface Parameters | |
|---|---|
| DC | 1 * Waterproof aviation head (GX12-3 pin), Support 12V~36V wide voltage power supply |
| USB | 1 * Waterproof aviation head (GX12-4 pin) |
| VGA | 1 * Waterproof aviation head (GX20-15 pin) |
| Screen Parameters | |
|---|---|
| LCD Size | 10.1″ TFT LCD |
| Resolution | 800*1280 |
| Aspect Ratio | 16:10 |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Colour | 16.7M |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 1000:1 |
| Touch Parameters | |||
|---|---|---|---|
| Touch Type | Capacitive touch screen | Resistance touch screen | Non-touch |
| Touch Point | 10-point Touch Projection | Single Point | / |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input Mode | Handwriting or Capacitance pen | Fingertip or stylus | / |
| Controller communication | USB | USB | / |
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V~36V |
| Static power | 18W |
| Installation Method |
|---|
| Packing List |
|---|
| Other Items | |
|---|---|
| Warranty | 3-Year |
| Color | Black(Silver Optional) |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Logo,Packaging,Graphic |
